Uvod
The ET2 Lighting Dorian LED Wall Sconce is a modern, adjustable lighting fixture designed for various indoor applications such as bathrooms, hallways, and art lighting. It features a sleek design with rotating LED tubes for directional illumination, providing warm 3000K light with high color rendering (90 CRI).
Pomembna varnostna navodila
- Pred začetkom namestitve natančno preberite vsa navodila.
- Always turn off the electrical power at the circuit breaker or fuse box before installing, servicing, or cleaning this fixture.
- Če niste prepričani o postopku namestitve, se posvetujte s kvalificiranim električarjem.
- Naprave ne spreminjajte na noben način. Kakršne koli spremembe lahko razveljavijo garancijo in povzročijo varnostno tveganje.
- Ta napeljava je zasnovana samo za uporabo v zaprtih prostorih.
- Izogibajte se neposrednemu pogledu v LED svetlobni vir, ko je osvetljen.
Vsebina paketa
Pred začetkom namestitve preverite, ali so prisotne vse komponente:
- Dorian LED Wall Sconce (Model E21351-BK)
- Montažna oprema
Nastavitev in namestitev
Preden začnete
- Prepričajte se, da je napajanje območja namestitve izklopljeno z odklopnikom.
- Zberite potrebno orodje: izvijač, odstranjevalce izolacije, izolirni trak, zaščitna očala.
Montaža napeljave
- Previdno razpakirajte napravo in njene sestavne dele.
- Attach the mounting bracket to the electrical junction box using the provided screws. Ensure it is securely fastened.
- Connect the fixture's electrical wires to the corresponding house wires: connect the black wire (Live) to the black wire, the white wire (Neutral) to the white wire, and the green or bare copper wire (Ground) to the ground wire. Secure connections with wire nuts and electrical tape.
- Previdno vstavite vse žice v razdelilno omarico.
- Align the fixture's backplate with the mounting bracket and secure it with the provided screws.

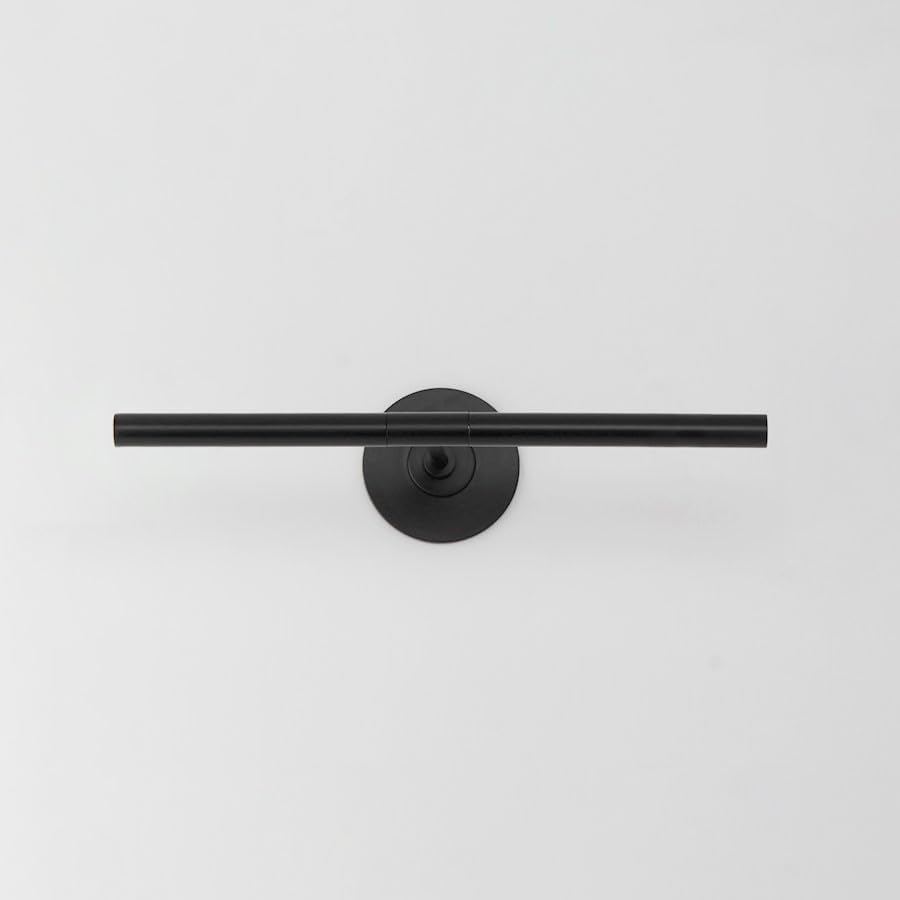

Figure 1: ET2 Dorian LED Wall Sconce (Model E21351-BK) - Front View.
Delovanje
Vklop/izklop
The ET2 Dorian LED Wall Sconce is operated by a standard wall switch connected to the fixture's electrical circuit.
Prilagoditev smeri svetlobe
The cylindrical LED tubes of the Dorian sconce can be rotated individually. Gently rotate the tubes to achieve the desired illumination angle. This feature allows for precise directional lighting, ideal for highlighting artwork, portraits, or providing focused task lighting.

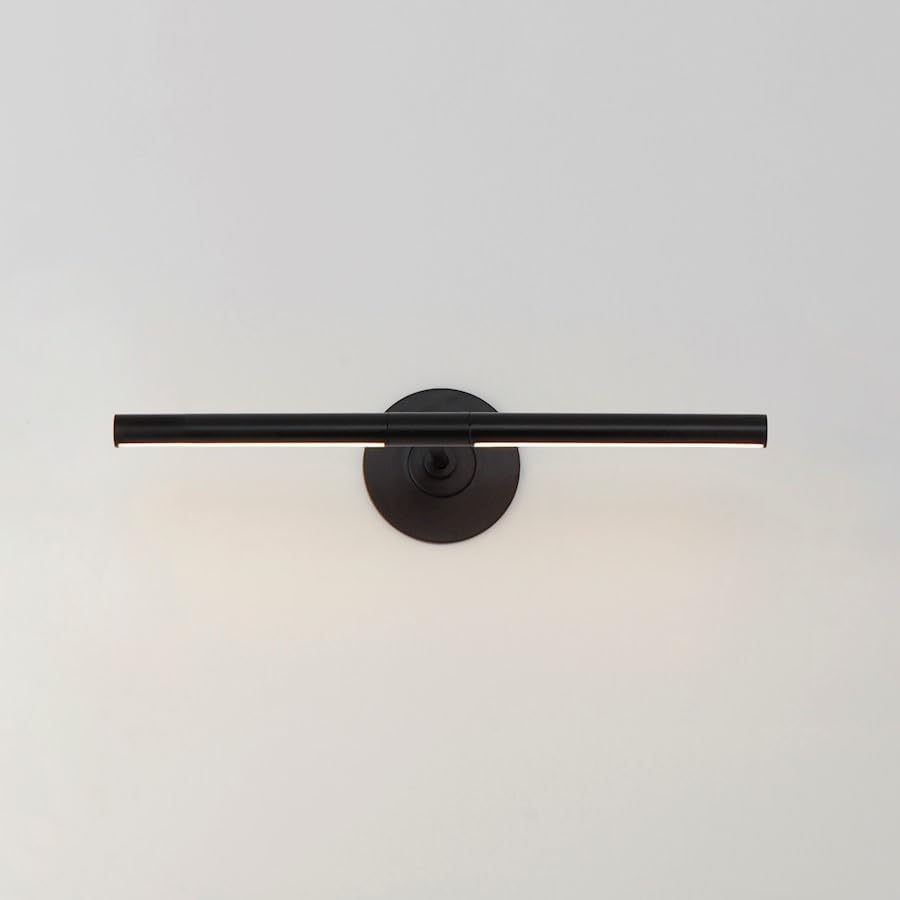

Figure 2: ET2 Dorian LED Wall Sconce with adjustable light tubes illuminated.
Nega in vzdrževanje
Čiščenje
To clean the fixture, ensure the power is off. Wipe the surface with a soft, dry, or slightly damp krpo. Ne uporabljajte abrazivnih čistil, topil ali loščil, saj lahko poškodujejo površino ali električne komponente.
Življenjska doba LED
The integrated LED light source in this fixture is designed for long-term performance and is not user-replaceable. If the LED light source fails, the entire fixture may need to be replaced.
Odpravljanje težav
| Težava | Možen vzrok | rešitev |
|---|---|---|
| Luč se ne vklopi. | Brez napajanja na napeljavo. Zrahljane žične povezave. Okvarjeno stensko stikalo. | Preverite odklopnik in se prepričajte, da je napajanje vklopljeno. Preverite, ali so vse žične povezave varne (najprej se prepričajte, da je napajanje izklopljeno). Stensko stikalo preizkusite z drugo napravo ali ga zamenjajte, če je okvarjeno. |
| Luč nepričakovano utripa ali se zatemni. | Zrahljane žične povezave. Nezdružljivo zatemnilno stikalo (če je primerno). | Ensure all wire connections are secure (ensure power is off first). If using a dimmer, ensure it is compatible with LED fixtures. Consult a qualified electrician. |
Specifikacije izdelka
| Znamka: | ET2 |
| Številka modela: | E21351-BK |
| Material: | Akril, aluminij |
| barva: | Črna |
| Dimenzije (D x Š x V): | 19 cm D x 1 cm Š x 4 cm V |
| Teža artikla: | 2 funta |
| vir energije: | Električni na kabel |
| Notranja/zunanja uporaba: | Notranja |
| Vir svetlobe: | Integrirana LED |
| Barvna temperatura: | 3000K |
| Indeks barvnega upodabljanja (CRI): | 90 |
Informacije o garanciji
This ET2 Lighting product is covered by a 2-year manufacturer's warranty from the original date of purchase. This warranty covers defects in materials and workmanship under normal use. Please retain your proof of purchase for warranty claims.
Podpora uporabnikom
For technical assistance, replacement parts, or warranty inquiries, please contact ET2 Lighting customer service. Refer to the product model number (E21351-BK) when contacting support.
