1. Uvod
Thank you for choosing the FLEXISPOT XS4 Power Reclining Loveseat Sofa. This manual provides essential information for the safe and efficient use of your new furniture. Please read these instructions carefully before assembly and operation, and retain them for future reference.
2. Izdelek je končanview & Lastnosti
The FLEXISPOT XS4 is a versatile power reclining loveseat designed for comfort and convenience. Key features include:
- Električno nagibanje: Effortlessly adjust your seating position with integrated controls.
- Način breztežnosti: Recline to a position that elevates your legs, promoting spinal support and improved circulation.
- Massage & Heat Function: Enjoy an 8-point vibration massage targeting the back, thighs, and legs, complemented by a lumbar heating feature. Choose from 3 intensity levels.
- Foldable Center Console: A convenient center backrest folds down to reveal a console table with dual cup holders and built-in USB & Type-C charging ports.
- Vzdržljiva konstrukcija: Designed with a reinforced frame and plush chenille upholstery for lasting support and comfort.
Slika 2.1: Na splošno view of the FLEXISPOT XS4 Power Reclining Loveseat Sofa.
3. Varnostne informacije
- Ensure all power cords are properly connected and not pinched or damaged.
- Med delovanjem naj otroci in hišni ljubljenčki ne bodo v bližini gibljivih delov.
- Ne stojte na oporo za noge ali naslone za roke.
- Avoid placing heavy objects on the console table when folded down.
- Unplug the sofa from the power outlet before cleaning or if it will be unused for an extended period.
4. Navodila za montažo
Your FLEXISPOT XS4 sofa ships in 4 separate boxes. Please ensure all boxes have arrived before beginning assembly. Assembly is required.
- Unpack all components from the boxes and lay them out on a clean, soft surface to prevent damage.
- Connect the backrests to the seat bases by aligning the metal brackets and sliding them into place until they lock securely.
- Attach the side armrests to the main body, ensuring a firm connection.
- Connect all electrical cables for the power recline, massage, and heat functions. Refer to the labels on the cables for correct connections.
- Plug the main power cord into a suitable wall outlet.

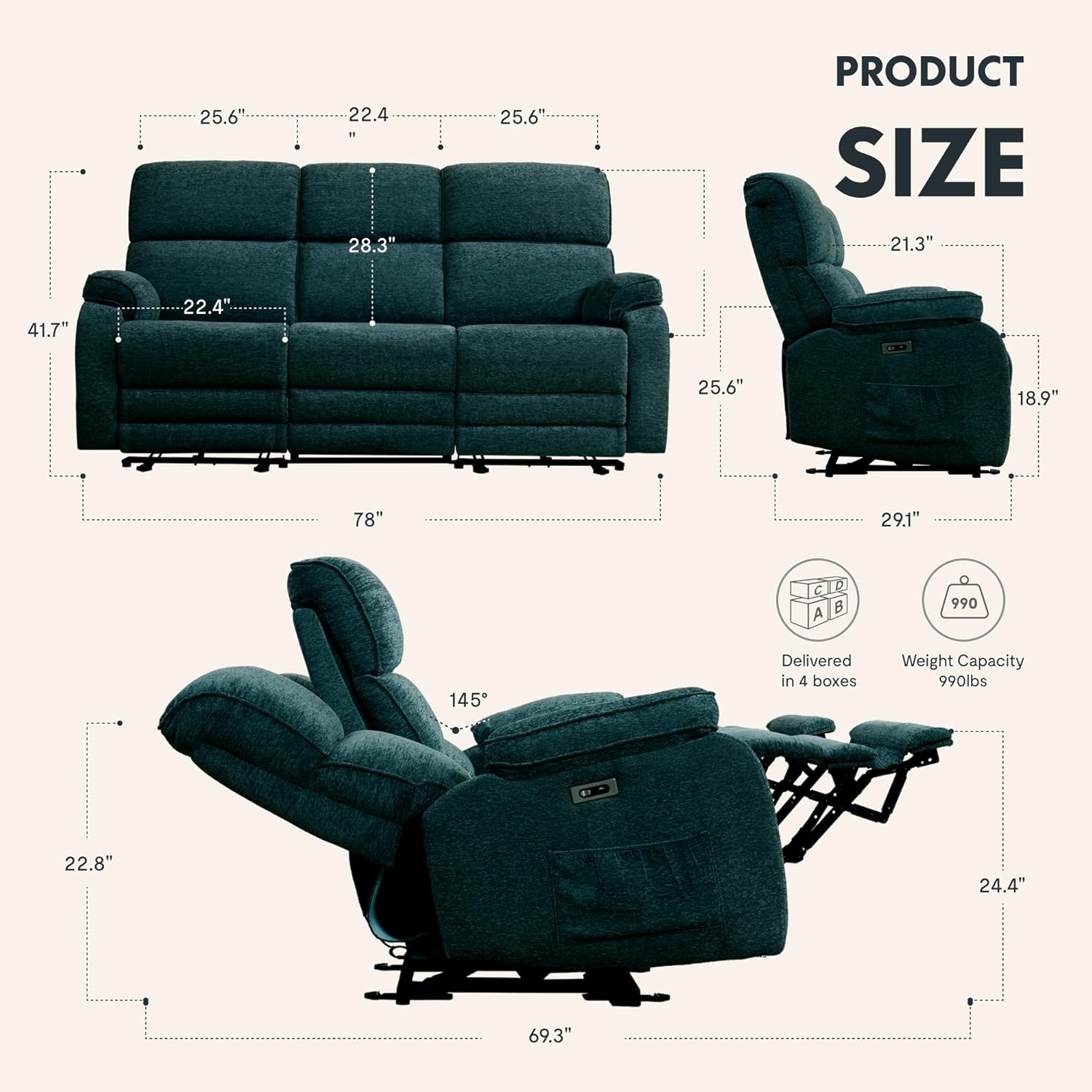

Figure 4.1: Product dimensions for assembly planning. Overall dimensions: 78"W x 29.1"D x 41.7"H.
5. Navodila za uporabo
5.1 Power Recline
Each seating position features independent power recline controls located on the side of the armrest. Use the buttons to smoothly adjust the backrest and footrest to your desired angle.
Figure 5.1: Power recline buttons for adjusting seating position.
5.2 Zero Gravity Mode
To activate the zero gravity position, continue pressing the recline button until the sofa reaches its maximum recline, elevating your legs above your heart. This position helps to relieve pressure on the spine and improve circulation.
Figure 5.2: The sofa fully reclined into the zero gravity position.
5.3 Funkciji masaže in ogrevanja
The sofa includes an 8-point vibration massage system and a lumbar heating feature. Use the wired remote control to select from 3 massage intensity levels and activate the heat function for targeted comfort.
Figure 5.3: Illustration of massage nodes and heat zones.
5.4 Center Console and Charging Ports
The middle backrest can be folded down to create a console table. This console includes two cup holders and integrated USB and Type-C charging ports to keep your devices powered.
Figure 5.4: Foldable center console with cup holders.
Figure 5.5: USB and Type-C charging ports for device convenience.
5.5 Uradni videoposnetek izdelka
Video 5.1: Official product video demonstrating the features and functionality of the FLEXISPOT XS4 Power Reclining Sofa.
6. Nega in vzdrževanje
The chenille upholstery of your FLEXISPOT XS4 sofa is designed for easy cleaning.
- Redno sesajte kavč z mehko krtačo, da odstranite prah in umazanijo.
- Razlitje takoj popivnajte s čisto, suho krpo. Izogibajte se drgnjenju, saj lahko to madež razširi.
- For deeper cleaning, use a mild fabric cleaner specifically designed for chenille upholstery. Test on an inconspicuous area first.
- Izogibajte se neposredni sončni svetlobi, da preprečite bledenje.
7. Odpravljanje težav
- Sofa not reclining: Check if the power cord is securely plugged into the wall outlet and the sofa's power input. Ensure all internal electrical connections are firm.
- Masaža/ogrevanje ne deluje: Verify the remote control is properly connected and the sofa is powered.
- Charging ports not working: Ensure the sofa is powered and the device's charging cable is fully inserted into the USB/Type-C port.
- Če težave vztrajajo, se obrnite na podporo strankam.
8. Specifikacije
| Funkcija | Podrobnost |
|---|---|
| Znamka | FLEXISPOT |
| Model | XS4 |
| Mere izdelka (D x Š x V) | 29.1 cm x 78 cm x 41.7 cm |
| Dolžina v nagnjenem položaju | 69 palcev |
| Globina sedeža | 21.3 palcev |
| Višina sedeža | 18.9 palcev |
| Omejitev teže | 990 funta |
| Kapaciteta sedežev | 3 |
| Vrsta oblazinjenega blaga | Ženilja |
| Vrsta materiala okvirja | Les |
| Zahtevana montaža | ja |
| Number of Pieces Shipped | 4 |
9. Garancija in podpora
For warranty information or technical support, please contact FLEXISPOT customer service:
- E-pošta: contact@flexispot.com
- telefon: +1 (855) 585-5618
A 3-Year Protection Plan may be available for purchase. Please refer to your purchase documentation for details.
Returns/exchanges are typically accepted within 30 days of receipt. Please consult your retailer's return policy.
