1. Uvod in konecview
This manual provides essential instructions for the safe and efficient operation, installation, and maintenance of your SOOPYK SOBY530-2 Self-Cleaning Bottom Load Water Cooler Dispenser. This appliance is designed to provide hot, cold, and room temperature water from a 3 or 5-gallon bottle.
Key features include a convenient bottom-loading design, a self-cleaning UV light system, three temperature settings, an empty bottle alert, a nightlight, and a child safety lock for hot water dispensing.
Image: The SOOPYK water cooler dispenser in a home environment, highlighting its sleek design.
2. Varnostna navodila
Pred uporabo naprave natančno preberite vsa varnostna navodila, da preprečite poškodbe ali škodo.
- Always place the dispenser on a flat, stable surface.
- Prepričajte se, da napajalni kabel ni preščipnjen ali poškodovan.
- Do not operate the dispenser if it has been damaged in any way.
- Keep children away from the hot water dispenser spout. The child safety lock must always be engaged when not in use.
- Dozirnika, kabla ali vtiča ne potapljajte v vodo ali druge tekočine.
- Pred čiščenjem ali kakršnim koli vzdrževanjem izključite dozirnik iz električnega omrežja.
- Ta naprava je samo za uporabo v zaprtih prostorih.
3. Nastavitev
- Razpakiranje: Previdno vzemite dozirnik iz embalaže. Embalažo shranite za kasnejši transport ali shranjevanje.
- Umestitev: Place the dispenser upright on a level, sturdy surface. Ensure there is at least 4 inches of clearance from the back and sides to allow for proper ventilation. Avoid direct sunlight or heat sources.
- Namestitev steklenice za vodo:
- Odprite spodnja vrata omare.
- Odstranite pokrovček z nove 3- ali 5-galonske steklenice za vodo.
- Insert the stainless steel wand into the water bottle opening. Ensure the cap on the wand assembly is securely placed on the bottle neck.
- Slide the water bottle into the cabinet.
- Zaprite vrata omare.
Image: A 5-gallon water bottle being placed into the bottom-loading compartment.
- Napajalni priključek: Dozirnik priključite v ozemljeno električno vtičnico.
- Začetno nanašanje: Before turning on the heating or cooling functions, dispense water from all three spouts (hot, room, cold) until water flows steadily. This ensures the tanks are filled and prevents damage to heating elements.
- Aktiviranje ogrevanja/hlajenja: Locate the power switches on the back of the unit. Turn on the switches for heating and cooling as desired. Allow approximately 15-30 minutes for water to reach optimal temperatures.
Image: Close-up of the ON/OFF switches for heating and cooling on the back of the dispenser.
4. Navodila za uporabo
Your SOOPYK water cooler offers three temperature options and user-friendly indicators.
- Točenje vode:
- Place your cup or container under the desired spout.
- For cold or room temperature water, press the corresponding paddle.
- For hot water, first press and hold the child safety lock button (usually located above the hot water spout), then press the hot water paddle. Release both to stop dispensing.
Image: Front panel of the water cooler showing the dispensing paddles and child safety lock.
- LED indikatorji: The control panel features LED lights to indicate the status of the dispenser:
- Indikator ogrevanja: Illuminates when the hot water is heating.
- Chilling Indicator: Illuminates when the cold water is chilling.
- Empty Bottle Alert: Illuminates when the water bottle in the lower cabinet is empty and needs replacement.
Image: Close-up of the LED display showing heating, chilling, and empty bottle indicators.
- Funkcija nočne luči: The dispenser includes a nightlight to illuminate the dispensing area, making it easier to use in low-light conditions and providing visibility for the drip tray.
- Varnostna ključavnica za otroke: The hot water spout is equipped with a child safety lock to prevent accidental dispensing of hot water. Always ensure this lock is engaged.
5. Samočistilna funkcija
The SOOPYK water cooler incorporates a built-in UV light purification system. This UV light continuously purifies the water to help prevent the growth of harmful substances, ensuring cleaner drinking water. This feature operates automatically as long as the machine is plugged in; there is no specific self-cleaning button or indicator to activate it manually.

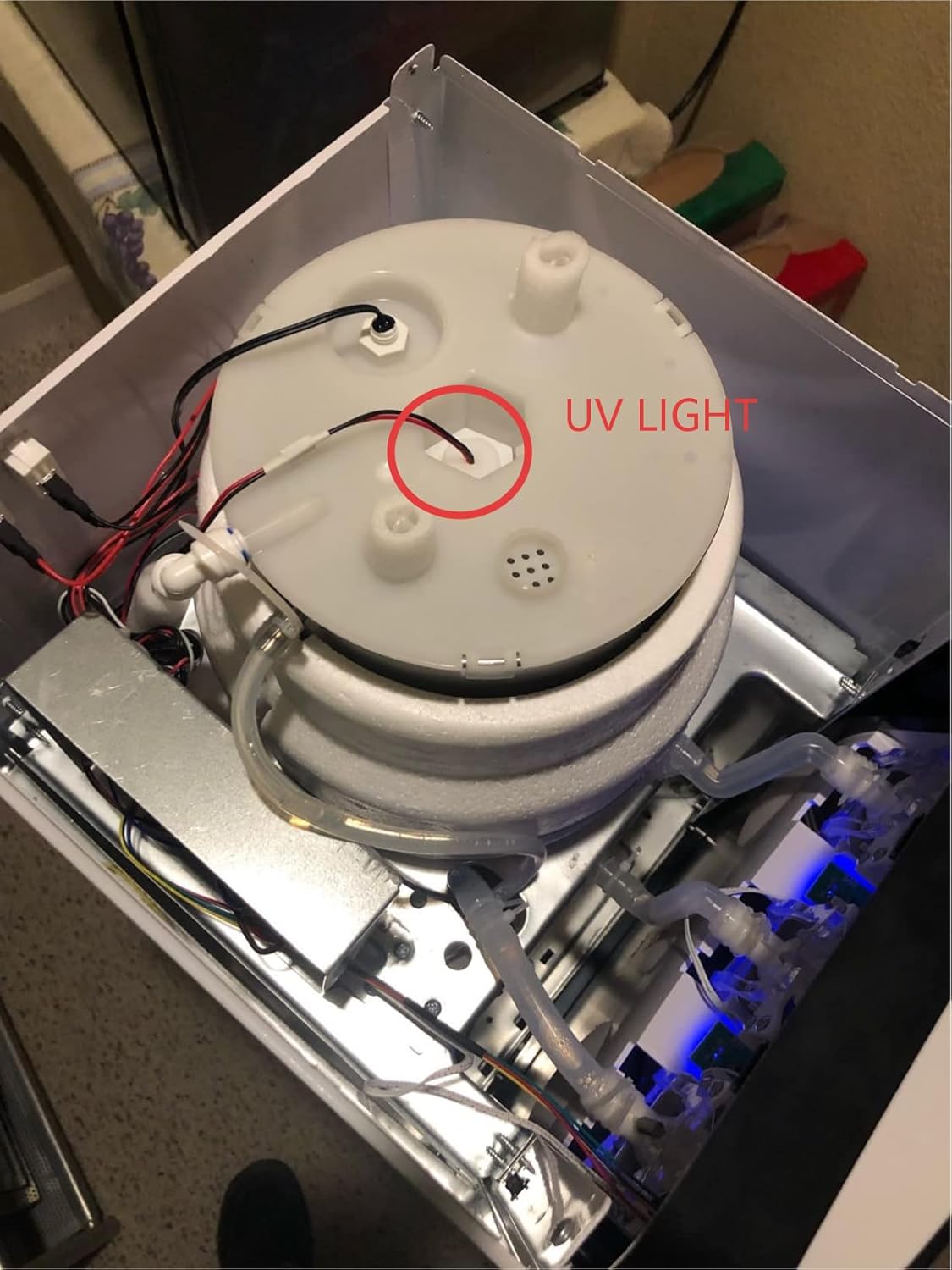

Image: Diagram showing the UV light purification system inside the water cooler.
6. Vzdrževanje
Redno vzdrževanje zagotavlja optimalno delovanje in dolgo življenjsko dobo vašega hladilnika vode.
- Čiščenje pladnja za kapljanje: The removable drip tray should be emptied and cleaned regularly to prevent overflow and maintain hygiene. Simply slide it out, empty, wash with mild soap and water, rinse thoroughly, and replace.
- Čiščenje zunanjosti: Wipe the exterior surfaces of the dispenser with a soft, damp krpo. Ne uporabljajte abrazivnih čistil ali topil.
- Stainless Steel Wand: The stainless steel wand that goes into the water bottle is designed for durability and hygiene. Ensure it remains clean when changing bottles.
- Internal Cleaning (Professional): For thorough internal cleaning beyond the UV self-cleaning, professional servicing is recommended periodically.
Image: The removable drip tray of the water cooler.
7. Odpravljanje težav
If you encounter any issues with your water cooler, please refer to the following common problems and solutions:
| Težava | Možen vzrok | rešitev |
|---|---|---|
| Brez točenja vode | Empty water bottle; dispenser not primed; pump issue. | Replace water bottle; ensure all spouts are primed; contact support if pump fails. |
| Voda ni dovolj vroča/hladna | Heating/cooling switch off; insufficient time to reach temperature; poor ventilation. | Ensure switches are ON; allow 15-30 mins; check for proper clearance around unit. |
| Vroča voda se ne toči | Child safety lock not engaged correctly. | Press and hold the child safety lock button simultaneously with the hot water paddle. |
| Puščanje vode | Improper bottle installation; damaged bottle; loose connections. | Re-seat bottle and wand; check bottle for cracks; inspect connections. |
Če težava po poskusu teh rešitev še vedno obstaja, se obrnite na podporo strankam.
8. Specifikacije
Detailed technical specifications for the SOOPYK SOBY530-2 water cooler dispenser:
| Funkcija | Specifikacija |
|---|---|
| Številka modela | SOBY530-2 |
| barva | Bela |
| Material | Nerjaveče jeklo |
| Zmogljivost | 3 or 5 Gallons (bottle not included) |
| Mere izdelka (D x Š x V) | 12"D x 15"Š x 43"V |
| Teža predmeta | 38 funtov |
| Vir napajanja | Corded Electric (115V~/60Hz) |
| Moč ogrevanja | 500 W |
| Moč hlajenja | 85 W |
| Temperatura ogrevanja | ≥ 194°F |
| Temperatura hlajenja | ≤ 50°F |
| Kapaciteta rezervoarja za toplo vodo | 1L |
| Kapaciteta rezervoarja za hladno vodo | 3L |
| Relativna vlažnost | ≤ 90 % |

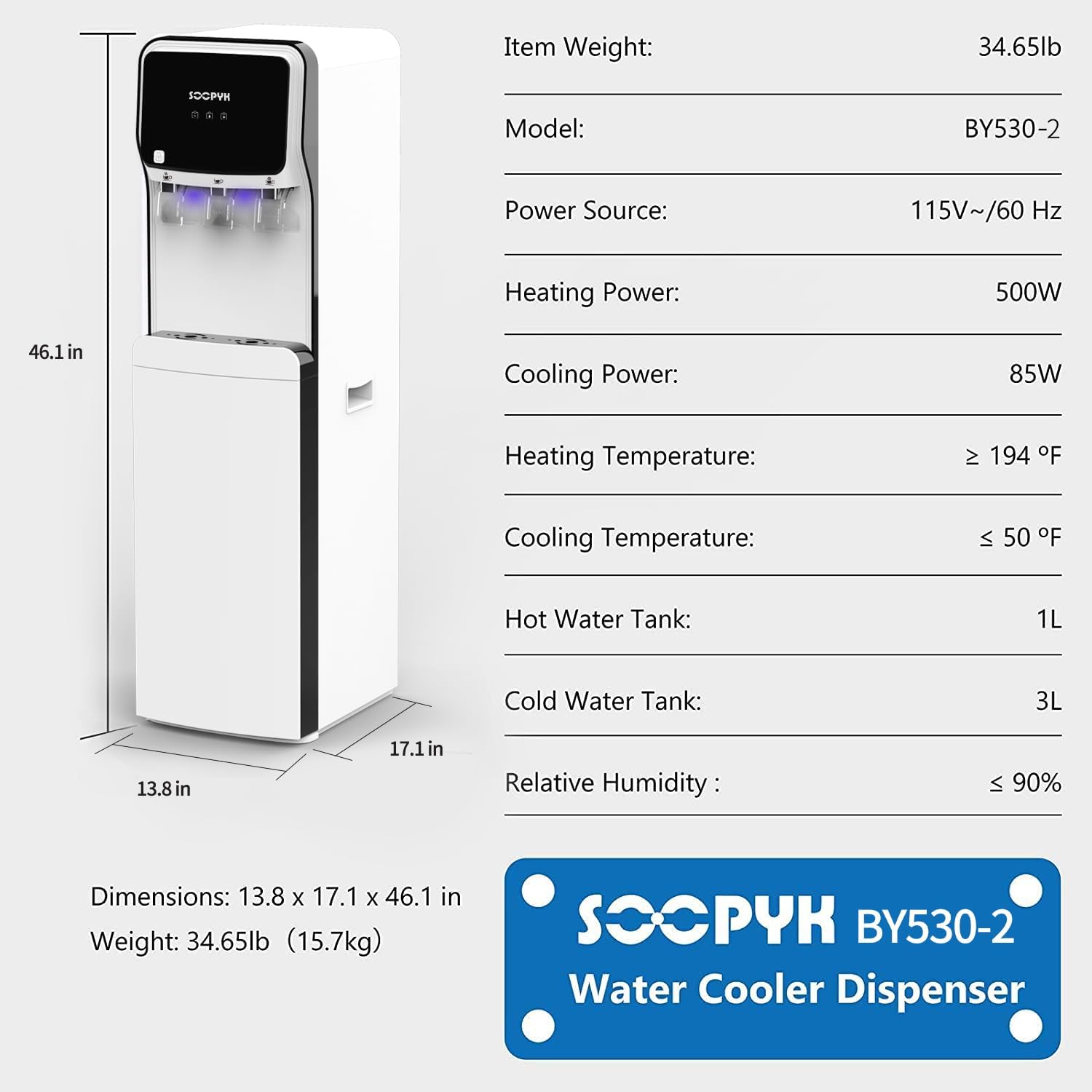

Image: Visual representation of the water cooler's dimensions and specifications.
9. Garancija in podpora
Your SOOPYK water cooler dispenser is backed by a 1-letna garancijaPoleg tega, a Politika 30-dnevnega vračila is available. For any problems or inquiries regarding your water cooler, please contact SOOPYK customer support.
10. Videoposnetek izdelka
Watch the official product video for a visual guide to the SOOPYK water cooler dispenser.
