1. Varnostne informacije
Please read all safety instructions carefully before installation, operation, or maintenance of this appliance. Failure to follow these instructions could result in property damage, personal injury, or death.
- Profesionalna namestitev: Installation must be performed by a qualified and licensed professional in accordance with all local and national codes and regulations.
- Oskrba s plinom: Ensure the correct type of gas (Natural Gas) is supplied to the unit. Verify gas pressure is within specified limits.
- Prezračevanje: This is an outdoor unit. Ensure proper clearance from combustible materials and adequate air circulation as per installation guidelines.
- Odvajanje vode: In cold outdoor conditions, open the pressure relief valve to drain any remaining water from the unit to prevent freezing damage.
- Elevation Restriction: Not recommended for installation above 2,000 feet elevation.
- Preverjanje puščanja: After installation, thoroughly check all gas and water connections for leaks.
- Električna ozemljitev: Za preprečitev električnega udara se prepričajte, da je enota pravilno ozemljena.
- Zaščita izdelka: This unit features 8 types of security protection, including flame out protection, overheating protection, dry burning protection, over temperature protection, timeout protection, pipe blockage protection, high temperature lock protection, and excessive air pressure protection.
Image: The Ranein tankless water heater includes 2 years of service and 8 types of security protection for enhanced safety.
2. Izdelek je končanview
The Ranein 2025 GEN II Natural Gas Tankless Water Heater provides on-demand hot water with high efficiency. Designed for outdoor installation, this unit delivers a maximum flow rate of 5.3 Gallons Per Minute (GPM) and a heat output of 130,000 British Thermal Units (BTU), suitable for 3-5 taps in residential settings.

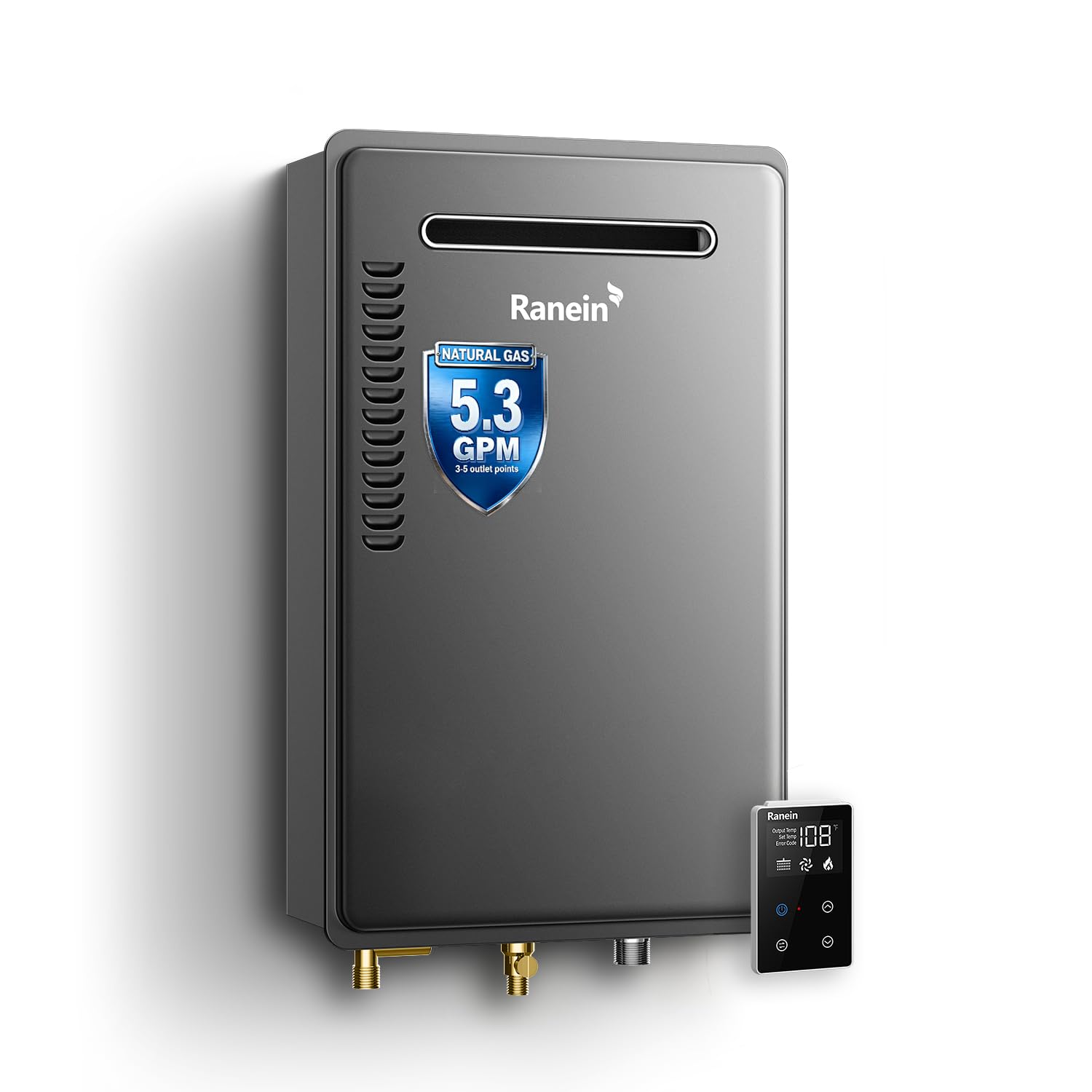

Slika: spredaj view of the Ranein 2025 GEN II Natural Gas Tankless Water Heater.
Ključne značilnosti:
- High-Efficiency Endless Hot Water: Max 5.3 GPM and 130,000 BTU, supporting 3-5 taps for various household needs.
- Enakomerna temperatura: Advanced technology maintains stable water temperature by auto-adjusting flow and heat.
- Zmogljiv puhalnik: Bottom-mounted blower prevents smoke backflow and adapts speed for full gas combustion, ensuring safety and low noise.
- Varčevanje z energijo: Oxygen-free copper tank reduces heat loss; heats water on demand, eliminating standby waste.
- Dizajn, ki prihrani prostor: Compact outdoor wall-mount unit with 1/2" NPT water and 3/4" NPT air inlets for quick installation.
Slika: Podrobna view of the water heater showing dimensions (14.2"W x 23.2"H), water pressure range (0.025~0.8MPa), gas pressure (2,800Pa/2,000Pa), rated voltage (AC110V/60Hz), temperature rise range (95°F-149°F), and connection sizes (Water Outlet: 1/2" NPT, Water Inlet: 1/2" NPT, Gas Inlet: 3/4" NPT).
Image: Illustration showing the Ranein tankless water heater's suitability for single-family homes and townhouses, highlighting its 5.3 GPM, 130,000 BTU capacity for 3-5 points of use.
3. Namestitev
Proper installation is critical for the safe and efficient operation of your Ranein tankless water heater. Refer to the detailed installation guide included with your product for specific instructions. The following provides a general overview and highlights key steps.
Koraki namestitveview:
- Določite lokacijo: Choose an appropriate outdoor location, ensuring adequate clearance from windows, doors, and other structures.
- Montažna predloga: Use the provided quick installation guide as a template to mark drilling points on the wall.
- Vrtanje lukenj: Drill holes at the marked locations using an impact drill. Insert plastic ribbed anchors into the holes.
- Montažna enota: Securely mount the water heater to the wall using the provided screws and mounting bracket.
- Connect Exhaust Pipe: Attach the flexible exhaust pipe to the top of the unit and extend it horizontally away from the wall.
- Priključki za vodo: Connect the hot water outlet and cold water inlet pipes to the corresponding ports on the unit. Ensure all connections are sealed with plumber's tape and tightened securely.
- Plinski priključek: Connect the natural gas supply line to the gas inlet port. Use gas-rated plumber's tape and ensure a tight, leak-free connection.
- Električna povezava: Priključite enoto v ozemljeno električno vtičnico.
- Preverjanje puščanja: After all connections are made, open the water and gas supply valves and check for any leaks using a soapy water solution on gas connections.
Video: This video demonstrates the general installation process for Ranein Gas Tankless Water Heaters, including wall mounting, pipe connections, and securing the unit.
Premisleki na prostem:
This unit is designed for outdoor use and features anti-freeze protection. However, in extremely cold conditions, it is crucial to drain the unit to prevent damage.
Image: Illustration of the water heater's internal anti-freeze unit, designed to protect against low temperatures. Note: Drain tank fully below -10°F (-23°C) for best protection.
Image: The Ranein water heater is designed for outdoor use with IPX4 waterproof and 10 Gale windproof ratings, preventing smoke backflow and protecting internals from rain/splash.
4. Navodila za uporabo
Your Ranein tankless water heater features an intuitive LED temperature control panel for easy operation.
Funkcije nadzorne plošče:
- Vklop/izklop: Pritisnite gumb za vklop, da vklopite ali izklopite enoto.
- Prilagoditev temperature: Use the 'Up' and 'Down' arrows to set your desired water temperature. The LED display shows the current and set temperatures.
- Indikator temperature: Displays temperature in Celsius (°C) or Fahrenheit (°F).
- Indikatorji signala: Icons for water signal, fan signal, and flame signal provide operational status.
- Prikaz kode napake: In case of a malfunction, an error code will be displayed. Refer to the troubleshooting section for guidance.
Image: Close-up of the LED control panel showing output temperature, set temperature, error code, and control buttons for power, temperature up/down, and fan/flame signals.
Indoor Touch Panel (Optional):
An optional indoor touch panel allows you to control the water heater from anywhere indoors, with a cable length of up to 50 feet.
Image: A user interacting with the indoor touch panel to pre-adjust water temperature, demonstrating indoor control and the 50ft cable length.
5. Vzdrževanje
Redno vzdrževanje zagotavlja dolgo življenjsko dobo in optimalno delovanje vašega pretočnega grelnika vode Ranein.
- Odstranjevanje vodnega kamna: Periodically descale the unit to remove mineral buildup, especially in areas with hard water. Follow the descaling procedure outlined in the full user manual.
- Čiščenje filtra: Check and clean the water inlet filter regularly to prevent debris from entering the unit.
- Zunanje čiščenje: Zunanjost enote naj bo čista in brez ovir.
- Winterization (Cold Climates): In regions prone to freezing temperatures, ensure the unit is properly drained if it will be exposed to temperatures below -10°F (-23°C) or if it will be inactive for an extended period. Open the pressure relief valve to drain all water.
- Strokovni pregled: It is recommended to have a qualified technician inspect the unit annually to ensure all components are functioning correctly.
6. Odpravljanje težav
If you encounter issues with your water heater, refer to the following common troubleshooting tips. For specific error codes displayed on the control panel, consult the comprehensive troubleshooting section in your full user manual.
- Brez tople vode: Check if the unit is powered on, gas supply is open, and water supply is active. Ensure the set temperature is appropriate.
- Fluctuating Temperature: Verify that the water flow rate is within the unit's operating range. Check for mineral buildup that might affect heat exchange.
- Nizek vodni tlak: Inspect the water inlet filter for clogs. Ensure all water valves are fully open.
- Enota se ne vžge: Confirm gas supply is open and there are no gas leaks. Check for proper electrical connection.
- Kode napak: If an error code appears on the LED display, note the code and refer to the detailed troubleshooting guide in the main manual or contact customer support.
If problems persist after attempting these steps, please contact Ranein customer support for assistance.
7. Specifikacije
Detailed technical specifications for the Ranein 2025 GEN II Natural Gas Tankless Water Heater (Model RHO13K-NG).
| Znamka | Ranein |
| Številka modela | RHO13K-NG |
| Dimenzije izdelka | 14.2 cm Š x 23.2 cm V |
| Vir napajanja | Zemeljski plin |
| Največji pretok | 5.3 galon na minuto (GPM) |
| Toplotna moč | 130,000 britanskih toplotnih enot (BTU) |
| voltage | 120 volta |
| Učinkovitost | Visoka učinkovitost |
| Najvišji delovni tlak | 150 funta na kvadratni palec (PSI) |
| Vrsta namestitve | stena |
| Teža predmeta | 34 funtov |
| Posebna funkcija | LED zaslon |
| Vključene komponente | Assembly Kit x1, Manual x1, Tankless Water Heater x1 |
Image: A selection guide for Ranein gas water heaters, showing different GPM and BTU ratings and their corresponding outlet points. This model (5.3 GPM, 130,000 BTU) is suitable for 3-5 outlet points.
8. Garancija in podpora
Ranein je zavezan k zagotavljanju zanesljivih izdelkov in odlični storitvi za stranke.
Informacije o garanciji:
- Ta izdelek je opremljen z 2-letna garancija proizvajalca proti proizvodnim napakam.
Podpora strankam:
For any questions, installation guidance, product consultation, or issues, please contact Ranein customer support:
- E-pošta: service@ranein.net
- Telefon (ZDA): (424) 452-2630
Image: Ranein Service Support details, including comprehensive product problem-solving, 2-year warranty, and after-sales contact information.
