MAIMEIMI Universal Motorcycle Digital Speedometer Gauge

1. Izdelek je končanview

The MAIMEIMI Universal Motorcycle Digital Speedometer Gauge is a multi-functional instrument designed for motorcycles. It provides real-time data including speed, engine RPM, gear indication, odometer readings, oil level, and steering indicators. This gauge cluster offers integrated data monitoring for various riding conditions.

Slika 1.1: Spredaj view of the MAIMEIMI Universal Motorcycle Digital Speedometer Gauge.

Ključne značilnosti:

• Integrirani zaslon: Shows speed, tachometer (RPM), 1-6 gear indicator, odometer (ODO/TRIP), oil level, and steering indicators.
• Adjustable Tire Size: Compatible with various tire sizes, adjustable from 40" to 118".
• Wide Speed Range: Speed display range of 0-199 MPH.
• Obseg merilnika vrtljajev: 0-12 (x1000r/min).
• Sledenje kilometrine: Cumulative mileage (ODO) 0-999999 KM/MILES, subtotal mileage (TRIP) 0.0-999.9 KM/MILES.
• Alarm nizkega olja: Flashing outer frame and indicator light when oil level is below the alarm value.
• Vodotesna zasnova: Constructed from high-quality ABS material with an epoxy resin sealed LCD screen for clear visibility in various weather conditions.
• Univerzalna združljivost: Suitable for most 1/2 cylinder motorcycle engines with a 12V DC voltage sistem.

Image 1.2: The speedometer installed on a motorcycle, showing its integration.

2. Vsebina paketa

Preverite, ali so v vašem paketu priloženi vsi spodaj navedeni elementi:

• 1 x Motorcycle Speedometer
• 1 x Speed Sensor
• 1 x nosilec
• 1 x Installation Instruction (Electronic version available upon request)

3. Tehnične specifikacije

Image 3.1: Detailed dimensions of the speedometer gauge.

4. Nastavitev in namestitev

Installation of the speedometer requires basic electrical knowledge. If you are unsure, consult a professional motorcycle mechanic.

4.1 Shema ožičenja

Refer to the following diagram for proper wiring connections. Ensure all connections are secure and insulated to prevent short circuits.

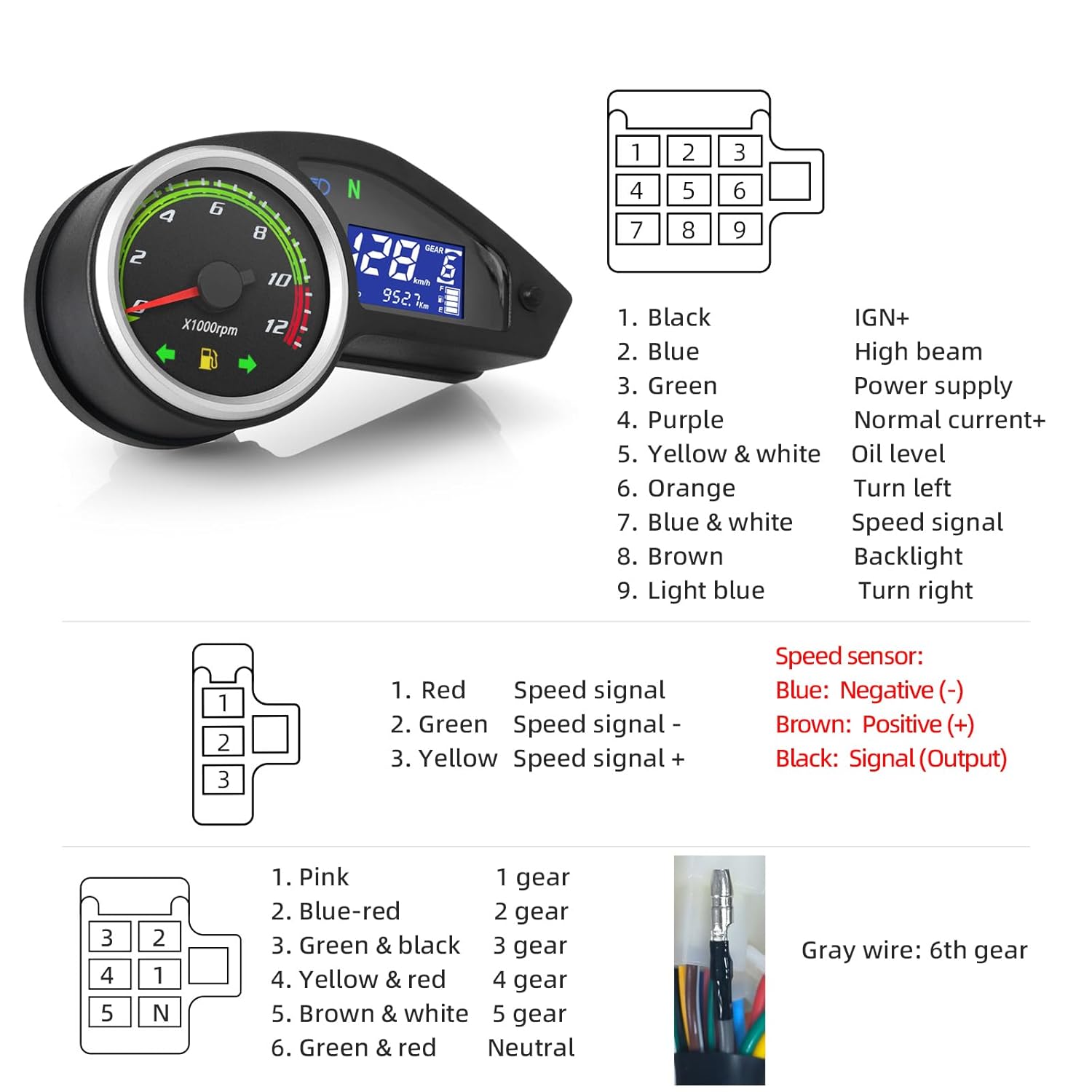

Image 4.1: Wiring connections for the speedometer and speed sensor.

Main Connector (9-pin):

• Črna: IGN+ (Ignition Positive)
• Modra: Dolge luči
• zelena: Power supply (Ground)
• Vijolična: Normal current+
• Yellow & White: Nivo olja
• Oranžna: Turn left signal
• Blue & White: Signal za hitrost
• Rjava: Osvetlitev ozadja
• Svetlo modra: Turn right signal

Speed Sensor Connector (3-pin):

• Rdeča: Speed signal +
• zelena: Speed signal -
• rumena: Speed signal +
• Črna: Signal (Output)

Gear Indicator Connector (6-pin):

• roza: 1. prestava
• Modro-rdeča: 2. prestava
• Green & Black: 3. prestava
• Yellow & Red: 4. prestava
• Brown & White: 5. prestava
• Green & Red: Nevtralno
• Siva žica: 6. prestava

4.2 Tire Circumference Adjustment

The speedometer's accuracy depends on correct tire circumference settings. The adjustable range is 40"-118". Consult your motorcycle's manual for the exact tire circumference or measure it accurately. The adjustment procedure is typically performed during initial setup via the button on the gauge.

5. Navodila za uporabo

5.1 Funkcije zaslona

The digital display provides comprehensive information at a glance:

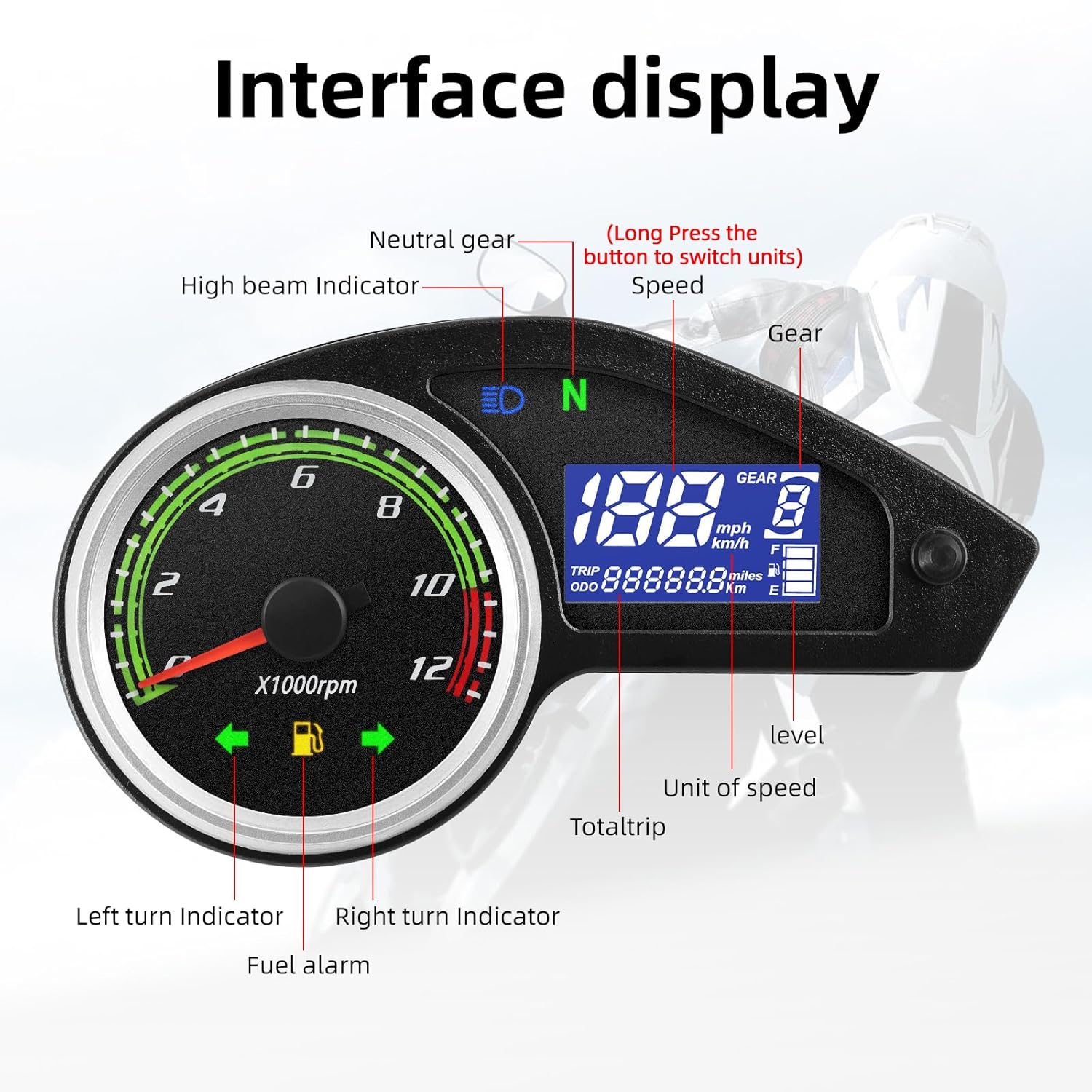

Image 5.1: Labeled interface display showing various indicators and readings.

• Hitrost: Digital display in MPH or KM/H.
• Tahometer: Analog dial (x1000 RPM) and digital display.
• Indikator prestave: Displays current gear (1-6) or Neutral (N).
• Števec kilometrov (ODO): Total accumulated mileage.
• Trip Meter (TRIP): Resettable mileage for individual trips.
• Raven olja: Bar graph indicator.
• Turn Indicators: Left and Right arrows illuminate.
• High Beam Indicator: Symbol illuminates when high beams are active.
• Neutral Gear Indicator: 'N' symbol illuminates when in neutral.
• Fuel Alarm: Flashing icon when fuel level is low.

5.2 Unit Switching and Display Modes

The single button on the gauge allows for switching between different display modes and units.

Image 5.2: Visual representation of unit and display mode switching.

• Switching Speed Units (MPH/KM/H): After the instrument panel is activated, press and hold the button for 3-5 seconds. The speed unit will automatically switch.
• Toggling Odometer/Trip Meter: A short press of the button will toggle between the ODO (cumulative mileage) and TRIP (subtotal mileage) readings.

5.3 Low Oil Alarm Function

The speedometer is equipped with a low oil alarm. If the oil level falls below a predetermined threshold, the outer frame of the digital display will flash, and the dedicated empty oil indicator light will illuminate to alert the rider.

Image 5.3: Display clarity in both daytime and nighttime conditions.

6. Nega in vzdrževanje

6.1 Waterproof Performance

The MAIMEIMI motorcycle speedometer is designed with good waterproof performance. The high-quality ABS material and epoxy resin sealed LCD screen allow for normal operation even in rainy weather. However, avoid prolonged submersion or high-pressure water jets directly on the unit.

Image 6.1: The speedometer demonstrating its waterproof capabilities.

6.2 Splošna nega

• Clean the display and housing with a soft, damp krpo.
• Do not use abrasive cleaners, solvents, or harsh chemicals, as these can damage the display or housing.
• Prepričajte se, da so vse povezave tesne in brez korozije.
• Periodically check the mounting bracket for security.

7. Odpravljanje težav

If you encounter issues with your speedometer, consider the following common troubleshooting steps:

• Brez napajanja/zaslona: Check all wiring connections, especially the power supply (Green wire for ground, Black wire for IGN+). Ensure the motorcycle's battery is charged and providing 12V DC.
• Nepravilno branje hitrosti: Verify the tire circumference setting is correct. Check the speed sensor wiring (Blue & White wire) and ensure the sensor is properly installed and functioning.
• Tachometer Not Working: Ensure the tachometer signal wire (if applicable and connected) is correctly wired.
• Gear Indicator Issues: Check the wiring for each gear signal. Ensure the gear sensor on your motorcycle is functioning correctly.
• Oil Level Indicator Malfunction: Check the Yellow & White wire connection to the oil level sensor. Ensure the oil level sensor itself is working.
• Indicators (Turn/High Beam) Not Working: Verify the Orange (Left Turn), Light Blue (Right Turn), and Blue (High Beam) wires are correctly connected to their respective motorcycle circuits.

If these steps do not resolve the issue, it is recommended to seek assistance from a qualified motorcycle technician or contact MAIMEIMI customer support.

8. Support and Assistance

For further assistance or if you have questions regarding the installation or operation of your MAIMEIMI Universal Motorcycle Digital Speedometer Gauge, please refer to the following:

• Elektronski priročnik: If a physical user manual was not included in your package, an electronic version can be requested from MAIMEIMI customer support.
• Strokovna pomoč: For complex installation or troubleshooting, it is advisable to consult with experienced maintenance personnel or a certified motorcycle mechanic.
• Contact MAIMEIMI: For direct support, please reach out to MAIMEIMI customer service through the platform where the product was purchased.
