NOENNULL Sports Stopwatch Timer with Lanyard

1. Uvod

Thank you for choosing the NOENNULL Sports Stopwatch Timer. This manual provides detailed instructions for the setup, operation, and maintenance of your new device. Please read this manual thoroughly before use to ensure proper functionality and to maximize your product experience.

Vsebina paketa:

• 1 x NOENNULL Sports Stopwatch Timer (Model: XL-013A)
• 1 x vrvica

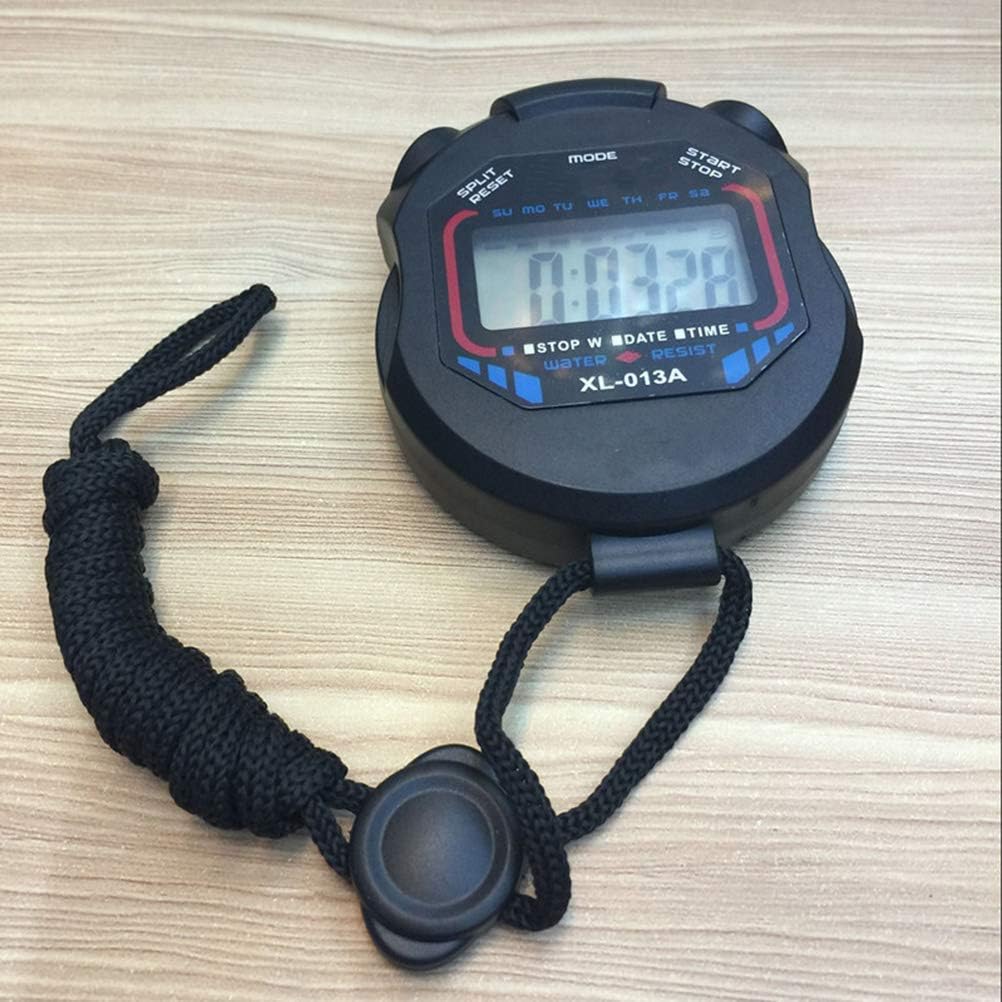

Image 1.1: The NOENNULL Sports Stopwatch Timer, showing the device with its attached lanyard.

2. Izdelek je končanview in funkcije

The NOENNULL Sports Stopwatch Timer is designed for athletes, coaches, and fitness enthusiasts, offering precise time measurement and multiple display modes. Its compact and durable design makes it suitable for various activities.

Ključne značilnosti:

• Večfunkcijski zaslon: Features 3 display modes for checking time, date, and setting alarms.
• Vzdržljiva konstrukcija: Made of plastic material for long-lasting use.
• Prenosna zasnova: Compact size and lightweight design make it easy and portable to carry.
• Priložena vrvica: Comes with a lanyard for convenient carrying during sports activities.

Slika 2.1: Spredaj view of the stopwatch, highlighting the digital display and control buttons.

3. Nastavitev

3.1 Pritrditev vrvice

1. Locate the small loop on the top or side of the stopwatch casing.
2. Thread the thin end of the lanyard through this loop.
3. Pass the larger loop of the lanyard over the stopwatch and pull it tight to secure the lanyard.

3.2 Initial Power-On and Battery

The stopwatch typically comes with a pre-installed battery. If the display is blank, gently press any button to activate it. If the display remains blank, the battery may need replacement (refer to Section 5.2 for battery replacement instructions).

4. Navodila za uporabo

The stopwatch features three primary buttons: NAČIN, START/STOP, in SPLIT / RESET. These buttons control all functions of the device.

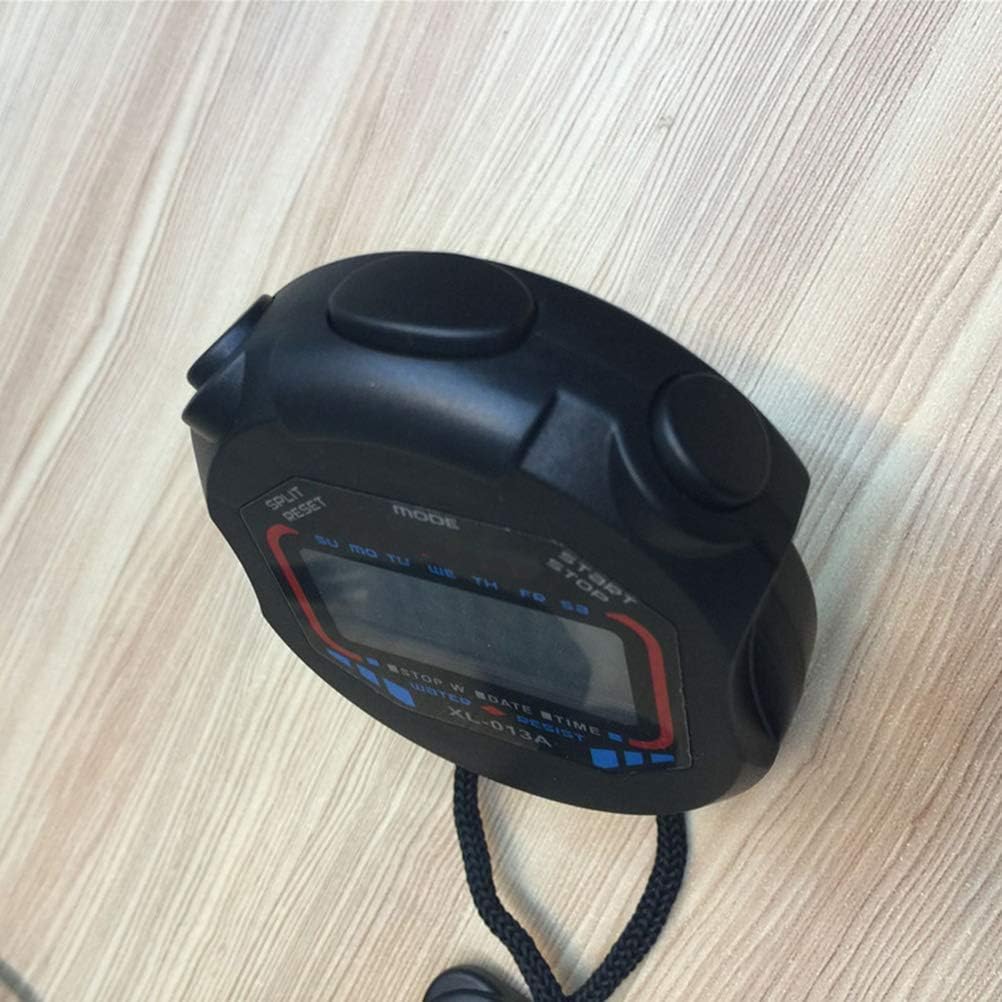

Slika 4.1: Zgoraj view of the stopwatch, indicating the positions of the MODE, START/STOP, and SPLIT/RESET buttons.

4.1 Preklapljanje načinov

Pritisnite NAČIN button to cycle through the available display modes:

1. Prikaz časa/datuma: Prikazuje trenutni čas, dan v tednu in datum.
2. Funkcija štoparice: Uporablja se za merjenje časa dogodkov.
3. Nastavitev alarma: For setting and activating the alarm.

4.2 Nastavitev časa in datuma

Za nastavitev trenutnega časa in datuma:

1. Ensure the stopwatch is in Prikaz časa/datuma način.
2. Pritisnite in držite START/STOP button for a few seconds until the time digits begin to flash.
3. Uporabite SPLIT / RESET gumb za nastavitev utripajoče številke (ure, minute, sekunde).
4. Pritisnite NAČIN button to move to the next digit or setting (e.g., from hours to minutes, then to date).
5. Repeat steps 3 and 4 until all desired settings (time, date, day of week) are adjusted.
6. Pritisnite START/STOP button again to confirm and exit the setting mode.

Image 4.2: The stopwatch display showing the current time and day of the week.

4.3 Uporaba funkcije štoparice

To use the stopwatch for timing events:

1. Pritisnite NAČIN dokler ne dosežete Funkcija štoparice display (usually indicated by '0:00:00' or similar).
2. Pritisnite START/STOP za začetek merjenja časa.
3. To record a split time (lap time) without stopping the main timer, press SPLIT / RESET. The display will show the split time while the timer continues in the background. Press SPLIT / RESET ponovno, da se vrnete na čas delovanja.
4. Pritisnite START/STOP again to pause the timer.
5. Za nadaljevanje merjenja časa pritisnite START/STOP.
6. Če želite štoparico ponastaviti na ničlo, se prepričajte, da je začasno ustavljena, nato pa pritisnite SPLIT / RESET.

4.4 Nastavitev in uporaba alarma

Za nastavitev in aktiviranje alarma:

1. Pritisnite NAČIN dokler ne dosežete Nastavitev alarma način.
2. Pritisnite in držite START/STOP button until the alarm time digits begin to flash.
3. Uporabite SPLIT / RESET button to adjust the flashing digit (hours, minutes).
4. Pritisnite NAČIN gumb za preklop med urami in minutami.
5. Pritisnite START/STOP ponovno, da potrdite čas alarma.
6. In Alarm Setting mode, press SPLIT / RESET to toggle the alarm ON/OFF. An alarm icon will typically appear on the display when the alarm is active.
7. Ko se oglasi alarm, pritisnite kateri koli gumb, da ga utišate.

5. Vzdrževanje

5.1 Čiščenje

To clean your stopwatch, use a soft, dry cloth. For stubborn dirt, a slightly damp cloth with mild soap can be used, followed by a dry cloth. Do not use abrasive cleaners, solvents, or harsh chemicals, as these can damage the casing ali zaslon.

5.2 Zamenjava baterije

The stopwatch uses a standard button-cell battery (e.g., AG13 or LR44, specific type may vary). When the display becomes dim or unresponsive, the battery may need replacement.

1. Locate the battery compartment on the back of the stopwatch. This may require a small screwdriver to open.
2. Previdno odstranite staro baterijo.
3. Insert a new battery of the correct type, ensuring the positive (+) side is facing up.
4. Varno zaprite predal za baterije.

Opomba: Stare baterije zavrzite odgovorno v skladu z lokalnimi predpisi.

5.3 Shranjevanje

Store the stopwatch in a cool, dry place away from direct sunlight, extreme temperatures, and high humidity. Avoid dropping or subjecting the device to strong impacts.

6. Odpravljanje težav

• Zaslon je prazen ali zatemnjen:
  Preverite baterijo. Po potrebi jo zamenjajte (glejte poglavje 5.2).
• Gumbi se ne odzivajo:
  Ensure the stopwatch is not in a locked mode (if applicable, though this model typically does not have a lock). Try removing and reinserting the battery to perform a soft reset.
• Napačen čas/datum:
  Za ponastavitev časa in datuma sledite navodilom v poglavju 4.2.
• Stopwatch not starting/stopping:
  Ensure you are in the correct Stopwatch Function mode (Section 4.3) and pressing the START/STOP gumb.

7. Specifikacije

8. Garancija in podpora

This product is covered by a standard manufacturer's warranty. For specific warranty details, please refer to the product packaging or contact your retailer. If you encounter any issues or require technical assistance, please contact NOENNULL customer support through your purchase platform or the contact information provided with the product.
