1. Uvod
This manual provides essential information for the safe and correct assembly, operation, and maintenance of your vidaXL Large Outdoor Dog Kennel. Please read these instructions thoroughly before beginning assembly and retain them for future reference. This outdoor dog kennel is designed to provide a secure and spacious environment for your pet, featuring a galvanized steel frame and a weather-resistant polyethylene cover for protection against outdoor elements.
2. Varnostne informacije
- Ensure all components are securely fastened before allowing pets inside the kennel.
- Regularly inspect the kennel for any signs of wear, damage, or loose parts. Repair or replace damaged components immediately.
- Boks postavite na ravno, stabilno površino, da preprečite prevračanje.
- Ne dovolite otrokom, da se igrajo brez nadzora v bližini ali znotraj pasjega boksa.
- This kennel is intended for animal containment only. Do not use it for purposes other than its intended use.
- In extreme weather conditions (e.g., strong winds, heavy snow), consider additional anchoring or temporary relocation of the kennel to a more sheltered area.
3. Vsebina paketa
Before assembly, verify that all parts listed below are present and undamaged. If any parts are missing or damaged, contact customer support.
- Komponente okvirja iz pocinkanega jekla (različni drogovi in priključki)
- Hexagonal Mesh Panels
- Polyethylene Weather-Resistant Cover
- Fasteners and Assembly Hardware
- Navodila za uporabo (ta dokument)
4. Navodila za postavitev in sestavljanje
Assembly requires at least two adults. Clear a spacious, flat area for assembly. Tools required: (e.g., wrench, screwdriver - not specified, so I'll keep it general).
1. korak: Sestavite osnovni okvir
Connect the longest galvanized steel poles to form the rectangular base of the kennel. Ensure all connections are secure but do not fully tighten bolts until the entire frame is assembled.
Step 2: Construct the Side and Roof Frames
Attach the vertical poles to the base frame. Then, connect the roof support poles to form the A-frame structure. Refer to the diagram for correct orientation of connectors.
Figure 4.1: Detail of frame connection and hexagonal mesh.
Step 3: Attach Mesh Panels
Secure the hexagonal mesh panels to the sides of the frame using the provided fasteners. Ensure the mesh is taut and evenly distributed. The mesh provides visibility and additional security.

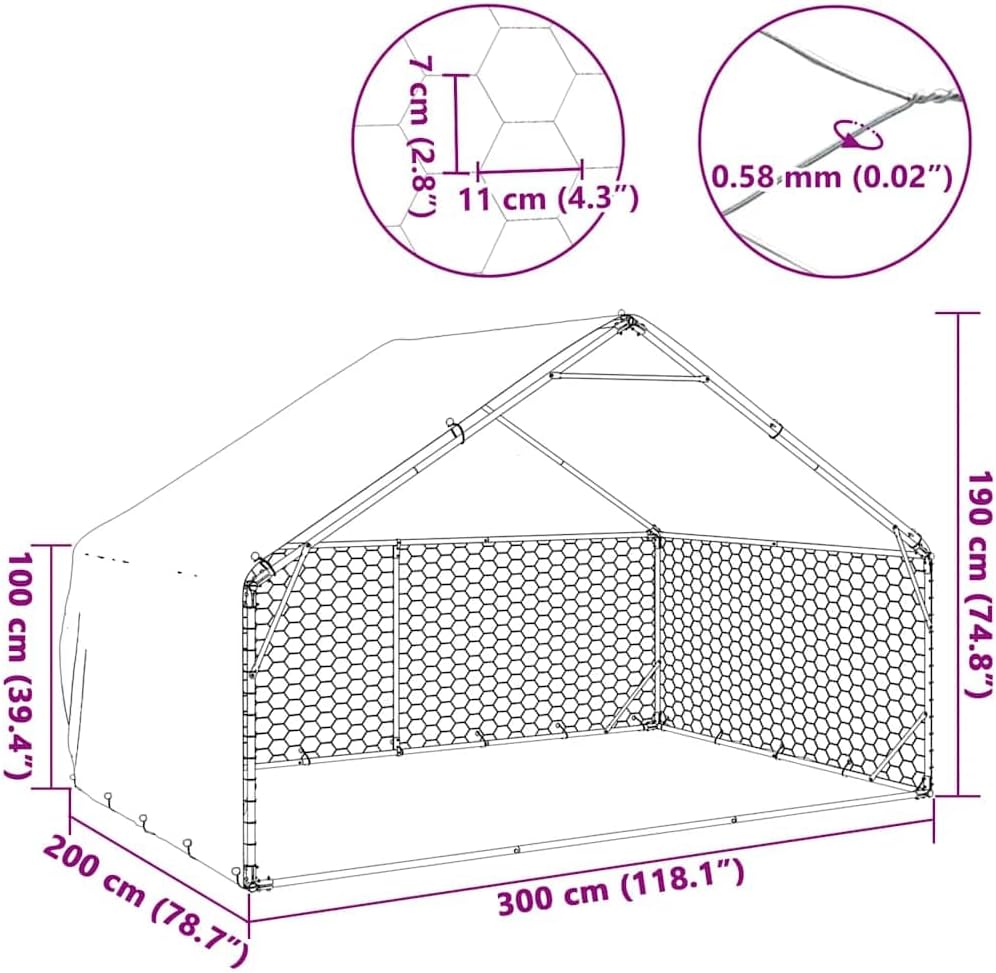

Figure 4.2: Kennel dimensions and mesh detail.
Step 4: Install the Weather-Resistant Cover
Drape the polyethylene cover over the assembled frame, ensuring it aligns correctly with the roof and sides. Secure the cover to the frame using the attached loops or ties. Ensure the cover is pulled taut to prevent water pooling and wind damage.
5. korak: Končno zategovanje in pregled
Once all components are in place, fully tighten all bolts and fasteners. Perform a final inspection to ensure the kennel is stable, all parts are secure, and the cover is properly attached. The kennel should now resemble the product image.
Figure 4.3: Fully assembled dog kennel.
5. Navodila za uporabo (Uporaba)
- Umestitev: Choose a level, well-drained area in your yard for the kennel. Consider shade and shelter from prevailing winds.
- Predstavitev hišnih ljubljenčkov: Introduce your pet to the kennel gradually. Ensure they have access to fresh water and appropriate bedding.
- Dostop: The kennel features an open side for easy entry and exit. Ensure this access point is clear and safe for your pet.
- Nadzor: While the kennel provides a secure enclosure, regular supervision of your pet is recommended, especially during initial use.
6. Vzdrževanje
- Čiščenje: Regularly clean the kennel interior and exterior. The polyethylene cover can be wiped down with a damp krpo in blagim detergentom. Temeljito sperite.
- Pregled okvirja: Periodically check the galvanized steel frame for rust, corrosion, or structural damage. Tighten any loose bolts.
- Pregled pokrova: Inspect the cover for tears, holes, or excessive wear. A damaged cover may compromise weather protection.
- Sidranje na tla: Ensure the kennel remains securely anchored to the ground, especially after strong winds.
7. Odpravljanje težav
| Težava | Možen vzrok | rešitev |
|---|---|---|
| Kennel feels unstable after assembly. | Bolts not fully tightened; uneven ground. | Ensure all bolts are securely tightened. Relocate the kennel to a flat, level surface. Consider additional ground anchors. |
| Cover does not fit properly or appears wrinkled. | Incorrect orientation of the cover; not pulled taut enough. | Re-orient the cover to match the frame's shape. Ensure all ties/loops are secured and the cover is stretched tightly over the frame to minimize wrinkles and prevent water pooling. |
| Težavnost med sestavljanjem. | Complex assembly steps; insufficient assistance. | Review the assembly diagrams carefully. Ensure you have at least two adults assisting with assembly. Do not force parts; if they don't fit, recheck the orientation. |
| Nabiranje vode na pokrovu. | Cover not taut; improper roof pitch. | Ensure the cover is stretched tightly and secured to maintain the roof's intended pitch. Clear any debris from the cover regularly. |
8. Specifikacije
- Številka modela: 4105409
- Znamka: vidaXL
- Dimenzije (Š x D x V): 9.8 x 6.6 x 3.9 ft (approximately 300 x 200 x 120 cm)
- Material: Galvanized Steel Frame, Polyethylene (PE) Cover
- barva: Silver (Frame), Gray (Cover)
- Teža: Približno 49.6 lbs (22.5 kg)
- Notranja/zunanja uporaba: zunanji samo
- Zahtevana montaža: ja
9. Garancija in podpora
Za informacije o garanciji ali tehnično podporo glejte pravilnik prodajalca ali se obrnite neposredno na službo za stranke vidaXL. Shranite račun kot dokazilo o nakupu.
