1. Uvod
This manual provides detailed instructions for the installation, operation, and maintenance of your Lonsge 550W Industrial Sewing Machine Servo Motor. Please read this manual thoroughly before use to ensure proper function and safety. This servo motor is designed to provide efficient and precise speed control for various industrial sewing machines.
2. Varnostne informacije
- Pred kakršno koli namestitvijo, vzdrževanjem ali odpravljanjem težav vedno izklopite napajanje.
- Prepričajte se, da je napajalnik voltage matches the motor's specifications (AC110V).
- Med delovanjem držite roke in ohlapna oblačila stran od gibljivih delov.
- Motorja ne uporabljajte v mokrem ali damp pogojev.
- Prepričajte se, da so vse povezave varne, da preprečite nevarnost električnega toka.
- Only use the motor for its intended purpose with compatible industrial sewing machines.
3. Vsebina paketa
Preverite, ali so v paketu prisotne vse komponente:

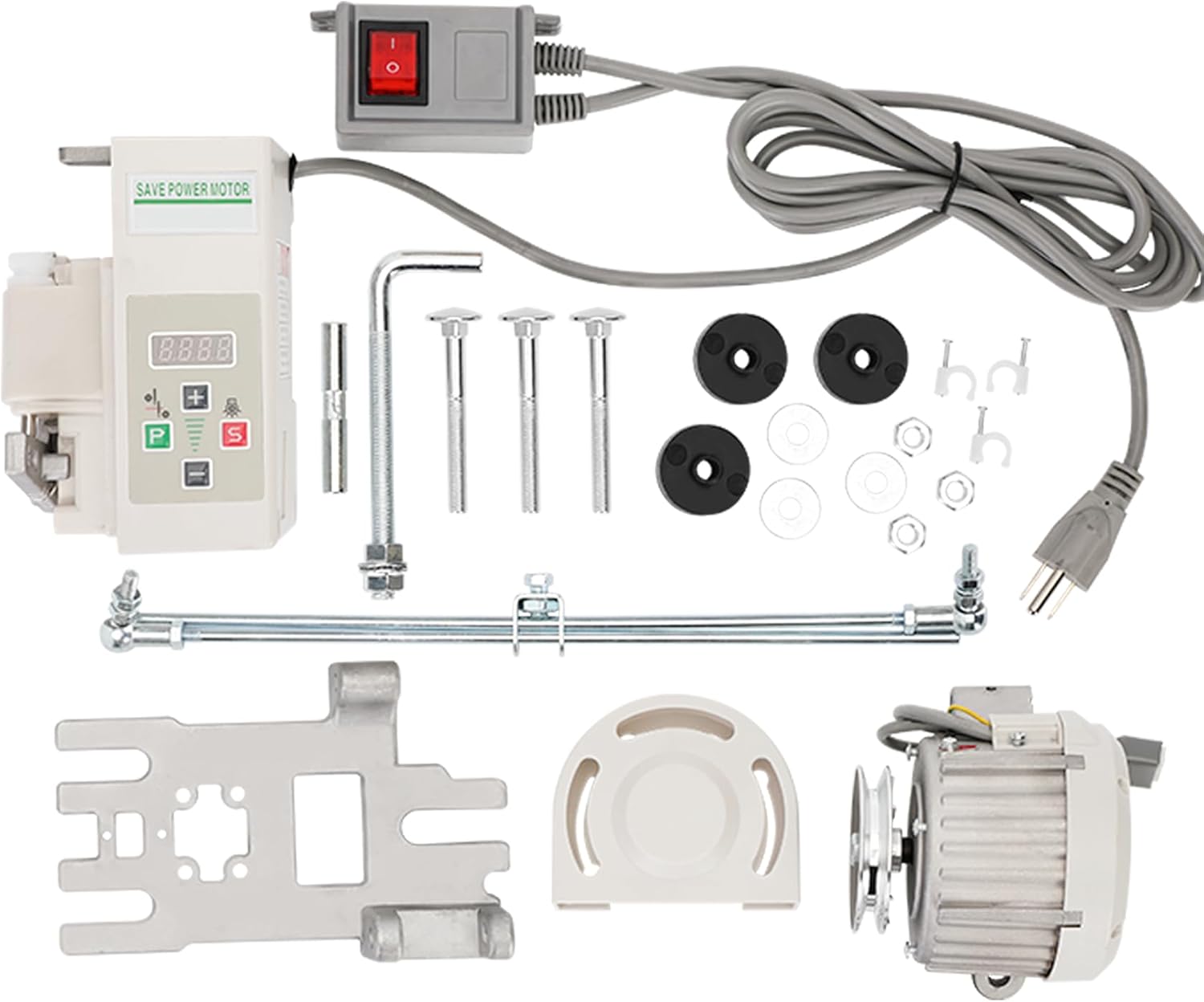

- 550W Brushless Servo Motor
- Krmilna enota
- Nožno stikalo
- Mounting Hardware (bolts, washers, nuts, rubber pads)
- Ojnica
- Navodila za uporabo
4. Značilnosti izdelka
The Lonsge 550W Industrial Sewing Machine Servo Motor offers several key features:
- Visoka združljivost: Suitable for various industrial sewing machine types.
- Zmogljiva zmogljivost: 550W, 3/4HP motor with adjustable speed from 200 RPM to 6000 RPM.
- Energijsko učinkovit: Saves up to 70% electricity compared to traditional clutch motors.
- Tiho delovanje: Brushless design ensures minimal noise and vibration.
- High Precision Control: Digital controller allows for precise speed adjustments.
- Vzdržljiva konstrukcija: Features a pure copper coil and aluminum sheath for excellent temperature resistance and multi-layer protection.
- Enostavna namestitev: Designed for straightforward installation by aligning with existing motor holes.
- Več zaščit: Vključuje preobremenitev toka, preobremenitev volumnatage, pod voltage, short-circuit, and blocking protection.
5. Nastavitev in namestitev
Follow these steps to install your Lonsge 550W Industrial Sewing Machine Servo Motor:
- Montaža motorja: Align the servo motor with the existing motor mounting holes on your industrial sewing machine table. Secure it using the provided mounting hardware (bolts, washers, nuts). Ensure the motor is stable and properly aligned with the machine's pulley.
- Connecting the Foot Switch: Plug the foot switch cable into the designated port on the motor's controller unit.
- Priključitev napajanja: Plug the motor's power cord into a standard AC110V outlet.
- Connecting Rod Adjustment: Attach the connecting rod between the foot switch and the sewing machine's pedal mechanism. Adjust its length to ensure comfortable and responsive operation of the foot switch.

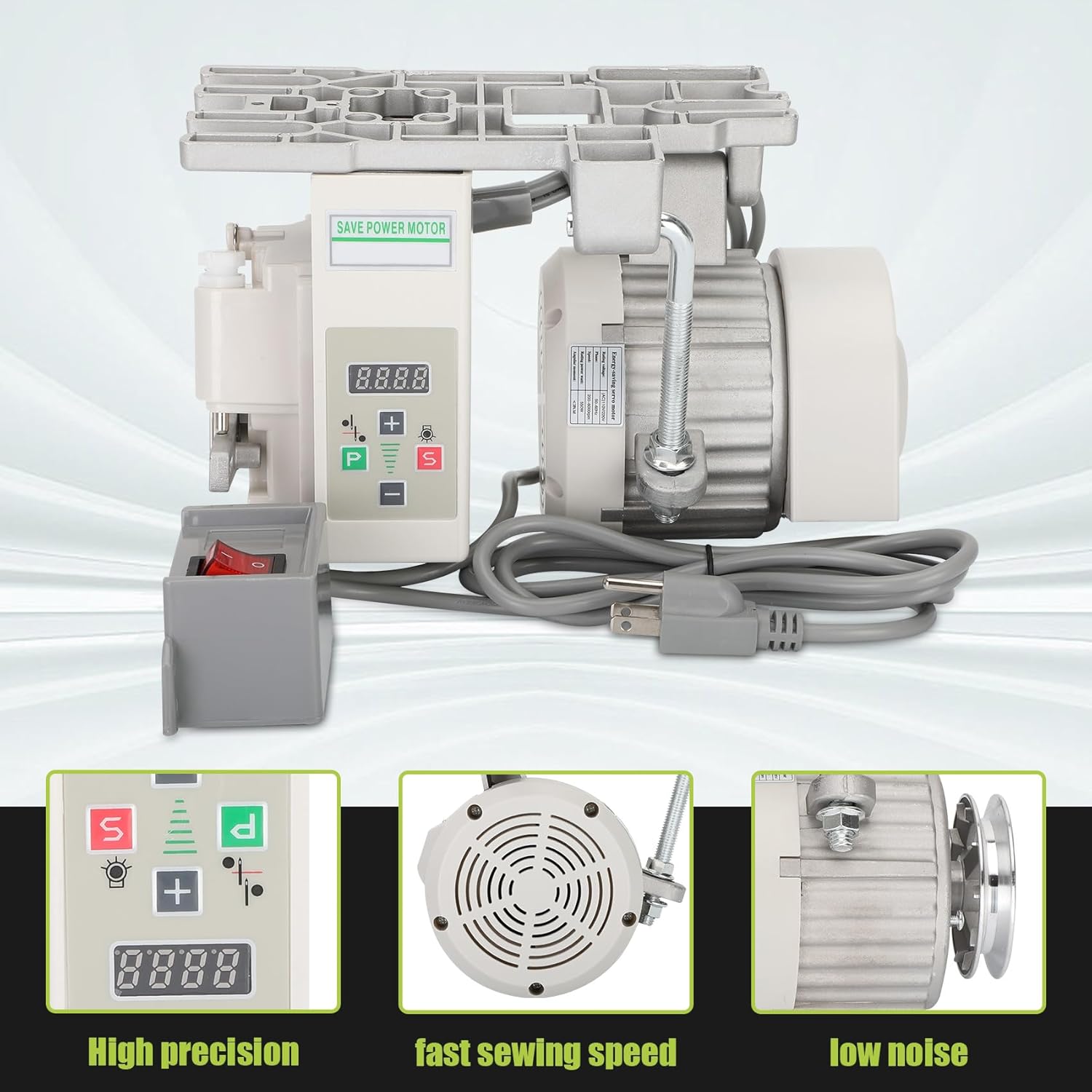

6. Navodila za uporabo
The servo motor's speed and parameters are adjusted via the controller unit.
- Vklop/izklop: Use the red switch on the external power box to turn the motor on or off.
- Prilagoditev hitrosti: Use the '+' and '-' buttons on the controller to increase or decrease the motor speed. The digital display will show the current RPM setting. The speed range is 200 RPM to 6000 RPM.
- Direction Control (CW/CCW): The motor supports both clockwise (CW) and counter-clockwise (CCW) rotation. Refer to the detailed manual for specific instructions on how to change the rotation direction, usually involving a 'P' (Parameter) button and a specific code.
- Delovanje nožnega stikala: The foot switch provides variable speed control during sewing. Pressing the pedal further increases the speed up to the set maximum.
7. Vzdrževanje
Regular maintenance ensures the longevity and optimal performance of your servo motor:
- Čiščenje: Periodically clean the motor and controller unit with a dry, soft cloth. Avoid using liquid cleaners or solvents.
- Pregled: Regularly inspect all cables and connections for signs of wear or damage. Ensure mounting bolts remain tight.
- Prezračevanje: Prepričajte se, da so prezračevalne odprtine motorja čiste od prahu in umazanije, da preprečite pregrevanje.
8. Odpravljanje težav
If you encounter issues with your Lonsge 550W Industrial Sewing Machine Servo Motor, refer to the following common problems and solutions:
| Težava | Možen vzrok | rešitev |
|---|---|---|
| Motor does not run (Error Code E-03) | Loose plug on the back of the motor. | Check and secure the plug connection on the back of the motor. |
| Motor runs but speed is inconsistent | Incorrect speed setting or faulty foot switch. | Verify speed settings on the controller. Inspect foot switch and connecting rod for proper function. |
| Nenavaden hrup ali tresenje | Loose mounting, worn belt, or internal issue. | Check all mounting points for tightness. Inspect the drive belt for wear and tension. If issues persist, contact customer support. |

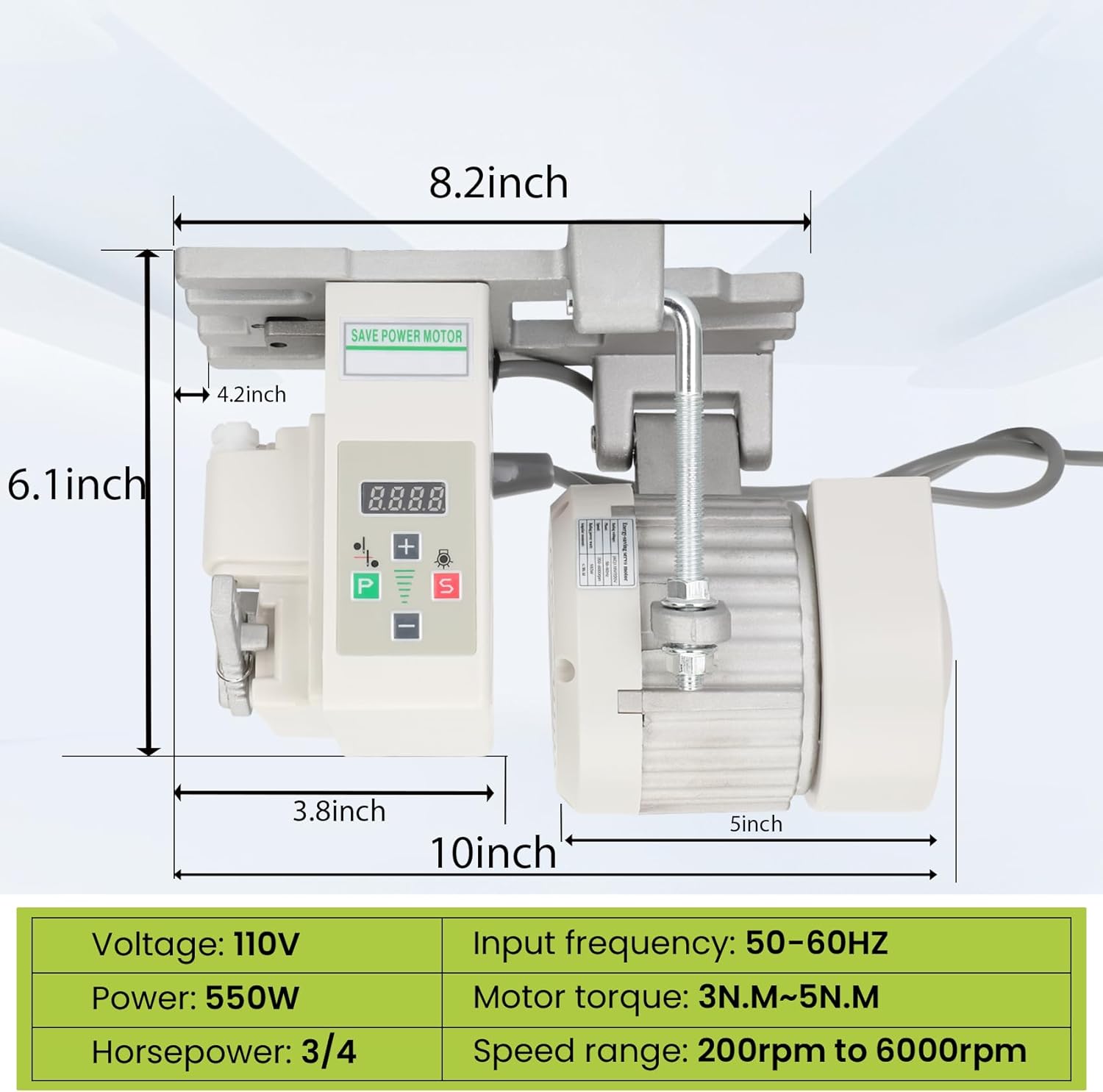

9. Specifikacije
| Funkcija | Specifikacija |
|---|---|
| Model | 550 W |
| Moč | 550 W (3/4 HP) |
| voltage | AC110V |
| Razpon hitrosti | 200 RPM do 6000 RPM |
| Navor motorja | 3N.M ~ 5N.M |
| Vhodna frekvenca | 50-60 HZ |
| Dimenzije izdelka | 11.2 x 6.3 x 7.67 palcev |
| Teža predmeta | 7.37 funtov |
| Motor Construction | Pure copper coil, aluminum sheath |
10. Garancija in podpora
Lonsge is committed to providing quality products and customer satisfaction. While specific warranty terms are not detailed here, we offer dedicated customer support.
- For any questions regarding product parameters, performance, suitability, or troubleshooting, please contact our customer service team.
- We commit to responding to all inquiries within 24 hours to provide a satisfactory solution.
