1. Uvod
This manual provides essential information for the safe assembly, operation, and maintenance of your besrey Toddler Tricycle, model KSE. Designed for children aged 18 months to 5 years, this tricycle offers a versatile 2-in-1 design, transitioning between riding and folding modes for convenience.
2. Varnostne informacije
Please read all instructions carefully before assembly and use. Failure to follow these instructions may result in serious injury.
- starostna skupina: Primerno za otroke stare od 18 mesecev do 5 let.
- Omejitev teže: Največja nosilnost je 55 lbs.
- Nadzor odraslih: Always supervise children while they are using the tricycle.
- Zaščitna oprema: Poskrbite, da bo otrok nosil ustrezno varnostno opremo, vključno s čelado, ščitniki za kolena in komolce.
- Stabilen dizajn: The tricycle features a robust triangular structure frame with wider rear wheels to minimize the risk of tipping or overturning.
- Uporaba površine: Use on flat, even surfaces. Avoid slopes, stairs, or uneven terrain.
- Montaža: Adult assembly is required. Ensure all parts are securely fastened before use.
- Redni pregledi: Periodically check all screws, bolts, and components for tightness and wear.
3. Vsebina paketa
Pred začetkom montaže preverite, ali so vse komponente prisotne:
- Main Body Frame
- Handlebar & Bell
- Sedež
- Pedal x2 & Pedal Lock x2
- Kolesa x 3
- Majhen imbus ključ
- Velik imbus ključ
- viličasti ključ
4. Nastavitev in montaža
Follow these steps to assemble your besrey Toddler Tricycle. Refer to the assembly video for visual guidance.
4.1. Rear Wheel Frame Assembly
- Remove the screws from the main body frame using the provided wrench and large hex key.
- Align and insert the rear wheel frame into the main body frame.
- Fix the screws back into place to secure the rear wheel frame.
- Take down the protective cover from the rear wheels.
- Insert the rear wheels onto the frame.
4.2. Front Wheel and Pedal Assembly
- Insert the pedals into the front wheel assembly.
- Secure the pedals with the pedal locks, ensuring they are installed in the correct orientation (refer to diagram in video).
- Assemble the fender onto the front wheel.
- Insert the assembled front wheel part into the main body frame.
4.3. Handlebar and Seat Installation
- Align and insert the handlebar into the front wheel stem.
- Attach the bell to the handlebar.
- Remove the screws from the seat using the small hex key.

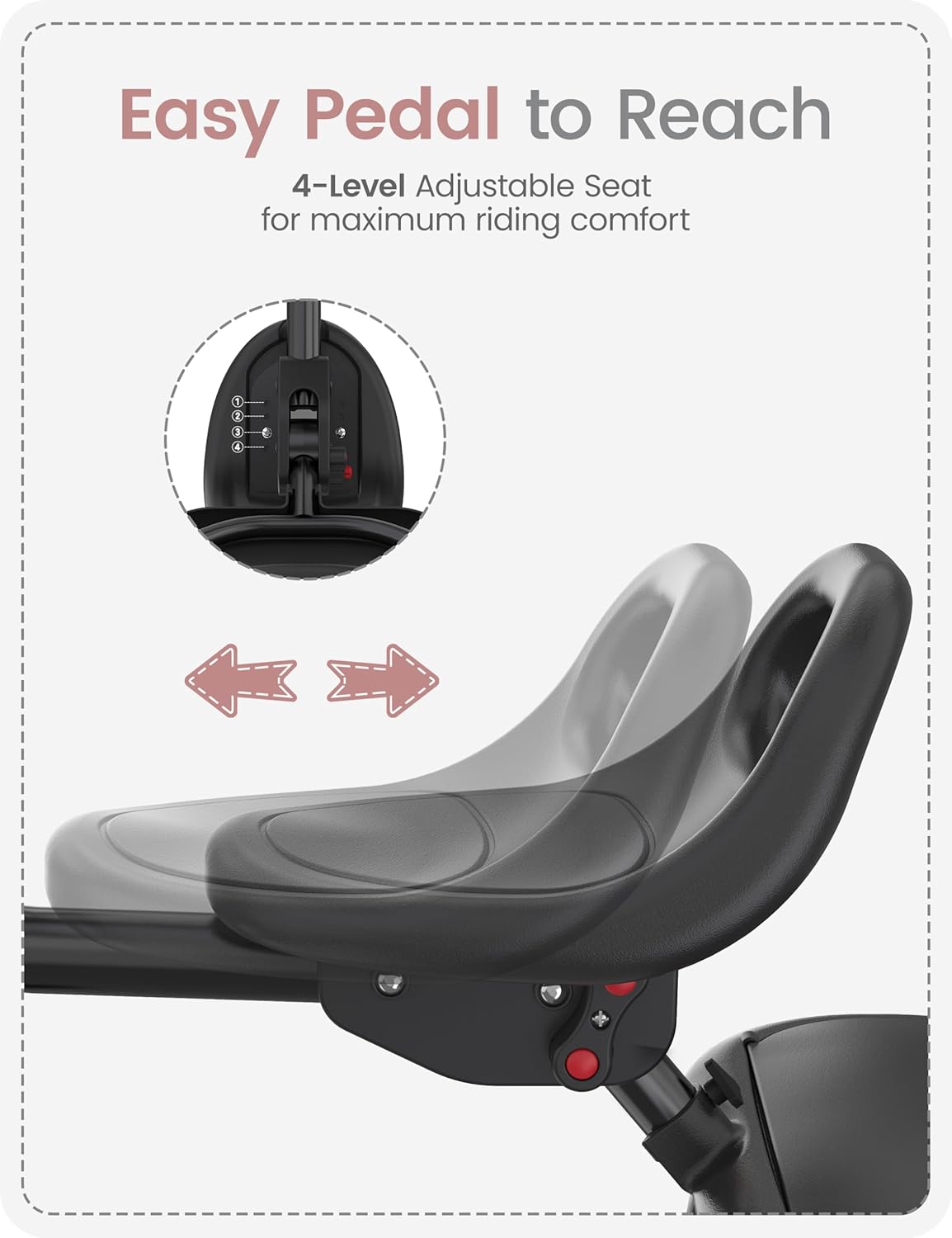

- Attach the seat to the main body frame, adjusting to a comfortable position (levels 1-4) as needed, then fix the screws.
- Fix the rear basket by the fastener under the seat.
4.4. Videoposnetek montaže
For a complete visual guide on assembly, please watch the official video:
Video 1: How to Assemble besrey Toddler Tricycle. This video demonstrates step-by-step assembly instructions for the tricycle.
5. Navodila za uporabo
5.1. Riding Mode
Ensure the tricycle is fully unfolded and all locking mechanisms are engaged. The child should sit comfortably on the seat with their feet on the pedals. Encourage them to push the pedals and steer the handlebars to move forward. Always supervise the child during use.
5.2. Zlaganje in odvijanje
The besrey Toddler Tricycle features a convenient folding mechanism for easy storage and transport.
- Zložiti: Loosen the fold button on the handlebar and pull it up to fold the handlebar down. Press the button under the seat to fold the rear section of the tricycle.
- Za razgrnitev: Press the button under the seat to unfold the rear section. Pull the fold button upward on the handlebar to unfold it and then tighten the button to secure it in place.
5.3. Folding/Unfolding Video
For a visual demonstration of folding and unfolding, please refer to the assembly video from 01:18 onwards.
Video 2: Folding and Unfolding the besrey Toddler Tricycle. This segment of the video demonstrates how to fold and unfold the tricycle for storage and transport.
5.4. Using the Storage Basket and Bell
- The rear storage basket with a lid is suitable for carrying small toys or snacks. Ensure the lid is securely closed to prevent items from falling out.
- The bell on the handlebar can be used to alert others while riding.
6. Vzdrževanje
- Čiščenje: Obrišite tricikel z oglasomamp krpo in blagim milom. Izogibajte se močnim kemikalijam.
- Mazanje: Periodically check and lubricate moving parts if necessary, such as wheel axles, to ensure smooth operation.
- Pritrdilni elementi: Regularly inspect all screws, bolts, and fasteners to ensure they are tight. Tighten any loose parts immediately.
- Kolesa: Check the EVA foam wheels for any damage or excessive wear.
- Shranjevanje: Store the tricycle in a dry, cool place away from direct sunlight and extreme temperatures to prolong its lifespan.
7. Odpravljanje težav
| Težava | Možen vzrok | rešitev |
|---|---|---|
| Tricycle is unstable or wobbly. | Ohlapni pritrdilni elementi ali nepravilna montaža. | Check all screws and bolts, ensuring they are securely tightened. Re-verify assembly steps. |
| Težave pri pedaliranju. | Pedals not installed correctly or obstruction. | Ensure pedals are correctly secured with pedal locks. Check for any debris obstructing pedal movement. |
| Krmilo je ohlapen. | Folding button not tightened or internal mechanism loose. | Ensure the handlebar's fold button is pulled upward and securely tightened. If problem persists, re-check assembly. |
| Tricycle does not fold/unfold smoothly. | Mechanism obstructed or buttons not fully pressed. | Ensure no debris is blocking the folding mechanism. Press the fold/unfold buttons firmly and completely. |
8. Specifikacije
- Znamka: besrey
- Številka modela: KSE
- starostna skupina: 18 mesecev do 5 let
- Teža artikla: 10.2 funta

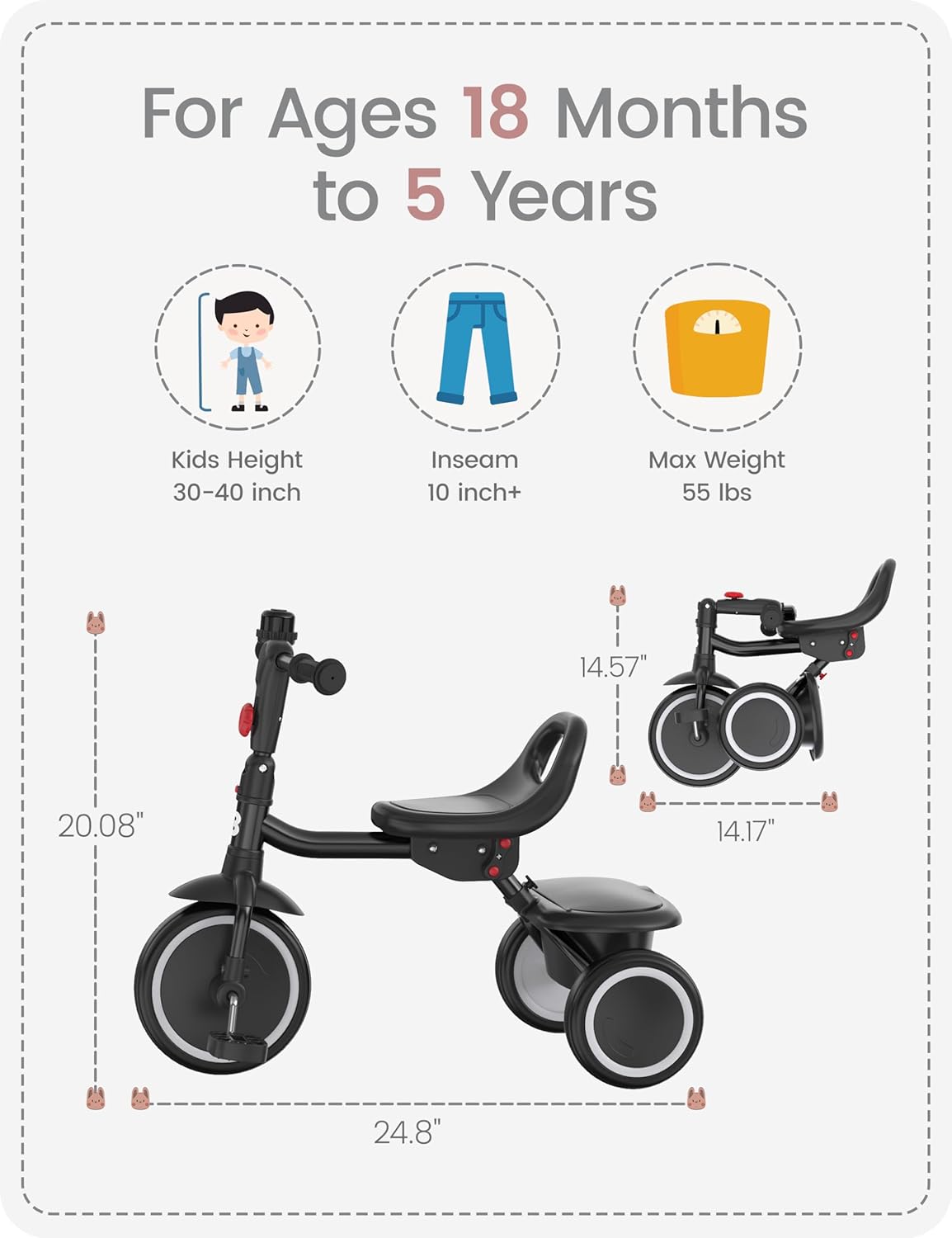

- Mere predmeta (D x Š x V): 24.8 cm x 12.2 cm x 20.08 cm
- Vrsta materiala: Carbon Steel, EVA, PU
- Zahtevana montaža: ja
9. Garancija in podpora
besrey is committed to providing high-quality products and customer satisfaction.
- Politika vračila: Enjoy a 24-month hassle-free return policy.
- Garancija: This product comes with a LIFETIME warranty.
- Podpora strankam: For any questions, concerns, or assistance, please contact besrey customer service through the retailer's platform or visit the official besrey webmesto.
