FORIOUS Kitchen Faucet with Soap Dispenser Instruction Manual

1. Uvod in konecview

Thank you for choosing the FORIOUS Kitchen Faucet with Soap Dispenser. This manual provides essential information for the proper installation, operation, and maintenance of your new faucet. Designed for durability and convenience, this transitional stainless steel faucet features a pull-down sprayer and a matching soap dispenser to enhance your kitchen experience.

The faucet boasts an overall height of 18.90 inches and a spout height of 8.27 inches, making it suitable for kitchens with spacious sinks. It is constructed from lead-free SUS 304 stainless steel with a durable five-layer nanotechnology finish, ensuring longevity and resistance to water spots and fingerprints.

2. Značilnosti izdelka

• Izvlečni razpršilec: Offers extended reach for easy dishwashing and food preparation.
• Dvojna funkcionalnost: Easily switch between a steady stream for filling and a powerful spray for cleaning.
• 360° vrtljiv izliv: Provides full sink access and flexibility.
• Drip-Free Ceramic Cartridge: Tested to over 500,000 cycles for leak-proof performance.
• Integrated Aerator: Saves 20% more water while delivering a strong flow rate of 1.8 gallons per minute at 60 PSI.
• Matching Soap Dispenser: A 11.83 oz / 350 ML large-capacity dispenser is included for convenience.
• Šobe za enostavno čiščenje: Rubber nozzles resist hard water and mineral build-up, easily cleaned with a wipe.

Image: Faucet with pull-down sprayer extended, demonstrating its 26-inch reach and 360° swivel.

Image: Close-up of the sprayhead, highlighting the two functional modes: stream and spray.

Image: Hand pressing the integrated soap dispenser for smooth soap delivery.

3. Nastavitev in namestitev

The FORIOUS Kitchen Faucet is designed for quick and easy DIY installation, typically taking under 15 minutes without professional help. All necessary hardware is included for a seamless setup.

Preden začnete:

• Ensure the faucet-to-countertop distance exceeds 21 inches.
• The mounting hole size should be between 1.38 and 1.5 inches.
• Maximum thickness of the countertop should be 2.1 inches.
• Turn off the main water supply to your sink.
• Za lažji dostop očistite prostor pod umivalnikom.

Image: Faucet dimensions and installation notes for proper fit.

Koraki namestitve:

1. Odstranite staro pipo: Disconnect the hot and cold water supply lines and remove the mounting hardware from your existing faucet. Carefully lift out the old faucet.
2. Clean Countertop: Clean the countertop surface around the faucet hole to ensure a smooth seal.
3. Install New Faucet: Insert the new faucet's hoses through the mounting hole. If using the deck plate, place it on the countertop before inserting the hoses.
4. Varna pipa: From underneath the sink, slide the rubber washer, then the metal washer, and finally the lock nut onto the faucet shank. Tighten the lock nut securely to hold the faucet in place.
5. Priključitev vodovodnih cevi: Connect the hot and cold water supply lines to the corresponding valves. Ensure connections are tight but do not overtighten.
6. Attach Counterweight: Attach the counterweight to the pull-down hose under the sink. This helps the sprayer retract smoothly.
7. Izplakovalne linije: Before connecting the faucet, turn on the water supply valve and flush it for 30-40 seconds to clear out any debris.
8. Test za puščanje: Vklopite dovod vode in preverite vse priključke glede puščanja.

Image: Easy connect system for straightforward installation.

4. Navodila za uporabo

• Aktivacija pretoka vode: Lift the single handle to turn on the water flow.
• Nadzor temperature: Za vročo vodo premaknite ročico levo, za hladno pa desno.
• Sprayer Function: Pull down the sprayer head from the main spout. Use the button on the sprayer head to toggle between the steady stream and powerful spray modes.
• Dozirnik mila: Press the top of the soap dispenser lightly to dispense soap. Refill by lifting the dispenser head and pouring soap directly into the reservoir.

5. Vzdrževanje

Regular maintenance will ensure the longevity and optimal performance of your FORIOUS Kitchen Faucet.

• Čiščenje zaključka: The five-layer nanotechnology finish is designed to prevent water spots and fingerprints. Wipe the faucet regularly with a soft, damp cloth. Avoid abrasive cleaners, steel wool, or harsh chemicals that could damage the finish.
• Čistilne šobe: The easy-clean rubber nozzles are designed to resist hard water and mineral build-up. Simply wipe them with your finger to dislodge any deposits and maintain a powerful flow.
• Keramična kartuša: The ceramic cartridge is highly durable and designed for long-term, drip-free performance. No regular maintenance is typically required for the cartridge itself.

Slika: Notranja view of the drip-free ceramic cartridge for reliable performance.

6. Odpravljanje težav

If you encounter any issues with your faucet, please refer to the following common troubleshooting tips:

• Nizek vodni tlak: Check if the main water supply valves under the sink are fully open. Inspect the aerator for mineral build-up and clean if necessary.
• Puščanje: Ensure all water line connections are securely tightened. Check the O-rings and washers for proper seating and damage.
• Razpršilec se ne umika nazaj: Verify that the counterweight on the pull-down hose under the sink is properly positioned and not obstructed.
• Težave pri preklapljanju načinov pršenja: Clean the rubber nozzles on the spray head to remove any mineral deposits that might be impeding the mechanism.

For persistent issues, please contact FORIOUS customer support.

7. Specifikacije

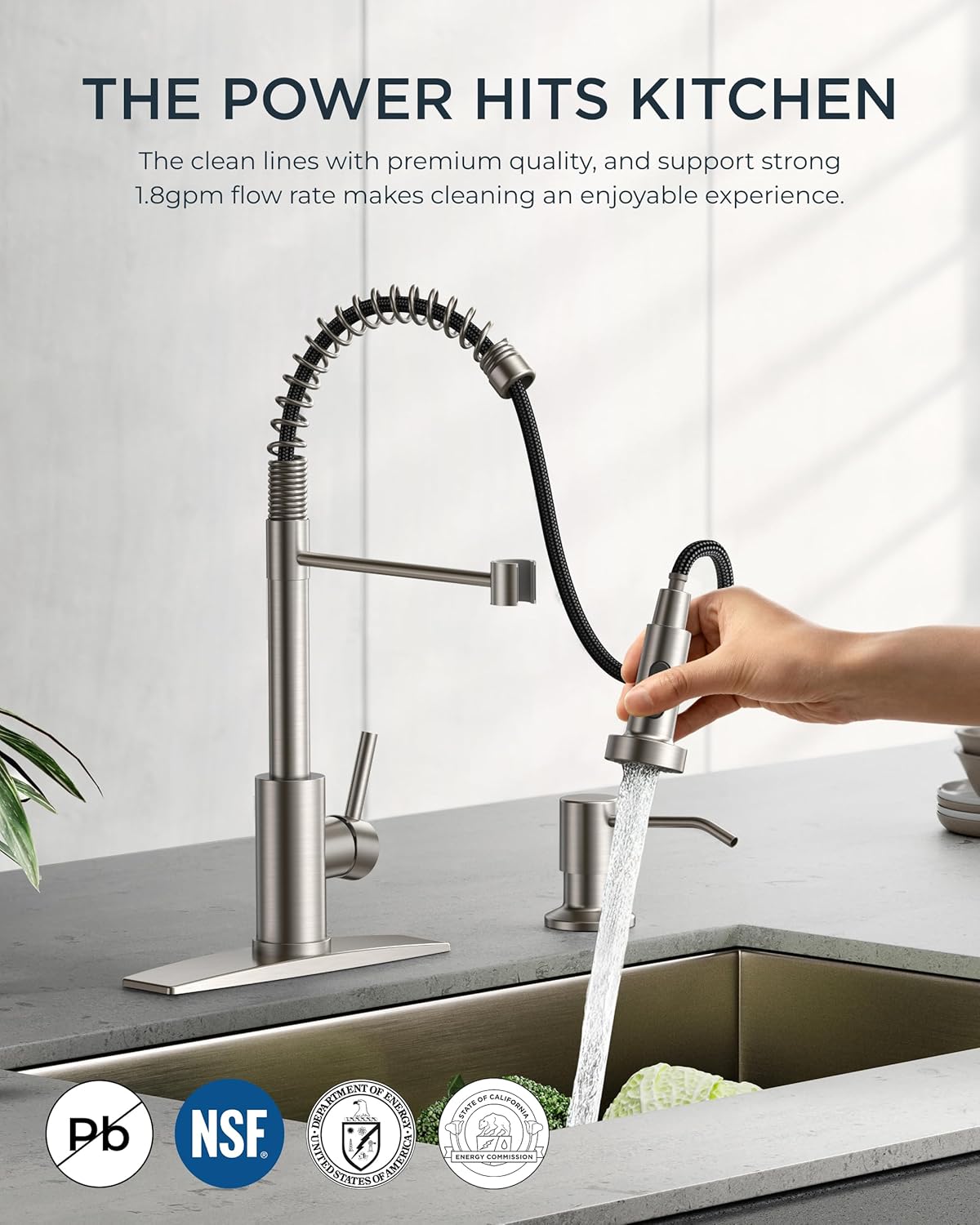

Image: Faucet displaying certifications for safety and water efficiency (Pb, NSF, DOE).

8. Garancija in podpora

The FORIOUS Kitchen Faucet comes with a limited warranty. For specific details regarding your warranty coverage or to obtain support, please refer to the warranty information included in your product packaging or contact FORIOUS customer service directly.

You can often find contact information for customer support on the manufacturer's webspletnem mestu ali prek prodajalca, kjer ste izdelek kupili.
