Uvod
This manual provides essential information for the safe operation, maintenance, and troubleshooting of your LUXURYTON X-1000 Electric Mobility Scooter. Please read this manual thoroughly before operating the scooter to ensure proper use and to maximize its lifespan.
The LUXURYTON X-1000 is designed for personal mobility, featuring a powerful 1500W motor, a maximum speed of 18 mph, and a range of up to 45 miles per charge. It includes an executive seat, digital dash, and comprehensive lighting for safety and comfort.

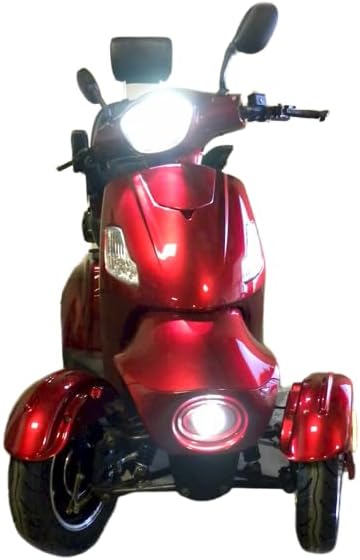

Slika 1: Spredaj view of the LUXURYTON X-1000 Electric Mobility Scooter.
Varnostne informacije
Pomembni varnostni ukrepi:
- Pri upravljanju skuterja vedno nosite ustrezno varnostno opremo, vključno s čelado.
- Pred vsako uporabo se prepričajte, da je baterija popolnoma napolnjena, še posebej pri daljših potovanjih.
- Ne prekoračite največje dovoljene teže 450 lbs.
- Operate the scooter on stable, level surfaces. Avoid steep inclines or uneven terrain.
- Familiarize yourself with all controls, including the throttle, brakes, and lights, before riding.
- Always use turn signals when changing direction and ensure all lights are functional.
- Avoid operating the scooter in adverse weather conditions, such as heavy rain or snow.
- Roke in noge držite stran od gibljivih delov.
- Store the scooter in a dry, secure location.
Nastavitev in prva uporaba
Razpakiranje in sestavljanje
Upon receiving your LUXURYTON X-1000, carefully unpack all components. Ensure all parts listed in the packing list are present. Minor assembly may be required, such as attaching the seat, mirrors, and any optional accessories like the roof or canopy (if purchased).
The scooter features factory-made holes for easy installation of roof and windshield holders, if applicable.
Polnjenje baterije
Before first use, fully charge the scooter's battery. The powerful yet compact battery is easily accessible and lockable with a key to prevent theft. Connect the charger to a standard electrical outlet and then to the scooter's charging port. The charging indicator will show the charging status. Disconnect the charger once the battery is fully charged.
Opomba: Refer to the separate battery manual for detailed charging instructions and safety guidelines.
Navodila za uporabo
Nadzor nadview
The LUXURYTON X-1000 is equipped with an intuitive control system:
- Digital Dash: Provides essential information such as speed, battery level, and mileage.
- Motorcycle-style Twist Throttle: Located on the right handlebar for speed control.
- Izbirnik prestav: Located on the right handlebar, alongside the hand brake and throttle speed controller. This may have a different shape depending on the model variant.
- Luči: Front and rear lights, brake lights, turn signals, LED rear light strip, and side reflector running lights are controlled via switches on the handlebars.
- hupa: Button located on the handlebar.
- Stikalo za vzvratno vožnjo: Engages reverse gear.
Zagon in vožnja
- Vstavite ključ v kontakt in ga obrnite v položaj "ON".
- Ensure the gear selector is in the "Forward" position.
- Gently twist the throttle to accelerate. Release the throttle to decelerate.
- Use the hand brakes for stopping. Apply both brakes evenly for stable braking.
- To reverse, engage the reverse switch and gently apply the throttle. Be cautious when backing up, utilizing the rear camera for assistance.
Nastavitev sedeža
The executive seat is fully adjustable, featuring rear tilt and adjustable tilt-up armrests. Adjust the seat position for optimal comfort and control before operating the scooter.
Zadnja kamera
The integrated rear camera provides enhanced visibility when reversing or maneuvering in tight spaces. Monitor the display on the digital dash for the camera feed.
Slika 2: stran view of the LUXURYTON X-1000, highlighting the executive seat and rear storage.
Vzdrževanje
Redno vzdrževanje zagotavlja dolgo življenjsko dobo in varno delovanje vašega skuterja.
Skrb za baterijo
- Charge the battery regularly, even if the scooter is not in frequent use, to maintain battery health.
- Pred ponovnim polnjenjem se izogibajte popolnemu praznjenju baterije.
- Baterijo hranite na hladnem in suhem mestu.
- If storing the scooter for an extended period, charge the battery to approximately 50-70% and recharge every 1-2 months.
Vzdrževanje pnevmatik
The scooter is equipped with tubeless tires. Regularly check tire pressure and inspect for any signs of wear or damage. Maintain recommended tire pressure for optimal performance and safety.
Generalno čiščenje
Skuter redno čistite zamp cloth and mild detergent. Avoid using high-pressure washers or abrasive cleaners, which can damage electrical components or finishes. Ensure all electrical connections remain dry.
Pregled zavor
Periodically inspect the brakes for proper function and wear. If you notice any decrease in braking performance, have the brakes inspected by a qualified technician.
Odpravljanje težav
This section addresses common issues you might encounter with your LUXURYTON X-1000 scooter.
| Težava | Možen vzrok | rešitev |
|---|---|---|
| Skuter se ne vklopi. | Battery is discharged or not properly connected. Ignition key is not in "ON" position. | Check battery charge level and connections. Ensure key is fully turned to "ON". |
| Motor runs but scooter does not move. | Gear selector is in neutral or reverse (if not intended). Brake engaged. | Ensure gear selector is in "Forward". Release hand brake completely. |
| Zmanjšana hitrost ali doseg. | Low battery charge. Overloaded scooter. Tire pressure too low. | Fully charge battery. Reduce load. Check and adjust tire pressure. |
| Luči ne delujejo. | Light switch off. Blown fuse. Loose connection. | Check light switches. Inspect fuses (refer to wiring diagram). Check connections. |
Če naletite na težave, ki niso navedene tukaj, ali če rešitve ne odpravijo težave, se obrnite na podporo strankam.
Specifikacije
| Funkcija | Podrobnost |
|---|---|
| Model | LUXURYTON X-1000 (4 Four Wheels Electric Mobility Scooter) |
| Moč motorja | 1500 W |
| Največja hitrost | 18 mph |
| Domet na polnjenje | Do 45 milj |
| Zmogljivost teže | 450 lbs |
| Pnevmatike | Brez zračnice |
| Vrsta sedeža | Executive, Fully Adjustable, Rear Tilt & Adjustable Tilt-Up Armrest |
| Mere sedeža | 18"x18"x28" (LxWxH) |
| Electronic Package | Digital Dash, Front & Rear Lights, Brake Lights, Turn Signals, LED Rear Light Strip & Side Reflector Running Lights |
| Zadnji prostor za shranjevanje | ja |
| Višina krmiljenja | 42" From Floor |
| Polmer obračanja | 73" |
| Dimenzije izdelka | 63 x 28 x 42 palcev |
| Teža izdelka | 360 funta |
| Material | Aluminum, Leather |
| barva | Rdeča |
Figure 3: Dimensions of the LUXURYTON X-1000 Electric Mobility Scooter.
Informacije o garanciji
Specific warranty details for the LUXURYTON X-1000 Electric Mobility Scooter are typically provided at the time of purchase or included in a separate warranty document. Please refer to your purchase documentation or contact the seller, MobilityLife, for comprehensive warranty terms and conditions.
Generally, warranties cover manufacturing defects under normal use. Damage resulting from misuse, accidents, or unauthorized modifications is typically not covered.
Podpora uporabnikom
For technical assistance, parts, or service inquiries regarding your LUXURYTON X-1000 Electric Mobility Scooter, please contact the seller, MobilityLife.
You can typically find contact information on your purchase receipt or on the seller's page on Amazon. When contacting support, please have your product model (X-1000) and ASIN (B0CLX3D5ZP) readily available.
Prodajalec: MobilityLife
ASIN: B0CLX3D5ZP
