Uvod
This manual provides detailed instructions for assembling, operating, and maintaining your Sluban Power Bricks-RC Mk4 Tank, model M38-B1022. This 937-piece building set combines the fun of construction with the excitement of remote control functionality. Please read this manual thoroughly before beginning assembly or operation to ensure proper use and enjoyment.
Varnostne informacije
OPOZORILO: Ni primerno za otroke, mlajše od 3 let, zaradi majhnih delov, ki lahko predstavljajo nevarnost zadušitve.
- Med sestavljanjem in igro vedno nadzorujte otroke.
- Majhne dele hranite izven dosega dojenčkov in majhnih otrok.
- Ne zaužijte nobenih delov.
- Embalažni material zavrzite odgovorno.
Vsebina paketa
Pred začetkom montaže preverite, ali so vse komponente prisotne.
- 937 pieces of building blocks
- 1 x Battery Box (48L x 32W x 30.5H mm)
- 3 x Micro Motors (40L x 24W x 27.5H mm)
- 1 x daljinski upravljalnik
- Full-color instruction manual
Image: The product box for the Sluban Power Bricks-RC Mk4 Tank, showing the tank, remote control, and power system components.
Navodila za montažo
Follow the included full-color instruction manual step-by-step to assemble your Sluban Power Bricks-RC Mk4 Tank. Organize your blocks by color and shape to facilitate the building process.
- Razpakirajte vse komponente in preverite seznam vsebine paketa.
- Refer to the detailed, full-color instruction booklet provided in the box.
- Begin assembly by following the sequential steps outlined in the manual.
- Ensure all connections are secure to prevent parts from detaching during play.
- Pay close attention to the integration of the power system components (battery box and micro motors) as indicated in the instructions.
Image: The fully assembled Sluban Power Bricks-RC Mk4 Tank, alongside its remote control and the separate battery box and micro motors.

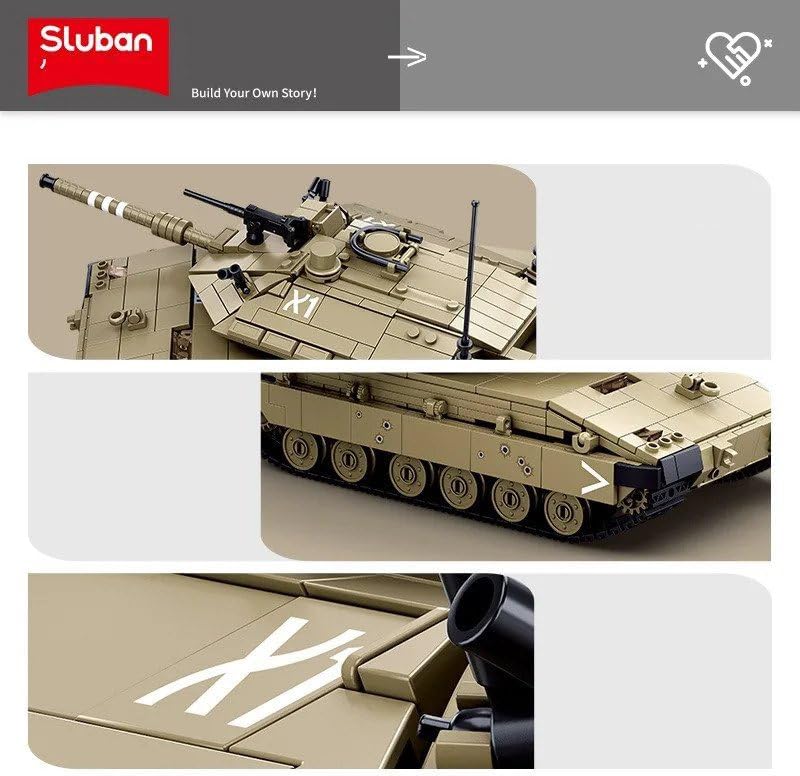

Slika: Bližnji posnetek views of the Sluban Power Bricks-RC Mk4 Tank, highlighting the intricate details of its construction and various sections.
Namestitev baterije
The Sluban Power Bricks-RC Mk4 Tank requires batteries for its remote control functions.
- For the Battery Box: Insert 2 x 1.5V "AAA" batteries (not included) into the battery box. Ensure correct polarity (+/-).
- Za daljinski upravljalnik: Insert the required batteries (typically 2 x 1.5V "AAA" batteries, refer to the remote control's specific compartment for confirmation) into the remote control unit. Ensure correct polarity (+/-).
- Varno zaprite predelke za baterije.
- Ne mešajte starih in novih baterij.
- Ne mešajte alkalnih, standardnih (ogljik-cink) ali polnilnih (nikelj-kadmijevih) baterij.
- Če izdelka dlje časa ne uporabljate, odstranite baterije.
Navodila za uporabo
Once assembled and batteries are installed, you can operate your RC Mk4 Tank.
- Vklop: Turn on the power switch on the tank's battery box and on the remote control.
- Seznanjanje: The tank and remote control should automatically pair. If not, refer to the specific pairing instructions in the included manual.
- Gibanje: Use the joysticks or directional buttons on the remote control to move the tank forward, backward, left, and right. The tank features moving tracks for realistic motion.
- Vrtenje kupole: The tank's turret can rotate 360 degrees. Use the designated controls on the remote to rotate the turret.
- Detailed Control: Experiment with the remote control to understand all movement and function capabilities.

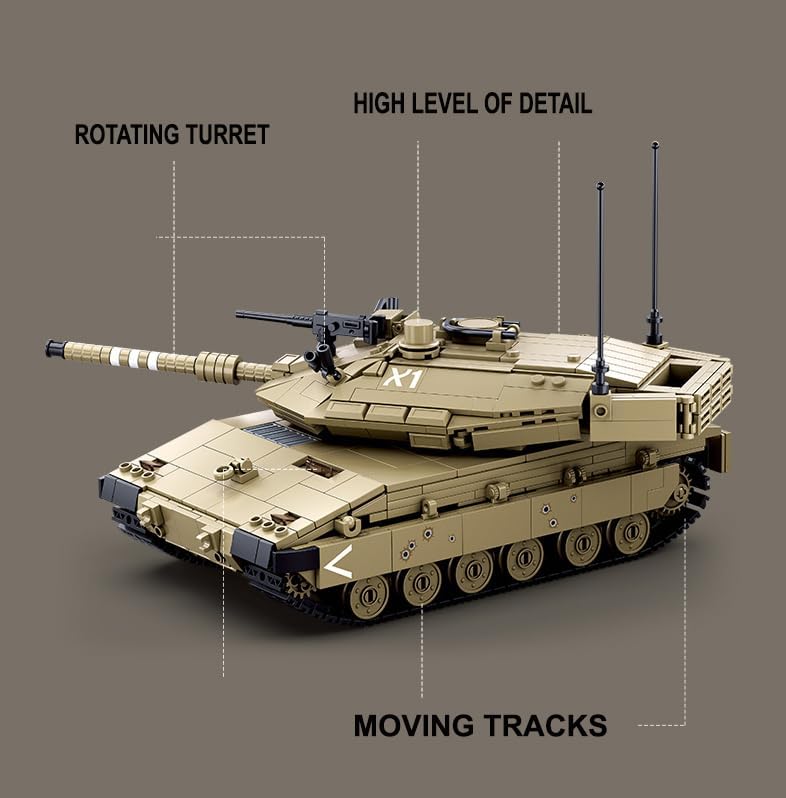

Slika: Podrobna view of the Sluban Power Bricks-RC Mk4 Tank, pointing out its rotating turret, high level of detail in construction, and functional moving tracks.
Image: The Sluban Power Bricks-RC Mk4 Tank depicted in a dynamic setting, showcasing its operational appearance.
Image: Diagrams illustrating the forward and backward movement capabilities of the tank, along with its 360-degree turret rotation feature.
Vzdrževanje
- Čiščenje: Wipe the tank and remote control with a dry, soft cloth. Do not use water or cleaning solutions, as this may damage electronic components.
- Shranjevanje: Store the tank and its components in a cool, dry place away from direct sunlight and extreme temperatures.
- Vzdrževanje baterije: Remove batteries from both the tank and remote control if the product will not be used for an extended period to prevent leakage.
- Zamenjava delov: In case of lost or damaged parts, refer to the manufacturer's website or contact customer support for potential replacement options.
Odpravljanje težav
| Težava | Možen vzrok | rešitev |
|---|---|---|
| Tank does not move or respond to remote. |
|
|
| Tank moves slowly or erratically. |
|
|
| Turret does not rotate. |
|
|
Specifikacije
- Številka modela: M38-B1022
- Število kosov: 937
- Dimenzije izdelka: 4.92 x 16.73 x 15.04 palca (sestavljeno)
- Tank Length: 27.3 cm (10.74 palcev)
- Teža artikla: 2.2 funtov
- Priporočena starost: 8 leta in več
- Potrebne baterije: 2 x 1.5V "AAA" for battery box (not included), additional batteries for remote control (refer to remote for specifics, typically 2 x 1.5V "AAA").
- Lastnosti: Remote Control, Rotating Turret (360 degrees), Moving Tracks

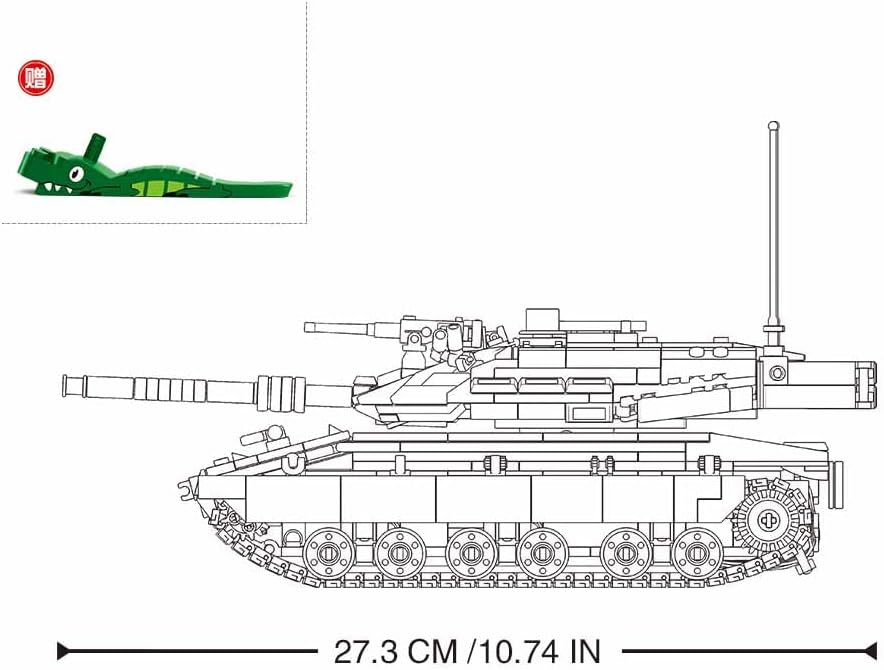

Slika: Stranski profesionalecfile diagram of the Sluban Power Bricks-RC Mk4 Tank, indicating its total length of 27.3 cm (10.74 inches).
Garancija in podpora
For warranty information, replacement parts, or technical support, please contact Sluban customer service through their official webspletno mesto ali prodajalec, kjer je bil izdelek kupljen. Račun shranite kot dokazilo o nakupu.
Proizvajalec: Sluban
