1. Uvod
Thank you for choosing the ORIA 3-in-1 Foldable Wireless Charger. This device is designed to provide a convenient and efficient charging solution for your compatible iOS phone, Apple Watch, and AirPods simultaneously. Its foldable design enhances portability, making it ideal for both home and travel use. Please read this manual carefully before use to ensure proper operation and to maximize the product's lifespan.
Image 1.1: The ORIA 3-in-1 Foldable Wireless Charger in its unfolded state, accompanied by its USB-C charging cable.
2. Vsebina paketa
Prosimo, preverite paket za naslednje artikle:
- 1 x ORIA 3-in-1 Foldable Wireless Charger
- 1 x polnilni kabel Type-C
- 1 x Uporabniški priročnik (ta dokument)
3. Izdelek je končanview
The ORIA 3-in-1 Wireless Charger features three dedicated charging modules for your smartphone, smartwatch, and wireless earbuds. Its soft silicone material allows for a 180° fold, enabling it to be used flat or as a stand. The device incorporates intelligent protection mechanisms to ensure safe charging.

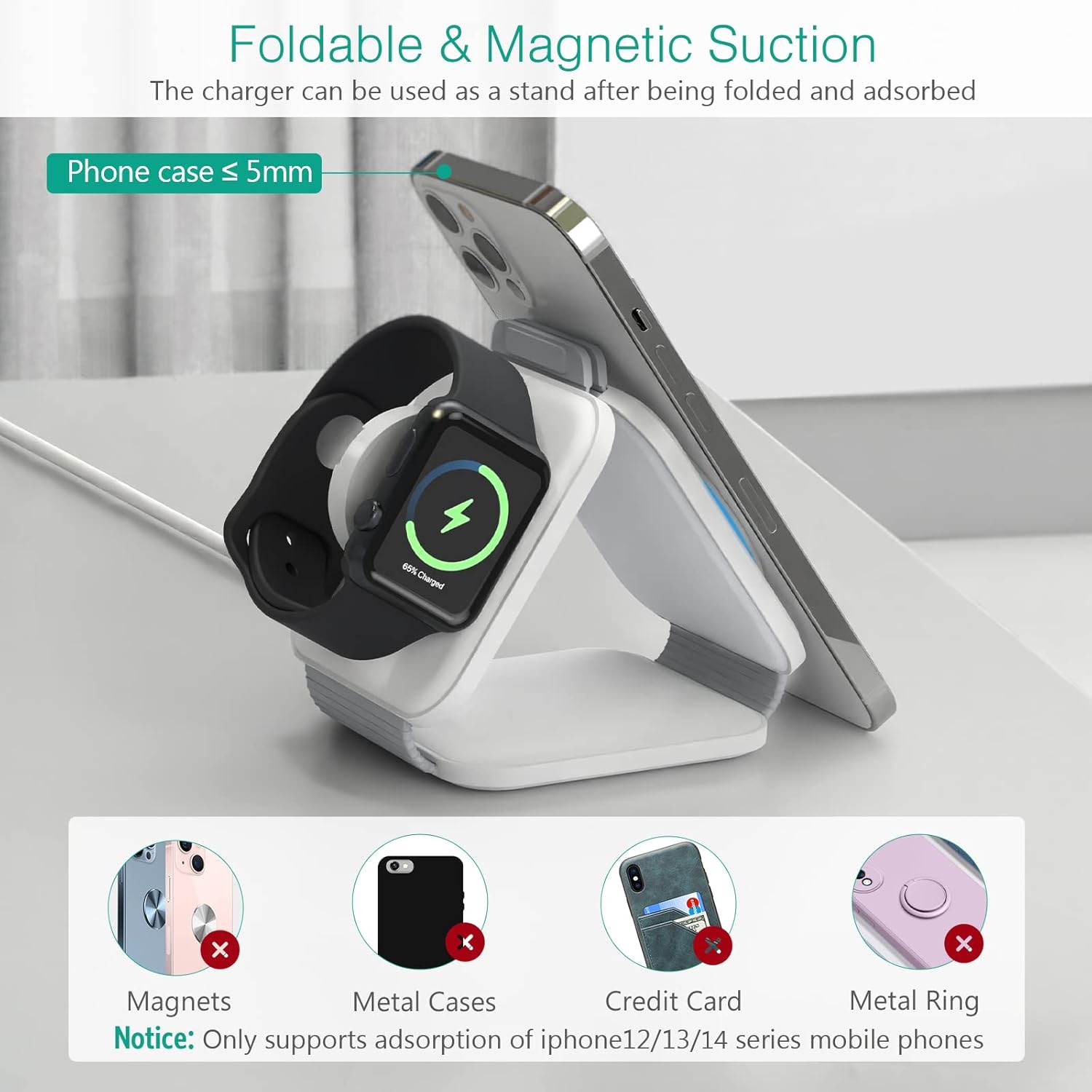

Image 3.1: The charger folded into a stand configuration, supporting a smartphone and an Apple Watch for charging.

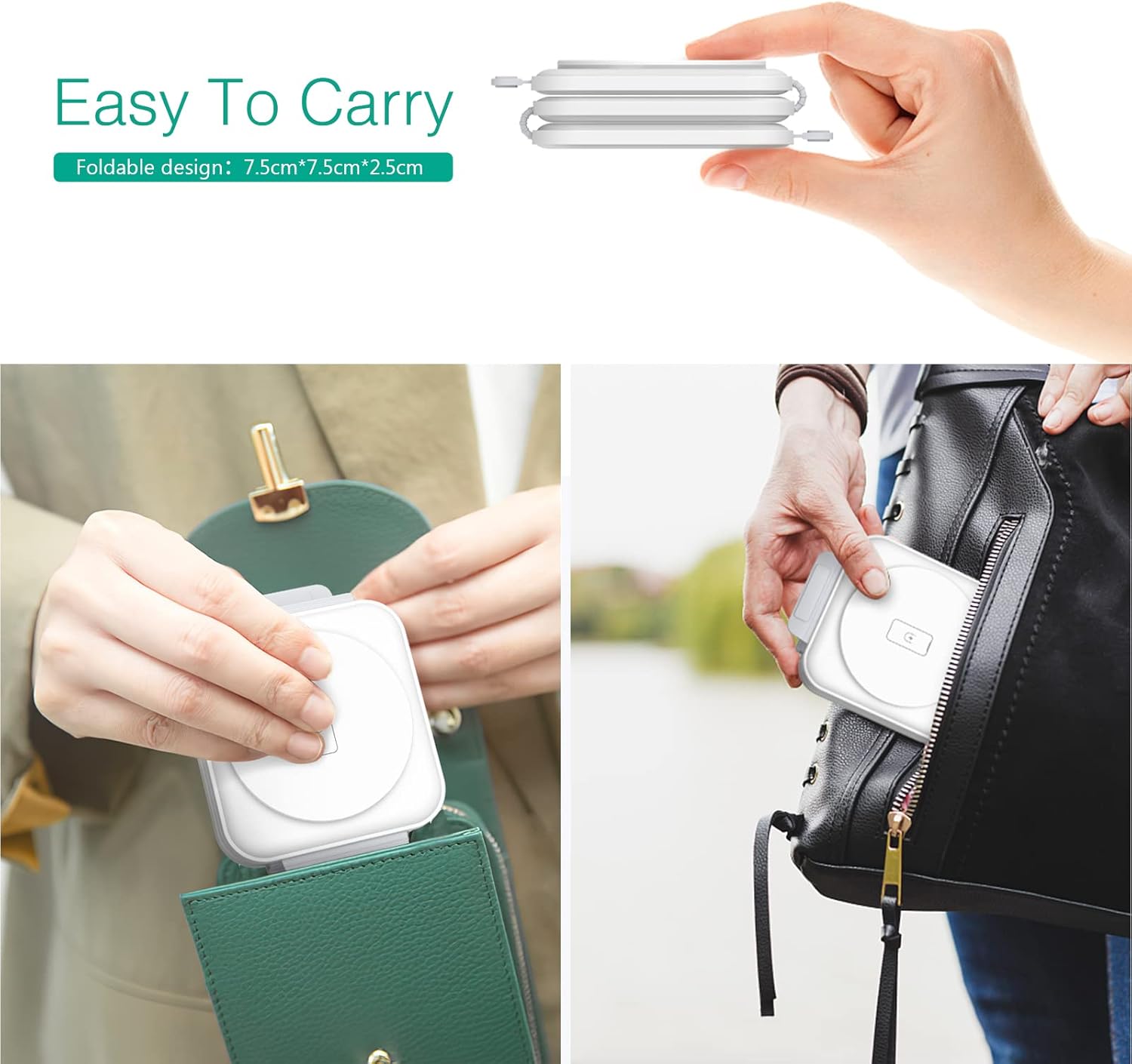

Image 3.2: The compact, folded design of the charger, demonstrating its portability by fitting into a pocket and a small bag.
4. Navodila za nastavitev
- Priključite napajanje: Connect the provided Type-C charging cable to the charger's input port and then to a compatible power adapter.
- Zahteva za napajalnik: For optimal performance and fast charging, use a Type-C 18W power adapter (not included). Using an adapter with lower wattage may result in slower charging speeds or insufficient power for multiple devices.
- Umestitev: Place the charger on a flat, stable surface. You can use it in its flat, extended form or fold it into a stand configuration as desired.
Image 4.1: Illustration of the 3-in-1 charger in use, emphasizing the requirement for an 18W Type-C adapter for fast charging.
5. Navodila za uporabo
Once the charger is connected to a power source, it is ready for use. Simply place your compatible devices on their respective charging areas.
- Smartphone Charging: Place your iOS phone on the designated phone charging pad. Ensure the phone is centered for proper alignment with the charging coil. The charger supports magnetic adsorption for iPhone 12/13/14 series mobile phones when used as a stand.
- Polnjenje Apple Watch: Place your Apple Watch on the circular watch charging module.
- Polnjenje AirPods: Place your AirPods case on the central charging pad for earbuds.
The charger will automatically detect the device and begin charging. You can charge all three devices simultaneously.
Image 5.1: The charger in operation, simultaneously charging a smartphone, AirPods, and an Apple Watch.
6. Lučka za polnjenje
The phone charging module features an indicator light to communicate the charging status:
- Zelena luč: Označuje stanje pripravljenosti.
- Blue Light (breathing): Indicates active charging.
- Alternating Blue and Green Lights: Indicates foreign body detection (FOD) or an error. Remove any objects from the charging pad.
A dedicated button allows you to manually turn off the indicator light at any time, which can be useful in dark environments.

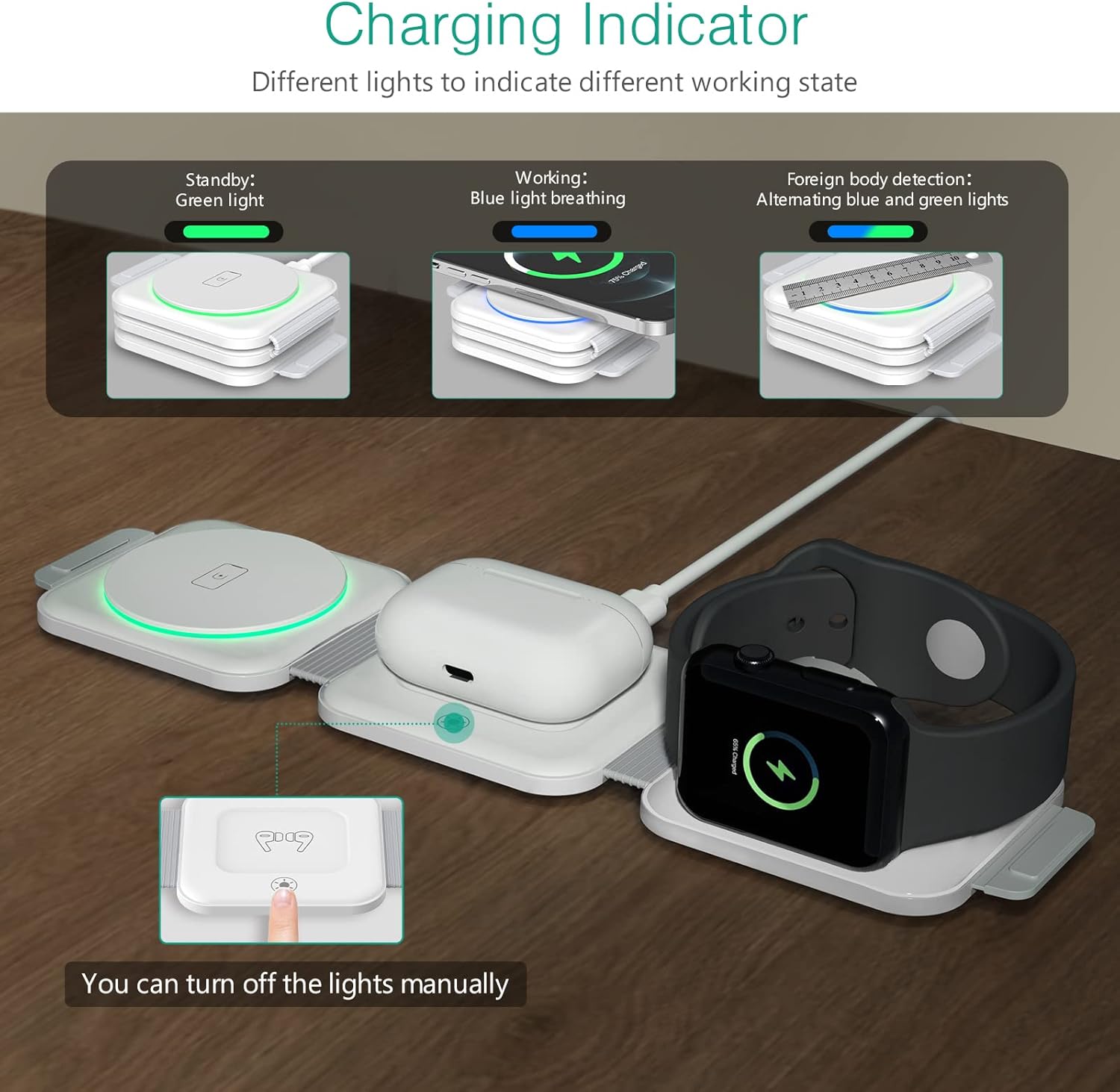

Image 6.1: Visual representation of the charging indicator light's different states and their meanings.
7. Varnostni ukrepi
The ORIA 3-in-1 Wireless Charger is equipped with intelligent chips that provide multiple safety features:
- Overvoltage Zaščita: Preprečuje poškodbe zaradi prekomerne količinetage vnos.
- Prenapetostna zaščita: Zaščita pred prekomernim pretokom toka.
- Zaščita pred kratkim stikom: Protects the device and connected electronics from short circuits.
- Nadzor temperature: Manages the operating temperature to prevent overheating.
- Foreign Body Detection (FOD): Detects metallic objects on the charging surface and stops charging to prevent heat buildup and potential damage.
Pomembne opombe:
- Only use a Type-C 18W adapter for charging.
- Ensure your phone case is no thicker than 5mm for effective wireless charging.
- Remove any magnets, metal cases, credit cards, or metal rings from your phone before placing it on the charger, as these can interfere with charging or trigger foreign body detection.
- Naprave ne razstavljajte, spreminjajte ali popravljajte sami.
- Polnilnik hranite stran od vode, vlage in visokih temperatur.
Slika 7.1: Notranji view of the charger highlighting its multiple protection features for safe operation.
8. Vzdrževanje
- Čiščenje: Disconnect the charger from the power source before cleaning. Use a soft, dry cloth to wipe the surface. Do not use harsh chemicals or abrasive cleaners.
- Shranjevanje: When not in use, store the charger in a cool, dry place, away from direct sunlight and extreme temperatures. Its foldable design makes it easy to store and transport.
9. Odpravljanje težav
- Naprava se ne polni:
- Ensure the charger is properly connected to a working power outlet and an 18W Type-C adapter.
- Verify that your device is placed correctly and centered on the charging pad.
- Remove any metallic objects, magnets, or thick cases from your device.
- Check if the indicator light is showing an error (alternating blue and green).
- Confirm your device is compatible with wireless charging.
- Počasno polnjenje:
- Ensure you are using an 18W Type-C power adapter. Lower wattagUporaba adapterjev bo povzročila počasnejše polnjenje.
- Avoid charging multiple devices if you require the fastest possible charge for a single device, as power is shared.
- Ensure proper alignment of the device on the charging coil.
- Indicator light flashing blue and green:
- This indicates foreign body detection. Remove any objects from the charging surface and try again.
- Polnilnik je topel na otip:
- It is normal for the charger to become slightly warm during operation. If it becomes excessively hot, disconnect it immediately and contact support.
10. Specifikacije
| Funkcija | Podrobnost |
|---|---|
| Številka modela | 001 |
| Vhodna voltage | 5 volta |
| Ampstarost | 2 Amps |
| Skupno število vrat USB | 1 (tip C) |
| Vrsta priključka | USB tipa C |
| Združljive naprave | Cellular Phones, Apple Watch, AirPods |
| Združljivi modeli telefonov | iOS phones (e.g., iPhone 14/14 Pro, 13/13 Pro, 12/12 Pro, 11/11 Pro, SE, X, 8) |
| Združljivi modeli ur | iWatch 1/2/3/4/5/6/SE/7/8 |
| Compatible Earbud Models | Airpods 2/3, Airpods Pro 1/2 |
| Posebne lastnosti | Charging Indicator, Short Circuit Protection, Overvoltage Protection, Overcurrent Protection, Temperature Control, Foreign Body Detection |
| Teža predmeta | 7 unče (približno 198 g) |
| Dimenzije paketa | 4.06 x 3.46 x 2.28 palcev |
Image 10.1: Detailed compatibility and charging wattage information for various devices.
11. Garancija in podpora
ORIA products are designed and manufactured to the highest quality standards. For information regarding warranty coverage, technical support, or customer service, please refer to the contact information provided with your purchase or visit the official ORIA webspletnega mesta. Prosimo, shranite dokazilo o nakupu za uveljavljanje garancije.
