Uvod
This manual provides essential information for the safe and efficient operation, installation, and maintenance of your Ameristar 3 TON 14 SEER Heat Pump System. This system includes a condenser unit, an air handler, and a heat strip, designed for optimal climate control in residential or light commercial applications. Please read this manual thoroughly before installation or operation.

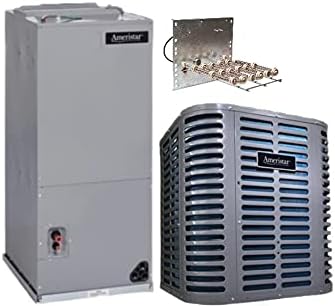

The Ameristar 3 TON 14 SEER Heat Pump System, showing the outdoor condenser unit, the indoor air handler, and the auxiliary heat strip component.
Varnostne informacije
Always adhere to local and national electrical and building codes. Installation and servicing should only be performed by qualified, experienced technicians. Failure to do so can result in property damage, personal injury, or death. Disconnect all power before servicing.
- Zagotovite pravilno ozemljitev vseh električnih komponent.
- Med namestitvijo in vzdrževanjem nosite ustrezno osebno zaščitno opremo (OZO).
- Sistema ne uporabljajte s poškodovano napeljavo ali komponentami.
- Vnetljivih materialov hranite stran od enote.
Nastavitev in namestitev
Proper installation is crucial for the performance and longevity of your heat pump system. This section provides general guidelines. Refer to detailed installation instructions provided with the physical product for specific wiring diagrams and piping requirements.
Namestitev kondenzacijske enote
The Ameristar outdoor condenser unit, a key component of the heat pump system.
- Locate the outdoor unit on a firm, level pad, away from direct sunlight and obstructions.
- Ensure adequate clearance around the unit for proper airflow and servicing.
- Maintain a minimum of 12 inches from any wall or obstruction on the sides and back, and 24 inches from the top.
Namestitev krmilnika zraka
The Ameristar indoor air handler unit, responsible for circulating conditioned air.
- Install the air handler indoors, typically in a utility closet, attic, or basement.
- Ensure proper condensate drainage is established to prevent water damage.
- Connect the air handler to the existing ductwork system.
Electrical and Refrigerant Connections
All electrical wiring must comply with local codes and the National Electrical Code (NEC). Refrigerant lines must be properly sized, evacuated, and charged by a certified technician.
- Preverite pravilno voltage (110 Volts as per specifications) and circuit breaker size.
- Prepričajte se, da so vse povezave varne in izolirane.
- Use R-410A refrigerant as specified for this system.
Navodila za uporabo
Your Ameristar heat pump system is controlled by a thermostat (not included). Familiarize yourself with your thermostat's operation manual for specific programming and settings.
Načini delovanja
- Način ogrevanja: The system extracts heat from the outdoor air and transfers it indoors. When outdoor temperatures are very low, the auxiliary heat strip will engage to supplement heating.
- Način hlajenja: The system extracts heat from the indoor air and releases it outdoors, providing cooling.
- Način ventilatorja: Kroži zrak brez ogrevanja ali hlajenja.
- Samodejni način: Samodejno preklaplja med ogrevanjem in hlajenjem, da vzdržuje nastavljeno temperaturo.
Nastavitve termostata
- Nastavite želeno temperaturo.
- Choose the appropriate mode (Heat, Cool, Fan, Auto).
- Consider using programmable features to optimize energy efficiency.
Vzdrževanje
Regular maintenance ensures optimal performance, efficiency, and longevity of your heat pump system. Some tasks can be performed by the homeowner, while others require a qualified technician.
User Maintenance (Monthly/Quarterly)
- Zamenjava zračnega filtra: Check and replace or clean the air filter monthly, or more frequently if the system is in constant use or if there are pets in the home. A dirty filter restricts airflow and reduces efficiency.
- Čiščenje zunanje enote: Keep the area around the outdoor condenser unit clear of debris, leaves, and vegetation. Gently rinse the outdoor coil with a garden hose to remove dirt buildup.
- Odvod kondenzata: Periodically check the condensate drain line for clogs. Clear any blockages to prevent water overflow.
Professional Maintenance (Annually)
Schedule an annual inspection and tune-up by a qualified HVAC technician. This typically includes:
- Preverjanje nivoja in tlaka hladilnega sredstva.
- Pregled električnih priključkov in komponent.
- Cleaning evaporator and condenser coils.
- Mazanje gibljivih delov.
- Preverjanje kalibracije termostata.
- Pregledovanje puščanja kanalov.
Odpravljanje težav
Preden pokličete servis, ponovnoview the following common issues and their potential solutions. For complex problems, contact a qualified HVAC technician.
| Težava | Možen vzrok | rešitev |
|---|---|---|
| Sistem se ne vklopi | No power; tripped circuit breaker; thermostat off/incorrect setting. | Check circuit breaker; ensure thermostat is set to Heat/Cool and desired temperature. |
| Nezadostno ogrevanje/hlajenje | Dirty air filter; blocked outdoor unit; low refrigerant; leaky ductwork. | Replace/clean air filter; clear debris from outdoor unit; contact technician for refrigerant/duct issues. |
| Nenavadni zvoki | Loose parts; fan motor issues; refrigerant line vibration. | Inspect for loose panels; contact technician for internal component issues. |
| Voda pušča iz notranje enote | Clogged condensate drain line; frozen evaporator coil. | Clear condensate drain; check air filter (frozen coil often due to restricted airflow). |
Specifikacije
Key technical specifications for the Ameristar 3 TON 14 SEER Heat Pump System.
- Znamka: Ameristar
- Ime modela: 3 TON 14 SEER HEAT PUMP SYSTEM
- Efficiency (SEER): 14.0
- Vrsta namestitve: Split sistem
- Faktor oblike: Split sistem
- Posebne lastnosti: Kompakten
- barva: siva
- voltage: 110 volta
- Vrsta materiala: Jeklo
- Hladilno sredstvo: R-410A
- vir energije: Zračni pogon
- Prvič na voljo: 20. september 2021
Garancija in podpora
Warranty information for your Ameristar Heat Pump System is typically provided with your purchase documentation or can be found on the official Ameristar or American Standard Heating & Air webspletnega mesta. Prosimo, shranite dokazilo o nakupu za uveljavljanje garancije.
For technical support, service inquiries, or to locate a certified Ameristar service provider, please refer to the contact information provided by your installer or visit the manufacturer's official website. When contacting support, have your model number and date of purchase readily available.
The Ameristar brand logo, indicating its affiliation with American Standard Heating & Air.
