Navodila za uporabo pogradne postelje Bellemave Twin Over Twin House s streho in okni

1. Uvod

This manual provides detailed instructions for the assembly, safe operation, and maintenance of your Bellemave Twin Over Twin House Bunk Bed. Please read all instructions carefully before assembly and use to ensure safety and proper function. Retain this manual for future reference.

2. Pomembne varnostne informacije

Neupoštevanje teh opozoril lahko povzroči resne poškodbe.

• Največja nosilnost teže: The upper bunk is designed to support a maximum weight of 250 lbs. The lower bunk is designed to support a maximum weight of 250 lbs.
• Starostna omejitev: Zgornje ležišče ni primerno za otroke, mlajše od 6 let.
• Zahteve za vzmetnice:
  • Upper and Lower Bunk: Use only a Twin size mattress.
  • Recommended Mattress Thickness: 6-10 inches for both upper and lower bunks.
• Zaščitne ograje: Always use the guard rails on the upper bunk. Ensure they are properly installed and secured.
• Varnost lestve: Always use the ladder for entering and exiting the upper bunk. Do not use the bed as a climbing structure.
• Montaža: Assembly should be performed by at least two adults. Ensure all hardware is securely tightened before use. Periodically check and re-tighten hardware.
• Prezračevanje: Zagotovite zadostno prezračevanje okoli postelje.
• Prepovedane dejavnosti: Do not allow jumping on the bed. Do not attach or hang items from any part of the bunk bed that are not designed for use with the bed.
• Lokacija: Place the bunk bed on a level surface. Avoid placing the bed near windows where cords or blinds could pose a strangulation hazard.

3. Vsebina paketa

Before beginning assembly, verify that all parts and hardware are present and undamaged. If any parts are missing or damaged, do not proceed with assembly. Contact customer support for assistance.

The Bellemave Twin Over Twin House Bunk Bed is shipped in two packages. All necessary tools for assembly are included.

3.1 Komponente nadview

Refer to the following image for a visual representation of the assembled product and its key features.

Figure 3.1: Assembled Bellemave Twin Over Twin House Bunk Bed, showcasing the roof, windows, and integrated ladder.

3.2 Mere

Review the dimensions to ensure the bed fits your intended space.

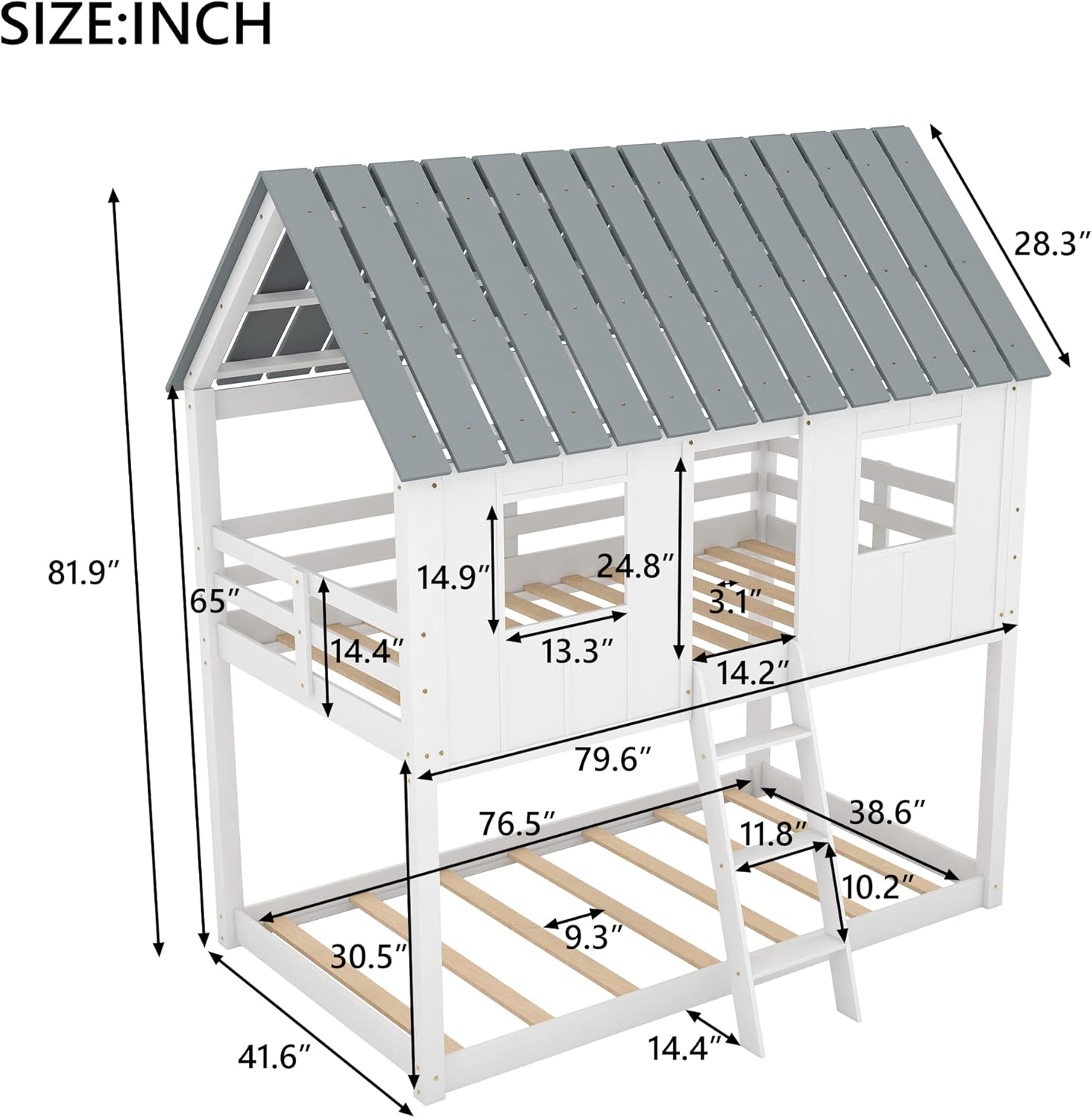

Figure 3.2: Detailed dimensions of the bunk bed, including overall height, length, width, and internal measurements for mattress placement.

3.3 Detailed Features

Figure 3.3: Visual breakdown of key features: reliable safety design with full-length guardrails, creative house bunk design with pitched roof and windows, built-in 3-step ladder, and a low floor bunk design.

4. Navodila za montažo

Assembly requires two adults and approximately 2-4 hours. All necessary tools are included. Follow these steps carefully.

1. Razpakirajte in prepoznajte dele: Carefully unpack all components from both packages. Lay them out on a clean, soft surface (e.g., a carpet or blanket) to prevent scratches. Identify each part using the provided labels. Note: Some painted components may be stuck together due to packaging. Separate them gently to avoid paint damage. If significant paint damage occurs, contact customer support.
2. Assemble the Lower Bed Frame: Begin by assembling the base frame for the lower bunk. Connect the side rails and end panels using the specified hardware. Ensure all connections are snug but do not overtighten until the frame is fully aligned.
3. Install Lower Bed Slats: Once the lower frame is stable, insert the wooden slats into the designated slots or attach them with screws as indicated in the detailed diagram. These slats provide mattress support.
4. Assemble the Upper Bed Frame: Construct the frame for the upper bunk, similar to the lower bunk. Pay close attention to the orientation of the panels that will form the "house" structure.
5. Attach Upper Bed Guard Rails: Securely attach the full-length guard rails to the upper bunk frame. These are critical safety components.
6. Install Upper Bed Slats: Place the wooden slats for the upper bunk into position, ensuring they are evenly spaced and securely fastened.
7. Mount Upper Bunk onto Lower Bunk: With assistance, carefully lift the assembled upper bunk and align it over the lower bunk. Securely fasten the upper bunk to the lower bunk's support posts using the provided long bolts and connectors.
8. Assemble and Attach the Ladder: Assemble the ladder components. The ladder can typically be positioned on either the side or the head/foot of the bed. Securely attach the ladder to the upper bunk frame. Ensure it is stable and does not wobble.
9. Install Roof and Window Panels: Attach the decorative roof panels and window panels to the upper bunk structure. Ensure all connections are firm.
10. Končni pregled: After completing all steps, perform a thorough inspection. Check all bolts, screws, and connections to ensure they are fully tightened. Confirm the stability of the entire structure.

Slika 4.1: Spredaj view of the bunk bed frame, illustrating the structure before mattress placement.

Figure 4.2: Detail of the built-in ladder, showing its secure attachment points and steps.

5. Navodila za uporabo

This section outlines the proper and safe use of your Bellemave Twin Over Twin House Bunk Bed.

• Namestitev vzmetnice: Place a standard Twin size mattress on both the upper and lower bunk slat foundations. Ensure the mattress thickness is within the recommended 6-10 inches for safety, especially for the upper bunk's guard rail height.
• Uporaba lestve: Always use the integrated ladder to access and exit the upper bunk. Ensure the ladder is free of obstructions and stable before use.
• Guard Rail Functionality: The guard rails on the upper bunk are designed to prevent falls. Do not attempt to climb over them or remove them.
• Nadzor: Children using the upper bunk should be supervised, especially younger children within the recommended age range (6 years and older).
• Porazdelitev teže: Avoid concentrating excessive weight on any single point of the bed. Distribute weight evenly.

6. Vzdrževanje in nega

Regular maintenance will prolong the life and ensure the safety of your bunk bed.

• Čiščenje: Površine obrišite z mehko, damp krpo. Izogibajte se agresivnim kemikalijam ali abrazivnim čistilom, ki bi lahko poškodovala površino.
• Preverjanje strojne opreme: Periodically (e.g., monthly) inspect all bolts, screws, and connections. Re-tighten any loose hardware to maintain structural integrity.
• Strukturni pregled: Check for any signs of wear, damage, or instability in the wood components. Address any issues promptly.
• Prezračevanje: Ensure good air circulation around the mattress to prevent moisture buildup.

7. Odpravljanje težav

Ta razdelek obravnava pogoste težave, na katere lahko naletite.

8. Specifikacije

9. Garancija in podpora strankam

For warranty information, missing parts, or any questions regarding your Bellemave Twin Over Twin House Bunk Bed, please contact Bellemave customer support directly. Refer to your purchase documentation for specific contact details or visit the official Bellemave webmesto.

When contacting support, please have your model number (B098SYLSBH) and purchase date available.
