Beatfoxx GT-25 Chuck Guitar-Shaped Turntable User Manual

Uvod

The Beatfoxx GT-25 Chuck is a unique guitar-shaped turntable designed for playing vinyl records. It features a vintage wood-effect finish and offers versatile placement options: it can be used vertically with its included stand or mounted on a wall. This turntable supports three playback speeds (33, 45, and 78 RPM) and includes a magnetic holder to secure various record sizes. For audio output, it comes with integrated speakers, Bluetooth connectivity for wireless streaming from compatible devices, an AUX-in port for connecting external audio sources, and RCA-out ports for connection to an external amplifier or Hi-Fi system.

Navodila za namestitev

1. Razpakiranje in pregled

Previdno odstranite vse komponente iz embalaže. Prepričajte se, da so vsi deli prisotni in nepoškodovani. Embalažo shranite za kasnejši transport ali shranjevanje.

2. Možnosti umestitve

The GT-25 Chuck offers two primary placement methods:

• Using the Included Stand: Assemble the guitar stand according to its instructions. Place the turntable securely on the stand in a stable location.
• Montaža na steno: Use the provided wall mounting hardware. Ensure the chosen wall can support the weight of the turntable. Mark and drill holes, then securely attach the mounting brackets to the wall and the turntable.

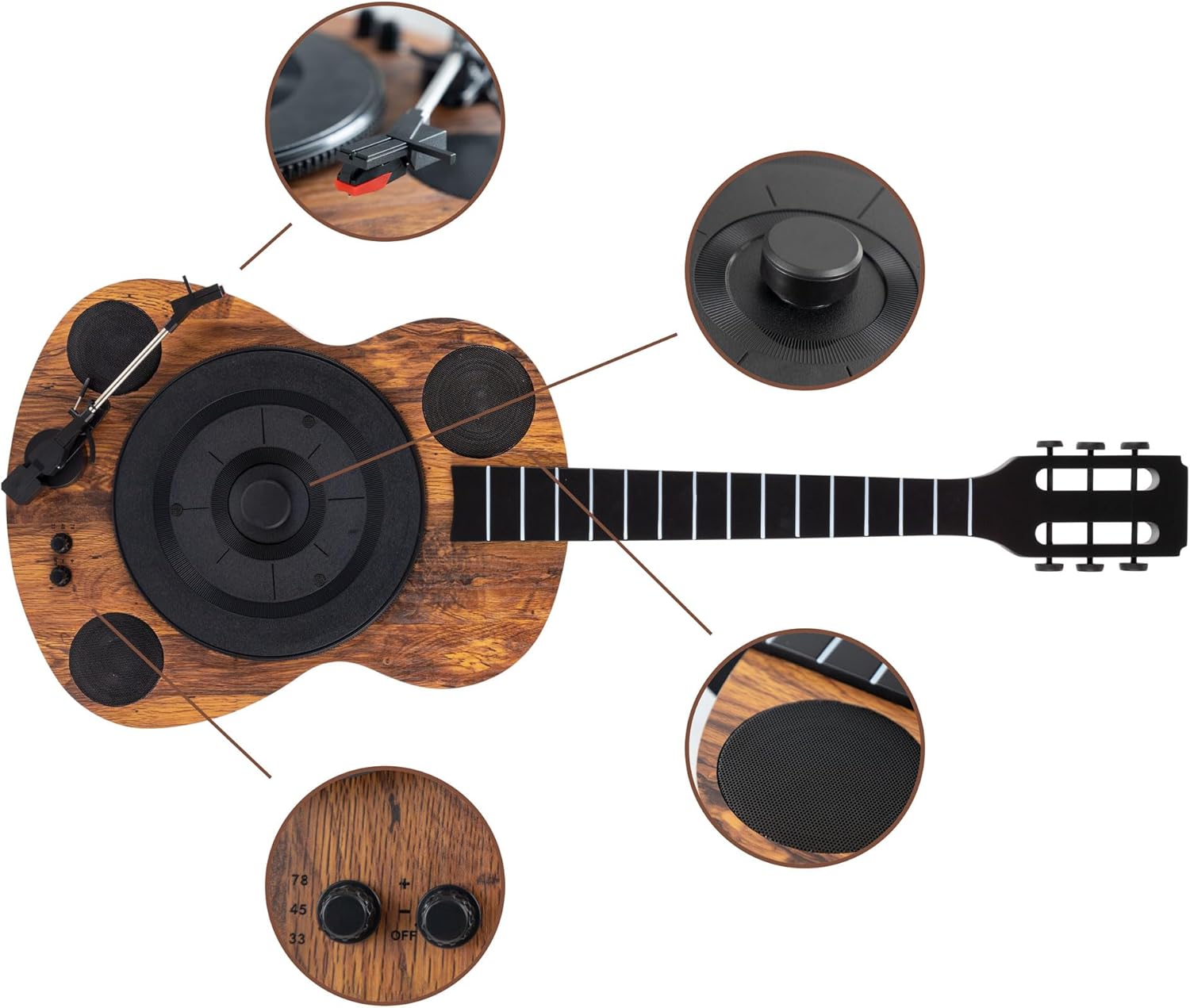

Slika 1: Spredaj view of the Beatfoxx GT-25 Chuck Turntable.

Figure 2: The included adjustable guitar stand.

Figure 3: Wall mounting hardware for secure installation.

3. Napajalni priključek

Connect the provided power adapter to the DC 12V input port on the rear of the turntable. Plug the adapter into a suitable wall outlet.

4. Stylus Protection

Before first use, carefully remove the protective cap from the stylus (needle) at the end of the tonearm.

Navodila za uporabo

1. Playing Vinyl Records

1. Vklop: Turn the power/volume knob clockwise to power on the unit.
2. Krajevni zapis: Carefully place a vinyl record onto the turntable platter. The magnetic holder will secure it.
3. Izberite hitrost: Adjust the speed selector switch (usually located near the platter) to match the record's speed (33, 45, or 78 RPM).
4. Položaj ročice tona: Gently lift the tonearm and move it over the desired starting groove of the record.
5. Spodnja ročica: Slowly lower the tonearm onto the record. Playback will begin automatically.
6. Prilagodi glasnost: Z gumbom za glasnost nastavite želeno glasnost poslušanja.
7. Konec predvajanja: At the end of the record, the tonearm may return automatically or need to be manually lifted and returned to its rest. Turn the power/volume knob counter-clockwise to power off.

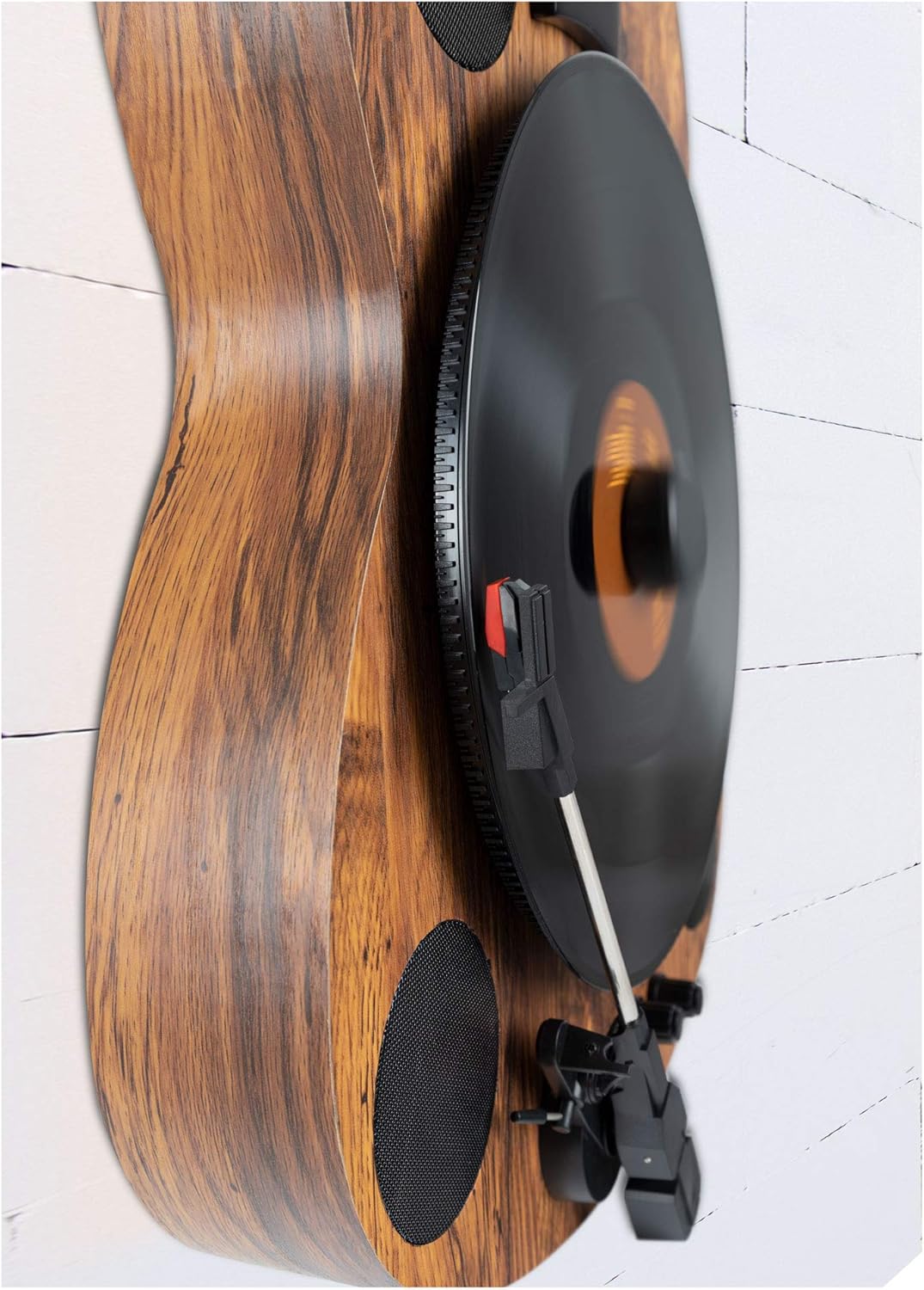

Figure 4: Turntable playing a record vertically.

Figure 5: A vinyl record placed on the turntable platter.

2. Bluetooth povezljivost

The GT-25 Chuck can receive audio wirelessly via Bluetooth from your smartphone or tablet.

1. Aktiviraj Bluetooth: Switch the turntable to Bluetooth mode (refer to the control panel for the specific button or switch). An indicator light will usually flash, indicating pairing mode.
2. Seznani napravo: On your mobile device, enable Bluetooth and search for available devices. Select "Beatfoxx GT-25" or a similar name from the list.
3. Predvajanje: Once paired, the indicator light will become solid. You can now play audio from your device through the turntable's speakers.

Figure 6: Turntable ready for Bluetooth pairing.

3. AUX vhod

Connect external audio devices (e.g., MP3 players, older phones) using a 3.5mm audio cable.

1. Priključni kabel: Plug one end of a 3.5mm audio cable into the AUX IN port on the rear of the turntable.
2. Priključite napravo: Plug the other end into the headphone jack or line-out port of your external audio device.
3. Izberite način AUX: Switch the turntable to AUX input mode (refer to the control panel).
4. Predvajanje: Play audio from your external device. Adjust volume on both the device and the turntable.

4. RCA linijski izhod

For enhanced sound, connect the turntable to an external amplifier or Hi-Fi system using RCA cables.

1. Povežite kable: Connect RCA cables (red for right, white/black for left) to the LINE OUT ports on the rear of the turntable.
2. Poveži se z Ampdvigalo: Connect the other end of the RCA cables to an available audio input on your amplifier ali sprejemnik.
3. Izberite vnos: Select the corresponding input on your amplifier.
4. Predvajanje: Play a record on the turntable. Audio will be routed through your external sound system. The integrated phono pre-amplifier ensures compatibility with most standard amposvežilci.

Figure 7: Rear panel connections (DC 12V, Line Out, AUX In).

Vzdrževanje

1. Čiščenje pisala

A clean stylus ensures optimal sound quality and prolongs record life. Use a soft brush designed for stylus cleaning, brushing gently from back to front. Avoid touching the stylus with your fingers.

2. Čiščenje enote

Wipe the turntable's surface with a soft, dry, lint-free cloth. For stubborn marks, slightly dampen the cloth with water. Avoid abrasive cleaners or solvents, as they can damage the finish.

3. Record Care

Keep your vinyl records clean and free of dust. Store them vertically in their sleeves to prevent warping. Handle records by their edges to avoid transferring oils from your skin.

Odpravljanje težav

Specifikacije

Garancija in podpora

For warranty information and technical support, please refer to the documentation included with your purchase or visit the official Beatfoxx webspletnega mesta. Shranite dokazilo o nakupu za uveljavljanje garancije.
