1. Uvod
This manual provides detailed instructions for the installation, operation, and maintenance of your COOAU 2K Wireless Outdoor Security Camera. Please read this manual thoroughly before using the product to ensure proper function and safety. Keep this manual for future reference.
2. Vsebina paketa
Preverite, ali so v paketu vsi spodaj navedeni predmeti. Če kateri koli predmet manjka ali je poškodovan, se obrnite na podporo strankam.
- 1 x COOAU Wireless Outdoor Security Camera
- 1 x Outdoor Wall Mount
- 1 x Magnetic Ball Mount
- 1 x USB polnilni kabel
- 1 x Uporabniški priročnik (ta dokument)
- 2 x Screw Bags (for mounting)
- 2 x 3M Adhesive Films (for mounting)
- 1 x vodnik za hiter začetek
3. Izdelek je končanview in funkcije
The COOAU 2K Wireless Outdoor Security Camera is designed for reliable outdoor surveillance, offering advanced features for enhanced security.
Image: The COOAU 2K Wireless Outdoor Security Camera, showcasing its compact design and key features such as 2K image quality, color night vision, PIR motion detection, 2.4 GHz WiFi connectivity, IP65 waterproofing, two-way audio, instant alarm, and user sharing capability.
Ključne značilnosti:
- Kakovost videa 2K: Zajame jasne in podrobne posnetke hranetage.
- 130° širokokotni View: Provides extensive coverage of your surveillance area.
- Barvni nočni vid: Utilizes 3 infrared lights to provide clear, detailed images even in low-light conditions.
- Optimized PIR Motion Detection: Z natančnim zaznavanjem človeškega gibanja zmanjšuje lažne alarme.
- Dvosmerni zvok: Omogoča komunikacijo v realnem času prek kamere.
- Vodoodpornost IP65: Ensures durability and functionality in various outdoor weather conditions (waterproof, snowproof, UV-resistant).
- Dolga življenjska doba baterije: Equipped with a 10000 mAh rechargeable battery, offering 3 to 8 months of standby time.
- Lokalna shramba in shranjevanje v oblaku: Supports Micro SD cards up to 128GB and optional cloud storage for video recording.
4. Vodič za namestitev
Proper installation is crucial for optimal performance of your security camera. Consider the following points before mounting.
4.1 Installation Tip for PIR Motion Detection
The PIR motion sensor is more sensitive to movement across its field of view (lateral movement) than to movement directly towards or away from the camera. For best detection, position the camera so that potential intruders move across the detection zone rather than directly at the camera.
4.2 Možnosti namestitve
The camera comes with both an outdoor wall mount and a magnetic ball mount for flexible installation.
- Izberite lokacijo: Izberite lokacijo, ki zagotavlja želeno viewing angle and is within range of your 2.4 GHz Wi-Fi network. Ensure the camera is positioned to capture critical areas while minimizing false triggers from environmental factors like moving branches.
- Test Wi-Fi Signal: Before permanent installation, use the CloudEdge app's installation guide to measure the Wi-Fi signal strength at your chosen location. A strong signal is essential for reliable performance.
- Montaža kamere:
- Uporaba stenskega nosilca: Secure the wall mount to a sturdy surface using the provided screws. Attach the camera to the mount and adjust the angle.
- Using the Magnetic Ball Mount: Attach the magnetic base to a flat surface using screws or the 3M adhesive film. The camera can then be easily attached and adjusted on the magnetic ball. This option allows for quick removal for charging.
- Prilagodi Viewkot kota: Once mounted, adjust the camera's angle to cover the desired area. The 130° wide-angle lens provides broad coverage.

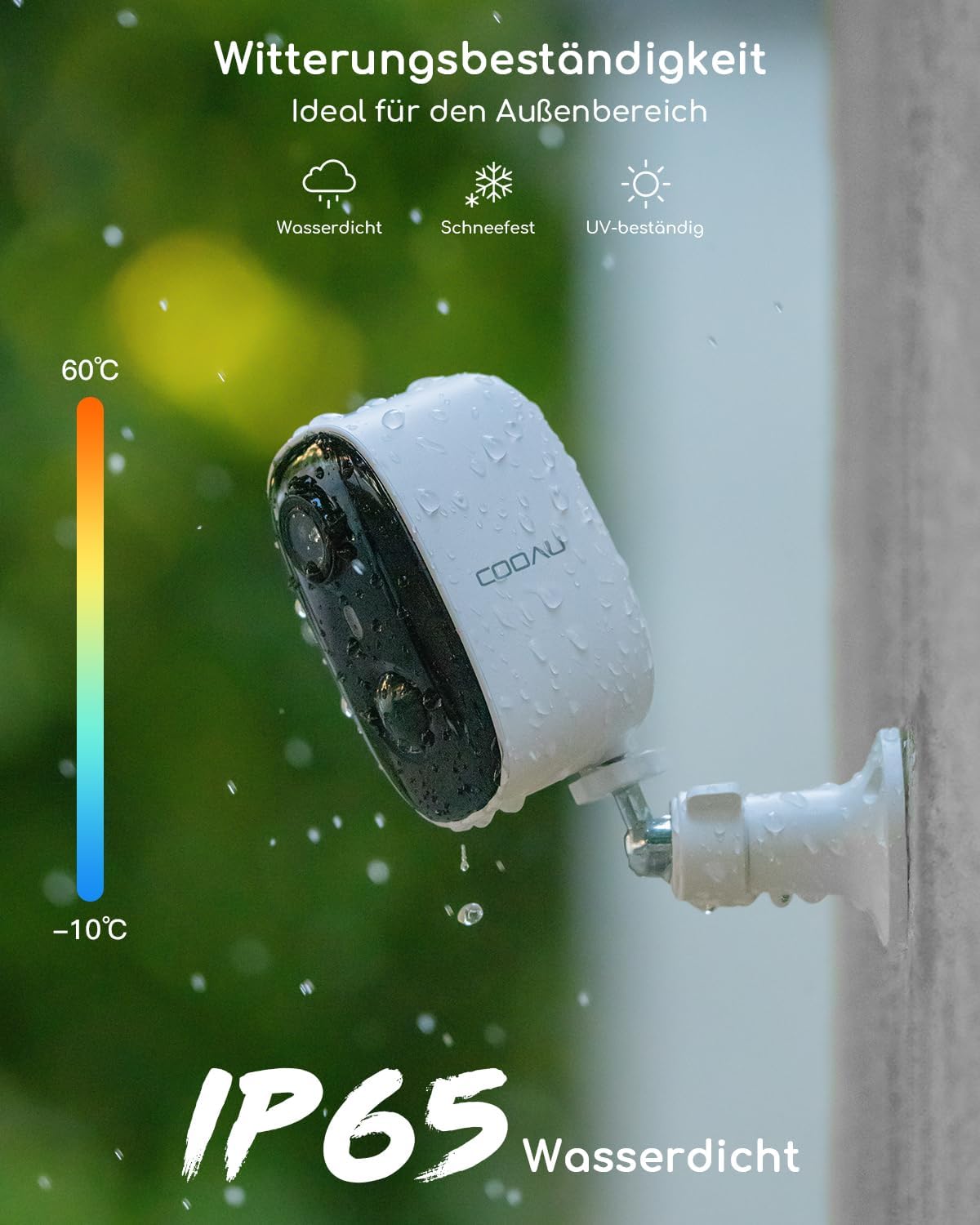

Image: The COOAU camera mounted outdoors, showcasing its IP65 weather resistance against rain, snow, and UV exposure, suitable for temperatures from -10°C to 60°C.
5. Nastavitev in povezava aplikacije
The COOAU camera operates with the CloudEdge application, available for both iOS and Android smartphones.
- Prenesite aplikacijo: Iskanje "CloudEdge" in your smartphone's app store (Google Play Store for Android or Apple App Store for iOS) and download the application.
- Ustvari račun: Odprite aplikacijo CloudEdge in sledite navodilom na zaslonu, da ustvarite nov uporabniški račun ali se prijavite, če ga že imate.
- Dodaj napravo: Tap the "+" icon or "Add Device" option within the app. Select your camera model from the list.
- Vklop kamere: Ensure your camera is fully charged and powered on.
- Povežite se z Wi-Fi: Follow the app's instructions to connect the camera to your 2.4 GHz Wi-Fi network. This typically involves scanning a QR code displayed on your phone with the camera.
- Popolna namestitev: Once connected, name your camera and complete the setup process. You can now view the live feed and access camera settings.
6. Upravljanje kamere
6.1 V živo View in Snemanje
Access the CloudEdge app to view the live feed from your camera at any time. The camera will automatically record events based on motion detection settings.
Image: A smartphone displaying multiple live camera feeds, illustrating the multi-camera monitoring capability within the CloudEdge app.
6.2 Motion Detection (PIR)
The camera features an optimized PIR (Passive Infrared) sensor for detecting human movement. When motion is detected, the camera will record an event and send a notification to your smartphone.
Image: An illustration of intelligent PIR detection, accurately identifying a person and a dog in the camera's field of view, minimizing false alarms.
- Prilagoditev občutljivosti: Adjust the PIR sensitivity in the app settings to optimize detection and reduce false alarms from minor movements like insects or swaying branches.
- Prilagodljiva območja zaznavanja: Določite specifična območja znotraj kamere view where motion detection should be active. This helps focus surveillance on critical zones and ignore irrelevant areas.
Image: A house with two user-defined detection zones (Bereich 1 and Bereich 2) highlighted, demonstrating how to focus surveillance on specific areas of interest.
6.3 Dvosmerni zvok
The built-in microphone and speaker enable two-way communication. You can speak through the camera to visitors or deter unwanted guests.
Image: A delivery person at a door, with speech bubbles indicating two-way audio communication, making remote interaction convenient.
6.4 Night Vision and Night Alarm
The camera automatically switches to night vision mode in low-light conditions. It provides clear images and can activate an immediate night alarm (spotlight and siren) upon detection.
Image: A night scene captured by the camera, demonstrating 3MP color night vision capability, preserving important details in the dark.
Image: A person approaching a door, triggering an immediate night alarm with a spotlight, designed to deter unwanted visitors.
6.5 Možnosti shranjevanja
The camera supports two storage methods for recorded video footage:
- Micro SD kartica: Insert a Micro SD card (up to 128GB, not included) into the camera's designated slot. Ensure the card is inserted before powering on the camera for the first time. All video files stored on the SD card are encrypted and can only be accessed via the CloudEdge app.
- Shramba v oblaku: An optional cloud storage service is available for storing your video recordings securely. Refer to the CloudEdge app for details on subscription plans.
7. Vzdrževanje
Redno vzdrževanje zagotavlja dolgo življenjsko dobo in optimalno delovanje vašega fotoaparata.
- Polnjenje baterije: The camera is powered by a 10000 mAh rechargeable Lithium-ion battery. When the battery level is low, remove the camera from its mount and charge it using the provided USB cable. A full charge can last 3 to 8 months depending on usage and activity.
- Čiščenje leče: Občasno očistite objektiv kamere z mehko, suho krpo, da zagotovite jasno kakovost slike. Izogibajte se abrazivnim čistilom.
- Posodobitve vdelane programske opreme: Check the CloudEdge app regularly for available firmware updates. Keeping your camera's firmware updated ensures access to the latest features and security enhancements.
- Povezava Wi-Fi: Ensure your Wi-Fi router is functioning correctly and the camera maintains a strong signal. Poor signal can lead to connection issues and missed recordings.
8. Odpravljanje težav
If you encounter issues with your COOAU camera, refer to the following common problems and solutions.
| Težava | Možen vzrok | rešitev |
|---|---|---|
| Kamera se ne povezuje z Wi-Fi | Napačno geslo za Wi-Fi; Kamera je predaleč od usmerjevalnika; Na voljo je samo 5 GHz Wi-Fi. | Ensure correct 2.4GHz Wi-Fi password. Move camera closer to router or use a Wi-Fi extender. The camera only supports 2.4GHz Wi-Fi. |
| Pogosti lažni alarmi | PIR sensitivity too high; Environmental factors (e.g., swaying trees, pets). | Adjust PIR sensitivity settings in the CloudEdge app. Define specific detection zones to exclude irrelevant areas. |
| No motion detection notifications | PIR sensitivity too low; App notifications disabled; Camera offline. | Increase PIR sensitivity. Check app notification settings on your phone. Ensure camera is connected to Wi-Fi. |
| Slaba kakovost slike | Umazana leča; Slaba svetloba; Slab signal Wi-Fi. | Clean the camera lens. Ensure sufficient lighting for optimal color night vision. Improve Wi-Fi signal strength. |
| Baterija se hitro izprazni | High activity in detection zone; Frequent live view access; Extreme temperatures. | Reduce PIR sensitivity or detection zone size if activity is excessive. Limit frequent live view. Ensure camera operates within recommended temperature range. |
| Cannot access recorded videos | SD card not inserted or corrupted; Cloud storage subscription expired; Camera offline. | Ensure SD card is correctly inserted and formatted. Check cloud storage subscription status. Verify camera's Wi-Fi connection. |
9. Tehnične specifikacije
| Funkcija | Specifikacija |
|---|---|
| Številka modela | RKB08K3JN8KB |
| Video ločljivost | 2K (1080p effective recording) |
| Viewkota | 130 stopinj |
| Nočni vid | Color Night Vision with 3 IR LEDs |
| Zaznavanje gibanja | PIR (Passive Infrared) Sensor, 20 meters (64ft) range |
| Avdio | Vgrajen mikrofon in zvočnik (dvosmerni zvok) |
| Brezžična povezljivost | Wi-Fi (samo 2.4 GHz) |
| Možnosti shranjevanja | Kartica Micro SD (do 128 GB, ni priložena), shramba v oblaku (neobvezno) |
| Baterija | 10000 mAh Rechargeable Lithium-ion (2x 18650) |
| Vhodna moč | 5 Volts, 5 Watts (via Micro USB) |
| Odpornost na vremenske vplive | Vodoodporen IP65 |
| Delovna temperatura | -10 °C do 60 °C (14 °F do 140 °F) |
| Dimenzije (D x Š x V) | 16 x 15 x 9 cm |
| Teža | 330 gramov |
| Združljiva aplikacija | CloudEdge (iOS, Android) |
10. Garancija in podpora
COOAU products are designed for reliability and performance. For warranty information and technical support, please refer to the official COOAU webspletno mesto ali se obrnite neposredno na njihovo službo za stranke.
- Registracija izdelka: Registrirajte svoj izdelek na spletu, da aktivirate garancijo in prejemate pomembne posodobitve.
- Storitev za stranke: If you encounter any issues not covered in this manual, or require further assistance, please contact COOAU customer support. Contact details are typically found on the product packaging or the official COOAU webmesto.
Image: A shield icon with a padlock, symbolizing the commitment to data privacy and secure 256-bit encrypted connections for all video storage.
