Ferroli RITA-FS 4.5TM Instant Water Heater User Manual

1. Uvod

This manual provides essential information for the safe and efficient operation, installation, and maintenance of your Ferroli RITA-FS 4.5TM Instant Water Heater. Please read these instructions carefully before installation and use, and retain them for future reference.

The Ferroli RITA-FS 4.5TM is designed to provide instant hot water, featuring a built-in booster pump for areas with low water pressure, ensuring a continuous hot water flow.

2. Varnostne informacije

Pomembna varnostna navodila:

• Pred uporabo tega grelnika vode preberite vsa navodila.
• This appliance must be installed by a qualified technician in accordance with all local codes and regulations.
• Ensure the electrical supply matches the specifications of the unit (230 Volts, 4.5 Watts).
• Ne uporabljajte grelnika vode, če je poškodovan ali ne deluje pravilno.
• Do not block or restrict the water inlet or outlet.
• Pred kakršnim koli vzdrževanjem ali servisiranjem vedno izklopite napajanje.
• The water heater contains electrical components; avoid direct water spray on the unit.
• Maximum water pressure for operation is 6 bar (0.6 MPa).

3. Značilnosti izdelka

• Blue Forever Heating Element: Patented technology designed to reduce scaling, increase heating efficiency, and prolong the life of the heating element.
• Zasnova, ki prihrani prostor: Vertical/horizontal design suitable for low-height bathrooms and false ceilings.
• Colour Changing LED Indicator: LED changes from red (heating) to blue (desired temperature reached).
• Analog Temperature Display: Allows monitoring of the water temperature inside the tank.
• Triple Safety Features: Ensures enhanced user protection.
• Built-in Booster Pump: Boosts water flow rate for continuous hot water, especially in low-pressure areas.

4. Nastavitev in namestitev

Installation of the Ferroli RITA-FS 4.5TM Instant Water Heater should only be performed by a certified professional to ensure safety and proper functionality.

4.1 Namestitev enote

Select a suitable wall location, ensuring it is sturdy enough to support the unit and allows for easy access to water and electrical connections. Use appropriate fasteners for your wall type.

Slika 1: Zadaj view of the water heater showing mounting points and electrical connection area.

4.2 Priključki za vodo

Connect the water inlet and outlet pipes. The inlet is typically marked with blue, and the outlet with red. Ensure all connections are watertight. A flow control valve is included for managing water flow.

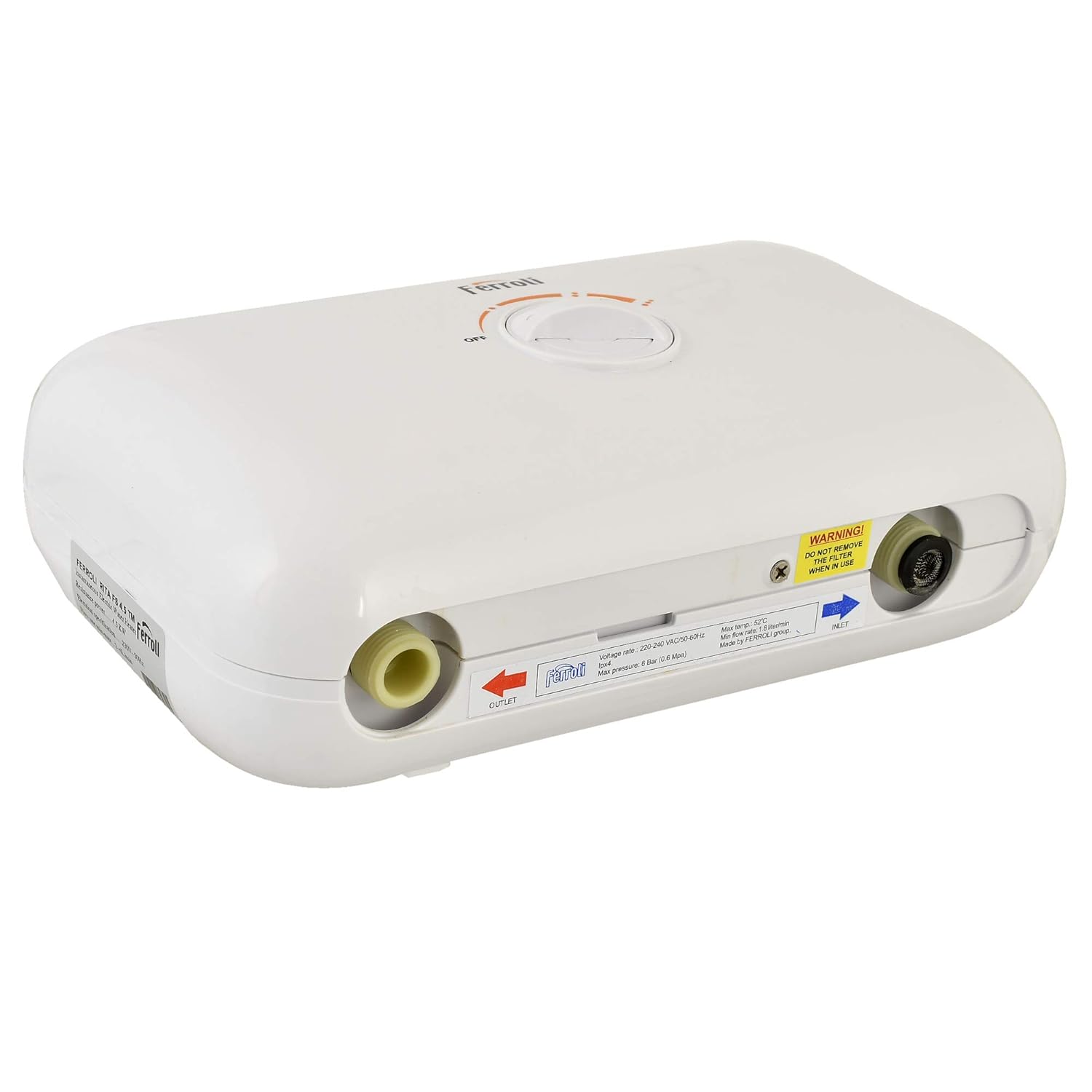

Figure 2: Water inlet (blue) and outlet (red) connections on the underside of the unit.

Figure 3: Included flow control valve for water management.

4.3 Električna povezava

Connect the water heater to a dedicated electrical circuit with appropriate earthing, as per local electrical codes. Ensure the power supply is off during connection.

5. Navodila za uporabo

Once installed and connected, operating your Ferroli RITA-FS 4.5TM is straightforward.

Figure 4: Front panel with control knob and indicators.

5.1 Vklop/izklop

Turn the central knob clockwise from the 'OFF' position to power on the unit. To turn off, rotate the knob counter-clockwise to 'OFF'.

5.2 Nastavitev temperature vode

Rotate the central knob to select the desired heating level. The knob features settings from minimum to maximum heat. The analog temperature display will show the current water temperature inside the tank.

Figure 5: Detail of the temperature control knob.

5.3 LED indikator

The LED indicator on the front panel will illuminate red when the water heater is actively heating. It will change to blue once the water has reached the set temperature.

6. Vzdrževanje

Redno vzdrževanje zagotavlja optimalno delovanje in dolgo življenjsko dobo vašega bojlerja.

• Čiščenje: Obrišite zunanjost enote z mehko damp krpo. Ne uporabljajte abrazivnih čistil ali topil.
• skaliranje: The 'Blue Forever' heating element is designed to reduce scaling. However, in areas with very hard water, periodic descaling by a qualified technician may be beneficial.
• Vhodni filter: The unit has an inlet filter. Do not remove this filter when the unit is in use. Periodically check and clean the filter to prevent blockages and maintain water flow. Ensure power is disconnected before checking the filter.
• Strokovni pregled: It is recommended to have the water heater inspected by a qualified technician annually.

7. Odpravljanje težav

Preden se obrnete na podporo strankam, ponovnoview naslednje pogoste težave in rešitve:

For issues not listed above or if solutions do not resolve the problem, please contact Ferroli customer support.

8. Specifikacije

9. Garancija in podpora

For warranty information, service requests, or technical support, please contact Ferroli directly.

Kontaktni podatki proizvajalca:
Ferroli Heating (South Asia) Pvt Ltd.
Evoma Prestige Featherline Tech Park, 148, 2nd phase, EPIP Zone, Whitefield, Bangalore-560066, Karnataka, India
Phone no.: +91-8049033042

Please have your model number (RITA-FS 4.5TM) and purchase details ready when contacting support.
