INFANS Foldable Baby Walker Instruction Manual

1. Uvod

Thank you for choosing the INFANS Foldable Baby Walker. This manual provides essential information for the safe assembly, operation, and maintenance of your baby walker. Please read it thoroughly before use and retain it for future reference. This 2-in-1 convertible walker is designed to support your child's development from seated play to walk-behind assistance, suitable for children weighing up to 25 lbs.

2. Varnostne informacije

OPOZORILO: Neupoštevanje teh navodil lahko povzroči resne poškodbe ali smrt.

• Nikoli ne puščajte otroka brez nadzora.
• Otroka imejte vedno noter view medtem ko je v walkerju.
• Preprečite dostop do stopnic, stopnic in neravnih površin.
• Protect child from hot liquids, electrical cords, and other hazards.
• This walker is intended for children who can sit up unassisted and weigh up to 25 lbs.
• Ensure all locking mechanisms are securely engaged before each use.
• The walker is equipped with a safety bumper under the seat to maintain a safe distance from walls and furniture, protecting the child's head.
• Six non-slip stair pads are included to help prevent the walker from falling down steps. Ensure these are properly installed if used near stairs.
• Compliant with US. CPSIA and ASTM Requirements. Made of non-toxic materials without any odor, FREE from BPA, PVC, Phthalates, Lead, Latex, and Formaldehyde. No sharp points or edges.

3. Značilnosti izdelka

• 2-In-1 Convertible Design: This baby walker easily converts from a seated walker to a walk-behind walker. It features an armrest behind the high-back padded seat and a removable safety bumper.


  Image: The INFANS baby walker in its seated configuration, with a baby comfortably positioned inside.

• Safety Bumper: A safety bumper located under the seat ensures a safe distance from obstacles, protecting the child's head from collision. Additional non-slip stair pads are provided for enhanced safety near steps.


  Image: A diagram highlighting the anti-collision bumper, ensuring a safe distance from obstacles.
• 3-položajna nastavitev višine: The walker's height can be adjusted to three different positions to accommodate children of varying leg lengths as they grow.

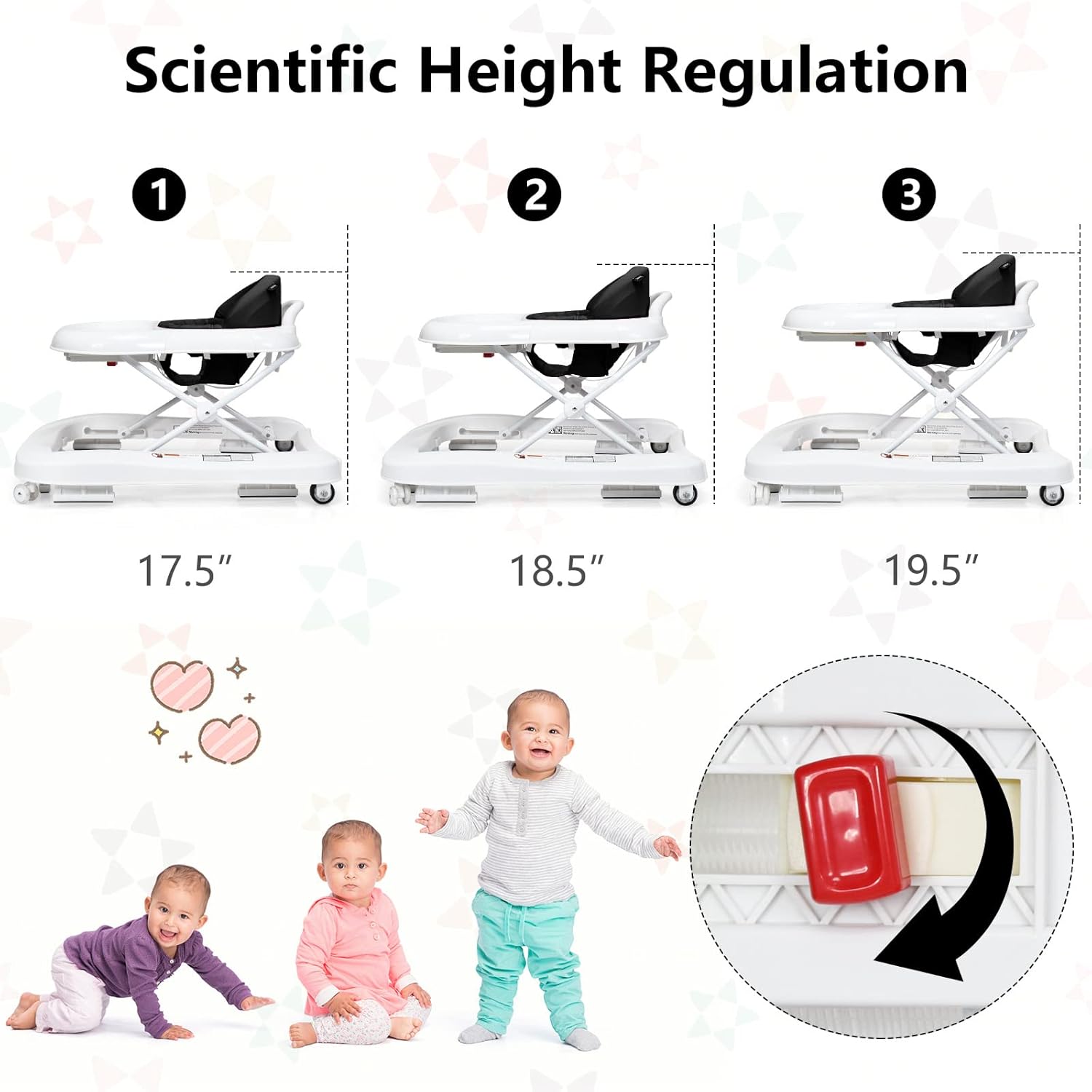

  Image: Visual representation of the three adjustable height settings for the walker.

• Adjustable Speed Rear Wheels: The rear wheels are fixed with a nut, allowing you to tighten the screw to increase friction and control the walker's speed. This feature helps adapt to the child's strength and learning pace.


  Image: Detail of the rear wheel with an arrow indicating the screw for speed adjustment.

• Compact Fold for Storage: The walker folds to a height of only 10 inches, making it easy to store under a bed or against a wall, ideal for small spaces or travel.


  Image: Step-by-step visual guide on how to fold the walker for compact storage.
• Enostavno čiščenje: The seat cover is detachable for easy cleaning. The front tray can be wiped clean with a wet cloth.


  Image: The walker's tray with cup holders, designed for easy cleaning.

4. Navodila za nastavitev

4.1 Unfolding the Walker

1. Zloženo hojico postavite na ravno, stabilno površino.
2. Locate the red button mechanism under the seat.
3. Rotate the red button half a turn until it aligns with the gap.
4. Push upward on the part of the red button, then pull the seat upwards until the walker locks into its open position. Ensure it clicks securely.

Image: The walker transitioning from folded to an upright position.

4.2 Nastavitev višine

1. To adjust the height, locate the adjustment buttons on the walker's legs.
2. Press the buttons and slide the walker frame up or down to one of the three desired height positions.
3. Ensure both sides are adjusted to the same height and lock securely into place.

Image: Detail of the height adjustment button and mechanism.

4.3 Installing Non-Slip Stair Pads

If using the walker near stairs, attach the six provided non-slip stair pads to the designated areas on the bottom frame of the walker. These pads increase friction to help prevent accidental falls down steps.

Slika: Spodnja stran view of the walker highlighting the placement of the six rubber pads.

5. Navodila za uporabo

5.1 Seated Walker Mode

• Ensure the walker is fully unfolded and locked, and the height is adjusted appropriately for your child.
• Place your child securely in the seat. The high back provides support and comfort.
• The front tray can be used for snacks or toys.

Image: A baby enjoying the seated walker mode.

5.2 Walk-Behind Mode

• When your child is ready to practice walking, the walker can be used as a push-behind aid.
• The handle at the back of the seat allows your child to grip and push the walker forward.

Image: A child using the walker in walk-behind mode, holding the rear handle.

5.3 Adjusting Wheel Speed

• To control the speed of the walker, locate the nuts on the rear wheels.
• Tighten the screws on these nuts to increase friction, which will slow down the walker. Loosen them to decrease friction and allow for faster movement.
• Adjust the speed according to your child's developmental stage and the type of flooring.

Image: Visual guide for adjusting wheel speed, showing low and standard speed modes.

6. Vzdrževanje

6.1 Cleaning the Seat Cover

• The seat cover is detachable for easy cleaning.
• Remove the seat cover from the walker frame.
• Machine wash the seat cover in cold water on a gentle cycle with mild detergent. Do not bleach.
• Air dry or tumble dry on low heat. Ensure it is completely dry before reattaching.

6.2 Cleaning the Tray and Frame

• Wipe the front tray and the walker frame with a damp krpo in blagim milom.
• Temeljito sperite s čisto krpoamp krpo, da odstranite morebitne ostanke mila.
• Pred uporabo popolnoma posušite.

7. Odpravljanje težav

• Walker not unfolding/folding smoothly: Ensure the red button mechanism is correctly aligned and fully engaged/disengaged. Check for any obstructions in the folding joints.
• Kolesa se ne vrtijo prosto: Check for debris (hair, lint) caught in the wheels. Clean the wheels thoroughly. Ensure the speed adjustment screws are not overtightened.
• Walker unstable: Verify that all height adjustment locks are securely engaged on both sides. Ensure the walker is on a flat, even surface.
• Seat cover difficult to remove/reattach: Refer to the assembly instructions for proper removal and reattachment of the seat cover. Ensure all straps are unhooked/hooked correctly.

8. Specifikacije

9. Garancija in podpora

For warranty information or product support, please refer to the documentation included with your purchase or contact INFANS customer service directly. Keep your proof of purchase for any warranty claims.

For further assistance, please visit the official INFANS webali se obrnite na njihovo podporo strankam.
