Uvod
This manual provides detailed instructions for the safe and effective use of your COMFIER Shiatsu Foot Massager with Heat, Model 5202N. This device is designed to provide shiatsu kneading massage and soothing heat for your feet, and can also be converted for use as a back massager. Please read this manual thoroughly before initial use and retain it for future reference.
Pomembne varnostne informacije
Da bi zmanjšali tveganje električnega udara, opeklin, požara ali poškodb, vedno upoštevajte te osnovne varnostne ukrepe:
- POZOR: To avoid risk of burns, do not use the heat function for extended periods of time.
- Do not use on sensitive skin or areas with poor circulation.
- This massager is electric and corded; keep it away from water. Ensure the power cord is not damaged or frayed.
- Always start with lower intensity settings and gradually increase to avoid discomfort or injury.
- When using as a back massager, ensure proper body positioning to prevent strain.
- Consult a healthcare professional before use if you have any medical conditions, including but not limited to pregnancy, diabetes, heart disease, or if you have a pacemaker.
- Ne uporabljajte med spanjem ali zaspanostjo.
- Do not use if the product or power cord is damaged.
- Napravo izključite iz električne vtičnice, ko je ne uporabljate in pred čiščenjem.
Pravna izjava o omejitvi odgovornosti: Izjav o prehranskih dopolnilih FDA ni ocenila in niso namenjene diagnosticiranju, zdravljenju, ozdravitvi ali preprečevanju kakršne koli bolezni ali zdravstvenega stanja. Ta izdelek ni namenjen za medicinsko uporabo.
Lastnosti izdelka
Dizajn 2 v 1
The COMFIER Shiatsu Foot Massager features a versatile design. It functions as a foot massager with a cozy footmuff. The top cover can be unzipped and removed, allowing the base unit to be used as a back, neck, waist, or leg massager cushion.

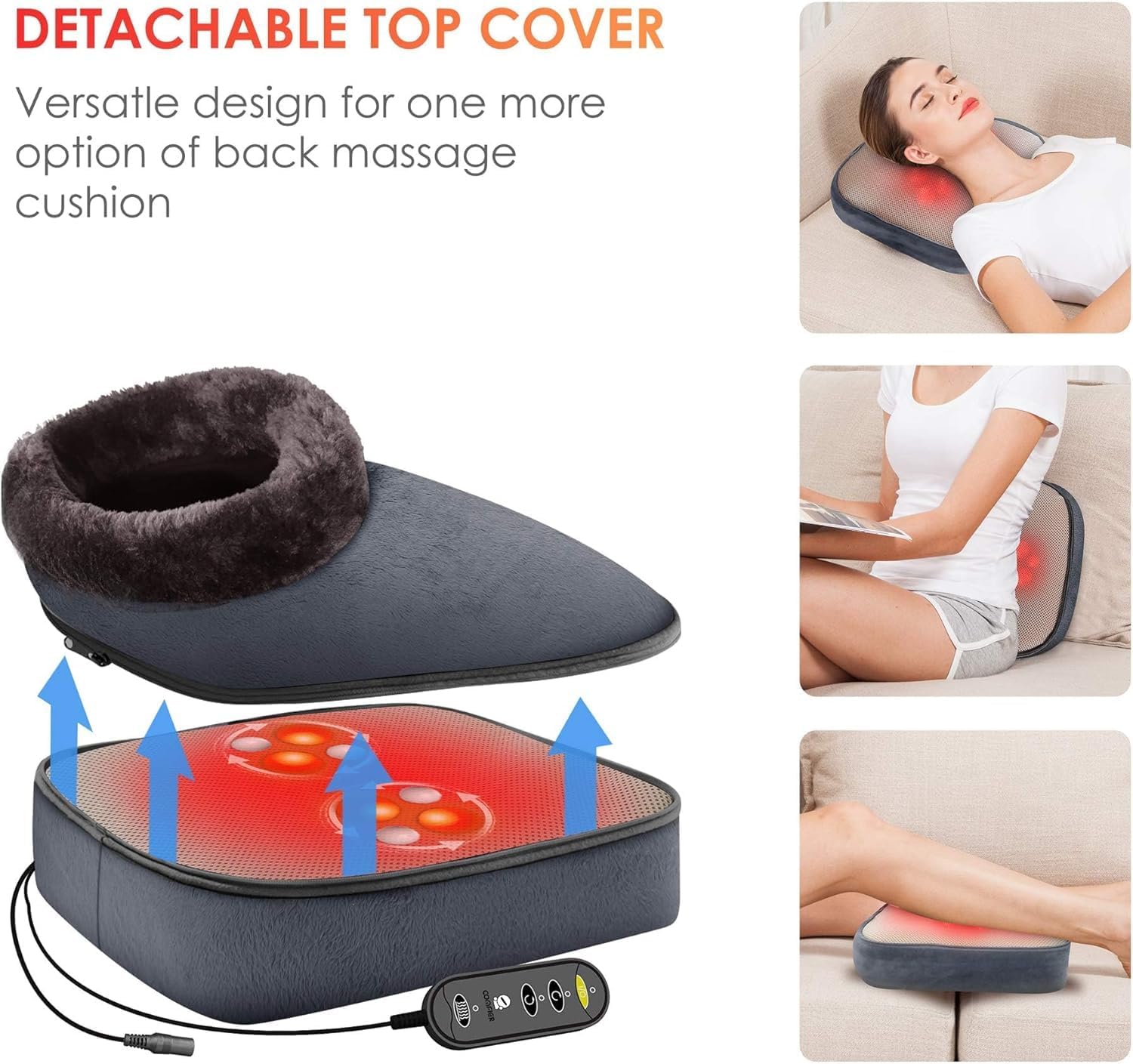

Image: The foot massager with its top cover detached, illustrating its use as a back or leg massager.
Shiatsu Kneading Massage
Equipped with 3D shiatsu rollers and 8 massage nodes, the device provides a deep kneading massage. These nodes rotate to target pressure points, helping to alleviate tension in the feet.

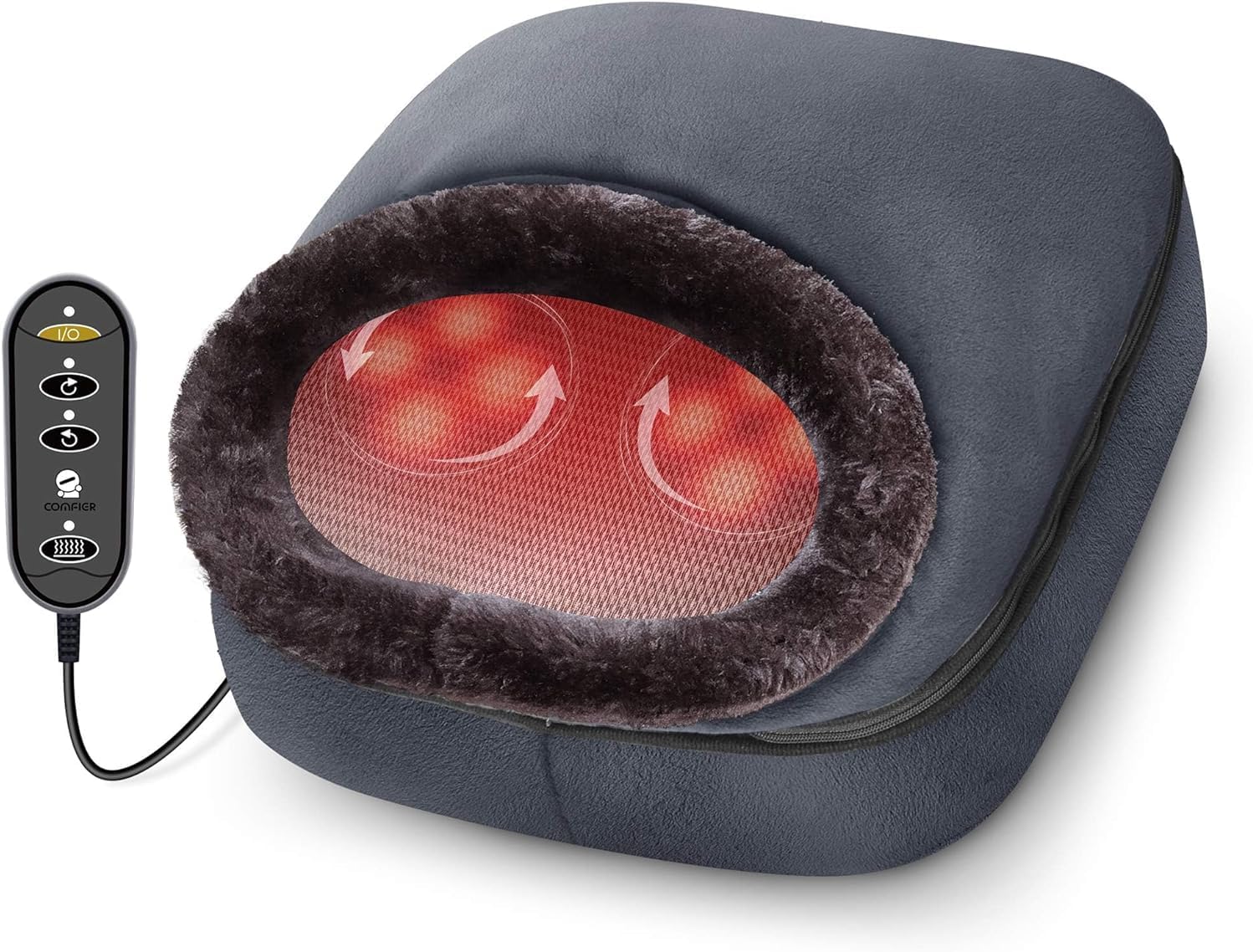

Slika: A view into the foot massager, highlighting the shiatsu massage nodes and the integrated heat function.
Pomirjujoča toplotna funkcija
Integrated heating pads and heat on the shiatsu balls provide warmth from toes to heel. This feature can enhance comfort during massage sessions.
Image: A diagram illustrating the placement of feet within the massager, with visual cues for heat and massage nodes.
Comfortable and Washable Material
The massager is constructed from ultra-soft plush polyester fabric, designed for comfort. The top cover is detachable and machine washable for easy cleaning.
Slika: Podrobna views of the massager's features, including the zipper for cover removal, the soft plush fabric, and the non-slip base.
Nastavitev
- Razpakiraj: Carefully remove the massager and all accessories from the packaging. Ensure all components are present: the main massager unit, power adapter, and instruction manual.
- Umestitev: Place the massager on a flat, stable surface. Ensure there is enough space around the unit and that the power cord can reach an electrical outlet without being stretched or obstructed.
- Priključite napajanje: Insert the DC plug of the power adapter into the power port on the massager unit. Then, plug the power adapter into a standard electrical outlet (100-240V AC, 50/60Hz).
- Začetni pregled: Before first use, inspect the massager and power cord for any visible damage. Do not use if any damage is observed.
Image: The massager, its power adapter, and the manual, as they appear when unpacked from the box.
Navodila za uporabo
The massager is operated using the corded controller. A 15-minute auto-off timer is built-in for safety and convenience.
Image: The wired controller, detailing each button and its function.
Funkcije krmilnika:
- Gumb za vklop (V/I): Press to turn the device ON or OFF. The device will start in default massage mode.
- Gumb za vrtenje: Press to change the direction of the shiatsu massage nodes. There are two rotation directions.
- Gumb za ogrevanje: Press to turn the heat function ON or OFF. An indicator light will illuminate when heat is active.
Using as a Foot Massager:
- Ensure the top cover is zipped onto the main unit.
- Sit comfortably and place your feet inside the footmuff.
- Press the Power button on the controller to start the massage.
- Adjust the rotation direction and activate the heat function as desired using the respective buttons.
- The device will automatically shut off after 15 minutes. You can restart it if further massage is desired, but allow the device to cool down between long sessions.
Image: A user enjoying a foot massage while seated, demonstrating proper use of the device.
Using as a Back/Body Massager:
- Unzip and remove the top cover from the main unit.
- Place the base unit on a chair, sofa, or bed, ensuring it is stable.
- Position the massager against the desired area (e.g., lower back, neck, legs).
- Press the Power button to start the massage.
- Adjust rotation and heat as needed.
- Ensure comfortable positioning and avoid applying excessive pressure to the massage nodes.
Image: A user demonstrating the massager's base unit being used to massage the lower back.
Vzdrževanje
- Čiščenje pokrova: The plush top cover is detachable and machine washable. Unzip the cover from the main unit. Wash on a gentle cycle with cold water. Air dry only; do not tumble dry.
- Čiščenje glavne enote: Before cleaning, ensure the massager is unplugged. Wipe the main unit with a soft, slightly damp krpo. Ne uporabljajte abrazivnih čistil in enote ne potapljajte v vodo.
- Shranjevanje: Store the massager in a cool, dry place, away from direct sunlight and moisture. Avoid placing heavy objects on the massager.
- Nega kabla: Do not wrap the power cord tightly around the unit. Avoid sharp bends or kinks in the cord.
Odpravljanje težav
| Težava | Možen vzrok | rešitev |
|---|---|---|
| Naprava se ne vklopi. | Napajalni kabel ni pravilno priključen ali pa v vtičnici ni napajanja. | Prepričajte se, da je napajalnik varno priključen tako v masažer kot v delujočo električno vtičnico. Preizkusite vtičnico z drugo napravo. |
| Heat function is not working or is too weak. | Heat function not activated or insufficient warm-up time. | Press the Heat button on the controller. Allow a few minutes for the heat to become noticeable. Ensure the device has not been used for an extended period, triggering the safety auto-off. |
| Massage nodes stop rotating or make unusual noise. | Internal malfunction or obstruction. | Turn off and unplug the device. Check for any obstructions. If the problem persists, discontinue use and contact customer support. |
| Masaža se zdi preintenzivna ali neprijetna. | Initial use or sensitive feet. | Adjust your foot position. Consider wearing thicker socks. If using as a back massager, reduce pressure against the unit. |
Specifikacije
- Številka modela: 5202N
- Znamka: COMFIER
- Dimenzije izdelka: 12.6 x 6.3 x 12.6 palcev (32 x 16 x 32 cm)
- Teža artikla: 3.31 funta (1.5 kilograma)
- vir energije: Električni na kabel
- Material: Ultra-plush polyester
- Časovnik samodejnega izklopa: 15 minut
Image: A visual representation of the massager's dimensions, including its length, width, and height.
Garancija in podpora
COMFIER products typically come with a manufacturer's warranty. Please refer to the warranty card included with your product for specific terms and conditions, or visit the official COMFIER webza podrobne informacije o garanciji.
For technical support, troubleshooting assistance, or warranty claims, please contact COMFIER customer service. Contact details can usually be found on the product packaging, the official COMFIER website, or by referring to the purchase platform.
