1. Izdelek je končanview
The Progress Lighting Gulliver Collection P350117-141 is a four-light semi-flush convertible fixture. This fixture features an airy design with arching details and a dual-toned frame in a Galvanized finish with antique white accents. Its design complements various interior styles including Rustic, Modern Farmhouse, Urban Industrial, and Coastal settings. This fixture can be installed as a semi-flush mount or converted to a hanging fixture.

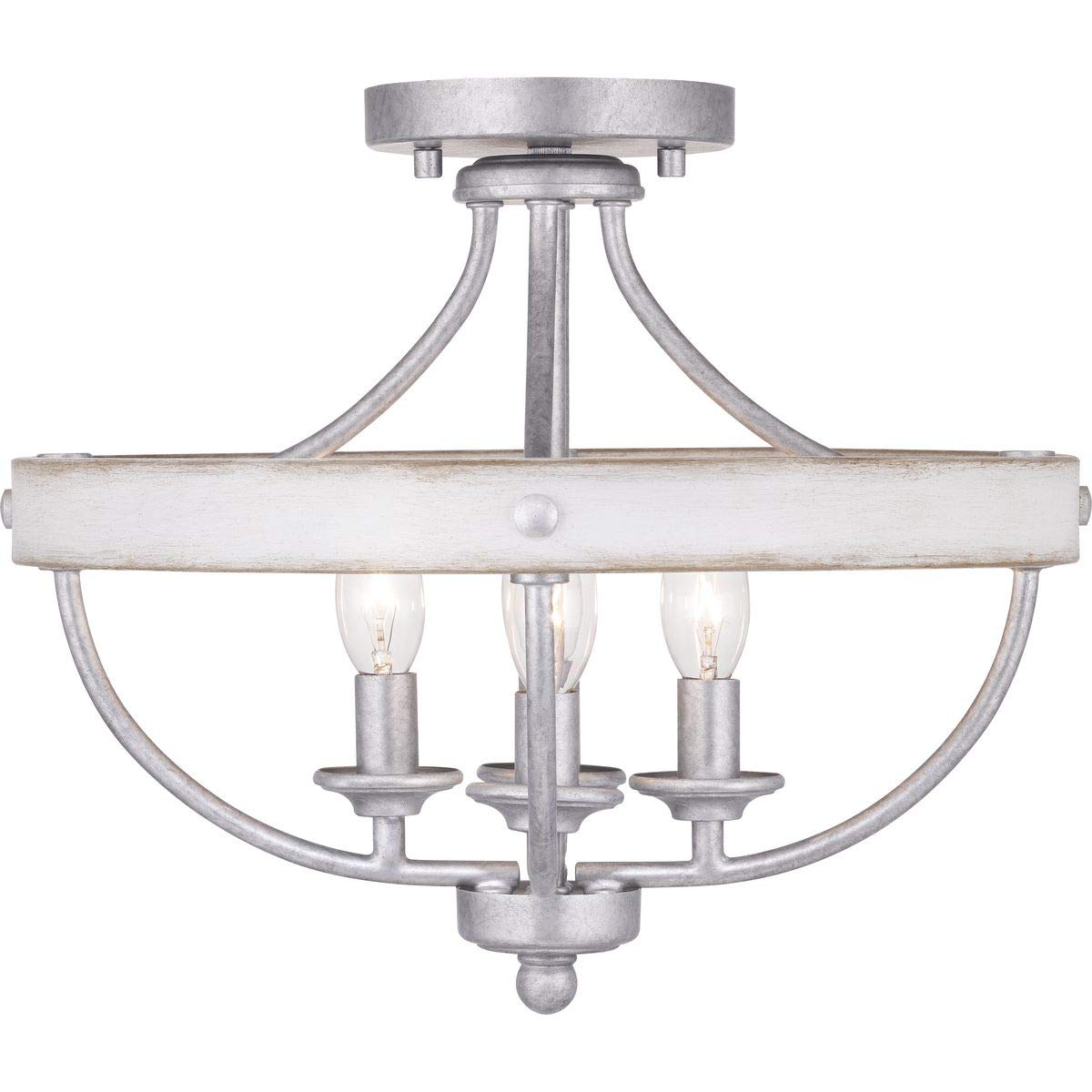

Figure 1: Progress Lighting Gulliver Collection Four-Light Semi-Flush Convertible Fixture.
Understanding Fixture Types
Ta videoposnetek ponuja konecview of close-to-ceiling lighting trends, including flush mount and semi-flush mount fixtures, which can help in understanding the application of your Gulliver fixture.
Video 1: Close to Ceiling Lighting Trends by Progress Lighting. This video explains the differences and applications of flush mount and semi-flush mount ceiling light fixtures, providing context for the Gulliver Collection's design.
2. Varnostne informacije
Before beginning installation, carefully read and understand these instructions. Failure to do so may result in electric shock, fire, or other injuries that could be fatal or cause property damage. All wiring must be performed by a qualified electrician in accordance with national and local electrical codes.
- OPOZORILO: Disconnect power at the main circuit breaker or fuse box before installation or servicing.
- POZOR: Risk of electric shock. Ensure the electrical supply is turned off before handling the fixture.
- Ne prekoračite priporočene wattage za žarnice.
- S steklenimi komponentami ravnajte previdno, da preprečite lomljenje.
3. Vsebina paketa
Verify that all components are present before proceeding with installation. If any parts are missing or damaged, contact customer service.
- Sestavljanje svetilke
- Mounting Hardware Kit (mounting strap, outlet box screws, mounting screws, wire connectors)
- Canopy/Cover Plate
- List z navodili
4. Namestitev
Potrebna orodja (niso priložena)
- Phillips izvijač za glavo
- Ravni izvijač
- Odstranjevalci žice
- Klešče
- Električni trak
- Zaščitna očala
Koraki namestitve
- Izklopite napajanje: Locate the circuit breaker or fuse box that supplies power to the fixture location. Turn off the power completely.
- Priprava montaže: Attach the mounting strap to the outlet box using the provided outlet box screws. Ensure the mounting strap is securely fastened.
- Ožičenje: Connect the fixture's electrical wires to the corresponding household wires using the wire connectors. Connect the black wire (live) to the black wire, the white wire (neutral) to the white wire, and the bare copper or green wire (ground) to the household ground wire. Secure all connections with electrical tape.
- Pritrdilni element: Carefully lift the fixture and align it with the mounting strap. Secure the fixture to the mounting strap using the mounting screws.
- Namestite žarnice: Insert four E12 Candelabra base bulbs (not included) into the sockets. Do not exceed 60 watts per bulb.
- Obnovi moč: Ko je namestitev končana in so vse povezave varne, ponovno vzpostavite napajanje na glavnem odklopniku ali v omarici z varovalkami.
Converting to a Hanging Fixture
This fixture is designed to be convertible. If you wish to install it as a hanging fixture, refer to the detailed instructions provided in the package for chain length adjustment and secure hanging methods. This typically involves attaching a chain to the fixture and canopy, and adjusting the length to achieve the desired hanging height.
Figure 2: Dimensional drawing of the Gulliver Collection fixture.
5. Delovanje
Once installed and powered, the fixture operates like any standard ceiling light. Use your wall switch or dimmer (if installed) to turn the light on and off. Ensure compatible E12 Candelabra base bulbs are used for optimal performance.
Figure 3: Close-up of bulb sockets.
6. Vzdrževanje
Čiščenje
To clean the fixture, ensure the power is turned off. Use a soft, dry cloth to wipe down the metal and glass surfaces. Avoid abrasive cleaners or solvents, as these can damage the finish.
Zamenjava žarnice
Always turn off the power before replacing bulbs. Allow bulbs to cool before touching them. This fixture requires four E12 Candelabra base bulbs, with a maximum wattage of 60 watts per bulb. Using bulbs with higher wattaglahko povzroči pregrevanje in poškodbo svetilke ali pa povzroči nevarnost požara.
7. Odpravljanje težav
| Težava | Možen vzrok | rešitev |
|---|---|---|
| Lučka se ne prižge | Brez napajanja na napeljavo Ohlapna žična povezava Okvarjena žarnica | Preverite odklopnik/varovalko Preverite, ali so vse žične povezave varne (izklopite napajanje) Zamenjajte žarnico(e) |
| Svetloba utripa | Ohlapna žarnica Napačen tip žarnice Ohlapna žična povezava Nezdružljivo stikalo za zatemnitev | Zategnite žarnico Ensure E12 Candelabra base, 60W max bulbs are used Preverite ožičenje (izklopite napajanje) Consult an electrician to check dimmer compatibility |
8. Specifikacije
| Funkcija | Podrobnost |
|---|---|
| Znamka | Razsvetljava Progress |
| Številka modela | P350117-141 |
| Vrsta napeljave | Semi-Flush kabriolet |
| barva | Gray (with antique white accents) |
| Material | Legirano jeklo, steklo |
| Dimenzije izdelka | 15.25 cm D x 15.25 cm Š x 12.63 cm V |
| Število svetlobnih virov | 4 |
| Podnožje žarnice | E12 Svečnik |
| Max Wattage na žarnico | 60 vatov |
| voltage | 120 volta |
| Vrsta zaključka | Pocinkano |
| Notranja/zunanja uporaba | Notranja |
| Zahtevana montaža | ja |
| Teža predmeta | 6.28 funta |
9. Garancija in podpora
Ta svetilka Progress Lighting je prekrita z 1-letna omejena garancija. This warranty guarantees your satisfaction with your purchase and includes professional after-sales customer service support. For warranty claims or technical assistance, please contact Progress Lighting customer service.
Prosimo, shranite dokazilo o nakupu za potrditev garancije.
