1. Pomembne varnostne informacije
Read all instructions carefully before installing or using this appliance. Keep this manual for future reference. Failure to follow these instructions may result in electric shock, fire, or injury.
- Ensure the electrical supply matches the rating plate on the hood.
- Namestitev mora izvesti usposobljen tehnik v skladu z lokalnimi predpisi.
- Ne flambirajte pod kuhinjsko napo.
- Redno čistite maščobne filtre, da preprečite nevarnost požara.
- Ta naprava ni namenjena uporabi s strani oseb (vključno z otroki) z zmanjšanimi fizičnimi, senzoričnimi ali duševnimi sposobnostmi ali s pomanjkanjem izkušenj in znanja, razen če jih oseba, ki je odgovorna za njihovo varnost, nadzoruje ali jim daje navodila glede uporabe naprave.
2. Izdelek je končanview
The FABER T-Light Island Hood is designed for efficient air extraction and filtration in your kitchen. It features a sleek stainless steel finish, LED lighting, and touch controls for ease of use.

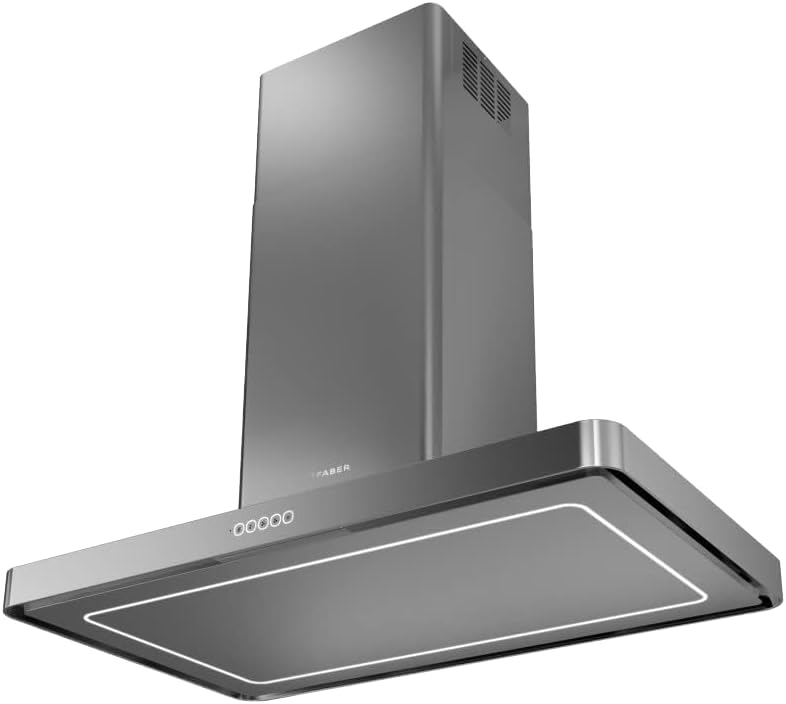

Slika 1: Spredaj view of the FABER T-Light Island Hood, showcasing njegovo površino in nadzorno ploščo iz nerjavečega jekla.
Figure 2: The FABER T-Light Island Hood integrated into a kitchen environment, demonstrating its island mounting type.
3. Nastavitev in namestitev
This island hood is designed for ceiling mounting above a cooking surface. Proper installation is crucial for optimal performance and safety.
3.1 Razpakiranje
Carefully remove the hood from its packaging. Check for any damage during transit. Retain packaging materials for potential future transport or service.
3.2 Montaža
The hood is designed for island installation. Ensure the ceiling structure can support the weight of the hood (approximately 16 kg). Maintain the recommended distance between the cooking surface and the hood as per local building codes and the hood's specifications.
Figure 3: Technical drawing illustrating the dimensions (in mm) for installation, including width (998 mm), depth (598 mm), and adjustable height (Min. 705 - Max. 1000 mm).
3.3 Električna povezava
Connect the hood to a 240V electrical supply. All electrical connections must comply with local regulations and be performed by a qualified electrician.
3.4 Kanal
Connect the air outlet to a suitable ducting system. The hood has an air outlet diameter of 150/120 mm. Ensure the ducting is as short and straight as possible to maximize airflow efficiency.
4. Navodila za uporabo
The FABER T-Light Island Hood features intuitive touch controls for easy operation.
4.1 Vklop/izklop
Press the power symbol on the Squarcle Touch control panel to turn the hood on or off.
4.2 Nastavitev hitrosti ventilatorja
Use the '+' and '-' symbols on the touch panel to increase or decrease the fan speed. The hood offers multiple speed settings to suit different cooking needs, with a maximum airflow of 690 m³/h.
4.3 Nadzor osvetlitve
Press the light symbol to activate the perimeter LED lighting. Press again to turn off the lights. The LED lighting provides efficient illumination of your cooking area.
5. Vzdrževanje
Redno vzdrževanje zagotavlja dolgo življenjsko dobo in optimalno delovanje vaše nape.
5.1 Čiščenje maščobnih filtrov
The hood is equipped with self-supporting, dishwasher-safe grease filters. These filters should be cleaned regularly (approximately every 2-4 weeks, depending on usage) to maintain effective grease capture and prevent fire hazards.
- Turn off the power supply to the hood.
- Carefully remove the grease filters.
- Wash the filters by hand with hot soapy water or place them in a dishwasher on a low-temperature cycle.
- Pred ponovno namestitvijo se prepričajte, da so filtri popolnoma suhi.
5.2 Čiščenje površine nape
Clean the stainless steel surfaces with a soft cloth and a non-abrasive cleaner specifically designed for stainless steel. Avoid using abrasive pads or harsh chemicals that could damage the finish.
6. Odpravljanje težav
Če imate težave z napo, si oglejte naslednje pogoste težave in rešitve:
- Napa se ne vklopi: Check the power supply and ensure the hood is properly plugged in. Verify the circuit breaker has not tripped.
- Nizka sesalna moč: Clean or replace the grease filters. Check for obstructions in the ducting system. Ensure the ducting is correctly installed and not kinked.
- Prekomerni hrup: Ensure the hood is securely mounted. Check for loose components or obstructions in the fan. Verify the ducting is properly sealed and free of leaks.
- Luči ne delujejo: Check if the LED lights are properly connected. If individual LEDs are out, contact customer support for replacement.
For problems not listed here, or if the issue persists, contact FABER customer support.
7. Specifikacije
| Funkcija | Specifikacija |
|---|---|
| Znamka | FABER |
| Številka modela | F-110.0456.264 |
| Type of Mounting | Otok |
| Vrsta nadzora | Touch (Squarcle Touch) |
| voltage | 240 V |
| Teža | 16 kg |
| Mere izdelka (D x Š x V) | 100 x 60 x 77 cm (nastavljiva višina) |
| Zmogljivost pretoka zraka | 690 m³/h |
| Material | Nerjaveče jeklo |
| Nivo hrupa | 50 decibelov |
| Energijski razred | A |
| Razsvetljava | Perimeter LED |
| Maščobni filter | Self-supporting, dishwasher-safe |
| Premer izhoda zraka | 150/120 mm |

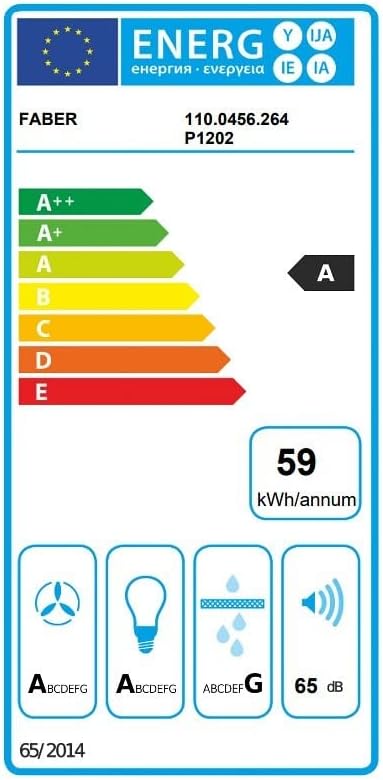

Figure 4: Energy label for the FABER T-Light Island Hood, indicating an energy class A rating and a noise level of 65 dB (note: 50 dB is likely the minimum, 65 dB max).
8. Garancija in podpora
Information regarding product warranty and customer support is not provided within this document. Please refer to the separate warranty card included with your product or visit the official FABER webza podrobnosti o garancijskem kritju, servisnih centrih in tehnični podpori.
