Uvod
This manual provides comprehensive instructions for the setup, operation, and maintenance of your NETUM NT-R3 Mini 1D CCD Bluetooth Barcode Scanner. Please read this guide thoroughly to ensure proper use and to maximize the performance of your device.
Vsebina paketa
Po razpakiranju preverite, ali so vsi spodaj navedeni predmeti prisotni in v dobrem stanju:
- 1 x NETUM Mini Bluetooth Barcode Scanner (NT-R3)
- 1 x USB polnilni kabel
- 1 x vodnik za hiter začetek
- 1 x 2.4 GHz Adapter
Konec izdelkaview
The NETUM NT-R3 is a compact and versatile 1D CCD barcode scanner designed for portability and ease of use. Its ring-style design allows for comfortable wear, enhancing productivity in various environments.

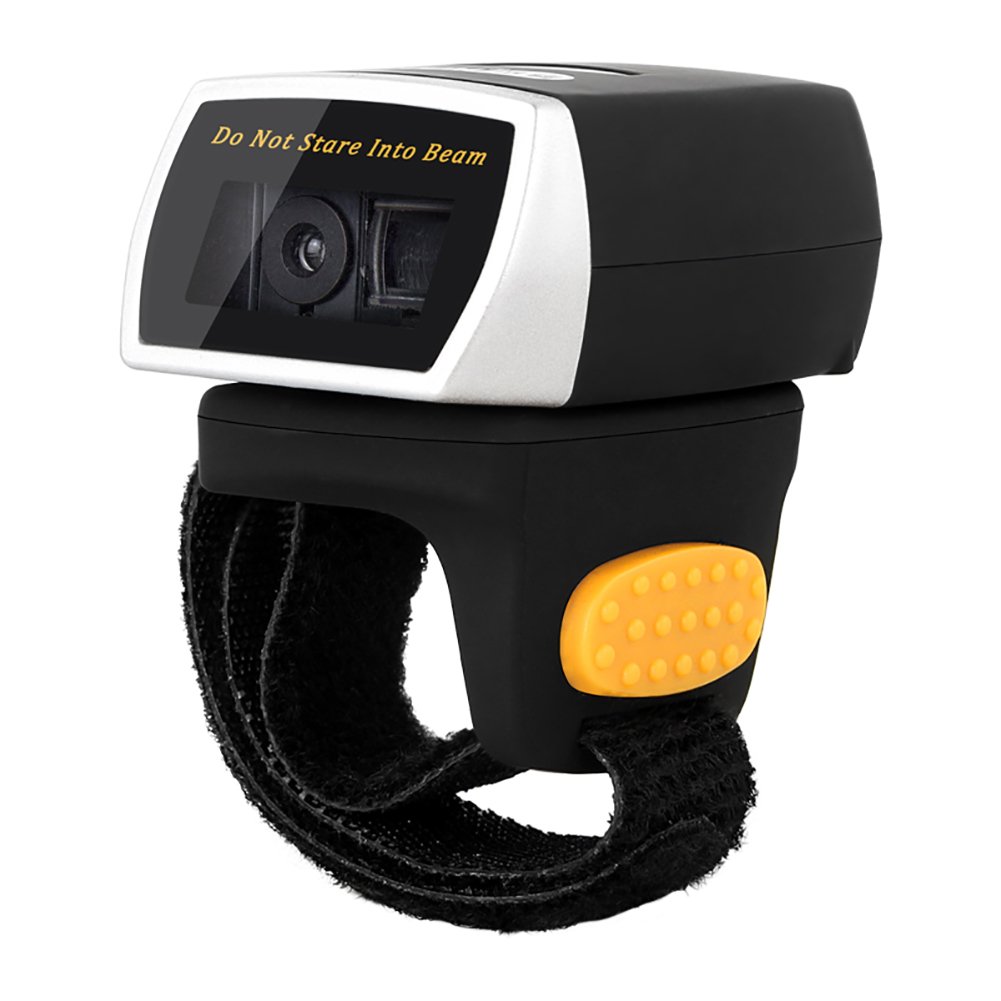

Image: The NETUM NT-R3 Mini Barcode Scanner, a small black electronic device with a screen and button, designed to be worn on a finger with an adjustable ring structure.
Ključne značilnosti:
- Ring Design: Magnesium alloy casing and trigger for durability and ease of use.
- 180° vrtenje: Unique rotatable design for scanning from various angles.
- CCD Scanning: Reads 1D barcodes directly from LCD screens of computers or mobile devices, including poorly printed or damaged barcodes.
- Brezžična povezljivost: Supports Bluetooth (SPP, HID) and 2.4 GHz wireless connections.
- Široka združljivost: Compatible with Windows XP/7/8/8.1/10, Google Android, iOS, and Mac OS X.
Image: The NETUM NT-R3 Mini Barcode Scanner demonstrating its 180-degree rotation design, allowing for flexible scanning angles.
Image: The NETUM NT-R3 Mini Barcode Scanner held in a hand, illustrating its compact dimensions (50mm x 44mm x 38mm) and light weight (50g), emphasizing its strong compatibility with various devices.
Nastavitev in povezljivost
1. Polnjenje skenerja
Before initial use, fully charge the scanner using the provided USB charging cable. Connect the small end of the USB cable to the scanner's charging port and the other end to a USB power source (e.g., computer, USB wall adapter). The charging indicator light will show the charging status.
2. Vklop/izklop
To power on the scanner, press and hold the trigger button for a few seconds until you hear a beep and see the indicator light. To power off, press and hold the trigger button again until the indicator light turns off.
3. Možnosti povezovanja
The NT-R3 scanner offers two primary connectivity methods:
Bluetooth Connection (HID Mode - Keyboard Emulation)
- Prepričajte se, da je skener vklopljen.
- Scan the "Bluetooth HID Mode" barcode (refer to the Quick Start Guide for specific barcodes).
- On your host device (smartphone, tablet, computer), enable Bluetooth and search for available devices.
- Select "NETUM Barcode Scanner" or a similar name from the list of devices.
- The scanner will beep to confirm successful pairing.
In HID mode, scanned barcodes are input directly as keyboard entries into any active text field.
Bluetooth Connection (SPP Mode - Serial Port Profile)
SPP mode is typically used for applications that require direct data communication with the scanner. This mode requires specific software on the host device to interpret the data. Refer to your application's documentation for SPP setup.
- Prepričajte se, da je skener vklopljen.
- Scan the "Bluetooth SPP Mode" barcode (refer to the Quick Start Guide).
- Follow the instructions provided by your specific application for connecting to an SPP device.
Brezžična povezava 2.4 GHz
- Plug the provided 2.4 GHz adapter into a USB port on your computer.
- Prepričajte se, da je skener vklopljen.
- Scan the "2.4G Wireless Mode" barcode (refer to the Quick Start Guide).
- The scanner will automatically connect to the adapter. A successful connection is indicated by a specific beep or light pattern (refer to the Quick Start Guide for details).
The 2.4 GHz connection offers a wireless range of up to 10 meters (30 feet).
Načini delovanja
The NETUM NT-R3 scanner supports two data upload modes:
1. Način takojšnjega nalaganja
In this mode, scanned barcodes are immediately transmitted to your connected device. This is suitable for real-time data entry.
2. Način shranjevanja
The scanner can store up to 2000 barcodes in its built-in flash memory. This mode is useful when working out of range of your host device. Barcodes can be uploaded later when a connection is established.
Image: A visual representation of the two upload modes. Instant Upload Mode shows barcodes being sent directly to a device. Storage Mode shows barcodes being stored internally and then uploaded later.
To switch between modes, scan the corresponding configuration barcodes found in the Quick Start Guide.
Skeniranje črtnih kod
Za skeniranje črtne kode:
- Držite skener tako, da je okno za skeniranje obrnjeno proti črtni kodi.
- Press the trigger button. A red scanning line will appear.
- Align the red scanning line across the entire barcode.
- Once successfully scanned, the scanner will emit a beep, and the indicator light will flash.
The NT-R3 is capable of reading 1D barcodes from various surfaces, including:
- Natisnjene etikete
- LCD screens (computers, smartphones, tablets)
- Poorly printed or damaged barcodes
Vzdrževanje
Skrb za baterijo
- Da podaljšate življenjsko dobo baterije, se izogibajte pogostemu popolnemu praznjenju baterije.
- Charge the scanner regularly, even if not in constant use.
- Ko skenerja dlje časa ne uporabljate, ga shranite na hladnem in suhem mestu.
Čiščenje
- Use a soft, dry, lint-free cloth to clean the scanner's exterior.
- Za okno za skeniranje uporabite krpo za čiščenje leč ali mehko krpo, ki jo rahlo obrišeteampz vodo ali blagim, neabrazivnim čistilom.
- Do not use harsh chemicals, solvents, or abrasive materials, as these can damage the device.
Odpravljanje težav
| Težava | Možen vzrok | rešitev |
|---|---|---|
| Skener se ne vklopi. | Nizka baterija. | Skener polnite vsaj 2 ure. |
| Skener se ne poveže prek Bluetootha. | Incorrect mode selected; device not discoverable; out of range. | Ensure "Bluetooth HID Mode" or "SPP Mode" is scanned. Make sure Bluetooth is enabled on the host device and the scanner is within 10 meters. Try re-pairing. |
| Scanner does not connect via 2.4 GHz adapter. | Adapter not properly inserted; incorrect mode selected. | Ensure the 2.4 GHz adapter is securely plugged in. Scan the "2.4G Wireless Mode" barcode. |
| Skener ne bere črtnih kod. | Barcode is unreadable; scanner not aligned; scanner in storage mode. | Ensure the barcode is clear and well-lit. Align the red line across the entire barcode. If in storage mode, switch to instant upload mode or upload stored data. |
| Skenirani podatki se prikazujejo nepravilno. | Keyboard layout mismatch (for HID mode). | Scan the appropriate keyboard layout barcode (e.g., US, UK, French) from the Quick Start Guide. |
Tehnične specifikacije
| Funkcija | Podrobnost |
|---|---|
| Številka modela | NT-R3 |
| Tehnologija skeniranja | 1D CCD |
| Povezljivost | Bluetooth (SPP, HID), 2.4 GHz Wireless, USB |
| Združljivi operacijski sistemi | Windows XP/7/8/8.1/10, Google Android, iOS, Mac OS X |
| Stopnja skeniranja | 260 sampmanj na sekundo |
| Zmogljivost shranjevanja | Do 2000 črtnih kod (v načinu shranjevanja) |
| Vrsta baterije | 1 Lithium metal battery (included) |
| Vir napajanja | Baterijski pogon |
| Delovna zvezatage | 5 volta |
| Najvišja temperatura shranjevanja | 45 stopinj Celzija |
| Certifikati | CE, ISO, RoHS |
| Proizvajalec | Guangzhou Netum Electronic Technology Co.,Ltd. |
| Država izvora | Kitajska |
Garancija in podpora
Politika vračila
Za ta izdelek je v 30 dneh od nakupa upravičeno do vračila kupnine ali zamenjave, v skladu s pravilnikom o vračilu prodajalca.
Informacije o proizvajalcu
Manufacturer: Guangzhou Netum Electronic Technology Co.,Ltd.
For further assistance or technical support, please refer to the contact information provided in your Quick Start Guide or visit the official NETUM webmesto.
Note: Information regarding spare parts availability and guaranteed software updates is not available at this time.
