ROGER TECHNOLOGY R70/2AC/BOX Control Unit Instruction Manual

1. Uvod

This manual provides essential information for the proper installation, operation, and maintenance of the ROGER TECHNOLOGY R70/2AC/BOX Control Unit. This unit is designed to manage two 230V AC motors, housed within a durable plastic enclosure. Please read these instructions carefully before proceeding with any installation or operation.

2. Varnostna navodila

Električna varnost: Installation and maintenance must be performed by qualified personnel only. Disconnect power before any work on the control unit.
Okoljski pogoji: Ensure the control unit is installed in an environment suitable for its IP rating, protected from excessive moisture, dust, and extreme temperatures.
Pravilno ožičenje: All wiring must comply with local electrical codes and the specifications provided in this manual. Incorrect wiring can lead to malfunction or electrical hazards.
Namen uporabe: This unit is designed for controlling two 230V AC motors. Do not use it for purposes other than those specified.

3. Izdelek je končanview

The ROGER TECHNOLOGY R70/2AC/BOX is a robust control unit housed in a plastic enclosure, engineered for reliable control of dual 230V AC motors. Its design prioritizes durability and ease of integration into various systems.

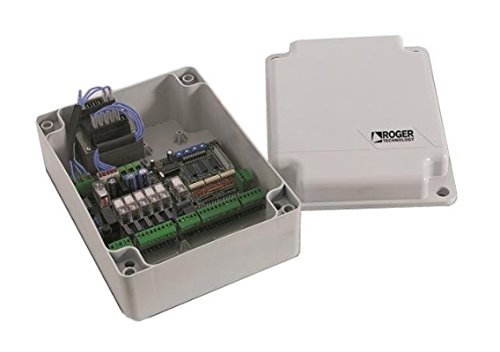

ROGER TECHNOLOGY R70/2AC/BOX Control Unit in plastic enclosure

Slika 1: ROGER TECHNOLOGY R70/2AC/BOX Control Unit. This image displays the control unit enclosed in its protective plastic housing, highlighting its compact and industrial design suitable for various applications.

4. Nastavitev

4.1. Montaža

Select a suitable, stable, and accessible location for mounting the control unit, ensuring it is protected from direct weather exposure if installed outdoors.
Use appropriate fasteners to securely mount the plastic enclosure to a wall or support structure. Ensure the mounting surface can support the weight of the unit.

4.2. Ožičenje

WARNING: Ensure all power is disconnected before performing any wiring.

Napajanje: Connect the main 230V AC power supply to the designated terminals. Ensure proper grounding.
Povezave motorja: Connect the two 230V AC motors to their respective output terminals on the control unit. Follow the wiring diagram provided with the unit for correct phase and neutral connections.
Varnostne naprave: Integrate all necessary safety devices (e.g., photocells, emergency stops, limit switches) into the control unit's safety input terminals as per the wiring diagram.
Nadzorne naprave: Connect any external control devices (e.g., push buttons, key switches, remote receivers) to the appropriate input terminals.

5. Navodila za uporabo

5.1. Začetni vklop

After completing all wiring and ensuring all connections are secure, restore power to the control unit.
Observe the status indicators (LEDs) on the control board. Refer to the unit's specific documentation for LED status meanings.

5.2. Osnovno delovanje

The R70/2AC/BOX unit typically operates through programmed cycles. Depending on the specific application, this may involve:

Ročna aktivacija: Using a connected push button or remote control to initiate motor movement.
Samodejni cikli: Programming the unit for timed operations or responses to sensor inputs.
Varnostni postanek: Activating an emergency stop or safety sensor will halt motor operation immediately.

5.3. Programming (if applicable)

For advanced functionalities such as setting motor speeds, operating times, or specific sequences, refer to the detailed programming guide provided with your control unit. Programming typically involves navigating a menu system via onboard buttons or a dedicated programmer tool.

6. Vzdrževanje

Regular maintenance ensures the longevity and reliable operation of your control unit.

Periodični pregled: Annually inspect all wiring connections for tightness and signs of wear or corrosion.
Enclosure Check: Ensure the plastic enclosure remains sealed and free from damage to protect internal components from environmental factors.
Čiščenje: Keep the exterior of the enclosure clean. If necessary, gently clean the interior with a soft, dry brush or compressed air, ensuring power is disconnected.
Test funkcionalnosti: Periodically test all connected safety devices and control inputs to ensure they are functioning correctly.

7. Odpravljanje težav

This section addresses common issues you might encounter with the R70/2AC/BOX control unit.

Težava	Možen vzrok	rešitev
Enota se ne vklopi	No power supply; Blown fuse; Incorrect wiring	Check main power supply; Inspect and replace fuse if necessary; Verify power wiring connections.
Motors do not respond	Incorrect motor wiring; Safety device activated; Programming error	Check motor connections; Verify all safety devices are disengaged; Review nastavitve programiranja.
Občasno delovanje	Loose connections; Interference; Faulty sensor	Inspect all wiring for loose connections; Check for sources of electrical interference; Test and replace faulty sensors.

Če težava po poskusu teh rešitev ne izgine, se obrnite na usposobljeno tehnično podporo.

8. Specifikacije

Funkcija	Podrobnost
Številka modela	R70/2AC/BOX
Referenca proizvajalca	R70/2AC/BOX
Proizvajalec	ROGER
Združljivost motorja	Two 230V AC motors (also available for 115V)
Vrsta ohišja	Plastična škatla
ASIN	B01MQQECNB
Production Status	Še vedno v produkciji
Date Listed on Amazon.com.be	20. junij 2022

9. Informacije o garanciji

ROGER TECHNOLOGY products are manufactured to high-quality standards. For specific warranty terms and conditions, please refer to the warranty card included with your product or visit the official ROGER TECHNOLOGY webspletnega mesta. Shranite dokazilo o nakupu za uveljavljanje garancije.

10. Podpora

For technical assistance, troubleshooting beyond this manual, or spare parts inquiries, please contact your authorized ROGER TECHNOLOGY dealer or visit the official ROGER TECHNOLOGY support portal. Ensure you have your product model number (R70/2AC/BOX) and serial number (if applicable) ready when contacting support.

Uradno Webspletno mesto: www.rogertechnology.com
