1. Izdelek je končanview
The Chamberlain RPD10-10 is a tubular motor designed for the automation of roller shutters. This motor is engineered for octagonal shafts with a diameter of 40 mm, providing a torque of 10 Nm. It is suitable for various roller shutter materials and sizes, including PVC shutters up to 5 m², aluminum shutters up to 4 m², and wooden shutters up to 2 m². The motor facilitates easy and quick installation due to its pre-mounted essential components, such as the adapter, driver, and bearing. End point adjustment is straightforward using the provided adjustment pin.
Slika 1: Spredaj view of the Chamberlain RPD10-10 Tubular Motor.
2. Varnostne informacije
Please read and understand all safety instructions before installing, operating, or performing maintenance on this product. Failure to follow these instructions may result in serious injury or property damage.
- Električna varnost: Installation must be performed by a qualified electrician in accordance with all local electrical codes and regulations. Disconnect power before any installation, maintenance, or repair work.
- Gibljivi deli: Keep hands, hair, and clothing clear of moving parts during operation. Ensure no obstructions are present in the path of the roller shutter.
- Otroci in hišni ljubljenčki: Do not allow children or pets to play with or near the roller shutter system. Keep remote controls out of reach of children.
- Namen uporabe: This motor is designed exclusively for driving roller shutters. Do not use it for any other purpose.
- Okoljski pogoji: Ensure the motor is protected from moisture and extreme temperatures.
3. Vsebina paketa
Pred začetkom namestitve preverite, ali so vse komponente prisotne in nepoškodovane.
- Chamberlain RPD10-10 Tubular Motor
- Adapter for 40 mm octagonal shaft (pre-mounted)
- Driver (pre-mounted)
- Bearing (pre-mounted)
- Adjustment pin for end point setting
- Navodila za uporabo

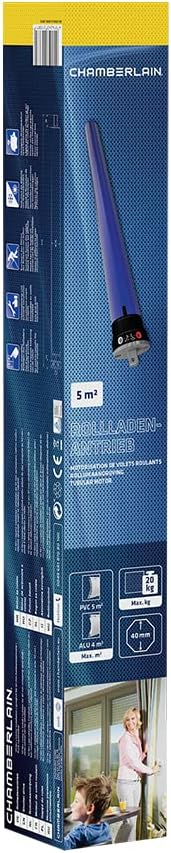

Figure 2: Packaging of the Chamberlain RPD10-10 Tubular Motor, showing included components.
4. Specifikacije
| Specifikacija | Vrednost |
|---|---|
| Znamka | Chamberlain |
| Ime modela | RPD10-10 |
| Mere izdelka (D x Š x V) | 62.6 x 8.5 x 8.5 cm |
| Teža predmeta | 1 kilogramov |
| Material | Kovina |
| barva | Modra |
| Združljivost premera gredi | 40 mm octagonal shafts |
| Navor | 10 Nm |
| Moč | 121 W |
| Max. Roller Shutter Surface (PVC) | 5 m² |
| Max. Roller Shutter Surface (Aluminum) | 4 m² |
| Max. Roller Shutter Surface (Wood) | 2 m² |
| Vhodna voltage | 230 V 50 Hz |
5. Namestitev in nastavitev
This section outlines the general steps for installing the Chamberlain RPD10-10 tubular motor. It is suitable for both new constructions and retrofitting existing roller shutter systems. Ensure all safety precautions are followed.
5.1 Preverjanja pred namestitvijo
- Verify the roller shutter dimensions and weight are within the motor's specifications.
- Confirm the octagonal shaft diameter is 40 mm.
- Ensure the power supply (230V 50Hz) is available at the installation point.
5.2 Namestitev motorja
- Prepare the Roller Shutter Box: Open the roller shutter box and remove the existing shaft and shutter if necessary.
- Insert Motor into Shaft: Slide the tubular motor, with its pre-mounted adapter, driver, and bearing, into the 40 mm octagonal shaft. Ensure it fits snugly.
- Mount the Shaft: Place the assembled shaft with the motor back into the roller shutter box, securing it with appropriate brackets and bearings.
- Attach Roller Shutter: Connect the roller shutter curtain to the shaft using the appropriate fasteners.
- Električna povezava: Connect the motor's electrical cable to the power supply, ensuring correct wiring (Live, Neutral, Earth, and control wires if applicable). This step must be performed by a qualified electrician.
Slika 3: stran view of the Chamberlain RPD10-10 motor, showing the pre-mounted components for shaft integration.
5.3 Setting End Points
The motor's end points define the fully open and fully closed positions of the roller shutter. These are set using the provided adjustment pin.
- Identify Adjustment Screws: Locate the two adjustment screws on the motor head. One is for the upper limit, the other for the lower limit.
- Nastavite zgornjo mejo: Operate the roller shutter to the desired fully open position. Insert the adjustment pin into the corresponding screw and turn it until the motor stops at the desired upper limit.
- Nastavite spodnjo mejo: Operate the roller shutter to the desired fully closed position. Insert the adjustment pin into the other screw and turn it until the motor stops at the desired lower limit.
- Test Limits: Operate the roller shutter up and down several times to ensure the end points are correctly set and the shutter stops precisely at the desired positions. Adjust as needed.
6. Delovanje
Once installed and the end points are set, the Chamberlain RPD10-10 motor can be operated via a connected wall switch, timer, or other compatible control accessories. The motor can also be optionally converted to a radio drive system with additional Chamberlain accessories (sold separately).
- Manual Operation (Wired Switch): Press the 'Up' button to open the roller shutter and the 'Down' button to close it. Release the button to stop the shutter at any intermediate position.
- Delovanje časovnika: If connected to a timer, program the desired opening and closing times. The motor will operate automatically according to the schedule.
- Radio Control (Optional): If upgraded with a radio receiver and remote control, use the remote to operate the shutter wirelessly. Refer to the specific instructions for the radio control system.
Slika 4: Nprample of a building equipped with automated roller shutters, demonstrating the application of the tubular motor.
7. Vzdrževanje
The Chamberlain RPD10-10 tubular motor is designed for long-term, maintenance-free operation. However, periodic checks can help ensure its continued reliability.
- Vizualni pregled: Periodically inspect the roller shutter system for any signs of wear, damage, or obstructions. Ensure the shutter moves freely.
- Čiščenje: Keep the roller shutter box and the visible parts of the motor clean from dust and debris. Do not use abrasive cleaners or solvents.
- Električne povezave: If accessible and safe to do so (with power disconnected), periodically check electrical connections for tightness.
- Mazanje: The motor itself does not require lubrication. Do not attempt to lubricate internal components.
8. Odpravljanje težav
If you encounter issues with your Chamberlain RPD10-10 tubular motor, refer to the following common troubleshooting steps.
| Težava | Možen vzrok | rešitev |
|---|---|---|
| Motor se ne odziva | Brez napajanja Napačno ožičenje Zaščita pred preobremenitvijo je aktivirana | Preverite napajalni priključek in odklopnik. Verify wiring by a qualified electrician. Allow motor to cool down for 15-20 minutes. |
| Roller shutter stops prematurely or does not reach limits | End points incorrectly set Obstruction in shutter path | Re-adjust end points as described in Section 5.3. Odstranite vse ovire. |
| Motor makes unusual noises | Shaft misalignment Poškodovane komponente | Check shaft alignment and ensure smooth movement. Contact customer support if noises persist. |
Če težava po poskusu teh rešitev ne izgine, se obrnite na podporo strankam Chamberlain.
9. Garancija in podpora
Chamberlain products are manufactured to high-quality standards. For specific warranty terms and conditions, please refer to the documentation provided at the time of purchase or visit the official Chamberlain webmesto.
Rezervni deli: Information regarding the availability of spare parts for this model is currently unavailable. Please contact Chamberlain customer support for assistance with replacement parts.
Podpora strankam: For technical assistance, troubleshooting beyond this manual, or warranty claims, please contact Chamberlain customer service through their official webspletnega mesta ali kontaktnih podatkov, ki so navedeni z vašim izdelkom.
