MINT InstantFlex TL70 Instant Camera User Manual

1. Uvod

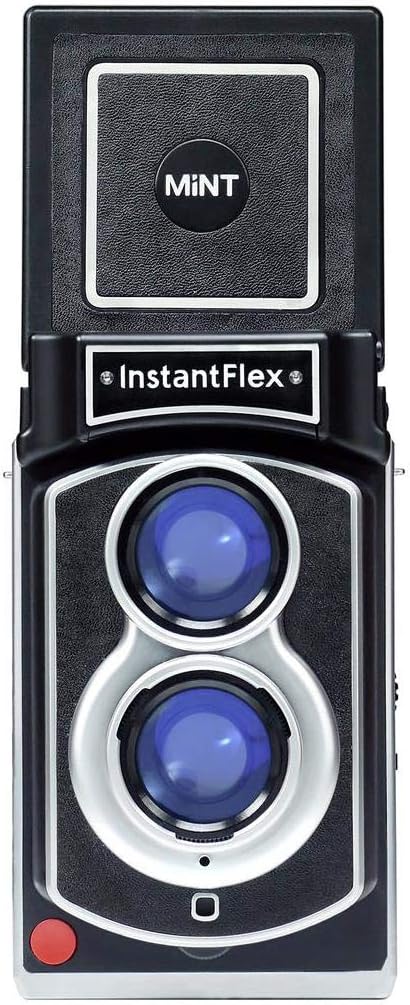

The MINT InstantFlex TL70 is a unique twin-lens instant camera designed for use with Fujifilm Instax Mini films. It combines classic Twin Lens Reflex (TLR) aesthetics with modern functionality, offering manual control over focus and aperture, along with a built-in flash. This manual provides essential information for setting up, operating, and maintaining your InstantFlex TL70 camera.

Key features include a wide range of apertures (f/5.6 to f/22, plus a f/bokeh setting), a 61mm fixed focal length lens, and a focusing distance from 48cm to infinity. It supports shutter speeds from 1/500 to 1 second in A mode and up to 10 seconds in Bulb mode, with ±1 EV exposure compensation. The camera also features a Fresnel ground-glass focusing screen for precise focusing and supports infinite multiple exposures.

2. Kaj je v škatli

Upon unboxing your MINT InstantFlex TL70, please ensure all the following items are present:

• InstantFlex TL70 Camera Body
• Pokrov objektiva
• 3 AA baterije
• Navodila za uporabo (ta dokument)

3. Komponente kamere

Familiarize yourself with the main components of your InstantFlex TL70 camera:

• Viewing Lens (Upper): Used for composing and focusing your shot.
• Taking Lens (Lower): The lens through which the image is captured onto the film.
• Viewfinder Hood: Flips open to reveal the ground-glass focusing screen.
• Sprožilec: Red button on the front lower-left for taking photos.
• Bliskavica: Located above the lenses, it pops up for use.
• Exposure Compensation Switch: Located on the side, allows adjustment of exposure (EV+/-).
• Gumb za ostrenje: Typically located on the side or front, used to adjust focus.
• Reža za izmet filma: Where the developed instant film emerges after a shot.
• Nosilec za stojalo: A standard 1/4" thread on the bottom for mounting to a tripod.
• Predal za baterije: Located on the bottom, holds 3 AA batteries.

4. Nastavitev

4.1. Namestitev baterije

1. Poiščite pokrov predalčka za baterije na spodnji strani fotoaparata.
2. Slide or unlatch the cover to open the compartment.
3. Vstavite 3 baterij AA in pazite na pravilno polarnost (+/-), kot je označeno v notranjosti predala.
4. Trdno zaprite pokrov prostora za baterije.

4.2. Nalaganje filma

The InstantFlex TL70 uses Fujifilm Instax Mini instant film.

1. Open the film compartment door on the back of the camera.
2. Poravnajte rumeno oznako na paketu filma z rumeno oznako v predalu za film fotoaparata.
3. Gently push the film pack into place. Do not force it.
4. Close the film compartment door firmly until it clicks.
5. The camera will automatically eject the dark slide (film cover). Do not open the film door until all 10 exposures have been used.

4.3. Attaching a Neck Strap (Optional)

The camera includes neck strap holders on both sides. Thread your preferred neck strap through these holders for secure carrying.

5. Upravljanje kamere

5.1. Vklop/izklop

The camera powers on automatically when the viewfinder hood is opened. To power off, close the viewfinder hood.

5.2. Osredotočanje

The InstantFlex TL70 features manual focusing.

1. Odprite viewfinder hood and look down into the ground-glass screen.
2. Rotate the focusing knob (usually located on the front or side of the camera) until your subject appears sharp and clear on the focusing screen.
3. The focusing distance ranges from 48cm to infinity.

5.3. Nastavitev zaslonke

The aperture controls the amount of light entering the lens and the depth of field.

• Available apertures: f/5.6, f/8, f/16, f/22, and f/bokeh.
• Rotate the aperture ring around the taking lens to select your desired setting.
• f/5.6: Widest aperture, allows more light, shallower depth of field (blurry background).
• f/22: Narrowest aperture, allows less light, deeper depth of field (more in focus).
• f/bokeh: A special setting designed to maximize background blur.

5.4. Shutter Speed and Exposure Control

The camera operates in an aperture-priority mode with two main shutter settings:

• A Mode (Automatic): The camera automatically selects a shutter speed between 1/500 and 1 second based on the chosen aperture and lighting conditions.
• B Mode (Bulb): Allows for long exposures up to 10 seconds. The shutter remains open as long as the shutter button is pressed (up to 10 seconds).

Use the exposure compensation switch (EV+/-) on the side of the camera to adjust the exposure by ±1 EV if needed. A correct exposure confirmation light will assist in determining optimal settings.

5.5. Uporaba bliskavice

The built-in electric flash features Automatic Light Emission Control.

1. To activate the flash, gently push it upwards until it locks into position.
2. The flash will automatically fire when needed in low-light conditions.
3. To deactivate, push the flash unit back down until it clicks into its housing.

5.6. Fotografiranje

1. Ensure batteries are installed and film is loaded.
2. Odprite viewfinder hood.
3. Compose and focus your shot using the ground-glass screen.
4. Select your desired aperture.
5. Choose 'A' or 'B' for shutter speed, and adjust EV compensation if necessary.
6. Press the red shutter button firmly.
7. The camera will automatically eject the exposed film, which will develop over a few minutes.

5.7. Multiple Exposures

The InstantFlex TL70 supports infinite multiple exposures on a single frame. Consult the specific instructions provided with your camera for the exact procedure to activate and manage multiple exposures. Typically, this involves a specific sequence of shutter presses or a dedicated switch.

6. Vzdrževanje

• Čiščenje leč: Use a soft, lint-free cloth specifically designed for camera lenses. Avoid harsh chemicals.
• Ohišje kamere: Wipe the camera body with a dry, soft cloth. Do not use water or cleaning solutions directly on the camera.
• Filmski valji: Periodically check the film rollers (located inside the film compartment) for any dust or debris. Clean gently with a soft, damp cloth if necessary, ensuring they are dry before loading new film.
• Skrb za baterijo: Remove batteries if the camera will not be used for an extended period to prevent leakage.
• Shranjevanje: Store the camera in a cool, dry place away from direct sunlight and extreme temperatures.

7. Odpravljanje težav

8. Specifikacije

9. Garancija in podpora

For warranty information and technical support, please refer to the official MINT website or contact MINT customer service directly. Keep your proof of purchase for any warranty claims.
