Futaba 10J 10-Channel Air Radio System User Manual

1. Uvod

Welcome to the Futaba 10J 10-channel air radio system. This manual provides essential information for the proper setup, operation, and maintenance of your T10J transmitter and R3008SB receiver. The 10J system utilizes both T-FHSS and S-FHSS transmission systems, offering reliable control and integrated telemetry capabilities for various aircraft models.

2. Vsebina kompleta

Prosimo, preverite, ali so v vašem paketu priloženi vsi spodaj navedeni artikli:

• Futaba T10J Transmitter (Mode 1)
• Sprejemnik Futaba R3008SB
• 2800 mAh LIPO Battery for Transmitter
• LIPO Charger
• 1 stikalni kabel
• Uporabniški priročnik (ta dokument)

3. T10J Transmitter Overview

The T10J transmitter is designed for ergonomic comfort and precise control. It features high-precision control sticks for sensitive piloting and a large, backlit display (65 x 34 mm) for clear readability in various lighting conditions. Navigation through menus is intuitive with a 4-position pad. The system supports multiple languages, including German, English, French, Italian, Spanish, Japanese, and Dutch, and offers multi-mode operation (Modes 1, 2, 3, 4).

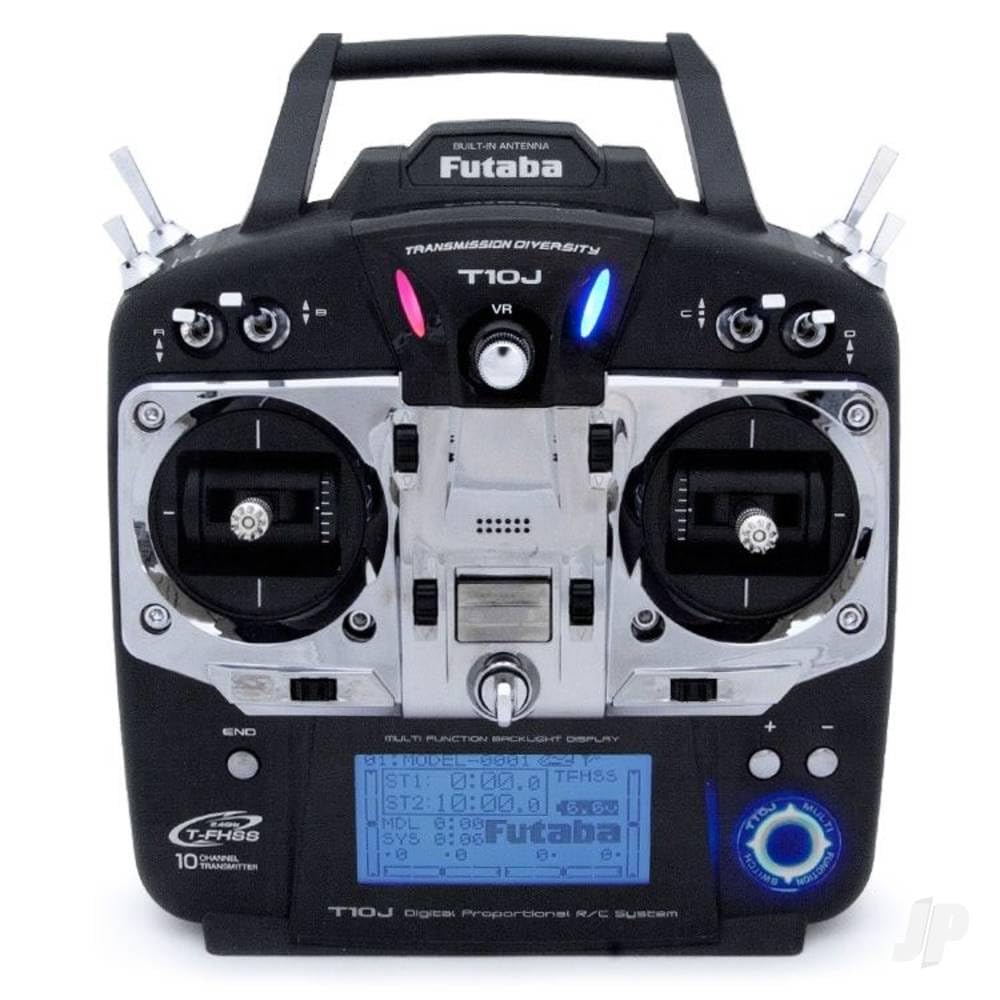

Slika 1: Futaba T10J 10-channel transmitter. This image shows the front view of the T10J transmitter, highlighting its backlit display, dual control sticks, and various buttons and switches for operation.

4. R3008SB Receiver Overview

The R3008SB is an 8-channel receiver compatible with the T-FHSS and S-FHSS transmission systems. It features SBUS2 technology, allowing for the connection of multiple servos and telemetry sensors via a single cable. The receiver is designed for reliable signal reception with its patch antenna.

Slika 2: Futaba R3008SB 8-channel receiver. This image displays the compact R3008SB receiver, showing its antenna wires, SBUS2 port, and channel outputs.

5. Nastavitev

5.1. Charging the Transmitter Battery

Before initial use, fully charge the included 2800 mAh LIPO battery using the provided LIPO charger. Refer to the charger's instructions for safe charging procedures.

5.2. Vezava prejemnika

To establish communication between the T10J transmitter and R3008SB receiver, a binding process is required. Consult the detailed instructions in the full user manual for the specific steps to bind your receiver to the transmitter's selected transmission mode (T-FHSS or S-FHSS).

5.3. Začetna konfiguracija

Upon powering on the transmitter, you may need to select your preferred operating mode (Mode 1, 2, 3, or 4) and language. Use the 4-position pad to navigate the initial setup menus on the backlit display.

6. Delovanje

6.1 Telemetrične funkcije

The 10J system features integrated telemetry with a range of up to 1000 meters. Real-time telemetry data can be viewed directly on the transmitter's display. Audio alerts are available via an internal beeper or optional 3.5mm jack headphones. The system also provides vibration alerts and a low voltage warning for receiver monitoring. Telemetry characteristics can be configured via screen, sound, language, and vibration settings. The system is compatible with all Futaba telemetry sensors.

6.2. Basic Programming Features

• Spomini modela: Store settings for up to 30 different models.
• Alarmi: Customizable alarms for various parameters.
• Mešanje: Configure custom mixing functions.
• Sub-trim: Fine-tune servo neutral positions.
• Časovniki: Utilize integrated timers for flight duration or other purposes.
• Kopija modela: Duplicate model settings for new models or training.
• Throttle Inversion: Reverse throttle channel operation if needed.
• Range Mode: A reduced power mode for range checking.
• SBUS Programming: Configure SBUS channels directly from the T10J.

7. Vzdrževanje

To ensure the longevity and optimal performance of your Futaba 10J system, follow these maintenance guidelines:

• Oddajnik in sprejemnik naj bosta čista in brez prahu ter umazanije. Za čiščenje uporabljajte mehko, suho krpo.
• Sistem shranjujte na hladnem in suhem mestu, stran od neposredne sončne svetlobe in ekstremnih temperatur.
• Redno pregledujte vse kable in priključke glede znakov obrabe ali poškodb.
• Ensure the transmitter battery is charged appropriately and not left discharged for extended periods.

8. Odpravljanje težav

If you encounter issues with your Futaba 10J system, consider the following common troubleshooting steps:

• Brez napajanja: Check the transmitter battery charge level and ensure it is properly connected.
• No Control: Verify that the receiver is correctly bound to the transmitter. Check all servo connections.
• Intermittent Control/Reduced Range: Ensure the transmitter antenna is properly oriented. Check for potential sources of interference in your operating environment.
• Telemetry Data Missing: Confirm that telemetry sensors are correctly connected and configured.

For more detailed troubleshooting, refer to the comprehensive user manual or contact Futaba support.

9. Specifikacije

10. Garancija in podpora

Futaba products are manufactured to high standards. For warranty information and technical support, please refer to the documentation included with your purchase or visit the official Futaba webspletnega mesta. Shranite dokazilo o nakupu za uveljavljanje garancije.
