TRUPER ROTO-1/2NX2 Hammer Drill/Screwdriver 1/2 inch, 1200W User Manual

1. Uvod in konecview

Thank you for choosing the TRUPER ROTO-1/2NX2 Hammer Drill/Screwdriver. This powerful 1200W tool is designed for various drilling and screwdriving tasks, offering versatility with its three functions: hammer drill, drill, and screwdriver. It features 2 variable reversible speeds, a robust double gear system, and an ergonomic non-slip handle for enhanced control and comfort. Please read this manual carefully before operating the tool to ensure safe and efficient use.

Slika 1.1: Spredaj view of the TRUPER ROTO-1/2NX2 Hammer Drill. This image shows the overall design of the tool, including the chuck, auxiliary handle, and main body.

2. Značilnosti in komponente izdelka

The TRUPER ROTO-1/2NX2 is equipped with several features designed for performance and user convenience. Familiarize yourself with the components shown below.

• Izbirnik funkcij: Easily switch between drill, hammer drill, and screwdriver modes.
• Mechanical Speed Selector: Control for high or low speed settings.
• Depth Control Rod: For precise drilling depth adjustments.
• 360° Auxiliary Handle: Provides enhanced control and comfort for the operator.
• Nadzor spremenljive hitrosti: Allows for precise speed adjustment during operation.
• Reversible Mode Lever: Changes the rotation direction for screwdriving or bit removal.
• Continuous Use Button: Locks the trigger for extended operation.
• Non-slip Grip: Ensures comfortable and secure handling.
• Ball Bearing Mounted Motor: Designed for increased durability and lifespan.
• LED lučka: Osvetli delovno območje za boljšo vidljivost.
• Heavy-duty Cable: Durable power cable for reliable connection.

Slika 2.1: Stran view of the TRUPER ROTO-1/2NX2 Hammer Drill, illustrating the general location of the function selector, speed selector, depth rod, auxiliary handle, variable speed control, reversible lever, continuous use button, non-slip grip, and LED light.

3. Splošna varnostna navodila

OPOZORILO: Preberite vsa varnostna opozorila, navodila, ilustracije in specifikacije, ki so priložene temu električnemu orodju. Neupoštevanje vseh spodaj navedenih navodil lahko povzroči električni udar, požar in/ali resne poškodbe.

Varnost na delovnem mestu

• Delovno območje naj bo čisto in dobro osvetljeno. Nered ali temna področja vabijo k nesrečam.
• Električnega orodja ne uporabljajte v eksplozivnem okolju, na primer v prisotnosti vnetljivih tekočin, plinov ali prahu. Električna orodja ustvarjajo iskre, ki lahko vnamejo prah ali hlape.
• Med uporabo električnega orodja naj se otroci in navzoče osebe ne približujejo. Motnje lahko povzročijo izgubo nadzora.

Električna varnost

• Vtiči električnega orodja se morajo ujemati z vtičnico. Nikoli na noben način ne spreminjajte vtiča.
• Izogibajte se telesnemu stiku z ozemljenimi površinami, kot so cevi, radiatorji, štedilniki in hladilniki. Če je vaše telo ozemljeno ali ozemljeno, obstaja povečana nevarnost električnega udara.
• Električnega orodja ne izpostavljajte dežju ali mokrim pogojem. Vdor vode v električno orodje poveča nevarnost električnega udara.
• Ne zlorabljajte kabla. Nikoli ne uporabljajte kabla za prenašanje, vlečenje ali izklapljanje električnega orodja. Kabel hranite stran od vročine, olja, ostrih robov ali gibljivih delov.

Osebna varnost

• Vedno nosite zaščito za oči. Uporabljajte zaščitna očala, zaščitna očala ali ščitnik za obraz.
• Wear appropriate personal protective equipment (PPE) such as hearing protection, dust mask, non-skid safety shoes, and work gloves.
• Bodite pozorni, pazite, kaj počnete, in pri delu z električnim orodjem uporabljajte zdrav razum.
• Ne pretiravajte. Ves čas ohranjajte pravilno nogo in ravnotežje.

4. Nastavitev

Before starting any work, ensure the tool is unplugged from the power source.

4.1 Pritrditev pomožnega ročaja

1. Pomožni ročaj zrahljajte tako, da ga zavrtite v nasprotni smeri urinega kazalca.
2. Ročaj potisnite na sprednji del telesa svedra.
3. Adjust the handle to a comfortable and secure position (it can rotate 360°).
4. Ročaj privijte tako, da ga vrtite v smeri urinega kazalca, dokler ni trdno pritrjen.

4.2 Inserting Drill Bits/Accessories

1. Odprite čeljusti vpenjalne glave tako, da ključ vpenjalne glave zavrtite v nasprotni smeri urinega kazalca.
2. Sveder ali pribor popolnoma vstavite v vpenjalno glavo.
3. Tighten the chuck jaws firmly using the chuck key by rotating it clockwise. Ensure the bit is centered and secure.
4. Ključ vpenjalne glave po zategovanju takoj odstranite, da preprečite poškodbe.

4.3 Adjusting the Depth Control Rod

1. Loosen the screw or lever that secures the depth control rod on the auxiliary handle.
2. Adjust the rod to the desired drilling depth. The tip of the rod should indicate the maximum depth.
3. Tighten the screw or lever to secure the depth control rod in place.

Slika 4.1: The TRUPER ROTO-1/2NX2 Hammer Drill in operation, illustrating proper grip and the use of the auxiliary handle and depth rod during a drilling task.

5. Navodila za uporabo

Always wear appropriate safety gear, including eye protection and hearing protection, before operating the tool.

5.1 Selecting Operating Mode (Function Selector)

Orodje ponuja tri načine delovanja:

• Način vrtanja: Za vrtanje v les, kovino in plastiko.
• Način udarnega vrtanja: Za vrtanje v zid, beton in opeko.
• Način izvijača: Za privijanje in odvijanje vijakov.

To select a mode, rotate the function selector switch located on the top of the tool to the desired icon. Ensure the selector clicks into place.

5.2 Adjusting Speed (Mechanical Speed Selector and Variable Speed Control)

• Mechanical Speed Selector: Use the switch on the top of the tool to select between high (II) and low (I) mechanical speed ranges. Low speed provides higher torque, suitable for larger holes or screwdriving. High speed is for smaller holes and faster drilling.
• Sprožilec s spremenljivo hitrostjo: The trigger allows for fine-tuning the speed within the selected mechanical range. Pressing the trigger lightly results in lower speed, while pressing it fully increases the speed.

5.3 Reverzibilna funkcija

The reversible lever, located near the trigger, controls the direction of rotation.

• Push the lever to the left for forward (clockwise) rotation, used for drilling and driving screws.
• Push the lever to the right for reverse (counter-clockwise) rotation, used for removing screws or freeing jammed drill bits.

Opomba: Preden spremenite smer vrtenja, se vedno prepričajte, da se je orodje popolnoma ustavilo.

5.4 Continuous Use Button

For extended drilling or screwdriving tasks, the continuous use button can lock the trigger in the "ON" position.

1. Press the trigger fully to start the tool.
2. While the trigger is pressed, push the continuous use button.
3. Release the trigger; the tool will continue to operate.
4. To turn off the tool, press the trigger again and release it.

6. Vzdrževanje

Regular maintenance ensures the longevity and optimal performance of your TRUPER ROTO-1/2NX2. Always unplug the tool before performing any maintenance.

6.1 Čiščenje

• Keep the ventilation openings clean to prevent motor overheating. Use a soft brush or compressed air to clear dust and debris.
• Zunanjost orodja obrišite zamp krpo. Ne uporabljajte močnih kemikalij ali abrazivnih čistil.
• Redno čistite čeljusti vpenjalne glave, da zagotovite dober oprijem svedrov.

6.2 Oglene ščetke

The carbon brushes are wear parts. If the motor performance decreases or sparks become excessive, the carbon brushes may need replacement. This should ideally be done by a qualified service technician.

6.3 Shranjevanje

Store the tool in a dry, secure place, out of reach of children. Protect it from direct sunlight and extreme temperatures.

7. Odpravljanje težav

If you encounter issues with your TRUPER ROTO-1/2NX2, refer to the following common problems and solutions. If the problem persists, contact authorized service personnel.

8. Specifikacije

Technical specifications for the TRUPER ROTO-1/2NX2 Hammer Drill/Screwdriver.

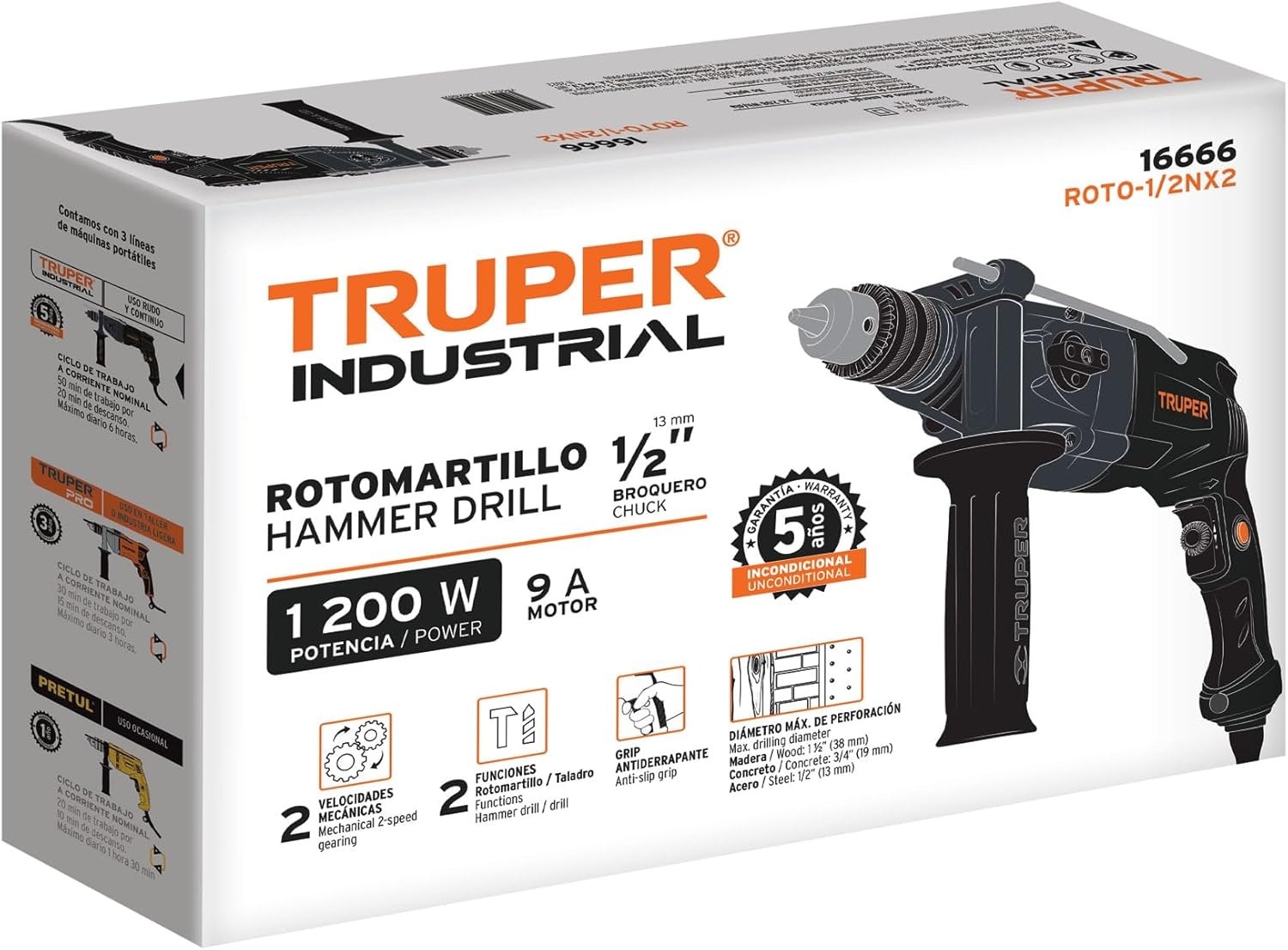

Slika 8.1: Product packaging for the TRUPER ROTO-1/2NX2, displaying key specifications and features.

9. Garancija in podpora

The TRUPER ROTO-1/2NX2 Hammer Drill/Screwdriver comes with a 3-letna garancija from the manufacturer, Truper SA de CV. This warranty covers defects in materials and workmanship under normal use.

Za uveljavljanje garancije, tehnično podporo ali servisne poizvedbe se obrnite neposredno na prodajalca ali proizvajalca. Za potrditev garancije shranite dokazilo o nakupu.

You can find more information about TRUPER products and support on their official webspletnem mestu ali prek pooblaščenih distributerjev.
