Intermatic Timer LV371T Low Voltage Uporabniški priročnik Transformer

1. Uvod in konecview

This manual provides essential information for the safe and efficient operation of your Intermatic Timer LV371T Low Voltage Transformer. Designed for use with LV100 Series lighting systems, this transformer is capable of handling up to 121 watts maximum, providing reliable power for your outdoor low-voltage lighting needs. Please read this manual thoroughly before installation and use.

2. Varnostne informacije

Vedno upoštevajte naslednje varnostne ukrepe, da preprečite poškodbe ali škodo na enoti:

• CAUTION: FOR OUTDOOR USE ONLY. This transformer is designed for outdoor applications and should not be used indoors.
• DO NOT SUBMERGE LIGHTING UNITS. Ensure that all connected lighting units are not submerged in water.
• DO NOT OPERATE ON OR OFF OVER A SHORT DURATION. Rapid cycling of the power can cause damage to the unit or connected lighting.
• Refer to wiring circuits for proper installation and connection.
• Pred kakršno koli namestitvijo, vzdrževanjem ali odpravljanjem težav vedno izklopite napajanje.
• Ensure the transformer is installed on a stable, level surface, or mounted securely as per instructions.

3. Nastavitev in namestitev

The Intermatic LV371T transformer is designed for floor mount installation. Follow these steps for proper setup:

1. Razpakiranje: Carefully remove the transformer from its packaging. Inspect for any signs of damage.
2. Umestitev: Choose a suitable outdoor location for the transformer. Ensure it is on a stable surface or securely mounted. The unit is designed for floor mounting.
3. Napajalni priključek: Connect the transformer's power cord to a grounded 120V AC outdoor electrical outlet.
4. Nizka glasnosttage Izhod: Connect your LV100 Series low-voltage lighting system wires to the transformer's low-voltage output terminals. Ensure all connections are secure and properly insulated.
5. Začetno preverjanje: Once all connections are made, you may plug in the transformer. Do not operate the timer until it is set.

Slika 3.1: Spredaj view of the Intermatic LV371T Low Voltage Transformer, showing its compact black casing in napajalni kabel.

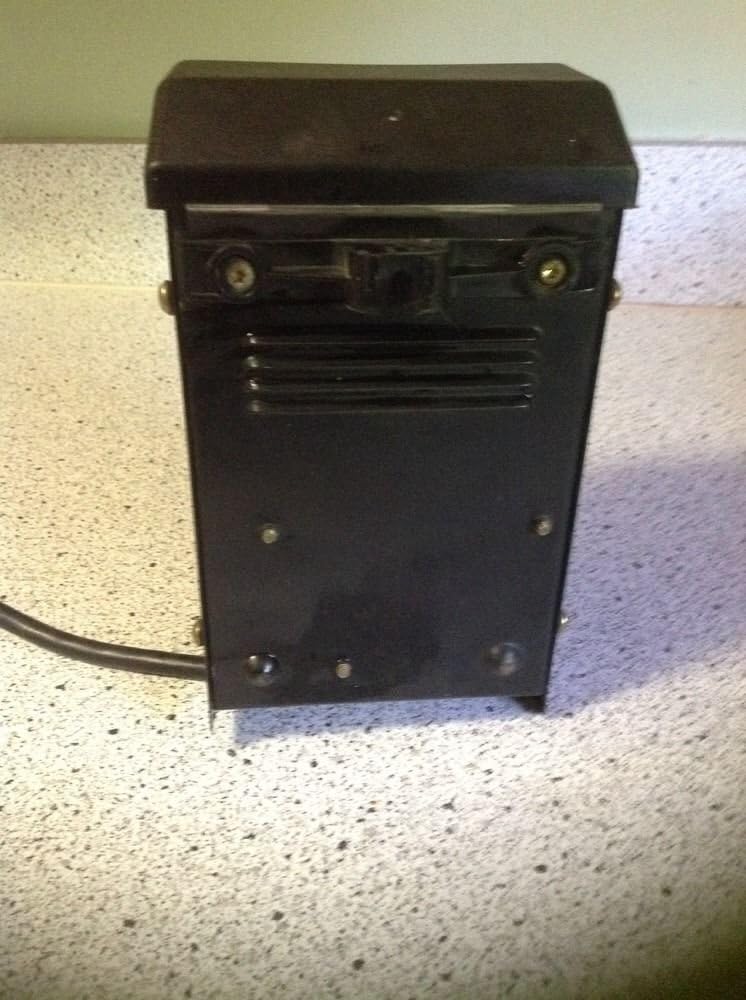

Slika 3.2: Zadaj view of the transformer, highlighting its design for secure mounting and heat dissipation.

4. Navodila za uporabo

The LV371T features an integrated mechanical timer for automated control of your lighting system.

Slika 4.1: Notranji view of the timer dial, showing the mechanism for setting ON/OFF times.

Figure 4.2: The timer dial with visible instruction label, detailing how to set the timer.

Nastavitev časovnika:

The timer uses ON (blue) and OFF (red) trippers to control the lighting schedule. These trippers are inserted into the slots around the dial.

1. Nastavitev časa vklopa: Insert a blue tripper into the dial at the desired time you want your lights to turn ON.
2. Nastavitev časa izklopa: Insert a red tripper into the dial at the desired time you want your lights to turn OFF.
3. Nastavi trenutni čas: The dial rotates counter-clockwise. To advance the clock, turn the dial clockwise until the present time is aligned with the arrow indicator.
4. Adjust for Daylight/Power Outage: Periodically check the time and adjust as needed to account for daylight saving changes or after any power outages.

5. Vzdrževanje

The Intermatic LV371T transformer requires minimal maintenance to ensure long-lasting performance:

• Čiščenje: Zunanjost transformatorja občasno obrišite zamp s krpo odstranite umazanijo in ostanke. Pred čiščenjem se prepričajte, da je enota izklopljena iz električnega omrežja.
• Preverjanje povezave: Letno preverite vse električne povezave glede tesnosti in znakov korozije.
• Prezračevanje: Ensure that the ventilation slots (if present) are clear of obstructions to allow for proper heat dissipation.

6. Odpravljanje težav

If your lighting system is not operating as expected, consider the following troubleshooting steps:

• Lights Not Operating:
  • Check All Connections for Fault: Ensure the transformer is securely plugged into the outlet and all low-voltage lighting connections are tight and correct.
  • Verify that the circuit breaker or GFCI outlet supplying power to the transformer has not tripped.
  • Confirm that the ON tripper is correctly placed on the timer dial and the current time is accurately set.
• Luči neprekinjeno svetijo/izklopijo:
  • Check the placement of both ON and OFF trippers on the timer dial. Ensure they are firmly seated in their respective slots.
  • Verify that the current time on the dial is correctly aligned with the arrow indicator.
• Časovnik ne napreduje:
  • Ensure the transformer is receiving continuous power.
  • Inspect the timer mechanism for any obstructions or debris.

If issues persist after performing these checks, contact Intermatic customer support for further assistance.

7. Specifikacije

8. Garancija in podpora

Specific warranty details are not provided in the product information. For warranty claims, technical support, or further inquiries regarding your Intermatic Timer LV371T Low Voltage Transformer, please contact Intermatic customer service directly. Refer to the official Intermatic webNajnovejše kontaktne podatke najdete na spletnem mestu ali embalaži izdelka.

You can visit the Intermatic Store on Amazon for more information: Intermatic Store
