1. Uvod in predstavitev izdelkaview
This manual provides important information for the safe and efficient operation of your Daewoo 2000W Convector Heater with Turbo Function, Model HEA1137. Please read these instructions carefully before use and retain them for future reference.
The Daewoo 2000W Convector Heater is designed to provide efficient heating for rooms, garages, or small offices. Its portable design, adjustable thermostat, and multiple heat settings offer versatile comfort. The integrated turbo function and fan setting enhance its heating and cooling capabilities.
Image 1.1: The Daewoo 2000W Convector Heater positioned in a room, showcasing njegovo kompaktno in prenosno zasnovo.
2. Pomembna varnostna navodila
Pri uporabi električnih naprav je treba vedno upoštevati osnovne varnostne ukrepe, da zmanjšate nevarnost požara, električnega udara in telesnih poškodb.
- Pred uporabo tega grelnika preberite vsa navodila.
- Tega grelnika ne uporabljajte v neposredni bližini kadi, prhe ali bazena.
- Tega grelnika ne uporabljajte, če vam je padel.
- Ne uporabljajte, če so na grelniku vidni znaki poškodb.
- Vnetljive materiale, kot so pohištvo, blazine, posteljnina, papirji, oblačila in zavese, imejte vsaj 1 meter (3 čevlje) oddaljene od sprednje strani grelnika in jih hranite stran od stranic in zadnje strani.
- Ko grelnika ne uporabljate, ga vedno izklopite.
- Kabla ne napeljite pod preprogo. Kabla ne prekrivajte s preprogami, tekači ali podobnimi prevlekami. Kabel napeljite stran od območja prometa in tako, da se obnj ne boste spotaknili.
- Ne vstavljajte ali dovolite, da bi tujki vstopili v prezračevalne ali izpušne odprtine, saj lahko povzročijo električni udar ali požar ali poškodujejo grelec.
- Ta naprava ni namenjena uporabi s strani oseb (vključno z otroki) z zmanjšanimi fizičnimi, senzoričnimi ali duševnimi sposobnostmi ali s pomanjkanjem izkušenj in znanja, razen če jih oseba, ki je odgovorna za njihovo varnost, nadzoruje ali jim daje navodila glede uporabe naprave.
- Otroke je treba nadzorovati, da se zagotovi, da se ne igrajo z napravo.
3. Značilnosti izdelka
The Daewoo Convector Heater is equipped with several features designed for user convenience and effective heating:
- 2000W Turbo Power Output: Quickly warms up rooms within minutes.
- 3 nastavitve toplote: Allows selection of desired heat intensity for customized warmth.
- Nastavljiv termostatski nadzor: Vzdržuje konstantno temperaturo v prostoru.
- Vgrajen časovnik: Za načrtovano delovanje.
- Forced Fan Setting: Provides a cooling function during warmer months.
- Prenosna zasnova: Slim and free-standing with convenient carry handles for easy transportation between rooms.
Image 3.1: Visual representation of key features including thermostat control, multiple heat settings, and turbo power.
4. Nastavitev
- Razpakiranje: Grelec previdno vzemite iz embalaže. Embalažo shranite za shranjevanje ali kasnejši transport.
- Umestitev: Place the heater on a firm, level surface. Ensure it is at least 1 meter (3 feet) away from walls, furniture, curtains, and other combustible materials. Do not place it directly below a power socket.
- Napajalni priključek: Ensure the heater is switched off (all controls set to '0' or 'OFF') before plugging it into a suitable 220-240V AC, 50Hz power outlet.
5. Navodila za uporabo

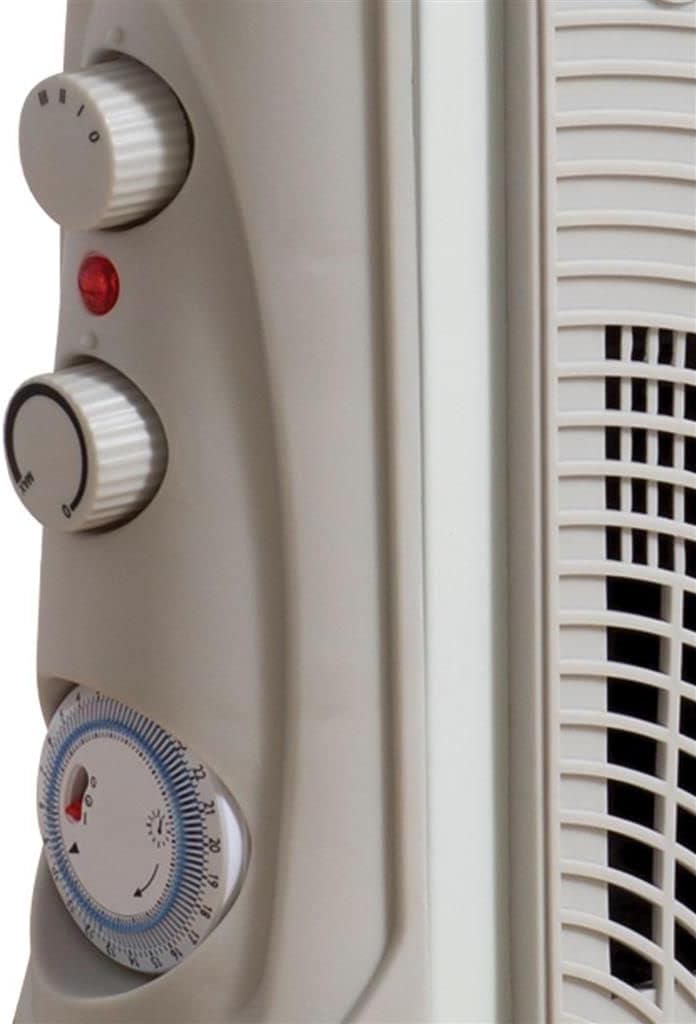

Image 5.1: Detail of the heater's control panel, including the power indicator, heat setting dial, thermostat, and timer.
- Vklop: Plug the heater into a power outlet. The power indicator light may illuminate.
- Izberite nastavitev ogrevanja: Use the heat setting dial to choose one of the three available power levels:
- Setting 1: Low Heat
- Setting 2: Medium Heat
- Setting 3: High Heat (2000W)
- Prilagoditev termostata: Turn the thermostat dial to your desired temperature. The heater will cycle on and off to maintain this temperature. For continuous heating, set the thermostat to its maximum position.
- Turbo funkcija: If your model includes a turbo function, activate it for rapid heating. This typically involves a separate switch or a specific heat setting.
- Nastavitev ventilatorja: To use the heater as a fan for cooling, select the fan-only setting on the heat setting dial (usually indicated by a fan symbol). Ensure the thermostat is set appropriately if it affects fan operation.
- Delovanje časovnika: To set the timer, rotate the timer dial to the desired operating duration. The heater will switch off automatically once the set time has elapsed. Ensure the heat settings and thermostat are also configured.
- Ugasniti: To turn off the heater, set all dials to the '0' or 'OFF' position and unplug it from the power outlet.
6. Vzdrževanje in čiščenje
Redno vzdrževanje zagotavlja dolgo življenjsko dobo in učinkovito delovanje vašega grelnika.
- Pred čiščenjem: Pred čiščenjem grelnik vedno izključite iz električne vtičnice in pustite, da se popolnoma ohladi.
- Čiščenje zunanjosti: Zunanje površine grelnika obrišite z mehko,amp krpo. Ne uporabljajte abrazivnih čistil, topil ali agresivnih kemikalij, saj lahko poškodujejo površino.
- Odstranjevanje prahu: Use a vacuum cleaner with a brush attachment to remove dust from the air inlets and outlets. Ensure these openings are clear of obstructions to maintain proper airflow.
- Shranjevanje: Če grelec shranjujete dalj časa, ga temeljito očistite in shranite v originalni embalaži na suhem in hladnem mestu.
- Brez notranjega servisiranja: Do not attempt to open or service the internal components of the heater. Refer all servicing to qualified service personnel.
7. Odpravljanje težav
| Težava | Možen vzrok | rešitev |
|---|---|---|
| Grelec se ne vklopi. | Not plugged in; power outlet faulty; heat setting or thermostat set to 'OFF' or too low; thermal cut-out activated. | Check power plug and outlet; ensure heat setting and thermostat are on; unplug and allow to cool for 10-15 minutes before restarting. |
| Grelec proizvaja premalo toplote. | Heat setting too low; thermostat set too low; room too large for heater capacity; air inlets/outlets blocked. | Increase heat setting and thermostat; ensure heater is appropriate for room size; clear any obstructions from air vents. |
| Grelec nenadoma preneha delovati. | Overheating protection activated; timer has expired. | Unplug and allow to cool for 10-15 minutes; check timer setting. |
| Nenavaden hrup ali vonj. | Dust accumulation; foreign object inside; internal fault. | Unplug immediately. Clean dust from vents. If problem persists, do not use and contact customer support. |
8. Specifikacije
- Številka modela: HEA1137
- Izhodna moč: 2000 W
- Nastavitve toplote: 3 (nizka, srednja, visoka)
- Lastnosti: Adjustable Thermostat, Timer, Turbo Function, Fan Setting, Portable
- Dimenzije izdelka: 70 x 44.6 x 19.7 cm (D x V x Š)
- Teža artikla: 4.06 kilogramov
- Faktor oblike: Podstavek
- Metoda ogrevanja: Konvekcija
- vir energije: Električni na kabel
- Notranja/zunanja uporaba: Notranja
- barva: Bela
9. Garancija in podpora
Your Daewoo Convector Heater is covered by a manufacturer's warranty. Please refer to the warranty card included with your purchase for specific terms and conditions, including the warranty period and coverage details.
For technical support, troubleshooting assistance, or warranty claims, please contact Daewoo customer service. Contact information can typically be found on the product packaging, the official Daewoo webspletno mesto ali vaš račun o nakupu.
Please have your model number (HEA1137) and proof of purchase ready when contacting support.
