Duravit 2545090092 Wall-Mounted Washdown Toilet User Manual

1. Uvod

This manual provides essential information for the safe and efficient installation, operation, and maintenance of your Duravit 2545090092 Wall-Mounted Washdown Toilet. Please read these instructions carefully before beginning installation or use, and retain them for future reference. This wall-mounted toilet features a washdown model design in White Alpin ceramic, offering a sleek and space-saving solution for modern bathrooms.

2. Varnostne informacije

OPOZORILO: Improper installation or use can lead to injury or product damage. Always follow local plumbing and building codes.

• Ensure all water supply lines are turned off before installation.
• Med namestitvijo nosite ustrezno osebno zaščitno opremo (OZO), vključno z rokavicami in zaščito za oči.
• The toilet is heavy (approximately 64.25 lbs). Use proper lifting techniques or seek assistance to prevent injury.
• Verify that the wall structure and mounting frame (not included) are capable of supporting the toilet's weight and user load.
• Do not use abrasive cleaners or harsh chemicals, as these can damage the ceramic finish.

3. Vsebina paketa

Pred začetkom namestitve preverite, ali so prisotne vse komponente:

• Duravit 2545090092 Wall-Mounted Washdown Toilet Bowl (White Alpin)
• Durafix mounting hardware
• Note: Toilet seat, concealed cistern, and flush plate are sold separately.

4. Nastavitev in namestitev

Installation of a wall-mounted toilet requires professional plumbing knowledge and adherence to local building codes. It is highly recommended to have this product installed by a qualified plumber.

4.1 Preverjanja pred namestitvijo

• Ensure the concealed cistern and mounting frame are correctly installed and secured within the wall according to the manufacturer's instructions.
• Verify that the water supply and waste connections are properly positioned and accessible.
• Confirm that the wall surface is prepared for the toilet bowl installation.

4.2 Montaža straniščne školjke

1. Attach the Durafix mounting hardware to the toilet bowl as per the included instructions.
2. Carefully align the toilet bowl with the threaded rods extending from the concealed frame.
3. Slide the toilet bowl onto the threaded rods, ensuring a snug fit against the finished wall.
4. Secure the toilet bowl using the provided nuts and washers, tightening them evenly to prevent stress on the ceramic. Do not overtighten.
5. Connect the water supply and waste pipes to the toilet bowl, ensuring all seals are watertight.
6. Install the toilet seat (sold separately) according to its manufacturer's instructions.

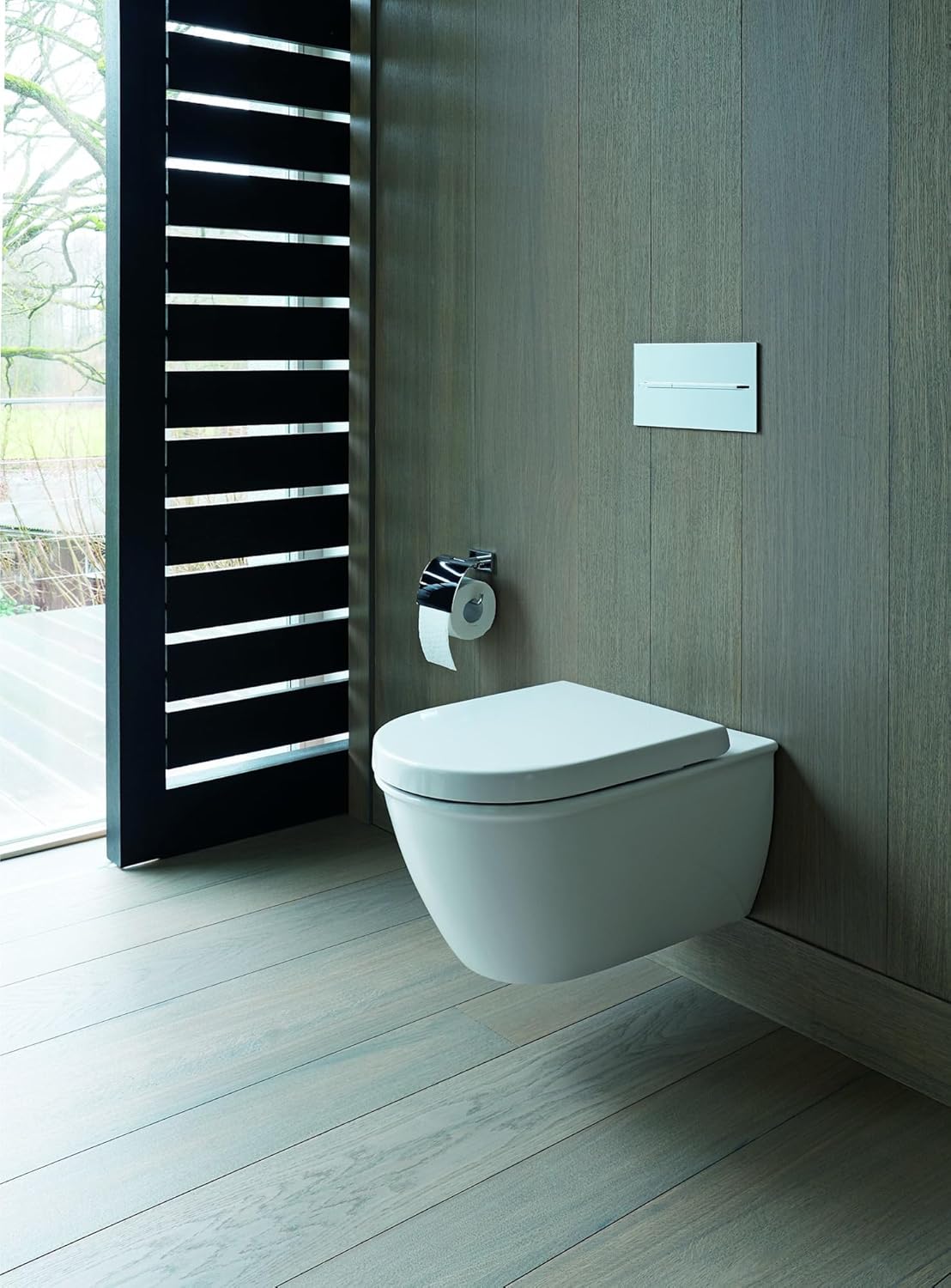

Image 1: Duravit 2545090092 Wall-Mounted Washdown Toilet in a modern bathroom setting.

Image 2: Dimensional drawing showing measurements for the Duravit 2545090092 toilet bowl.

5. Navodila za uporabo

The Duravit 2545090092 is a washdown model toilet designed for efficient flushing. Operation is straightforward:

• splakovanje: Press the flush plate (not included, typically installed above the toilet) to activate the flushing mechanism. Most flush plates offer dual-flush options for water conservation (a smaller button for liquid waste, a larger button for solid waste).
• WC školjka: The toilet seat (if soft-close) will lower gently on its own. Avoid forcing it down to prevent damage to the soft-close mechanism.

6. Vzdrževanje in nega

Regular cleaning and proper maintenance will ensure the longevity and hygiene of your Duravit toilet.

6.1 Čiščenje keramične površine

• Uporabite mehko krpo ali gobo z blagim, neabrazivnim čistilom za kopalnico.
• Obrišite vse keramične površine, vključno z notranjostjo in zunanjostjo posode.
• Temeljito sperite s čisto vodo in posušite z mehko krpo, da preprečite madeže vode.
• Avoid using abrasive powders, scouring pads, or cleaners containing strong acids, alkalis, or bleach, as these can damage the ceramic glaze.

6.2 Čiščenje straniščne deske

• Clean the toilet seat with a mild soap and water solution.
• Do not use harsh chemicals or abrasive cleaners on the seat, as this can cause discoloration or damage.
• Many Duravit seats feature quick-release hinges for easy removal and thorough cleaning. Consult your toilet seat manual for specific instructions.

6.3 Splošno vzdrževanje

• Občasno preverite vse povezave glede puščanja.
• Ensure the flush plate mechanism operates smoothly.
• If the toilet is not in use for an extended period, consider turning off the water supply to the cistern.

7. Odpravljanje težav

Ta razdelek obravnava pogoste težave, na katere lahko naletite. Za kompleksnejše težave se obrnite na usposobljenega vodovodarja.

8. Specifikacije

9. Garancija in podpora

For warranty information and customer support, please refer to the official Duravit website or contact your local Duravit dealer. Keep your proof of purchase for any warranty claims.

Kontaktni podatki:

• Proizvajalec: Duravit
• Webspletno mesto: www.duravit.com (Prosimo, preverite regionalne webspletna mesta)
