BRINKS Commercial Puck Lock with Round Hasp - Instruction Manual

1. Izdelek je končanview

The BRINKS Commercial Puck Lock with Round Hasp is engineered for robust security, featuring a solid steel body and a chrome-plated zinc hasp. This design effectively eliminates shackle exposure, providing enhanced protection against picking, prying, and cutting attempts. It is equipped with a 6-pin American keyway cylinder plug and a key-retaining entry mechanism to further deter unauthorized access. The lock and hasp are weather-resistant, making them suitable for various indoor and outdoor applications.

Slika 1: Spredaj view of the BRINKS Commercial Puck Lock and Round Hasp. This image displays the complete BRINKS Commercial Puck Lock and its accompanying round hasp, showcasing the solid steel puck lock nestled within the chrome-plated hasp plates.

2. Ključne značilnosti

• Trdna jeklena konstrukcija: The puck lock is made of hardened solid steel, providing superior strength and durability.
• Chrome-Plated Zinc Hasp: The hasp is designed to complement the lock, offering additional protection and corrosion resistance.
• Hidden Shackle Design: Eliminates shackle exposure, significantly reducing vulnerability to bolt cutters and prying tools.
• 6-Pin American Keyway Cylinder: Offers advanced security against picking.
• Key Retaining Entry: Ensures the key cannot be removed until the lock is in the secured position.
• Odporen na vremenske vplive: Built to withstand various environmental conditions, suitable for outdoor use.
• Enostavna namestitev: Comes with fastening screws for straightforward mounting.

Figure 2: Ideal applications for the BRINKS Commercial Puck Lock. This graphic details the recommended applications for the lock, including general latches, construction site storage containers, and outdoor latches, emphasizing its versatility.

3. Nastavitev in namestitev

The BRINKS Commercial Puck Lock with Round Hasp is designed for secure mounting on various surfaces, such as shed doors, gates, or commercial vehicle doors. Proper installation is crucial for optimal security.

3.1 Komponente

• Puck Lock (1 unit)
• Round Hasp Plates (2 units)
• Ključi (2 enote)
• Fastening Screws (quantity varies based on model, typically 8-10 screws)

Slika 3: Razstavljeno view of the puck lock and hasp plates. A top-down view illustrating the two square hasp plates and the round puck lock. The hasp plates are designed to interlock, securing the puck lock in place.

3.2 koraki namestitve

1. Pripravite površino: Ensure the mounting surface (e.g., door and frame) is clean, flat, and structurally sound.
2. Position the Hasp: Align the two hasp plates on the desired surface, ensuring they interlock correctly and the puck lock fits snugly when closed. Mark the screw hole positions with a pencil.
3. Vrtanje pilotnih lukenj: Using an appropriate drill bit for your surface material, drill pilot holes at the marked positions. This prevents wood splitting and ensures screws go in straight.
4. Attach Hasp Plates: Securely fasten each hasp plate to the surface using the provided screws. Ensure they are tightly secured to prevent tampering.
5. Testna prilagoditev: Once both plates are installed, interlock them and insert the puck lock to ensure proper alignment and function.

Figure 4: Installed on a shed door. The puck lock and hasp are shown securely installed on a corrugated metal shed door, demonstrating its application for outdoor storage security.

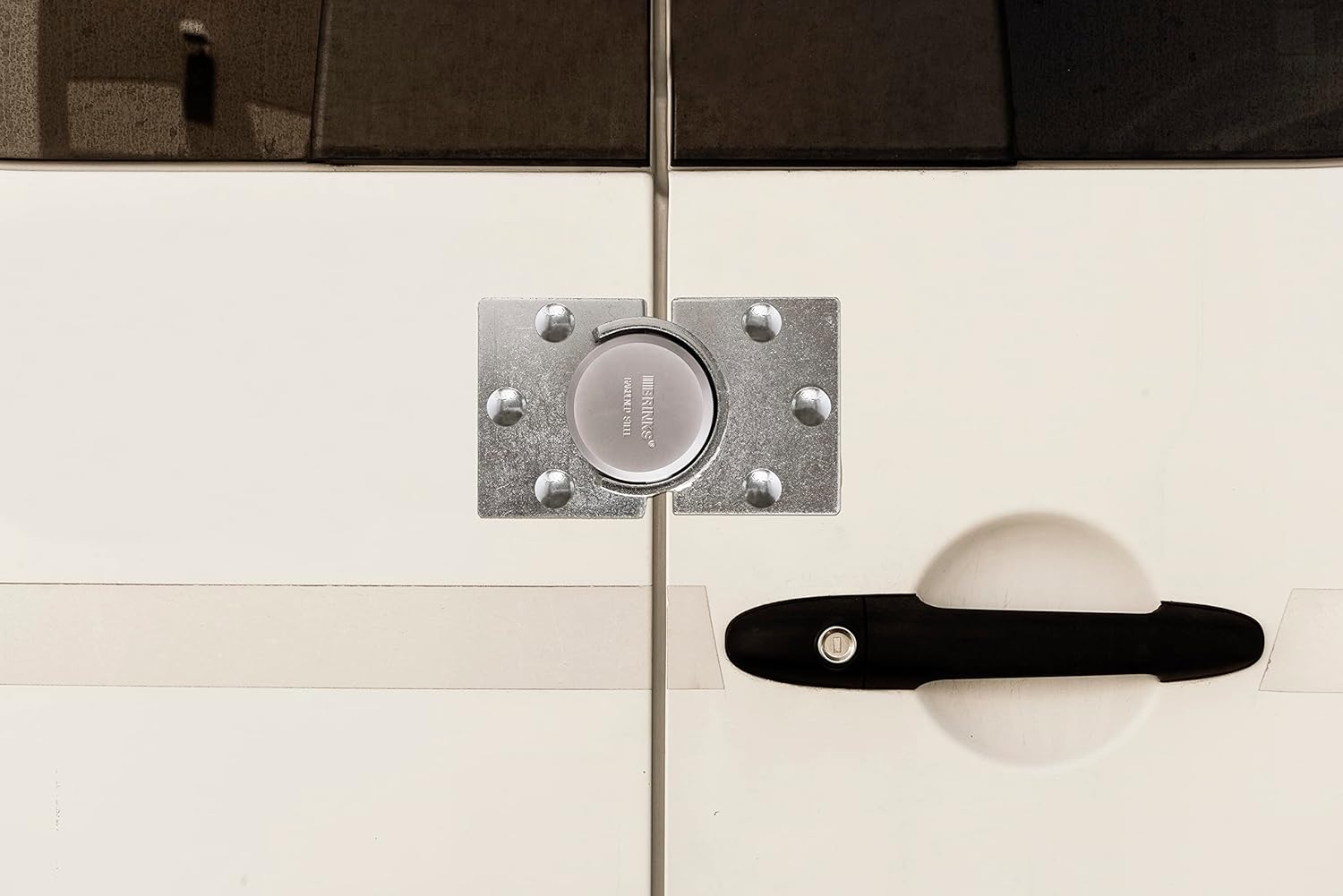

Figure 5: Installed on a commercial van door. This image illustrates the lock and hasp system mounted on the rear doors of a commercial van, highlighting its suitability for vehicle security.

4. Delovanje

Operating the BRINKS Commercial Puck Lock is straightforward.

4.1 Locking the Unit

1. Align the two hasp plates so their interlocking sections meet.
2. Insert the puck lock into the circular opening created by the interlocked hasp plates.
3. Push the puck lock firmly until it clicks into place. The key will remain in the lock until it is fully secured.
4. Remove the key. The lock is now secured.

4.2 Unlocking the Unit

1. Insert the key fully into the keyway of the puck lock.
2. Turn the key clockwise (or counter-clockwise, depending on the lock mechanism) until the internal mechanism disengages.
3. Pull the puck lock out from the hasp plates.
4. Odstranite ključ iz ključavnice.

5. Vzdrževanje

Regular maintenance ensures the longevity and smooth operation of your BRINKS Commercial Puck Lock.

• Mazanje: Periodically apply a small amount of graphite lubricant or a silicone-based spray into the keyway. Avoid oil-based lubricants as they can attract dirt.
• Čiščenje: Wipe down the exterior of the lock and hasp with a damp cloth to remove dirt and grime. For stubborn dirt, a mild soap solution can be used. Ensure the lock is dry after cleaning.
• Pregled: Regularly inspect the hasp plates and screws for any signs of loosening, wear, or damage. Tighten screws as needed. Check the lock body for any deformation or signs of forced entry.
• Nega ključev: Keep keys clean and avoid bending or damaging them. Do not force a key into the lock if it feels stiff.

6. Odpravljanje težav

If you encounter issues with your BRINKS Commercial Puck Lock, refer to the following common troubleshooting tips:

• Ključ je trd ali se ne obrača:
  • Prepričajte se, da je ključ popolnoma vstavljen v utor za ključ.
  • Apply graphite lubricant to the keyway and try again.
  • Check the key for any bends or damage. Use a spare key if available.
• Lock Won't Engage/Click Shut:
  • Verify that the hasp plates are perfectly aligned and interlocked.
  • Check for any obstructions (dirt, debris) in the lock's mechanism or the hasp opening.
  • Ensure the lock is pushed firmly and squarely into the hasp.
• Lock is Frozen (in cold weather):
  • Use a de-icing spray specifically designed for locks. Do not use hot water as it can refreeze.
  • Apply a weather-resistant lubricant to prevent future freezing.

7. Specifikacije

8. Garancija in podpora

8.1 Informacije o garanciji

The BRINKS Commercial Puck Lock with Round Hasp comes with a Doživljenjska garancija. This warranty covers defects in material and workmanship under normal use. Please retain your proof of purchase for warranty claims.

8.2 Podpora strankam

For further assistance, technical support, or warranty claims, please contact BRINKS customer service. You can typically find contact information on the BRINKS official webspletnem mestu ali prek prodajalca, kjer je bil izdelek kupljen.

For more information, visit the official BRINKS webspletno mesto: www.brinks.com
