WILO 4090765 Star S21Fx CI 3 Speed Circulator Instruction Manual

1. Izdelek je končanview

The WILO 4090765 Star S21Fx CI is a wet rotor circulation pump designed for various heating and cooling systems. This manual provides essential information for the safe and efficient installation, operation, and maintenance of your circulator pump.

This circulation pump features a cast iron body, suitable for hot-water heating systems, industrial circulation systems, cold-water systems, and air-conditioning systems. It is designed for reliability and ease of use in various applications.

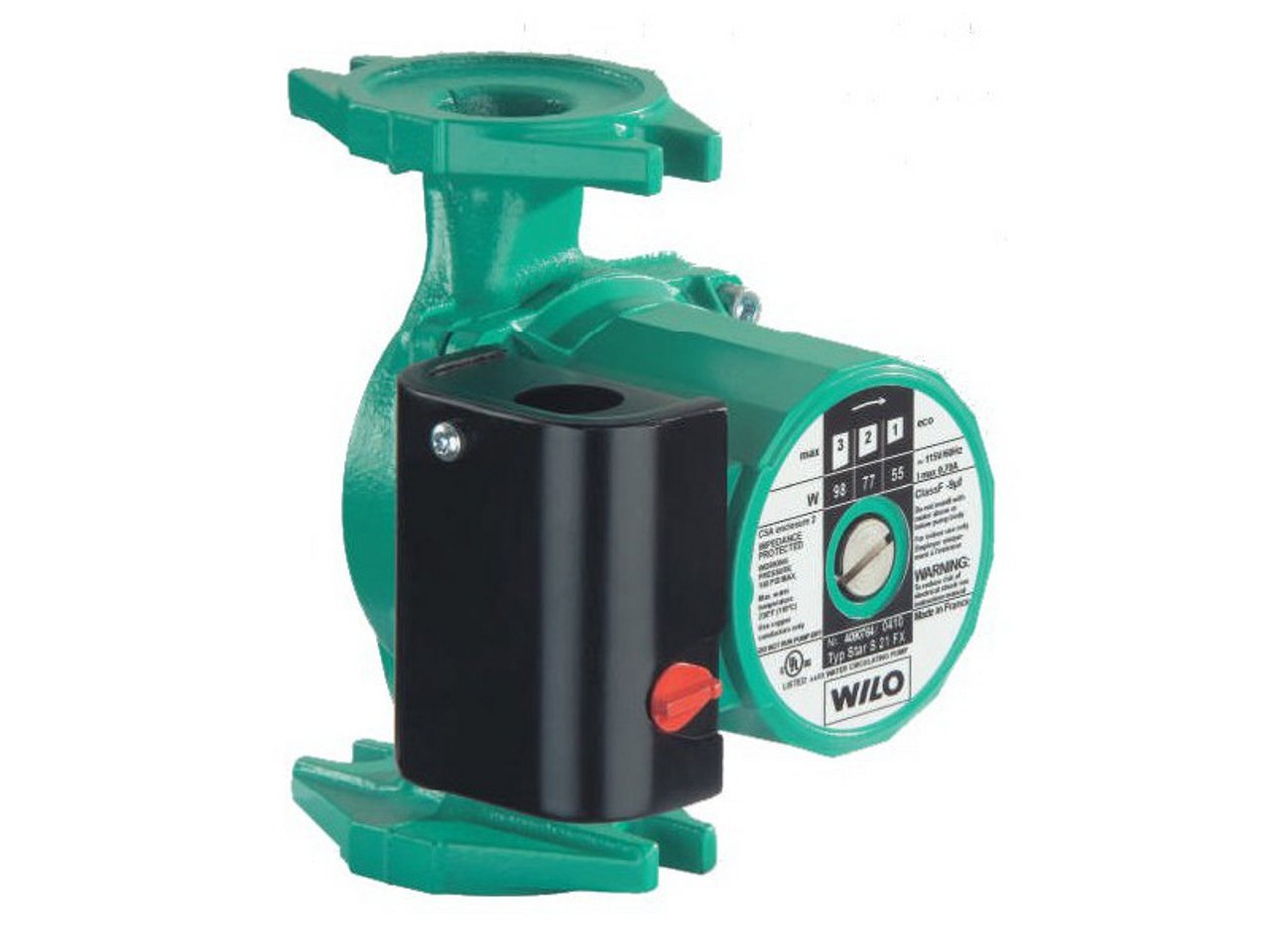

Figure 1: WILO 4090765 Star S21Fx CI 3 Speed Circulator pump. This image shows the main unit with its cast iron housing and electrical terminal box.

2. Ključne značilnosti

• Konstrukcija iz litega železa: Durable body suitable for various water systems.
• Three Pre-selectable Speeds: Allows adjustment of pump capacity for optimal system performance.
• Flexible Terminal Box Position: Can be set in 3, 6, 9, or 12 o'clock positions for versatile installation.
• Impedance Protected Motor: Eliminates the need for external motor protection.
• Dual-Side Cable Entry: Provides convenience for electrical connections.
• Quick Connection Spring Clips: Simplifies electrical wiring.
• Wet Rotor Technology: Zagotavlja tiho in zanesljivo delovanje.
• Automatically Vented: Designed for efficient air removal from the pump.
• Priključne velikosti: Compatible with 1-1/2", 3/4", and 1-1/4" piping.
• Največji pretok: Up to 19 Gallons Per Minute (GPM).
• Največja višina dviga: Do 21 čevljev.

3. Vodič za namestitev

3.1 Varnostni ukrepi

• Always disconnect power to the circuit before attempting any installation or maintenance.
• Installation should be performed by qualified personnel in accordance with all local electrical and plumbing codes.
• Ensure the pump is installed in a location protected from freezing temperatures and excessive moisture.
• Med namestitvijo nosite ustrezno osebno zaščitno opremo (OZO).

3.2 Montaža črpalke

The WILO Star S21Fx CI circulator is suitable for any installation position, provided the motor shaft remains horizontal. This ensures proper lubrication and operation of the wet rotor design. The terminal box can be rotated to 3, 6, 9, or 12 o'clock positions to facilitate wiring and access.

1. Select a suitable location for the pump, ensuring adequate space for maintenance and ventilation.
2. Install the pump into the piping system using appropriate fittings for the connection sizes (1-1/2", 3/4", 1-1/4").
3. Ensure the pump is securely mounted and supported to prevent vibration and stress on the piping.

3.3 Električna povezava

All electrical work must comply with local codes and regulations.

1. Pred kakršnimi koli električnimi priklopi se prepričajte, da je glavno napajanje izklopljeno.
2. Open the steel terminal box cover.
3. Route the electrical cable through one of the cable entries on either side of the terminal box.
4. Connect the power supply wires to the quick connection spring clips as indicated by the wiring diagram inside the terminal box cover. Ensure proper grounding.
5. Secure the cable to prevent strain on the connections.
6. Close the terminal box cover securely.
7. The motor is impedance protected, meaning no external motor protection device is required.

4. Navodila za uporabo

4.1 Zagon

Before starting the pump, ensure the system is filled with fluid and properly vented to remove any trapped air. Air in the system can cause noise and damage to the pump.

4.2 Izbira hitrosti

The WILO Star S21Fx CI circulator features three pre-selectable speed stages (Low, Medium, High) to adjust the pump's capacity to match specific system requirements. To change the speed setting:

1. Locate the speed selector switch on the pump's terminal box.
2. Rotate the switch to the desired speed setting. The pump will adjust its performance accordingly.
3. Observe system performance and adjust the speed as necessary for optimal efficiency and comfort.

5. Vzdrževanje

The WILO Star S21Fx CI circulator is designed for minimal maintenance due to its wet rotor technology. However, regular inspection is recommended to ensure long-term reliable operation.

• Vizualni pregled: Periodically check the pump and piping for any signs of leaks, corrosion, or physical damage.
• Hrup in vibracije: Listen for any unusual noises or excessive vibrations, which could indicate air in the system or a mechanical issue.
• Sistemski tlak: Monitor the system pressure to ensure it remains within the recommended operating range.
• Čiščenje: Keep the exterior of the pump clean and free from dust or debris to ensure proper heat dissipation.
• Mazanje ni potrebno: The wet rotor design means the pump is lubricated by the system fluid, and no external lubrication is necessary.

6. Odpravljanje težav

If the pump is not operating correctly, perform the following basic checks before contacting technical support:

• Črpalka ne deluje:
  • Verify that the power supply is connected and the circuit breaker is not tripped.
  • Check electrical connections in the terminal box for looseness.
• Brez pretoka ali nizek pretok:
  • Ensure all isolation valves in the system are fully open.
  • Check for air trapped in the system; bleed the system if necessary.
  • Inspect for blockages in the piping or pump impeller.
  • Verify the pump speed setting is appropriate for the required flow.
• Unusual Noise (e.g., Gurgling, Humming):
  • Air in the system is a common cause of noise; bleed the system thoroughly.
  • Check for debris in the pump housing or impeller.
  • Prepričajte se, da je črpalka varno nameščena in da ne vibrira ob drugih komponentah.
• Pregrevanje črpalke:
  • Zagotovite ustrezno prezračevanje okoli črpalke.
  • Check for system blockages or closed valves that could cause the pump to operate against excessive resistance.

7. Tehnične specifikacije

8. Garancija in podpora

For detailed warranty information, technical assistance, or to inquire about replacement parts, please contact Wilo customer service directly. It is recommended to retain your purchase receipt as proof of purchase for any warranty claims.

Please visit the official Wilo webspletno mesto za najnovejše kontaktne podatke in vire za podporo.
