1. Uvod
Thank you for choosing the Casio Women's Analog Watch, Model LQ-139EMV-7ALDF. This manual provides essential information regarding the setup, operation, and maintenance of your new timepiece. Please read these instructions carefully to ensure proper use and longevity of your watch.
2. Varnostne informacije
- Ure ne izpostavljajte ekstremnim temperaturam (vročini ali mrazu) ali nenadnim temperaturnim spremembam.
- Keep the watch away from strong magnetic fields, as this can affect timekeeping accuracy.
- Avoid contact with gasoline, cleaning solvents, aerosol sprays, adhesives, paints, etc. These chemicals can cause discoloration or damage to the resin case and band.
- Vodoodpornost: This watch is water resistant up to 50 meters. This means it is suitable for short periods of recreational swimming, but not for diving or snorkeling. Do not operate the crown or buttons while the watch is wet.
3. Komponente ure
Seznanite se z glavnimi sestavnimi deli vaše ure:
- krona: Uporablja se za nastavitev časa.
- Urni kazalec: Označuje uro.
- Minutni kazalec: Označuje minuto.
- Druga roka: Indicates the second.
- Primer: The main body of the watch.
- Band: Pritrdi uro na zapestje.
Slika 3.1: Spredaj view of the Casio LQ-139EMV-7ALDF watch, showing the white dial, gold-tone hands, and black resin case and band.

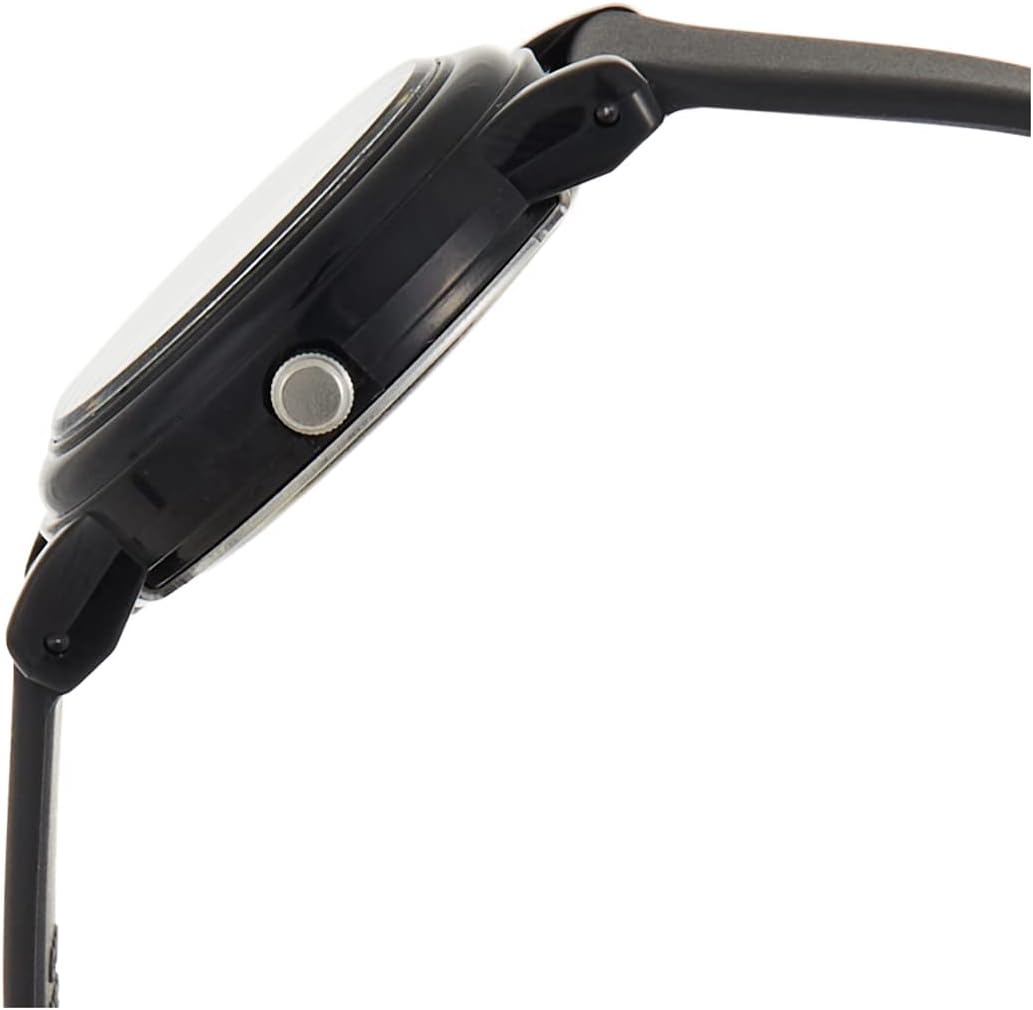

Slika 3.2: stran view ure, s poudarkom na kroni, ki se uporablja za nastavitev časa.
4. Nastavitev
4.1 Nastavitev časa
- Izvlecite krono do prvega klika.
- Turn the crown to move the hour and minute hands to set the correct time.
- Once the time is set, push the crown back in to its normal position. The second hand will begin to move, indicating the watch is operating.
Figure 4.1: The Casio LQ-139EMV-7ALDF watch worn on a wrist, demonstrating its compact size.
5. Navodila za uporabo
Your Casio LQ-139EMV-7ALDF watch is designed for simple and reliable timekeeping. Once the time is set, the watch will continuously display the current hour, minute, and second.
- The watch operates on a quartz movement, ensuring accurate timekeeping with a deviation of approximately ±20 seconds per month.
- The three hands (hour, minute, second) provide a clear analog display of the time.
6. Vzdrževanje
6.1 Čiščenje ure
Za ohranjanje videza ure:
- Wipe the watch case and band with a soft, dry cloth regularly to remove dirt and moisture.
- Za trdovratno umazanijo uporabite mehko krpo dampened with water and a mild neutral detergent. Wipe thoroughly and then dry completely.
- Do not use volatile agents (like alcohol, benzine, thinner) or strong cleaning agents, as they may damage the resin components.
6.2 Zamenjava baterije
The watch is powered by one SR626SW lithium metal battery, which has an approximate life of 3 years. When the watch stops or the second hand moves erratically, it is an indication that the battery needs replacement. It is recommended to have the battery replaced by a qualified watch technician to ensure the water resistance seal is properly maintained.
Slika 6.1: Zadaj view of the watch, showing the stainless steel case back where battery replacement is performed.
7. Odpravljanje težav
- Ura ne deluje: Check if the crown is pushed all the way in. If it is, the battery may be depleted and requires replacement.
- Čas je napačen: Ponastavite čas, kot je opisano v poglavju 4.1. Če čas še vedno ni točen, bo morda treba uro servisirati.
- Voda v uri: If you notice moisture or condensation inside the watch, stop using it immediately and contact a service center. Water ingress can cause significant damage to the internal components.
8. Specifikacije
| Številka modela | LQ-139EMV-7ALDF |
| Mere ohišja (D x Š x V) | 31.2 × 25.2 × 7.5 mm |
| Teža | 11 gramov |
| Material ohišja | Smola |
| Material traku | Smola |
| Vodoodpornost | 50 metrov |
| Vir napajanja | SR626SW Battery |
| Življenjska doba baterije | Pribl. 3 leta |
| Stekleni material | Smolasto steklo |
| Natančnost | ±20 sekund na mesec |
| Vrsta zaslona | Analogni (urni, minutni, sekundni kazalci) |
| Vrsta zaponke | Zaponka |
| Barva številčnice | Bela |
| Barva traku | Črna |
| Premer ohišja | 24 mm |
| Širina traku | 20 mm |
| Debelina ohišja | 7.5 mm |
9. Garancija in podpora
9.1 Informacije o garanciji
This product comes with a 1-year manufacturer's warranty from the date of purchase. The warranty covers manufacturing defects under normal use. It does not cover damage resulting from misuse, accidents, unauthorized repairs, or normal wear and tear.
9.2 Podpora strankam
For warranty claims, service, or any questions regarding your Casio watch, please contact the manufacturer or their authorized service agent. You may also refer to the retailer (e.g., Amazon) for further assistance and contact details.
