Blaupunkt GTA 470 SF 4-Channel Ampuporabniški priročnik za lifier

1. Uvod

This manual provides comprehensive instructions for the installation, operation, and maintenance of your Blaupunkt GTA 470 SF 4-Channel Amplifier. Designed to enhance your vehicle's audio system, this amplifier delivers powerful and clear sound to your speakers. Please read this manual thoroughly before installation and use to ensure proper function and safety.

2. Varnostne informacije

Vedno upoštevajte naslednje varnostne ukrepe, da preprečite poškodbe ali škodo na amplifier and your vehicle.

Električna nevarnost: Disconnect the vehicle's battery negative terminal before beginning any installation work to avoid electrical shock or short circuits.
Profesionalna namestitev: If you are unsure about the installation process, seek assistance from a qualified professional car audio installer.
Pravilno ožičenje: Ensure all wiring is correctly connected, insulated, and secured to prevent damage from vibration or short circuits. Use appropriate gauge wires for power and ground connections.
Prezračevanje: Namestite amplifier in a location that allows for adequate air circulation to prevent overheating. Do not cover the amplifier's cooling fins.
Zaščita sluha: Prolonged exposure to high volume levels can cause permanent hearing damage. Adjust volume to a safe level.
Vlaga: Obdrži amplifier away from moisture and water.

3. Izdelek je končanview

The Blaupunkt GTA 470 SF is a robust 4-channel amplifier designed for car audio systems. It provides dedicated power to four speakers, or can be bridged to power two speakers and a subwoofer, or two subwoofers. Its compact design and efficient power delivery make it suitable for various vehicle installations.

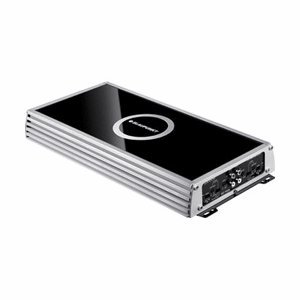

Blaupunkt GTA 470 SF 4-Channel Amplifier

Slika 1: Spredaj view of the Blaupunkt GTA 470 SF 4-Channel Ampprikazovalnik, ki prikazuje vhodne in izhodne priključke.

Ključne značilnosti:

4-channel configuration for versatile speaker setups.
High-quality Cinch (RCA) inputs for signal connection.
Wide frequency response (10 – 30,000 Hz) for full-range audio reproduction.
Integrated protection circuits against overheating, overcurrent, and short circuits.
Adjustable gain controls for matching input signal levels.
Selectable crossover filters (High-Pass/Low-Pass) for optimal sound tuning.

4. Nastavitev in namestitev

Pravilna namestitev je ključnega pomena za optimalno delovanje in varnost. Pazljivo sledite tem korakom.

4.1. Priprava

Gather necessary tools: wire strippers, crimpers, screwdrivers, multimeter, drill.
Odklopite negativni pol akumulatorja vozila.
Plan your wiring routes to avoid interference and ensure sufficient cable length.

4.2. Montaža Amplifier

Choose a secure, dry location with good ventilation, such as under a seat or in the trunk.
Prepričajte se, da je površina za montažo dovolj trdna, da podpira ampteža rešilca.
Za pritrditev uporabite priložene pritrdilne vijake amplifier firmly. Do not obstruct cooling fins.

4.3. Povezave ožičenja

Refer to the wiring diagram (not provided in this manual, refer to product packaging or manufacturer's webmesto) for specific connections.

Moč (B+): Connect a heavy-gauge power cable (e.g., 8 AWG or 4 AWG depending on total power) from the vehicle's positive battery terminal to the amplifier's B+ terminal. Install an appropriate fuse holder (e.g., 60A-80A) within 18 inches (45 cm) of the battery.
Ozemljitev (GND): Connect a heavy-gauge ground cable of the same length as the power cable from the ampOzemljitveni priključek napajalnika priključite na čisto, nepobarvano kovinsko točko na šasiji vozila. Zagotovite trdno električno povezavo.
Daljinski upravljalnik (REM): Connect a thin wire from the head unit's remote output (usually blue or blue/white) to the amplifier's REM terminal. This turns the ampvklop in izklop dihalne naprave z glavno enoto.
RCA vhodi: Priključite RCA kable iz predpriklopa glavne enoteamp izhodi v amplifier's RCA input jacks (Front L/R, Rear L/R).
Izhodi za zvočnike: Priključite zvočnike na amplifier's speaker terminals. Ensure correct polarity (+ to + and - to -). For bridged mode, follow the specific instructions on the amplifier or in the full wiring diagram.

4.4. Začetna konfiguracija

Gain Control: Nastavite amplifier's gain controls to their minimum position. Gradually increase the gain while playing music until the desired volume is achieved without distortion.
Nastavitve križanja: Adjust the High-Pass Filter (HPF) for full-range speakers and the Low-Pass Filter (LPF) for subwoofers to optimize sound quality and prevent distortion.
Ojačanje nizkih tonov: Use the bass boost sparingly, if available, as excessive use can lead to distortion and speaker damage.

Once all connections are made and initial settings are configured, reconnect the vehicle's negative battery terminal.

5. Navodila za uporabo

The Blaupunkt GTA 470 SF amplifier operates in conjunction with your car's head unit.

Vklop/izklop: The amplifier will automatically turn on when your head unit is powered on (via the remote wire) and turn off when the head unit is switched off.
Kazalniki stanja: Observe the LED indicators on the amplifier. A green LED typically indicates normal operation, while a red LED or no light may indicate a protection mode or power issue.
Nadzor glasnosti: Adjust the overall system volume using your head unit's volume control. The amplifier's gain controls should be set once during installation and generally not adjusted during normal operation.

6. Vzdrževanje

Regular maintenance ensures the longevity and performance of your amplifier.

Čiščenje: Občasno obrišite amplifier's exterior with a soft, dry cloth. Do not use harsh chemicals or abrasive cleaners. Ensure cooling fins are free of dust and debris.
Preverjanje povezave: Annually, inspect all power, ground, remote, RCA, and speaker connections to ensure they are secure and free from corrosion.
Prezračevanje: Zagotovite, da amplifier's ventilation areas remain unobstructed.

7. Odpravljanje težav

If you encounter issues, refer to the following troubleshooting guide before contacting support.

Težava	Možen vzrok	rešitev
Amplifier does not turn on (no power LED).	No power to B+ terminal. Slaba ozemljitvena povezava. Ni signala za daljinski vklop. Pregorela varovalka.	Check power cable and battery connection. Preverite, ali je ozemljitvena povezava varna in čista. Check remote wire connection to head unit and amplifier. Replace fuse (ensure correct amperage).
Ni zvoka.	RCA kabli so odklopljeni ali okvarjeni. Žice zvočnikov so odklopljene ali v kratkem stiku. Head unit output issue. AmpLifier v zaščitnem načinu.	Preverite RCA povezave in preizkusite kable. Preverite ožičenje zvočnikov glede kratkih stikov ali prekinitev. Verify head unit is producing audio signal. Check for red protection LED; resolve underlying issue (e.g., overheating, short circuit).
Popačen zvok.	Ojačanje je nastavljeno previsoko. Improper crossover settings. Neusklajenost impedance zvočnikov. Poor power/ground connection.	Zmanjšajte nastavitev ojačanja. Prilagodite nastavitve HPF/LPF. Prepričajte se, da so zvočniki združljivi z ampimpedančno območje napajalnika. Verify power and ground connections are solid.
Amplifier goes into protection mode (red LED).	Pregrevanje. Speaker short circuit. Nizka glasnosttage. Notranja napaka.	Ensure adequate ventilation; allow to cool. Check all speaker wires for shorts to ground or each other. Verify vehicle's electrical system and battery voltage. If problem persists, seek professional service.

8. Specifikacije

Technical specifications for the Blaupunkt GTA 470 SF amplifier.

Funkcija	Specifikacija
Model	GTA 470 SF
Število kanalov	4
maks. Skupna moč	840 Watts (2 channel mode)
RMS izhodna moč	4 x 70 Watts / 280 Watts (total)
Izhodi za zvočnike	4
Vložki	Činč (RCA)
Frekvenčno območje	10 – 30,000 Hz
Dimenzije (Š x V x G)	197 x 52 x 426 mm
Teža predmeta	7.89 funta (približno 3.58 kg)

9. Garancija in podpora

Za informacije o garanciji glejte garancijski list, ki je priložen izdelku, ali obiščite uradno spletno stran Blaupunkt. webspletnega mesta. Shranite dokazilo o nakupu za uveljavljanje garancije.

For technical support or service inquiries, please contact your authorized Blaupunkt dealer or the customer service department listed on the official Blaupunkt webspletnega mesta. Ne poskušajte popraviti ampRešilnika ne odstranjujte sami, saj lahko s tem razveljavite garancijo.

Uradno Webspletno mesto: www.blaupunkt.com
