Uvod

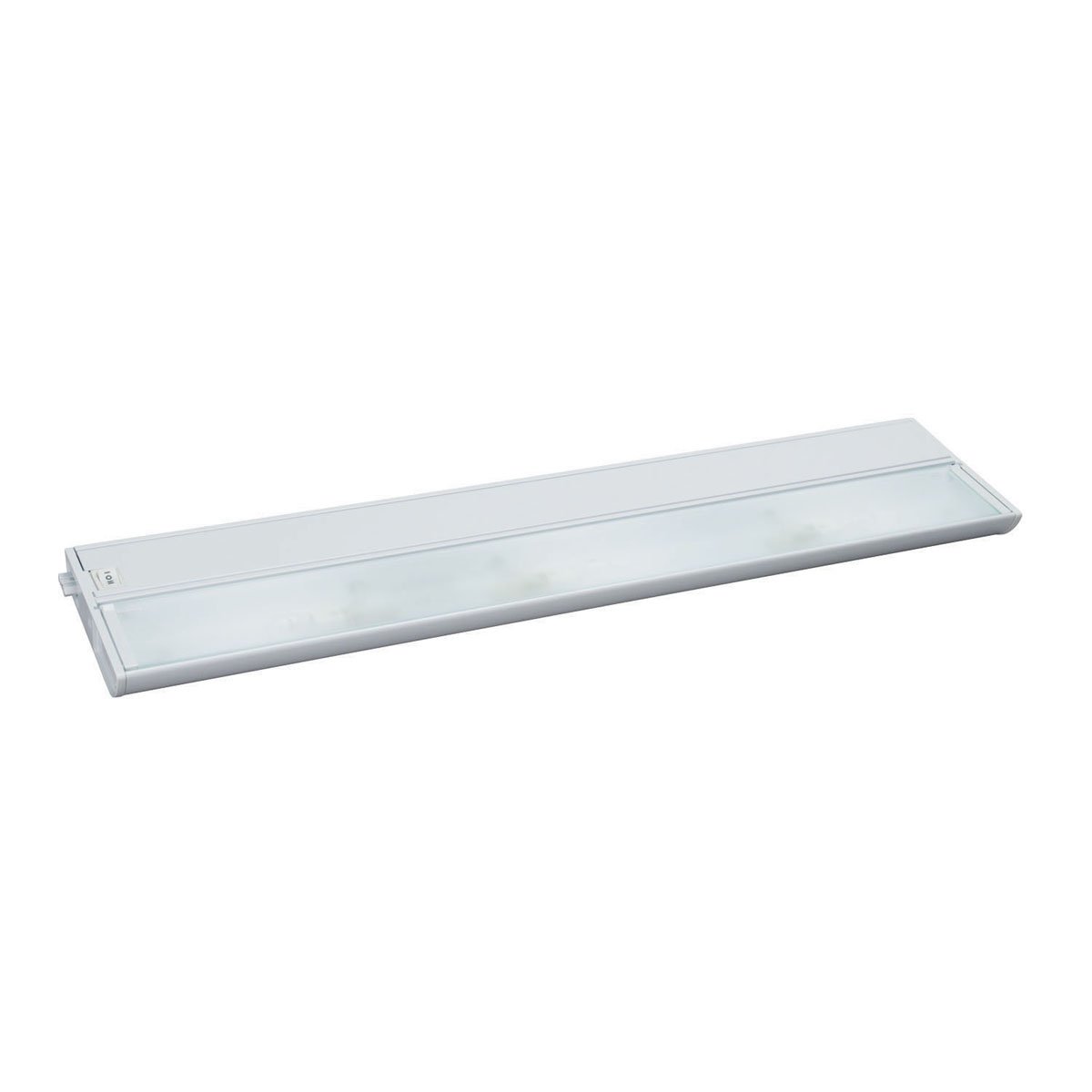

The Kichler 10563WH is a 3-light xenon modular under cabinet light designed for flexible illumination in various settings. Its slim profile allows for discreet installation under cabinets. This fixture features extruded aluminum construction, a unique front-mount design, a hinged tempered frosted glass diffuser, and a built-in electronic transformer. It is a corded electric unit, not intended for hardwire installation.
Varnostne informacije
- OPOZORILO: Nevarnost električnega udara. Pred namestitvijo ali servisiranjem izklopite napajanje na omarici z varovalkami ali odklopniku.
- Read all instructions carefully before installing or using this fixture.
- Ensure the electrical rating of the fixture is compatible with your power supply.
- Ne nameščajte v bližini vnetljivih materialov.
- Ta izdelek je namenjen samo za uporabo v zaprtih prostorih.
- Do not operate the fixture with a missing or damaged diffuser.
- Uporabljajte le navedeno vrsto žarnice in močtage.
Vsebina paketa
Pred začetkom namestitve preverite, ali so prisotne vse komponente:
- Kichler 10563WH 3-Light Xenon Modular Under Cabinet Light Fixture
- (3) 18.5W S8 Wedge 12V Xenon Light Bulbs
- Pritrdilni material (vijaki, sponke itd.)
- Navodila za uporabo (ta dokument)
Specifikacije
| Funkcija | Podrobnost |
|---|---|
| Številka modela: | 10563WH |
| Dimenzije (D x Š x V): | 22 palcev x 5 palca x 1 palec |
| Teža: | 3.1 funtov |
| Končaj: | Bela |
| Material: | Extruded Aluminum (fixture), Tempered Frosted Glass (diffuser) |
| vir energije: | Električni na kabel |
| Vrsta žarnice: | (3) 18.5W S8 Wedge 12V Xenon |
| Montaža: | Under-cabinet, Front-mount design |
| Transformator: | Built-in Electronic Transformer |
Navodila za namestitev
Preden začnete: Ensure power is disconnected at the circuit breaker. This fixture is a corded unit and does not require hardwiring. It is designed for under-cabinet, front-mount installation.
- Pripravite območje namestitve: Identify the desired location under your cabinet. Ensure there is a nearby electrical outlet for the corded power supply.
- Označite pritrdilne točke: Hold the fixture in place and mark the screw locations for mounting. The unique front-mount design allows for easy access.
- Zavarujte napeljavo: Using appropriate screws (provided), securely attach the light fixture to the underside of the cabinet. Ensure it is firmly in place to prevent movement.
- Namestite žarnice: Gently open the hinged tempered frosted glass diffuser. Insert the three 18.5W S8 Wedge 12V Xenon bulbs into their respective sockets. Ensure bulbs are seated correctly.
- Zapri difuzor: Carefully close the hinged glass diffuser until it is securely latched.
- Priključite napajanje: Priključite napajalni kabel v standardno električno vtičnico.
- Obnovi moč: Obnovite napajanje na odklopniku.
Navodila za uporabo
The Kichler 10563WH under cabinet light is designed for simple operation.
- Vklop/izklop: Use the integrated switch on the fixture to turn the light on or off.
- Nadzor svetlosti: This fixture may include a high/low switch for adjusting brightness. If connected to an external dimmer switch (sold separately), follow the dimmer's instructions for brightness adjustment.
Vzdrževanje
Redno vzdrževanje zagotavlja optimalno delovanje in dolgo življenjsko dobo vaše svetilke.
- Čiščenje: Disconnect power before cleaning. Wipe the fixture with a soft, dry cloth. Do not use abrasive cleaners or solvents, as they may damage the finish or glass diffuser.
- Zamenjava žarnice:
- Disconnect power at the circuit breaker or by unplugging the fixture.
- Preden se lotite dela, pustite, da se žarnice popolnoma ohladijo.
- Gently open the hinged tempered frosted glass diffuser.
- Carefully remove the old 18.5W S8 Wedge 12V Xenon bulbs.
- Insert new 18.5W S8 Wedge 12V Xenon bulbs. Avoid touching new bulbs directly with bare hands; use a clean cloth or gloves to prevent oil residue, which can shorten bulb life.
- Close the glass diffuser securely.
- Obnovi moč.
Odpravljanje težav
| Težava | Možen vzrok | rešitev |
|---|---|---|
| Luč se ne vklopi. |
|
|
| Luč utripa ali je šibka. |
|
|
| Glass diffuser does not close properly. |
|
|
Informacije o garanciji
Kichler Lighting warrants its products to be free from defects in material and workmanship for 1 (one) year following the date of shipment from the seller, with specific exceptions. This warranty does not cover light bulbs or the finish on outdoor polished brass products. If any warranted products are found to be defective, Kichler will, at its sole option and cost, replace, repair, or refund the product less an amount directly attributable to consumer's prior use. This warranty is not transferable. This warranty does not cover labor or other costs or expenses to remove or install any defective, repaired, or replaced product.
For full details and specific exceptions (e.g., landscape products, transformers, certain LED cabinet light models, ceiling fan motors), please refer to the complete warranty statement provided by Kichler Lighting or visit their official webmesto.
Podpora uporabnikom
For further assistance, technical support, or to inquire about replacement parts, please contact Kichler Lighting customer service. You can find contact information and additional resources on the official Kichler webspletno mesto: www.kichler.com
