VEVOR Belt Grinder Sander JLD10-8 User Manual

1. Pomembne varnostne informacije

Please read this entire manual carefully before operating the VEVOR Belt Grinder Sander. Failure to follow these instructions may result in serious injury or property damage. Keep this manual for future reference.

• Nosite osebno zaščitno opremo (OZO): Pri delu z brusilnikom vedno nosite zaščitna očala ali ščitnik za obraz, zaščito za sluh in ustrezne rokavice.
• Varnost na delovnem območju: Ensure your work area is clean, well-lit, and free from obstructions. Keep children and bystanders away from the operating machine.
• Električna varnost: Connect the grinder to a properly grounded outlet. Do not operate in wet conditions. Inspect the power cord for damage before each use.
• Zavarujte obdelovanec: Always secure the workpiece firmly to prevent kickback or loss of control.
• Izogibajte se pretiravanju: Ves čas ohranjajte pravilno držo in ravnotežje.
• Odklopite, ko ni v uporabi: Disconnect the power supply before changing accessories, performing maintenance, or when the machine is unattended.

Image: VEVOR Belt Grinder Sander with included accessories and user manual.

2. Izdelek je končanview

The VEVOR Belt Grinder Sander JLD10-8 is a versatile tool designed for metalworking, knife making, and woodworking tasks. It features a powerful motor and variable speed control for precise grinding and polishing.

Ključne značilnosti:

• Zmogljiv 550 W brezkrtačni motor: Delivers strong output with a belt line speed of up to 21 m/s for efficient material removal.
• Variable Speed Control (VFD): Stepless speed adjustment from 200-5000 RPM for high-speed grinding or low-speed precision polishing.
• Two Grinding Modes: Supports circular and flat grinding for enhanced flexibility.
• Dvosmerno vrtenje: Forward and reverse rotation control for greater grinding flexibility and material positioning.
• Versatile Sanding Belts: Includes three 30 x 1 inch sanding belts (100/180/240 grit) for various stages of grinding and polishing.

Image: The belt grinder sander in operation, demonstrating fast grinding and smooth control with sparks from metalworking.

Vključene komponente:

• 1 x Belt Grinder Sander Unit
• 1 x Circular Grinding Wheel + Support Rod
• 1 x Controller (VFD)
• 1 x Flat Grinding Wheel and Bracket Assembly
• 1 x Guard Cover
• 1 x M6 Hex Key
• 1 x User Manual (PDF) (Download PDF)
• 2 x Workbenches (Large & Small)
• 3 x Sanding Belts (100/180/240 Grit)

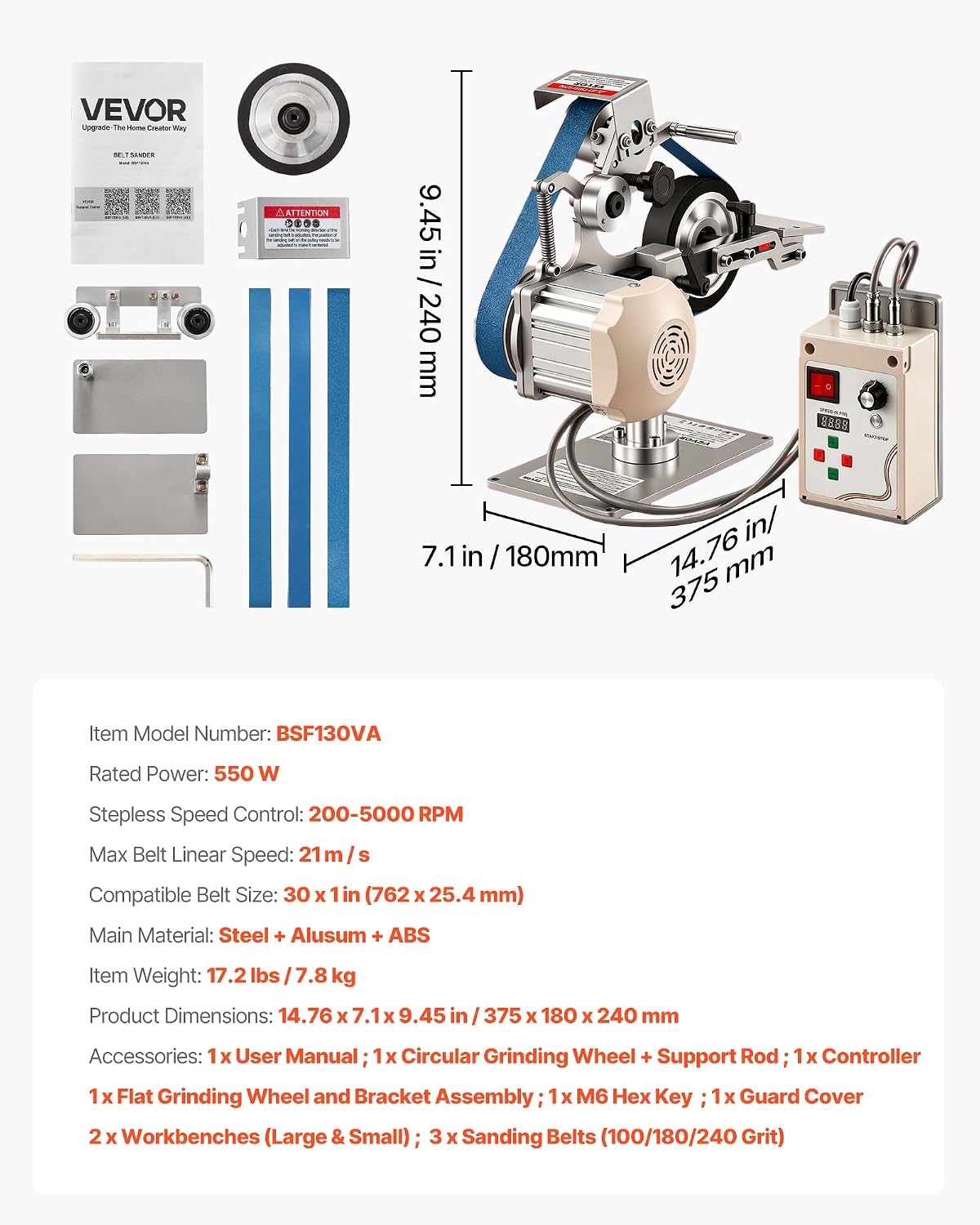

Image: Diagram illustrating the product dimensions and a visual list of included components.

3. Nastavitev

Follow these steps to set up your VEVOR Belt Grinder Sander for operation.

3.1 Razpakiranje in pregled

1. Previdno odstranite vse komponente iz embalaže.
2. Inspect all parts for any signs of damage during shipping. Contact customer support if any damage is found.
3. Verify that all included components listed in Section 2 are present.

3.2 Montaža

1. Place the heavy-duty steel base on a stable and level workbench.
2. Attach the main grinder unit to the base, ensuring it is securely fastened.
3. Connect the controller unit to the main grinder unit using the provided cables. Ensure connections are firm.
4. Install the desired workbench (large or small) onto the grinder. The workbenches are removable for different grinding needs.
5. Attach the guard cover for safety.

Slika: Podrobna view of the grinder's design features, including the robust base, removable workbench, and adjustment points.

3.3 Installing a Sanding Belt

1. Prepričajte se, da je mlinček izklopljen iz vira napajanja.
2. Loosen the belt tensioning mechanism (refer to the diagram in the user manual for exact location).
3. Slide the desired 30 x 1 inch sanding belt over the drive wheel and idler wheels.
4. Tighten the belt tensioning mechanism until the belt is taut but not overly stretched.
5. Adjust the belt tracking knob to center the belt on the wheels. This may require minor adjustments during initial operation.

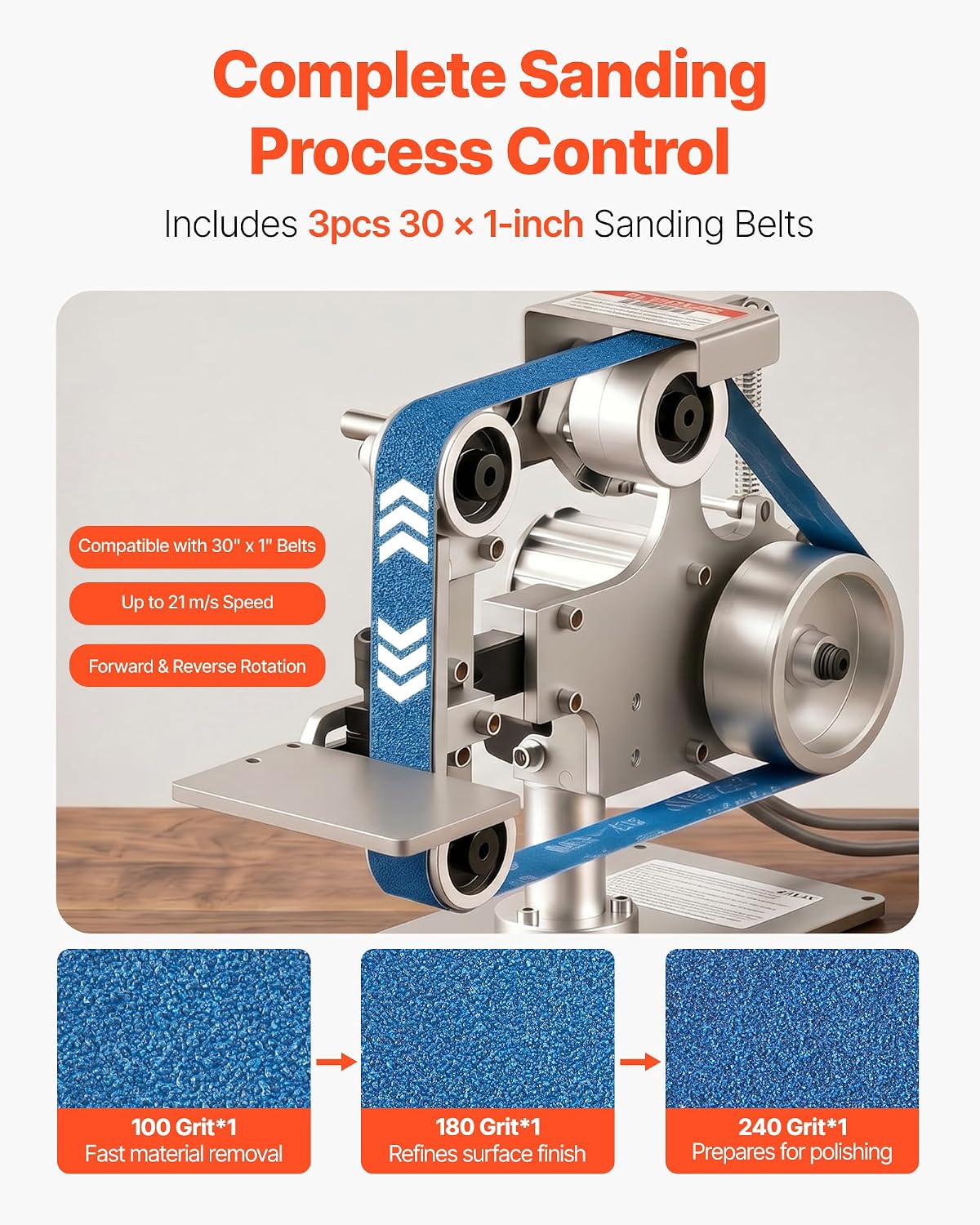

Image: The belt grinder with an installed belt, alongside examples of the 100, 180, and 240 grit sanding belts.

4. Navodila za uporabo

Familiarize yourself with the controls before beginning any grinding or sanding tasks.

4.1 Konec nadzorne ploščeview

Image: The control panel, highlighting the power switch, speed knob, start/stop button, and RPM display.

• Stikalo za vklop: Toggles the main power to the unit.
• Gumb za hitrost: Adjusts the rotational speed of the belt from 200 to 5000 RPM. Turn clockwise for higher speed, counter-clockwise for lower speed.
• Gumb Start/Stop: Initiates or halts the belt movement.
• Prikaz vrtljajev: Shows the current rotational speed.
• Nadzor naprej/nazaj: Press and hold the 'S' button on the controller to switch between forward and reverse rotation.

4.2 Osnovna operacija

1. Ensure the power switch is in the 'OFF' position before plugging the unit into a grounded 110V power outlet.
2. Turn the power switch to 'ON'. The RPM display will illuminate.
3. Adjust the speed knob to your desired RPM. Start with a lower speed for initial adjustments or fine work, and increase for faster material removal.
4. Press the 'Start/Stop' button to begin belt movement. Observe the belt tracking and adjust with the belt tracking knob if necessary to keep the belt centered.
5. Carefully bring your workpiece into contact with the moving belt. Apply even, controlled pressure.
6. To stop operation, press the 'Start/Stop' button, then turn the power switch to 'OFF'. Unplug the unit when finished.

4.3 Grinding Modes and Applications

The grinder supports various configurations for different tasks:

• Krožno brušenje: Use the circular grinding wheel for shaping and contouring.
• Plosko brušenje: Utilize the flat grinding platen for achieving flat surfaces and precise angles.
• Vertical and Horizontal Use: The grinder can be adjusted to operate in both vertical and horizontal orientations to accommodate different workpiece sizes and grinding angles.

Slika: npramples of the grinder configured for circular, flat, and horizontal grinding tasks.

This machine is suitable for working with various materials including steel, aluminum, copper, hardwood, laminate wood, and softwood.

5. Vzdrževanje

Regular maintenance ensures the longevity and optimal performance of your belt grinder sander.

5.1 Čiščenje

• Pred čiščenjem stroj vedno izključite iz električnega omrežja.
• Use a brush or compressed air to remove dust and debris from the motor vents, belt area, and workbenches.
• Wipe down exterior surfaces with a clean, dry cloth. Do not use solvents that may damage plastic components.

5.2 Zamenjava jermena

Replace sanding belts when they become worn or clogged. Refer to Section 3.3 for detailed belt installation instructions.

5.3 Splošni pregled

• Periodically check all fasteners and bolts for tightness. Tighten as needed.
• Inspect the power cord for cuts, fraying, or other damage. Replace immediately if damaged.
• Ensure all moving parts operate smoothly. Lubricate pivot points if necessary, using a light machine oil.

6. Odpravljanje težav

Ta razdelek obravnava pogoste težave, na katere lahko naletite. Za težave, ki niso navedene tukaj, se obrnite na podporo strankam VEVOR.

7. Specifikacije

Technical specifications for the VEVOR Belt Grinder Sander JLD10-8.

8. Garancija in podpora

For warranty information, product registration, or technical support, please refer to the official VEVOR website or contact VEVOR customer service directly. Details can typically be found in the included user manual PDF or on the manufacturer's product page.

Uradni VEVOR Webspletno mesto: www.vevor.com
