Monster TVLink 300 Wireless TV Headphones User Manual

1. Uvod

The Monster TVLink 300 wireless TV headphones are designed to provide a personal audio experience for television viewing. This system includes comfortable over-ear headphones and a transmitter charging base, allowing for clear, synchronized sound without disturbing others. The headphones feature Bluetooth 5.3 for stable connectivity and a long battery life for extended listening sessions.

2. Vsebina paketa

Prosimo, preverite, ali so v vašem paketu vsi elementi:

• Monster TVLink 300 Wireless Headphones
• Transmitter Charging Base
• Optični avdio kabel
• 3.5 mm AUX avdio kabel
• RCA adapterski kabel
• Polnilni kabel USB-C
• Uporabniški priročnik

Image: Components of the Monster TVLink 300 system, including headphones, charging base, and various audio cables.

3. Izdelek je končanview

Familiarize yourself with the main components and controls of your Monster TVLink 300 headphones and transmitter base.

Image: Labeled diagram of the headphones and transmitter base, indicating buttons, ports, and indicator lights.

Slušalke

• Gumb za vklop/izklop: Powers the headphones on or off.
• Gumb za povečanje glasnosti: Increases audio volume. Also functions as 'previous song' in Bluetooth mode.
• Gumb za zmanjšanje glasnosti: Decreases audio volume. Also functions as 'next song' in Bluetooth mode.
• Multi-function button (MFB): Controls playback (play/pause), answers/ends calls.
• Vrata za polnjenje USB-C: For direct charging of headphones.
• Indikatorska lučka: Prikazuje stanje napajanja in povezave.
• Mikrofon: Vgrajen mikrofon za klice.

Transmitter Charging Base

• Vrata za polnjenje USB-C: Powers the transmitter base.
• Optični vhod: Connects to TV via optical cable.
• Aux-in port: Connects to TV via 3.5mm AUX cable.
• LED indikatorska luč: Shows connection status and charging status.
• Vmesnik za polnjenje: For automatic charging of headphones when placed on the base.

4. Navodila za nastavitev

Follow these steps to set up your Monster TVLink 300 system:

1. Power the Transmitter Base: Connect the USB-C charging cable to the transmitter base and plug the other end into a power adapter (not included) or a USB port on your TV. The LED indicator on the base will light up.
2. Povežite se s televizorjem: Choose one of the following audio connection methods:
   • Optical (Recommended): Connect the optical audio cable from the transmitter's optical input to your TV's optical audio output (often labeled 'Digital Audio Out' or 'Optical Out'). Ensure your TV's audio output is set to 'PCM' format if necessary.
   • AUX: Connect the 3.5mm AUX audio cable from the transmitter's Aux-in port to your TV's 3.5mm audio output (headphone jack).
   • RCA: If your TV has RCA audio outputs (red and white ports), use the RCA adapter cable with the 3.5mm AUX cable to connect to the transmitter's Aux-in port.

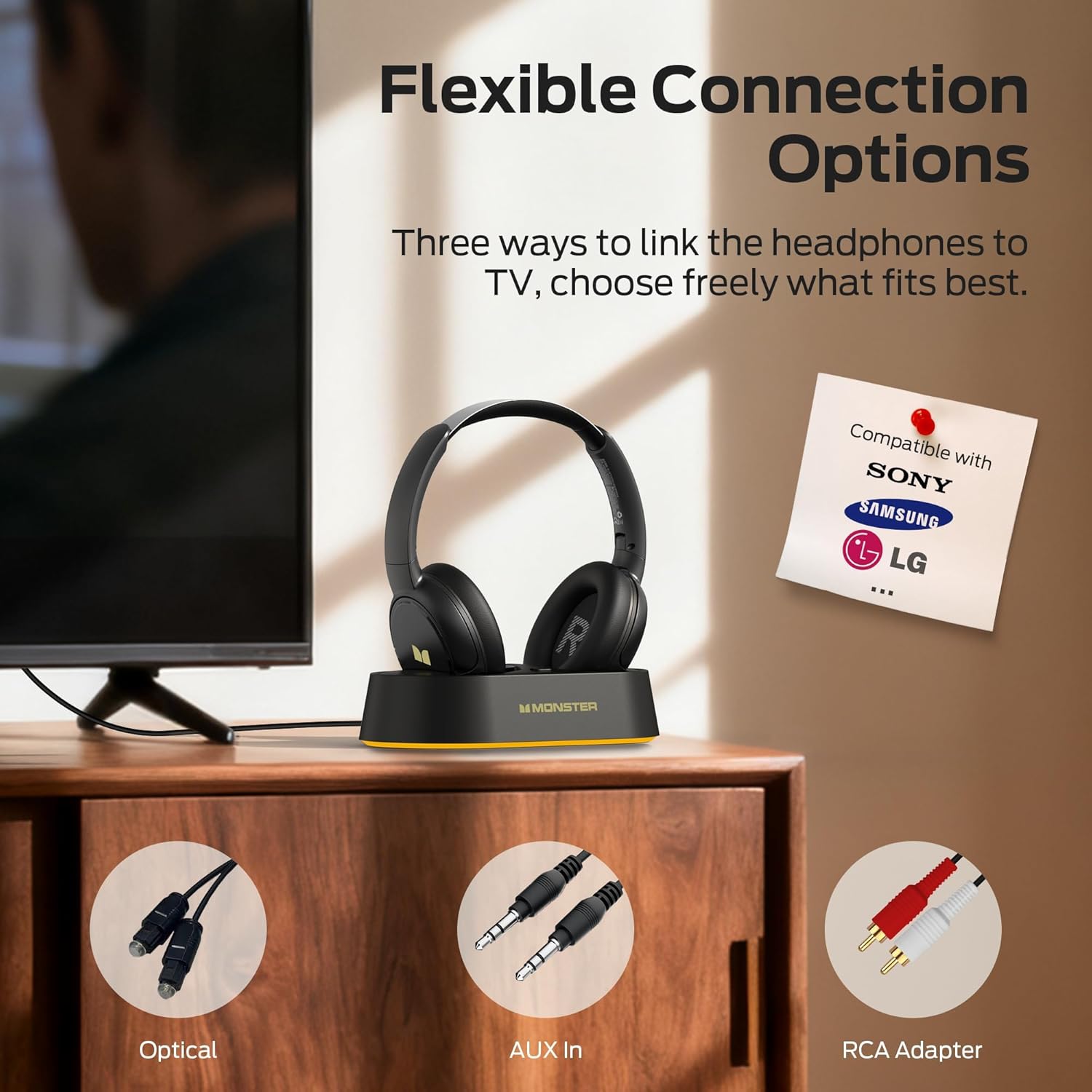

   Image: Flexible connection options for the transmitter base, including Optical, AUX, and RCA.

3. Napolnite slušalke: Place the headphones onto the transmitter charging base. Ensure the charging contacts align. The headphone indicator light will show charging status. A full charge provides up to 45 hours of playback.
4. Vklop slušalk: Press and hold the On/Off button on the headphones until the indicator light illuminates. The headphones will automatically connect to the transmitter base.

Once connected, audio from your TV will be transmitted wirelessly to your headphones.

5. Navodila za uporabo

5.1 Osnovna operacija

• Vklop/izklop: Press and hold the On/Off button on the headphones for approximately 3 seconds.
• Nadzor glasnosti: Use the Volume Up (+) and Volume Down (-) buttons on the headphones to adjust the listening volume.
• Samodejna povezava: After initial setup, the headphones will automatically connect to the transmitter base when powered on and within range.

5.2 Polnjenje

To charge the headphones, simply place them onto the transmitter charging base. The headphones will begin charging automatically. The indicator light on the headphones will show charging status (e.g., red for charging, off or blue for fully charged, refer to specific LED behavior in the quick start guide if available). You can also charge the headphones directly using a USB-C cable connected to their USB-C port.

5.3 Bluetooth Mode (Independent Use)

The headphones can also be used independently via Bluetooth 5.3 with other devices like smartphones or tablets.

1. Seznanjanje: With the headphones powered off, press and hold the On/Off button for approximately 5-7 seconds until the indicator light flashes rapidly (indicating pairing mode).
2. Povežite se: On your device, enable Bluetooth and select "Monster TVLink 300" from the list of available devices.
3. Nadzor predvajanja: Use the Multi-function button (MFB) for play/pause, and the Volume Up/Down buttons for next/previous track.

Image: The Monster TVLink 300 system demonstrating compatibility with various devices including TV, laptop, and smartphone.

6. Vzdrževanje

Pravilna nega zagotavlja dolgo življenjsko dobo in delovanje vaših slušalk:

• Čiščenje: Use a soft, dry cloth to clean the headphones and transmitter base. Do not use abrasive cleaners or solvents.
• Shranjevanje: When not in use, store the headphones on the charging base or in a cool, dry place. The foldable design allows for compact storage.
• Vzdrževanje baterije: To maintain battery health, avoid fully discharging the headphones frequently. Charge them regularly, even if not used for extended periods.
• Izogibajte se vlagi: Napravo hranite stran od vode in prekomerne vlage.

7. Odpravljanje težav

Če naletite na težave, si oglejte naslednje pogoste rešitve:

8. Specifikacije

9. Garancija in podpora

Za informacije o garanciji in podporo strankam glejte garancijski list, ki je priložen embalaži izdelka, ali obiščite uradno spletno stran Monster. webmesto. Shranite račun za garancijske zahtevke.
