DCG 3-in-1 Pedestal, Wall, and Table Fan

Uvod

Hvala za nakupasing the DCG 3-in-1 Fan. This versatile fan is designed to provide efficient air circulation in various settings, functioning as a pedestal, wall-mounted, or table fan. Please read this manual carefully before assembly, operation, and maintenance to ensure safe and optimal performance of your appliance. Keep this manual for future reference.

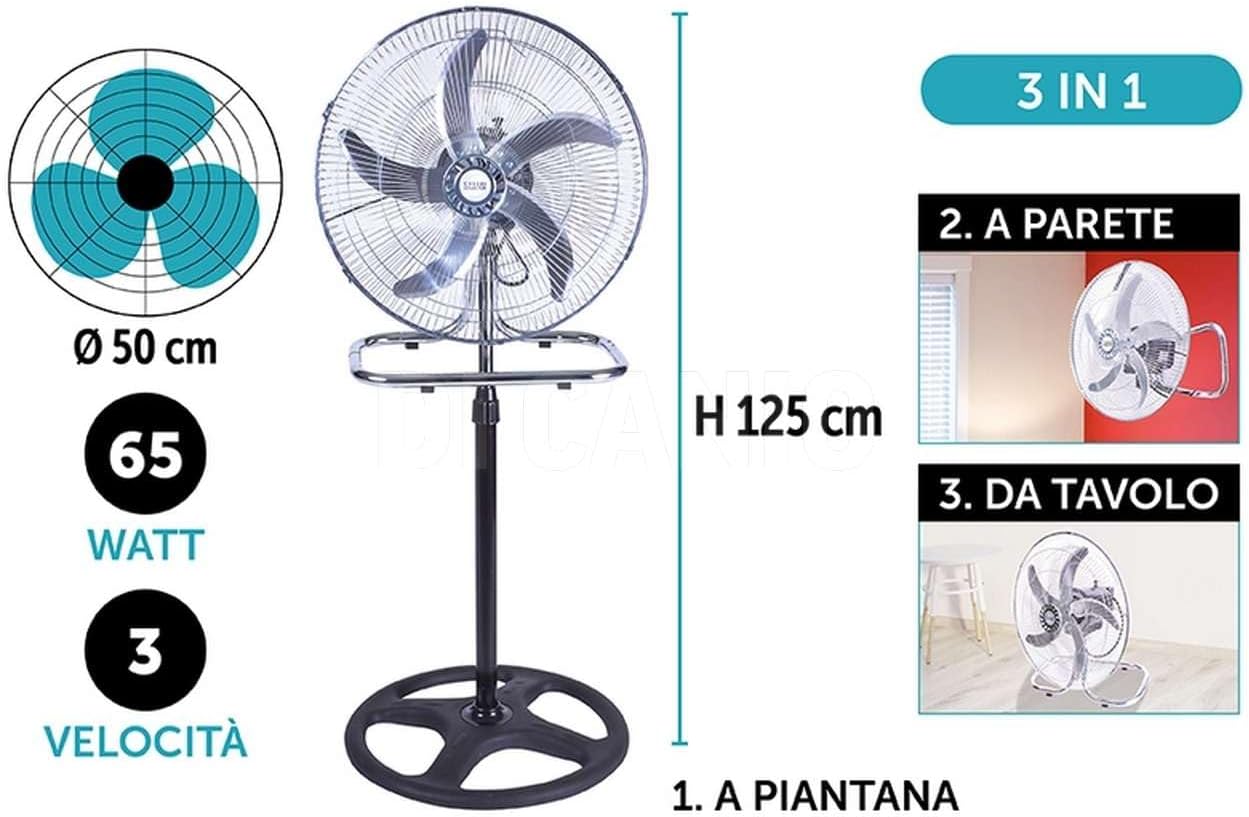

Image: The DCG 3-in-1 fan illustrating its three versatile configurations: pedestal, wall-mounted, and table-top, along with key dimensions and features.

Varnostne informacije

OPOZORILO: Da bi zmanjšali tveganje požara, električnega udara ali poškodb, pri uporabi električnih naprav vedno upoštevajte osnovne varnostne ukrepe.

• Pred uporabo tega ventilatorja preberite vsa navodila.
• Prepričajte se, da je napajalnik voltage se ujema z nalepko z nazivnimi vrednostmi na ventilatorju.
• Ne uporabljajte ventilatorjev s poškodovanim kablom ali vtičem. Ventilator zavrzite ali ga vrnite pooblaščenemu serviserju na pregled in/ali popravilo.
• Kabla ne napeljite pod preprogo. Kabla ne prekrivajte s preprogami, tekači ali podobnimi prevlekami. Kabel napeljite stran od območja prometa in tako, da se obnj ne boste spotaknili.
• Za izklop ventilatorja obrnite krmilne elemente v položaj IZKLOP in nato izvlecite vtič iz vtičnice.
• Med delovanjem ventilatorja ne vstavljajte prstov ali drugih predmetov skozi rešetko.
• Do not use this fan near windows, in a bathroom, or in any wet location.
• Ta naprava je namenjena samo za uporabo v zaprtih prostorih.
• Med uporabo ventilatorja nadzorujte otroke.
• For detailed safety information, please refer to the official safety document: Varnostne informacije (PDF).

Sestavine izdelka

Pred montažo se prepričajte, da so vse komponente prisotne in nepoškodovane:

• Fan Head (with blades and motor)
• Podstavek za podstavek
• Podstavek za mize
• Telescopic Pole (for pedestal configuration)
• Stenski nosilec
• Fasteners and Screws (various sizes for different configurations)
• Navodila za uporabo (ta dokument)

Postavitev in montaža

1. Pedestal Fan Configuration

1. Attach the telescopic pole to the pedestal base using the provided screws. Ensure it is stable and secure.
2. Extend the telescopic pole to the desired height and secure it with the locking mechanism.
3. Mount the fan head onto the top of the telescopic pole. Tighten all fasteners to prevent wobbling.
4. Ensure the fan head is securely attached and the base is stable on a flat surface.

Image: The DCG fan assembled in its pedestal configuration, positioned in a living space.

2. Konfiguracija stenskega ventilatorja

1. Izberite primerno mesto na steni, ki je dovolj trdna, da prenese težo ventilatorja, in blizu električne vtičnice.
2. S pomočjo stenskega nosilca kot šablone označite mesta za vrtanje na steni.
3. Drill holes and insert appropriate wall anchors (not always included, depending on wall type).
4. Securely attach the wall mount bracket to the wall using screws.
5. Mount the fan head onto the wall mount bracket. Ensure it clicks into place or is securely fastened with screws.

Image: The DCG fan installed in its wall-mounted configuration, providing airflow in a room.

3. Table Fan Configuration

1. Attach the fan head directly to the table base using the designated screws.
2. Ensure all connections are tight and the fan head is stable on the table base.
3. Place the assembled table fan on a flat, stable surface, away from edges.

Image: The DCG fan configured as a table fan, resting on a wooden surface.

Navodila za uporabo

1. Napajalni priključek: Plug the fan into a standard electrical outlet (European Type F Schuko plug).
2. Vklop/izklop in izbira hitrosti: Locate the mechanical rotary switch on the fan. Turn the switch to select one of the three available speeds:
   • 0: Izključeno
   • 1: Nizka hitrost
   • 2: Srednja hitrost
   • 3: Visoka hitrost
3. Prilagoditev nagiba: The fan head's inclination can be manually adjusted to direct the airflow. Loosen the adjustment knob on the side of the fan head, tilt the fan to the desired angle, and then tighten the knob to secure its position.

Vzdrževanje in čiščenje

Redno čiščenje in vzdrževanje bosta podaljšala življenjsko dobo vašega ventilatorja in zagotovila optimalno delovanje.

• Pred čiščenjem: Pred čiščenjem ali kakršnim koli vzdrževanjem vedno izključite ventilator iz električne vtičnice.
• Čiščenje zunanjosti: Uporabite mehko, damp krpo za brisanje zunanjih površin ventilatorja. Ne uporabljajte abrazivnih čistil ali topil, saj lahko poškodujejo premaz.
• Rešetka in lopatice: Periodically remove the front grille (if detachable) to clean dust from the fan blades. Use a soft brush or vacuum cleaner to remove accumulated dust. Ensure the grille is securely reattached before operating the fan.
• Ne potapljajte: Never immerse the fan, motor, or power cord in water or any other liquid.
• Shranjevanje: Ko ventilatorja dalj časa ne uporabljate, ga shranite na hladnem in suhem mestu, po možnosti v originalni embalaži, da ga zaščitite pred prahom in poškodbami.

Odpravljanje težav

Če imate težave z ventilatorjem, si oglejte naslednje pogoste težave in rešitve:

Če težava po poskusu teh rešitev še vedno obstaja, se obrnite na podporo strankam.

Specifikacije

Garancija in podpora

Garancija: This product comes with a 2-year availability for spare parts within the EU, which typically implies a corresponding warranty period for manufacturing defects. Please retain your proof of purchase for warranty claims.

Podpora strankam: For technical assistance, troubleshooting beyond this manual, or warranty inquiries, please contact your retailer or the manufacturer directly. Refer to your purchase documentation for specific contact details.
