Wiltec Pool Pump 18600 L/h User Manual

1. Uvod

This manual provides essential information for the safe and efficient operation, installation, and maintenance of your Wiltec Pool Pump, model 65829. This pump is designed for circulating and filtering water in pools ranging from 74 to 110 cubic meters, offering a high flow rate of 18,600 liters per hour and a maximum head of 13 meters. It is compatible with sand filter systems and features an integrated pre-filter for enhanced protection.

Slika 1: Wiltec Pool Pump 18600 L/h in a typical pool setup. This image shows the pump connected to a pool system, highlighting its compact design and connection points.

2. Varnostne informacije

Read all safety instructions carefully before installation and operation. Failure to follow these instructions may result in electric shock, fire, or serious injury. Keep this manual for future reference.

• Pred kakršnim koli vzdrževanjem ali čiščenjem črpalko vedno izključite iz električnega omrežja.
• Ensure the electrical installation complies with local regulations and is protected by a Residual Current Device (RCD) with a tripping current not exceeding 30 mA.
• Črpalke ne uporabljajte, če je napajalni kabel ali vtič poškodovan.
• The pump must be installed on a stable, level surface, protected from direct sunlight and adverse weather conditions.
• Ensure adequate ventilation around the pump motor to prevent overheating.
• This pump is designed for fresh water only, with a liquid temperature range of 0-35°C. Do not use with corrosive, flammable, or explosive liquids.

For detailed safety guidelines, please refer to the official Safety Information PDF document: Varnostne informacije (PDF)

3. Sestavni deli in dimenzije izdelka

The Wiltec Pool Pump consists of a robust motor, a pump housing with an integrated pre-filter, and inlet/outlet connections. Understanding the dimensions is crucial for proper installation and space planning.

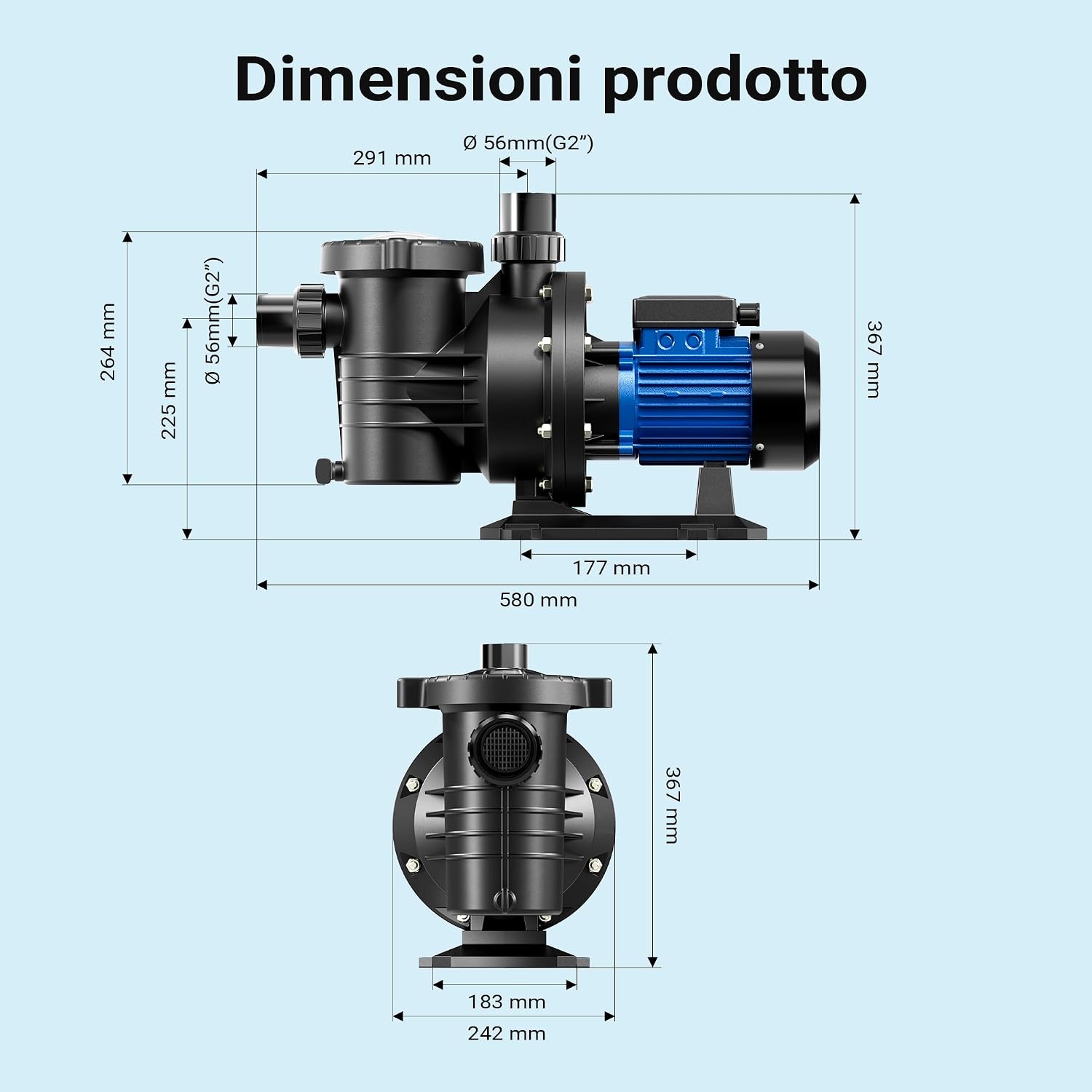

Slika 2: Product Dimensions. This diagram illustrates the pump's overall length (580 mm), width (242 mm), and height (367 mm), along with specific measurements for connections and components.

Ključne komponente vključujejo:

• Koš predfiltra: Located at the inlet, designed to capture debris larger than 3.9 mm.
• Motor: 750W copper-wound motor with thermal overload protection.
• Ohišje črpalke: Trpežna plastična konstrukcija.
• Vhod / odtok: Standard connections for pool hoses.

4. Nastavitev in namestitev

Proper installation is vital for the pump's performance and longevity. It is recommended that installation be performed by a qualified technician.

1. Umestitev: Position the pump on a firm, level surface as close to the pool as possible to minimize suction lift. Ensure it is below the water level if possible for self-priming.
2. Montaža: Secure the pump to the surface using appropriate fasteners to prevent vibration and movement.
3. Vodovodni priključki: Connect the pump's inlet to the pool skimmer/main drain line and the outlet to the sand filter and return lines. Ensure all connections are watertight using thread sealant tape or appropriate gaskets.
4. Električna povezava: Connect the pump to a dedicated, properly grounded electrical circuit protected by an RCD. Verify that the power supply voltage matches the pump's requirements (230V, 50Hz).
5. Polnjenje: Before first use, fill the pre-filter housing with water to ensure the pump is primed. This prevents dry running and potential damage.

5. Navodila za uporabo

Ko je črpalka nameščena in napolnjena, je pripravljena za delovanje.

1. Zagon črpalke: Ensure all valves are open and the pre-filter is full of water. Connect the pump to the power supply. The pump will start circulating water.
2. Spremljanje uspešnosti: Observe the water flow and pressure gauge (if installed on your filter system) to ensure optimal operation. The pump is designed for a maximum flow rate of 18,600 L/h and a maximum head of 13 meters.
3. Temperaturno območje: The pump is designed to operate with liquid temperatures between 0°C and 35°C. Operating outside this range may damage the pump.
4. Ustavitev črpalke: Disconnect the pump from the power supply. Close any necessary valves to prevent water backflow.

Slika 3: Optimal Performance. This image highlights the pump's maximum head of 13 meters and maximum flow rate of 18,600 L/h, along with the recommended liquid temperature range of 0-35°C.

6. Vzdrževanje

Regular maintenance ensures the longevity and efficient operation of your pool pump.

• Čiščenje predfiltra: The integrated pre-filter collects debris such as leaves, twigs, gravel, and hair. Regularly inspect and clean the pre-filter basket to maintain optimal flow and prevent pump strain. To clean, disconnect power, open the pre-filter lid, remove the basket, empty debris, and rinse thoroughly. Reassemble, ensuring the O-ring is properly seated and the lid is securely tightened.


Slika 4: Pre-filter Function. This image demonstrates how the pump's pre-filter effectively captures various types of debris, such as leaves, twigs, gravel, and hair, protecting the pump's internal components.

• Pregled motorja: Periodically check the motor for any unusual noises or excessive heat. The copper-wound motor is designed for stable operation and includes thermal overload protection.


Slika 5: Robust Motor Design. This image provides a view of the pump's copper-wound motor, emphasizing its stable operation and built-in protection against overheating and overload.

• Generalno čiščenje: Keep the exterior of the pump clean and free from dirt and debris.
• Zimovanje: In regions with freezing temperatures, drain the pump completely and store it in a dry, frost-free location during the off-season to prevent damage.

7. Odpravljanje težav

Če imate težave s črpalko, si oglejte naslednje pogoste težave in rešitve:

If problems persist after attempting these solutions, contact a qualified service technician or Wiltec customer support.

8. Specifikacije

9. Garancija in podpora

Za informacije o garanciji, tehnično podporo ali servisne poizvedbe se obrnite neposredno na prodajalca ali proizvajalca. Račun shranite kot dokazilo o nakupu.

A Certificate of Conformity is available for this product: Certificate of Conformity (PDF)
