FAMAPY 63-inch Display Cabinet with Glass Doors & Lights User Manual

1. Izdelek je končanview

This manual provides instructions for the FAMAPY 63-inch Display Cabinet with Glass Doors and Lights. This cabinet is designed for storage and display, featuring tempered glass doors, adjustable shelves, and integrated LED lighting. It includes three bottom drawers for additional storage.

Dimenzije: 15.7 palcev (globina) x 63 palcev (širina) x 78.7 palcev (višina).

Material: Constructed from durable MDF with tempered glass doors.

Lastnosti:

• Tempered glass doors to protect items from dust.
• Adjustable shelves for flexible organization.
• Integrated LED lighting with 7 color options and remote control.
• Three bottom drawers for private storage.
• Anti-tip device for enhanced stability and safety.

2. Varnostne informacije

Pred sestavljanjem in uporabo preberite in razumite vsa varnostna navodila. Neupoštevanje teh navodil lahko povzroči telesne poškodbe ali škodo na izdelku.

• Always secure the cabinet to the wall using the provided anti-tip device. This is crucial to prevent the cabinet from tipping over, especially in households with children or pets.
• Exercise caution when assembling the cabinet due to its weight and size. It is recommended to have at least two people for assembly.
• Območje okoli omare naj bo čisto od vnetljivih materialov.
• Maintain a safe distance from heat sources to prevent damage to the cabinet materials.
• Do not place excessively heavy items on the glass shelves. Distribute weight evenly to prevent shelves from breaking or collapsing.
• Ensure all screws and fasteners are tightened securely during assembly and periodically check for tightness during use.

3. Seznam komponent

Before beginning assembly, verify that all parts listed below are present and undamaged. The cabinet comes in 3 boxes; components may be distributed across these boxes. All hardware is numbered for easy identification.

• Shelves (10 tiers)
• Predali (3 enoti)
• Tečaji
• Ročaji
• Mounting Hardware (including anti-tip device)
• LED Light Kit with Remote Control
• Orodja za montažo (npr. imbus ključ)
• MDF/PB Panels
• Vrata iz kaljenega stekla

4. Navodila za montažo

Please follow the detailed instruction manual included in the packaging. The following provides a general overview of the assembly process. It is recommended to assemble the cabinet on a soft, clean surface to prevent scratches.

4.1 Razpakiranje in priprava

Carefully unpack all three boxes. Identify and lay out all components and hardware. Refer to the numbered parts in the included instruction manual. If any parts are missing or damaged, contact customer service before proceeding.

4.2 Osnovni sklop

Attach the legs to the base panel using the provided screws. Tighten them securely with the appropriate tool.

4.3 Konstrukcija okvirja

Connect the side panels to the back panel using dowels and cam locks. Ensure all connections are firm and aligned. This forms the main structure of the cabinet.

Figure 1: Cabinet dimensions and internal structure overview.

4.4 Namestitev polic

Insert the shelves into the pre-drilled holes at your desired height. The shelves are adjustable, allowing for customization of storage space.

4.5 Door and Drawer Installation

Attach the glass doors using the hinges and screws. Ensure the doors are properly aligned and open/close smoothly. Install the three bottom drawers into their respective compartments. Attach the handles and knobs to the doors and drawers.

Figure 2: Detail of door handles.

Figure 3: Detail of a drawer knob.

4.6 Namestitev LED luči

Install the LED light strips according to the specific instructions provided with the light kit. Connect the power supply and test the lights.

4.7 Namestitev naprave proti prevračanju

Securely attach the anti-tip device to the top rear of the cabinet and to a wall stud. This step is critical for safety.

Figure 4: Assembled display cabinet.

5. Navodila za uporabo

5.1 LED sistem osvetlitve

The display cabinet features integrated LED lighting with multiple color options. Use the provided remote control to operate the lights.

• Vklop/izklop: Pritisnite gumb za vklop na daljinskem upravljalniku, da vklopite ali izklopite luči.
• Izbira barve: Z barvnimi gumbi na daljinskem upravljalniku izberite med 7 razpoložljivimi barvami.
• Prilagoditev svetlosti: Adjust the brightness using the designated buttons on the remote.
• Izbira načina: Some remotes may offer various lighting modes (e.g., fade, strobe). Refer to the remote's specific instructions.

Figure 5: LED lighting in various colors with remote control.

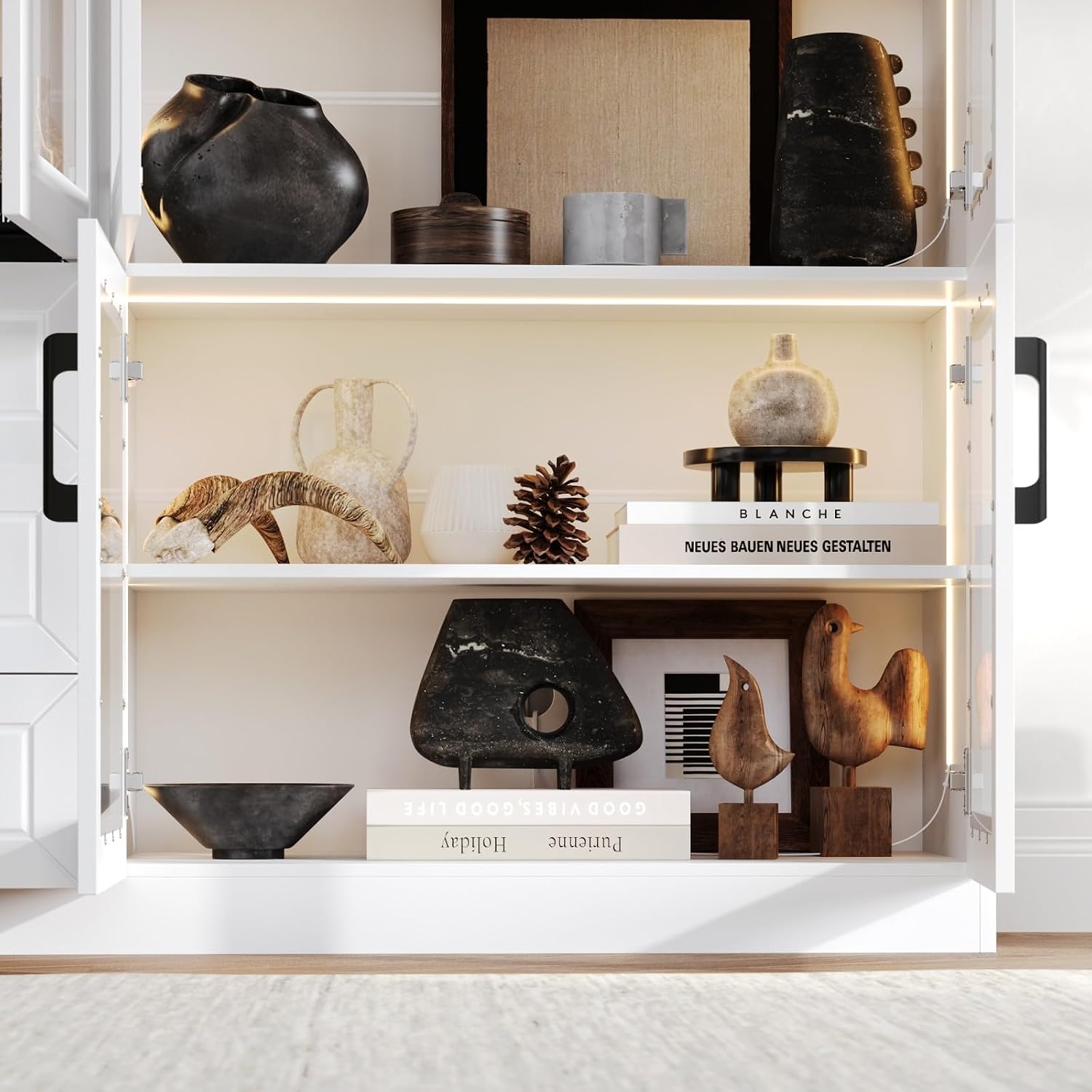

Figure 6: Cabinet interior with LED lights activated.

5.2 Nastavljive police

The shelves can be repositioned to accommodate items of different heights. To adjust a shelf:

1. Odstranite vse predmete s police.
2. Carefully lift the shelf and remove it from its supports.
3. Relocate the shelf supports to the desired pre-drilled holes.
4. Place the shelf back onto the supports, ensuring it is level and secure.

5.3 Drawers and Doors

The three bottom drawers operate on smooth glides. Pull the knob to open and push to close. The glass doors open outwards on hinges. Ensure doors are fully closed to protect contents from dust.

Figure 7: Open drawer interior.

5.4 Upravljanje kablov

A cable management hole is provided at the back of the cabinet to route power cords for the LED lights or other electronic devices stored within.

Figure 8: Cable management hole.

6. Vzdrževanje

Regular maintenance will help preserve the appearance and functionality of your display cabinet.

• Čiščenje površin: Wipe MDF/PB surfaces with a soft, damp krpo. Izogibajte se abrazivnim čistilom ali močnim kemikalijam, ki lahko poškodujejo površino.
• Čiščenje stekla: Use a standard glass cleaner and a lint-free cloth for glass doors. Spray cleaner onto the cloth, not directly onto the glass, to prevent liquid from seeping into seams.
• Odstranjevanje prahu: Regularly dust all surfaces, including shelves and the interior, to prevent buildup.
• Preverjanje strojne opreme: Periodically check all screws, hinges, and drawer glides to ensure they are secure. Tighten if necessary.
• LED luči: If LED lights dim or stop working, check the power connection and the remote control battery. Do not attempt to repair the LED strips yourself; contact customer service if issues persist.

7. Odpravljanje težav

This section addresses common issues you might encounter with your display cabinet.

8. Specifikacije

9. Garancija in podpora

For warranty information, missing parts, or technical support, please refer to the contact information provided in your product packaging or visit the official FAMAPY website. Please have your model number (B0G91QVF54) and purchase date ready when contacting support.

Spletna podpora: Visit the FAMAPY Store on Amazon
