STRICH TV-G Triple Vibe 3-in-1 Multi Effects Guitar Pedal User Manual

Uvod

The STRICH TV-G Triple Vibe is a versatile 3-in-1 multi-effects guitar pedal designed to integrate overdrive, reverb, and delay effects into a single unit. This pedal offers a wide range of tonal options suitable for various musical styles, featuring 9 overdrive types, 3 professional reverb modes with a freeze function, and 3 delay effects with tap tempo control. Its robust construction and portable design make it suitable for both practice and performance.

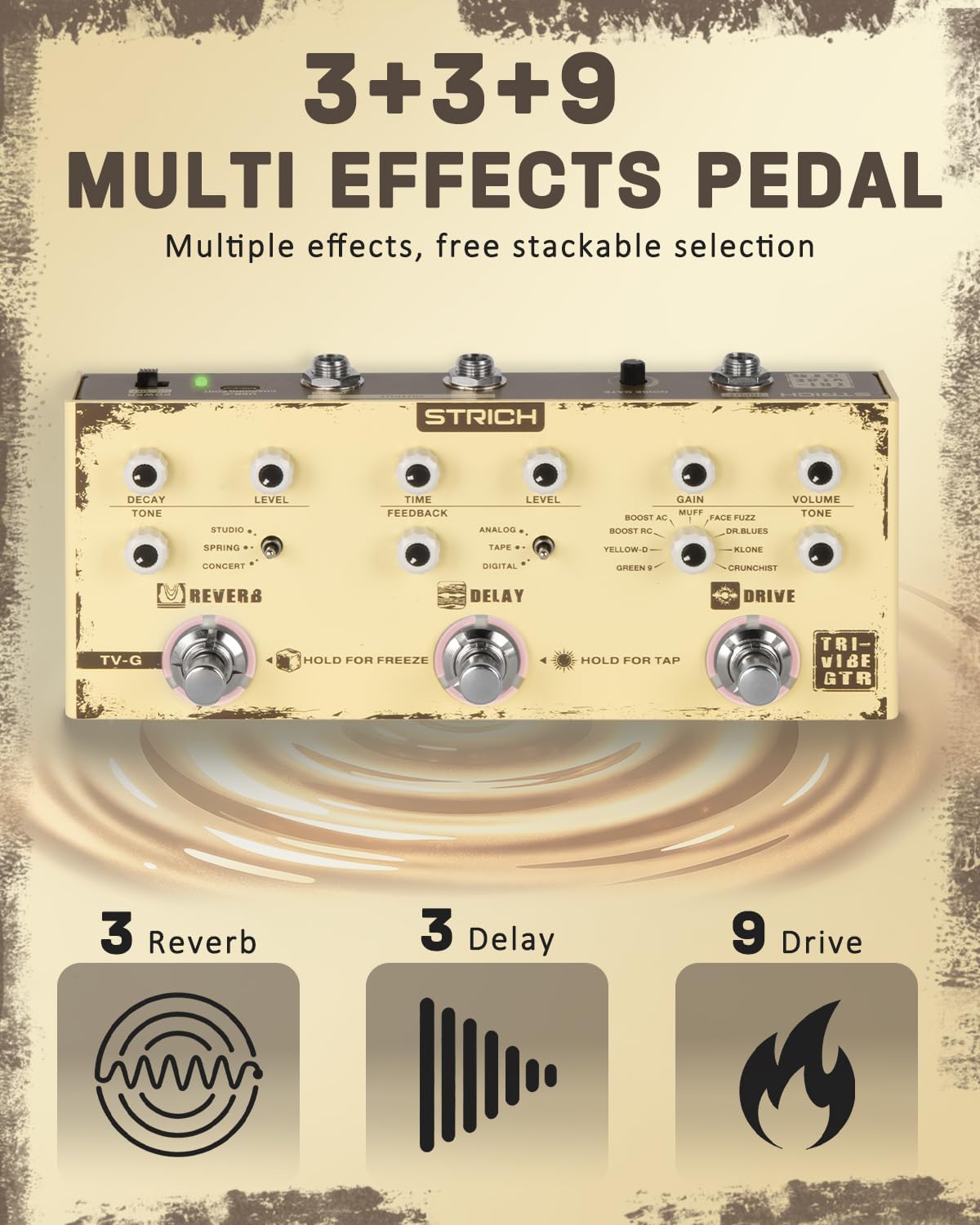

STRICH TV-G Triple Vibe 3-in-1 Multi Effects Guitar Pedal overview

Slika 1: Konecview of the STRICH TV-G Triple Vibe pedal, showcasing its three main effects sections: Reverb, Delay, and Drive.

Vsebina paketa

STRICH TV-G Multi Effects Guitar Pedal
Polnilni kabel USB-C
Uporabniški priročnik (ta dokument)

Nastavitev

Napajanje pedala

The TV-G pedal features a built-in rechargeable Li-Ion battery, providing up to 5 hours of operation on a full charge. It can also be powered via a USB-C connection (DC 5V).

Connect the provided USB-C cable to the USB-C charging port on the rear panel of the pedal and to a compatible USB power adapter (not included) or a computer.
Ensure the power switch on the rear panel is in the ON position to operate the pedal.

STRICH TV-G pedal dimensions and USB-C charging port

Figure 2: Pedal dimensions and location of the USB-C charging port and power switch on the rear panel.

Connecting Your Instrument and Amplifier

The TV-G pedal supports both mono and stereo output configurations.

Priključite kitaro ali drug instrument na VNOS jack on the rear panel using a 1/4" TS mono cable.
For mono output, connect a 1/4" TS mono cable from the R (MONO) OUTPUT priključek na tvoje amplifier ali zvočni vmesnik.
For stereo output, connect 1/4" TS mono cables from both the L IZHOD in R (MONO) OUTPUT jacks to two separate amplifiers or stereo audio inputs.

STRICH TV-G rear panel connections including input, stereo outputs, noise gate, USB-C, and power switch

Figure 3: Rear panel connections: Instrument Input, Noise Gate, Stereo Outputs (L/R), USB-C Charging Port, and Power Switch.

Noise Gate Adjustment

The pedal includes a built-in noise gate to reduce unwanted hum and hiss. The noise gate threshold can be adjusted using the Hrupna vrata gumb na zadnji plošči.

Turn the knob clockwise to increase the noise gate effect (higher threshold).
Turn the knob fully counter-clockwise to disable the noise gate.

Close-up of the Noise Gate knob on the STRICH TV-G pedal

Figure 4: Detail of the Noise Gate adjustment knob.

Upravljanje pedala

The STRICH TV-G pedal features three independent effects sections: Reverb, Delay, and Drive, each with its own controls and footswitch.

Odsek Reverb

The Reverb section provides three distinct reverb modes and a freeze function.

DECAY/TONE Knob: Adjusts the decay time and brightness of the reverb.
Gumb LEVEL: Controls the overall wet/dry mix of the reverb effect.
Preklopno stikalo: Selects one of three reverb types:
- STUDIO: A natural, room-like reverb.
- VELIKA: Posnema klasični vzmetni reverb tank.
- KONCERT: A large, spacious hall reverb.
Reverb Footswitch:
- Press to turn the reverb effect ON/OFF (white LED indicates ON).
- Hold the footswitch for continuous reverb sustain (ZAMRZNITE mode, red LED indicates active). Release to exit freeze mode.

Close-up of the Reverb section controls on the STRICH TV-G pedal, showing Decay/Tone, Level, and reverb type switch

Figure 5: Reverb section controls and footswitch with Freeze function.

Oddelek za zamudo

The Delay section offers three delay types and a tap tempo function.

Gumb ČAS: Adjusts the delay time from 20ms to 1000ms.
Gumb za POVRATNE INFORMACIJE: Nadzira število ponovitev zakasnitve.
Gumb LEVEL: Sets the volume of the delay repeats.
Preklopno stikalo: Selects one of three delay types:
- ANALOGNI: Toplo, vintage-style delay repeats.
- TRAK: Emulates the characteristics of a tape echo, often with subtle modulation.
- DIGITALNO: Clean, precise delay repeats.
Delay Footswitch:
- Press to turn the delay effect ON/OFF (white LED indicates ON).
- Hold for 1.5 seconds to activate TAP TEMPO mode (red LED indicates active). In this mode, tap the footswitch 2-4 times at your desired tempo to set the delay time. The mode exits after 3 seconds of inactivity.

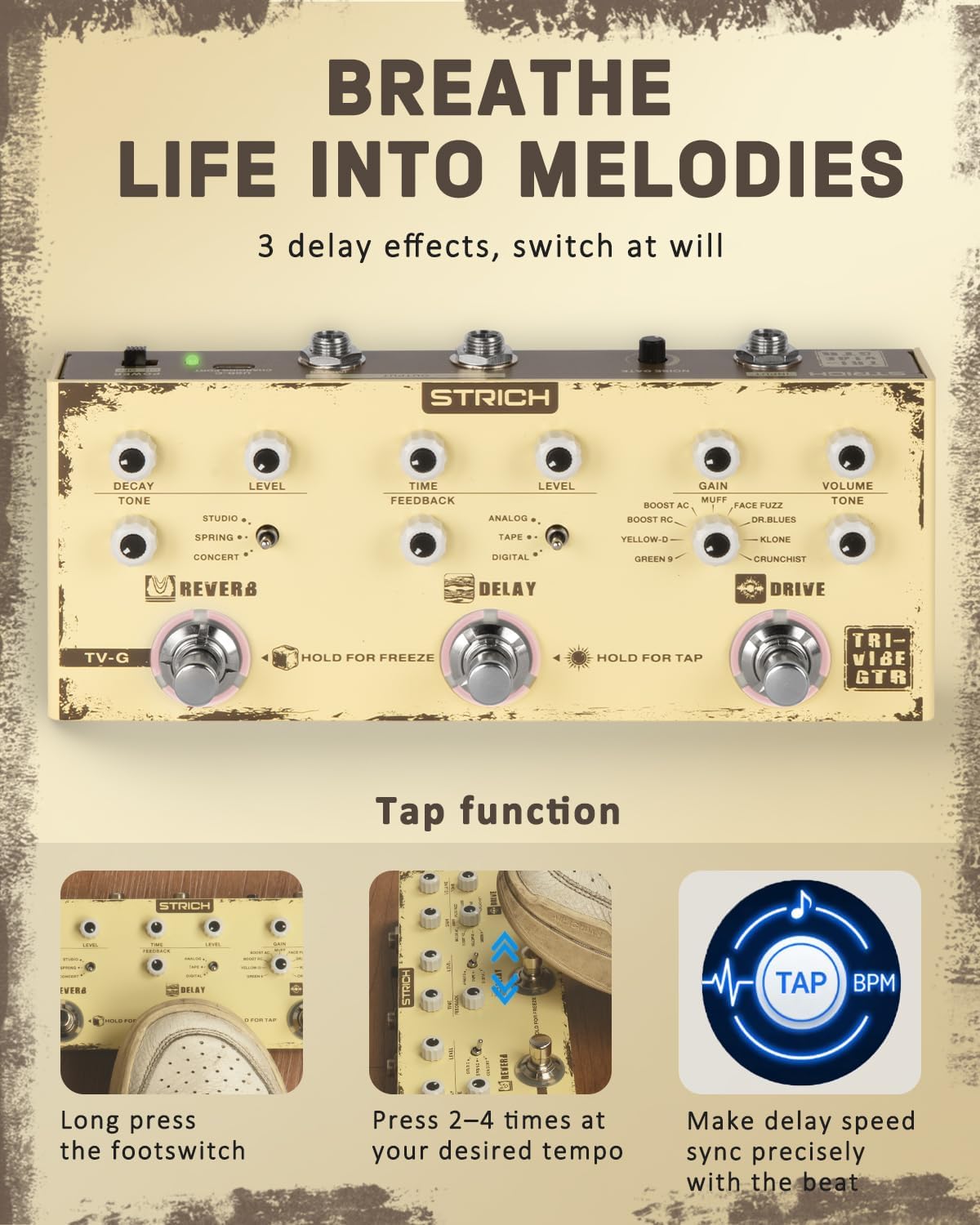

Close-up of the Delay section controls on the STRICH TV-G pedal, showing Time, Feedback, Level, and delay type switch

Figure 6: Delay section controls and footswitch with Tap Tempo function.

Pogonski del

The Drive section provides 9 distinct overdrive and distortion types.

Gumb GAIN: Prilagodi količino overdrive/distortion.
Gumb VOLUME: Controls the output level of the drive effect.
Gumb TONE: Adjusts the brightness or darkness of the drive sound.
Vrtljivo stikalo: Selects one of nine drive types:
- BOOST AC: Acoustic guitar effects or clean boost.
- BOOST RC: Clean boost.
- MUFF: Classic fuzz sound.
- FACE FUZZ: Vintage fuzz sound.
- YELLOW-D: Ideal for blues.
- ZELENA 9: Classic overdrive.
- DR. BLUES: Blues overdrive.
- KLONE: Warm overdrive.
- CRUNCHIST: Vintage crunch.
Drive Footswitch: Press to turn the drive effect ON/OFF (white LED indicates ON).

Close-up of the Drive section controls on the STRICH TV-G pedal, showing Gain, Volume, Tone, and the 9-position rotary switch for drive types

Figure 7: Drive section controls and footswitch with 9 selectable drive types.

Vzdrževanje

Pedal vzdržujte čist tako, da ga obrišete z mehko, suho krpo. Izogibajte se uporabi abrazivnih čistil ali topil.
Pedal zaščitite pred ekstremnimi temperaturami, vlago in neposredno sončno svetlobo.
Pazite, da vam pedal ne bo padel ali da ga ne boste izpostavljali močnim udarcem.
When not in use for extended periods, store the pedal in a dry, cool place.
Ensure all cables are disconnected before cleaning or storing.

Odpravljanje težav

Težava	Možen vzrok	rešitev
Ni zvoka ali šibek signal.	Nepravilne kabelske povezave. Prazna baterija ali brez napajanja. Volume/Level knobs set too low. Instrument or amptežave z lifierjem.	Check all 1/4" cable connections to ensure they are secure and in the correct jacks. Charge the pedal via USB-C or ensure the power switch is ON. Adjust the LEVEL and VOLUME knobs on the pedal. Test your instrument and amplifier samostojno.
Neželen hrup ali brenčanje.	Nastavitve visokega ojačanja. Zunanje motnje. Noise gate set too low.	Reduce GAIN settings, especially in the Drive section. Move the pedal away from power supplies or other electronic devices. Adjust the NOISE GATE knob on the rear panel clockwise to increase the threshold.
Učinki niso privlačni.	Footswitch not pressed correctly. Effect level set to zero.	Ensure the footswitch is fully pressed and the corresponding LED illuminates. Check the LEVEL knob for the specific effect (Reverb, Delay) and ensure it is not set to minimum.

Specifikacije

Številka modela	TV-G
Effects Included	9 Overdrive, 3 Reverb, 3 Delay
Časovni razpon zakasnitve	20 ms - 1000 ms
Vir napajanja	Built-in rechargeable battery (up to 5 hours), USB-C (DC 5V)
Vnos	1/4" TS Mono Jack
Izhod	1/4" TS Mono/Stereo Jacks (L/R)
Dimenzije (D x Š x V)	Approximately 20cm x 11.4cm x 7.9cm (based on parcel dimensions)
Teža	671 g
Država izvora	Kitajska

Garancija

The STRICH TV-G Triple Vibe Multi Effects Guitar Pedal comes with a 1-year limited warranty from the date of purchase. This warranty covers manufacturing defects and malfunctions under normal use. It does not cover damage caused by misuse, accidents, unauthorized modifications, or normal wear and tear. Please retain your proof of purchase for warranty claims.

Podpora uporabnikom

For any questions, technical assistance, or warranty inquiries, please contact STRICH customer support. We are committed to providing prompt responses and friendly service.

Podpora po e-pošti: Expect a response to email chat inquiries within 24 hours.
Obdobje storitve: Up to 12-month service is available.
Vrne: A 30-day free return policy is in effect.

For the most up-to-date contact information, please visit the official STRICH webspletno mesto ali glejte dokumentacijo o nakupu.
