The YcaeyLnaR Inductance Tester (Model XM00088) is a precision instrument designed for quick and accurate detection of inductors on electronic circuit boards. This manual provides essential information for the proper setup, operation, maintenance, and troubleshooting of your device.
Konec izdelkaview
Lastnosti
- Advanced Precision Induction Instrument: Designed specifically for detecting inductors on electronic circuit boards, this tool offers reliable and accurate results.
- Type-C Interface Compatibility: Equipped with a widely used Type-C interface, it eliminates the need for additional accessories, making it convenient to use with just a standard Type-C data cable.
- Quick Fault Detection: This inductor detection tool can rapidly identify faulty inductors by simply pressing the button and bringing the induction probe close to the target. A green light indicates a functioning inductor, while no light suggests an issue.
- Enostavnost uporabe: The intuitive design and straightforward use make it easy for both professionals and hobbyists to use, ensuring quick and efficient fault checks.
- Close-Proximity Detection Advantage: The smart induction tester features a close-proximity detection system, allowing for precise and reliable testing without the need for direct contact.
Kaj je v škatli
- 1pc Type-C Inductance Tester

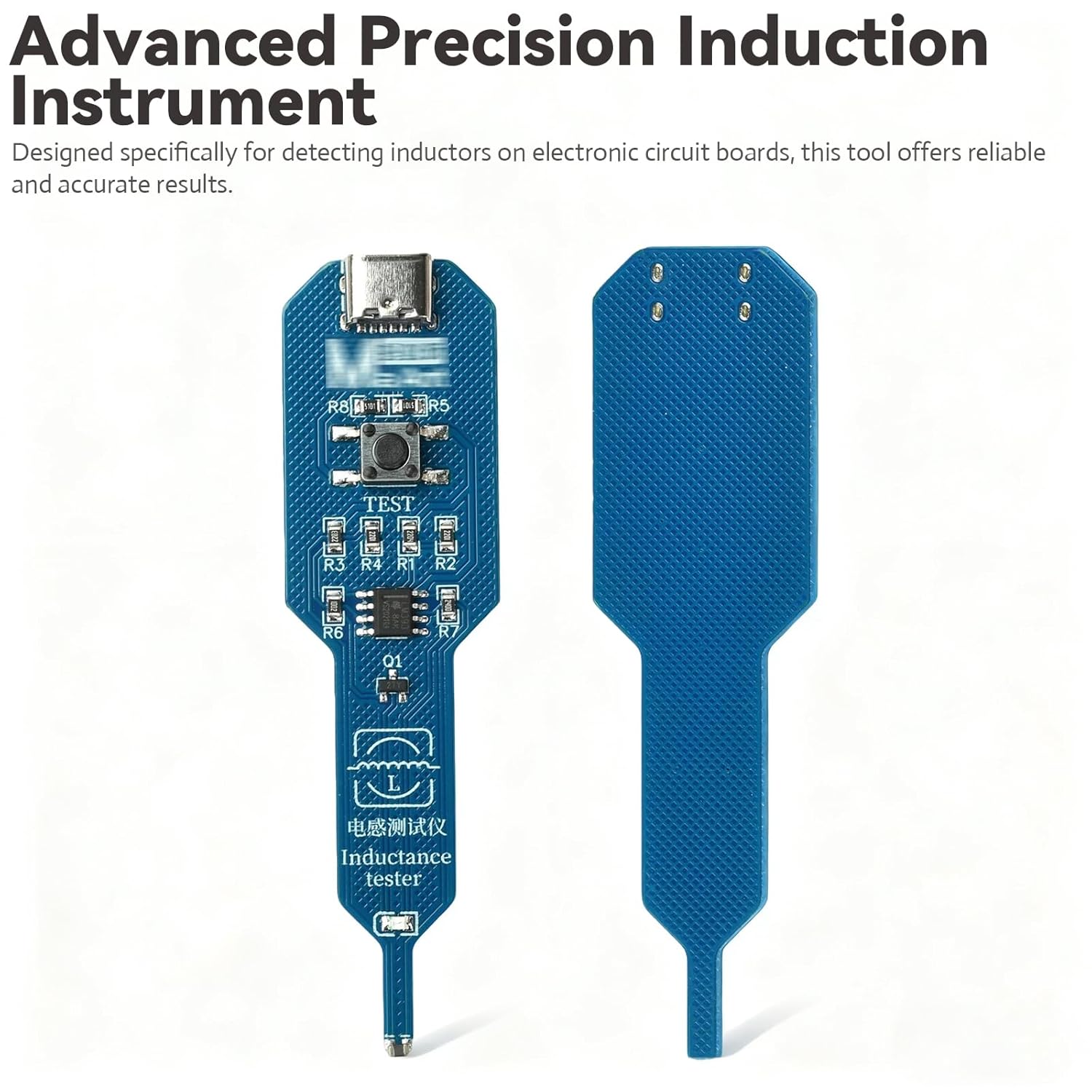

Jasno view of the YcaeyLnaR Inductance Tester, showcasing its compact design and circuit board components.
Nastavitev
The YcaeyLnaR Inductance Tester features a Type-C interface. To power on and prepare for use, connect the tester to a compatible Type-C power source or device using a standard Type-C data cable. No additional drivers or software are required for basic operation.
The image displays the YcaeyLnaR Inductance Tester with its Type-C port, ready for connection to a power source or compatible device.
Navodila za uporabo
- Priključite napajanje: Ensure the Inductance Tester is connected to a Type-C power source. The device will power on automatically.
- Začni test: To test an inductor, press the 'TEST' button located on the device.
- Sonda za merjenje položaja: Bring the induction probe tip close to the inductor on the electronic circuit board you wish to test. The close-proximity detection system ensures accurate readings without direct contact.
- Interpretacija rezultatov:
- A zelena luč indicates a functioning inductor.
- If no light appears, it suggests a potential issue or fault with the inductor.
This image illustrates the Inductance Tester in action, with its probe tip near an inductor on a circuit board, and a green indicator light confirming a functional component.
This video demonstrates the YcaeyLnaR Inductance Tester in use, showing how to connect it via Type-C and perform a quick fault check on electronic circuit board inductors.
Vzdrževanje
- Čiščenje: Keep the device clean and free from dust and moisture. Use a soft, dry cloth for cleaning. Do not use abrasive cleaners or solvents.
- Shranjevanje: Store the Inductance Tester in a cool, dry place when not in use. Avoid extreme temperatures and direct sunlight.
- Ravnanje: Handle the device with care to prevent physical damage to the probe or Type-C connector.
Odpravljanje težav
| Težava | Možen vzrok | rešitev |
|---|---|---|
| No light when testing | Device not powered; 'TEST' button not pressed; Inductor faulty or out of range. | Ensure the device is properly connected to a Type-C power source. Verify the 'TEST' button is pressed firmly. Reposition the probe closer to the inductor. If the issue persists, the inductor may be faulty. |
| Netočne ali nedosledne odčitke | Improper probe positioning; External electromagnetic interference. | Ensure the probe is positioned correctly and steadily over the inductor. Avoid testing near strong electromagnetic fields or other active electronic components. |
Specifikacije
- Znamka: YcaeyLnaR
- Model: XM00088
- vir energije: Corded Electric (via Type-C)
- Vrsta merjenja: Inductance (LCR Meter functionality for inductance detection)
- Največja delovna glasnosttage: 5 volta
- Združljive naprave: Type-C compatible devices, electronic circuit testing devices
- Vključene komponente: 1pc Type-C Inductance Tester
- UPC: 762668243396
Garancija
Specific warranty details for the YcaeyLnaR Inductance Tester Model XM00088 may vary by region and retailer. Please refer to the retailer's return policy or contact the manufacturer directly for information regarding warranty coverage and claims. Keep your proof of purchase for any warranty-related inquiries.
Podpora
For technical assistance, product inquiries, or further support, please contact your point of purchase. You may also visit the official YcaeyLnaR website for additional resources, FAQs, and contact information.
