VINGLI Full Size Headboard Instruction Manual

1. Izdelek je končanview

The VINGLI Full Size Headboard is designed to enhance your bedroom with integrated storage, charging capabilities, and adjustable LED lighting. This headboard features two tiers of storage shelves, a pegboard for organization, and a comfortable upholstered fabric backrest. It is constructed with a durable metal frame and includes adapters for compatibility with various full-size bed frames.

Ključne značilnosti:

Velik prostor za shranjevanje: Two-tier shelves with adjustable height (up to 9.9 inches) and a perforated pegboard for hanging items.
Comfortable Backrest: Padded, breathable fabric backrest with adjustable height (21.6 to 41.3 inches).
Integrirana polnilna postaja: Includes 2 USB ports, 1 Type-C port, and 2 AC outlets.
Smart RGB LED Lights: Customizable lighting with over 6,000 colors, controllable via app or remote.
Vzdržljiva konstrukcija: Reinforced steel frame for stability.
Enostavna montaža: Designed for straightforward installation with included tools and instructions.

2. Varnostne informacije

OPOZORILO: Do not exceed the maximum weight recommendation of 66 pounds (30 kg) on the storage shelves.

Med montažo se prepričajte, da so vsi vijaki in pritrdilni elementi varno priviti, in občasno preverite, ali so zrahljani.
Keep electrical components (charging station, LED lights) away from water or excessive moisture.
Do not attempt to modify the electrical wiring or components.
Place the headboard on a stable, level surface.
Med sestavljanjem hranite majhne dele izven dosega otrok.

3. Navodila za montažo

Before beginning assembly, ensure all parts are present and undamaged. Refer to the included detailed assembly instructions for step-by-step guidance. A power drill or electric screwdriver can expedite the process.

3.1. Razpakiranje in identifikacija delov

Vse komponente previdno razpakirajte in jih položite na čisto, mehko površino, da preprečite praske. Vsak del prepoznajte s pomočjo priloženega seznama delov v priročniku.

3.2. Attaching the Headboard to the Bed Frame

The headboard is designed to attach to most full-size bed frames. It includes bed frame adapters to accommodate frames with varying widths and leg hole configurations (round holes, vertical slots, horizontal slots).

Diagram showing how to attach the headboard to a bed frame with different types of leg holes: round holes, vertical slots, and horizontal slots. The image illustrates the use of screws to secure the headboard to the bed frame legs.

Image: Bed frame attachment points and adapter usage.

Align the headboard's mounting brackets with the leg holes on your bed frame. Use the provided screws and the bed frame adapters as necessary to secure the headboard firmly. Ensure all connections are tight to prevent wobbling.

3.3. Assembling Anti-Loosen Screws

For enhanced stability, ensure all anti-loosen screws are correctly installed. This video demonstrates the proper technique for assembling these screws, which helps maintain the headboard's structural integrity over time.

Video: Guide on assembling anti-loosen screws for the VINGLI headboard.

3.4. Adjusting Headboard Height

The headboard's height can be adjusted from 21.6 to 41.3 inches to suit your preference and mattress height. The storage shelves also have adjustable height settings, up to 9.9 inches.

Diagram illustrating the adjustable height of the headboard and storage shelves. It shows minimum and maximum height settings for both the headboard and the shelves, with weight limits indicated.

Image: Headboard and shelf height adjustment details.

Follow the instructions in your manual to unlock and re-secure the height adjustment mechanisms for both the main headboard and the storage shelves.

4. Navodila za uporabo

4.1. Using the Storage Shelves and Pegboard

The headboard features two tiers of storage shelves and a perforated pegboard. These areas are designed for organizing small items such as books, glasses, and electronic gadgets. The pegboard can be used with hooks (not included) to hang keys or cables.

Od blizu view of the headboard's storage shelves and pegboard, showing items like books, a plant, an alarm clock, and a tablet charging. The LED lights illuminate the storage area.

Image: Storage shelves and pegboard in use.

Ensure that items placed on the shelves do not exceed the maximum weight capacity of 66 pounds (30 kg).

4.2. Uporaba polnilne postaje

The integrated charging station provides convenient power access for your devices. It includes:

2 USB ports (5V/2A)
1 priključek tipa C (5 V/2 A)
2 vtičnici za izmenični tok (125 V/12 A)

Close-up of the headboard's charging station with devices plugged in. Icons for AC outlets, USB ports, and a Type-C port are displayed below the image with their respective voltage/amperage ocene.

Image: Charging station with various ports.

Plug your devices into the appropriate ports. Avoid overloading the outlets to prevent electrical hazards.

4.3. Upravljanje LED luči

The headboard features smart RGB LED lights that can be customized to create various ambiances. Control options include a remote control and a mobile application.

Video: Demonstration of the smart LED lights and their control options.

Use the remote or app to change colors (over 6,000 options), adjust brightness, and set timing controls. Refer to the LED light manual (if separate) for detailed instructions on app pairing and advanced features.

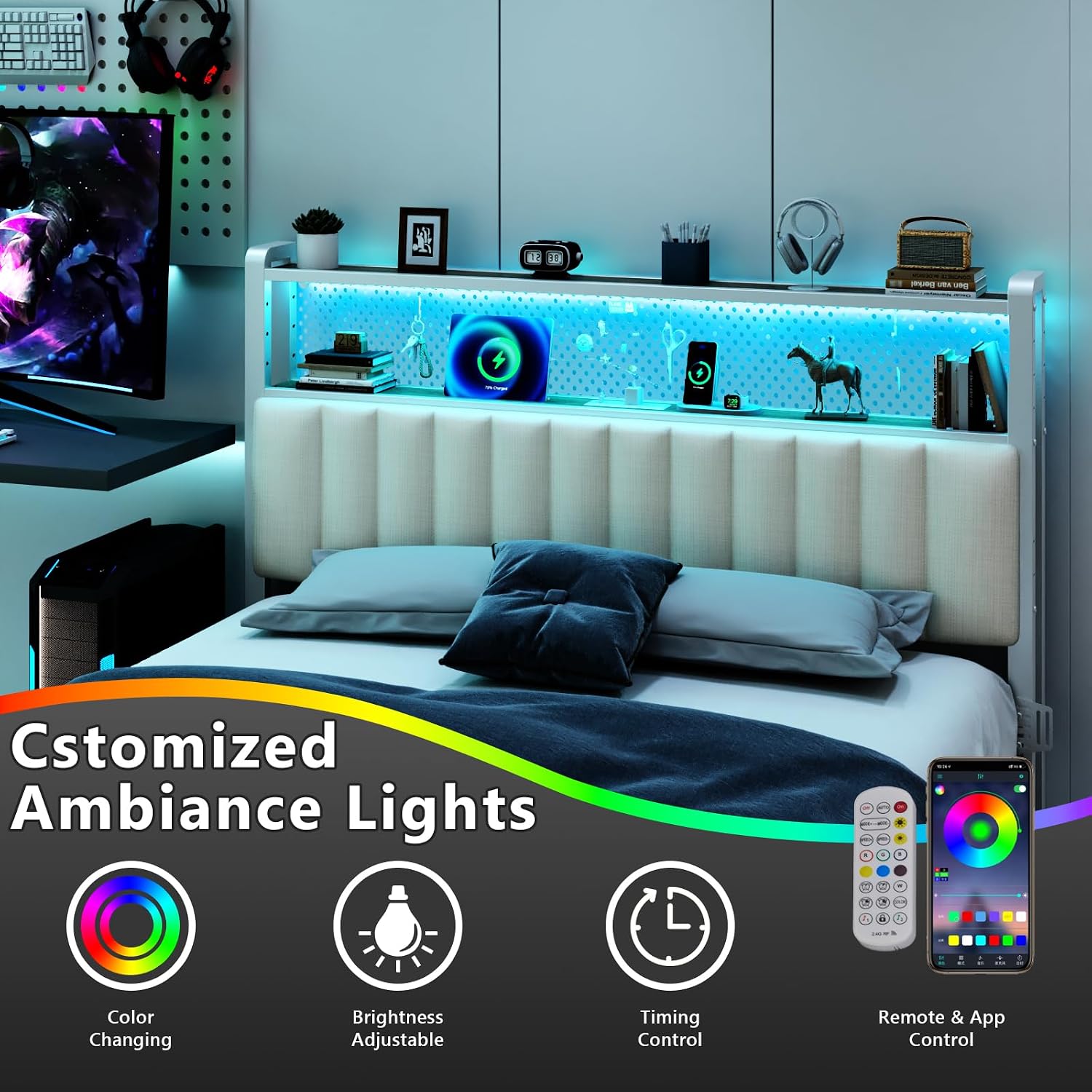

A bedroom scene showing the headboard with blue LED lights illuminated. An overlay displays icons for color changing, brightness adjustable, timing control, and remote & app control.

Image: Customizable ambiance lights with control options.

5. Vzdrževanje

Čiščenje: For the upholstered fabric, gently spot clean with a damp cloth and mild detergent. Avoid harsh chemicals. For the metal frame and shelves, wipe with a soft, dry or slightly damp krpo.
Odstranjevanje prahu: Regularly dust the headboard, especially the shelves and pegboard, to prevent accumulation.
Pritrdilni elementi: Občasno preverite vse vijake in povezave, da se prepričate, da so trdno priviti. Če opazite kakršno koli zračnost, jih ponovno privijte.
Električne komponente: Ensure the charging station and LED lights are free from dust and debris. Do not attempt to clean electrical ports with liquids.

6. Odpravljanje težav

Težava	Možen vzrok	rešitev
Headboard is wobbly.	Loose connections or uneven installation.	Check and tighten all screws and bolts. Ensure the headboard is properly aligned with the bed frame.
Polnilna postaja ne deluje.	Power cable not plugged in, device cable faulty, or power surge.	Verify the headboard's power cable is securely plugged into a working wall outlet. Test with a different device cable. Check if the outlet is functional.
LED lights not turning on/responding.	Power connection issue, remote battery low, or app not paired.	Ensure the LED light power cable is connected. Replace remote batteries. Re-pair the mobile app with the LED lights according to the light manual.
Shelves seem unstable.	Overloaded or improperly secured.	Reduce weight on shelves (do not exceed 66 lbs). Ensure shelves are correctly seated and secured at the desired height.

7. Specifikacije

Funkcija	Podrobnost
Znamka	VINGLI
Model	Full & 2 Shelves
Material	Metal Frame, Upholstered Fabric (Linen)
Slog	Moderno
Headboard Height Adjustment	21.6 do 41.3 palcev
Nastavitev višine police	Do 9.9 palcev
Vrata za polnjenje	2 USB (5V/2A), 1 Type-C (5V/2A)
AC vtičnice	2 AC (125 V/12 A)
Maximum Shelf Weight Recommendation	66 funtov (30 kg)
Zahtevana montaža	ja
Mere predmeta (Š x V)	55.51 cm Š x 45.28 cm V

8. Garancija in podpora

For warranty information or technical support, please refer to the contact details provided in your product packaging or visit the official VINGLI webmesto. Shranite račun za garancijske zahtevke.

Kontaktni podatki:

Proizvajalec: VINGLI
Webspletno mesto: VINGLI Official Store (Link to Amazon Brand Store for general information)
Storitev za stranke: Refer to your product documentation for specific contact methods.

VINGLI Full & 2 Shelves
