This manual provides detailed instructions for the installation, operation, and maintenance of your ARK DESIGN Paneled Manufactured Wood and Glass Pivot-French Door. This door features a unique pivot mechanism designed for space efficiency and aesthetic appeal, suitable for various interior applications.

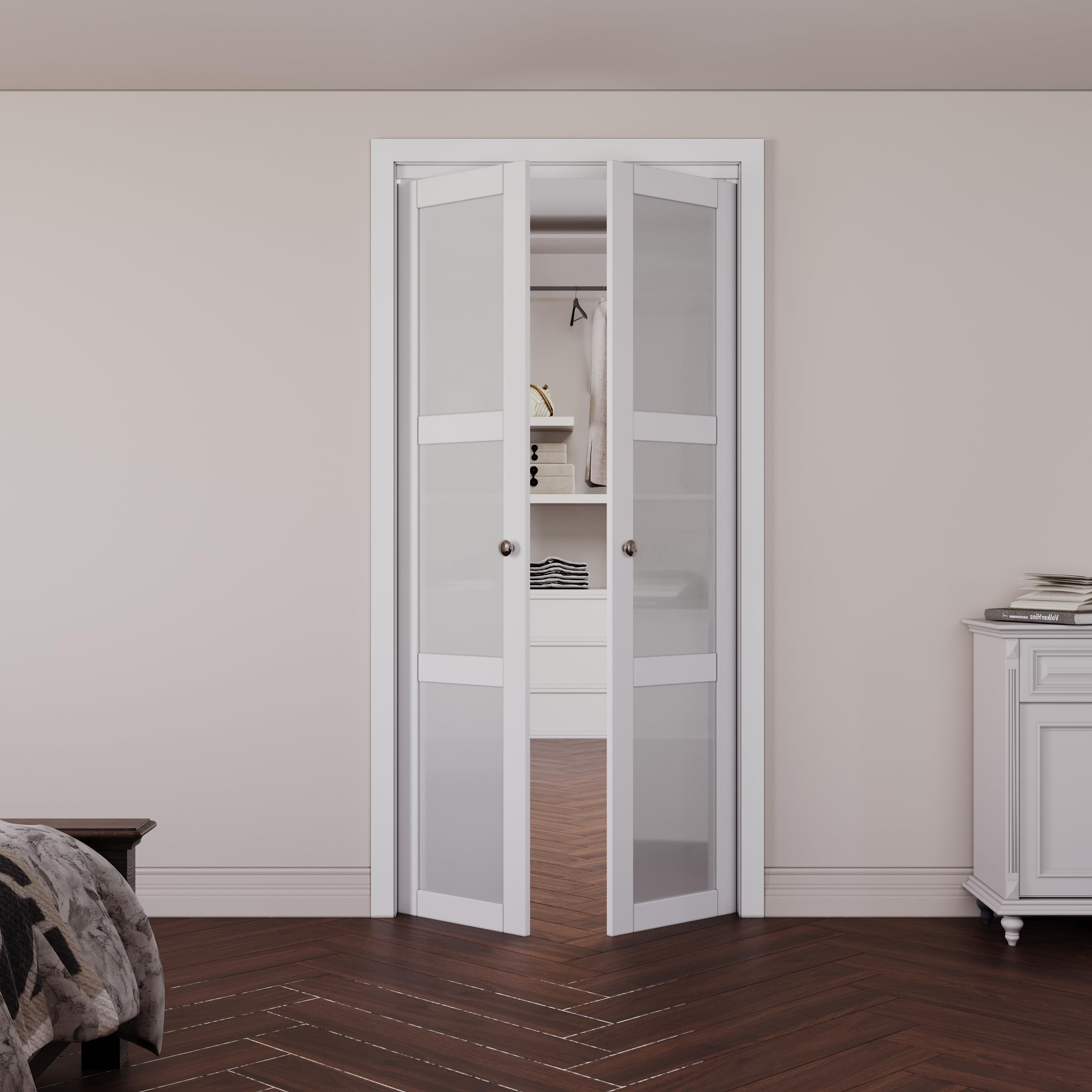

Image: The ARK DESIGN 36" x 80" Pivot-French Door, showcasing its design and functionality within a room setting.
The door is constructed from high-quality engineered wood with scratch-resistant finishes and features tempered frosted glass panels. The frosted glass provides privacy while allowing natural light to diffuse through, and the lower paneled design offers additional protection.
Varnostne informacije
- Med namestitvijo vedno nosite ustrezno osebno zaščitno opremo (OZO), vključno z zaščitnimi očali in rokavicami.
- Ensure the installation area is clear of obstructions and adequately lit.
- Handle glass panels with care to prevent breakage and injury.
- Verify that all hardware is securely fastened before operating the door.
- Otroke in hišne ljubljenčke držite stran od območja namestitve.
- Do not attempt to modify the door or its hardware, as this may compromise safety and performance.
Vsebina paketa
Before beginning installation, verify that all components are present and undamaged. If any parts are missing or damaged, contact ARK DESIGN customer support.
- Vratne plošče (2)
- Upper Pivot Connectors
- Lower Jamb Pivot
- Pull Set (Door Handles)
- Magnetni nosilec
- Pritrdilni vijaki in pritrdilni elementi
Image: Key hardware components included with the pivot door, such as the upper pivot, pull set, lower jamb pivot, and magnet bracket.
Specifikacije
| Vrsta vrat | Paneled Manufactured Wood and Glass Pivot-French Door |
| Velikost modela | 36 cm x 80 cm |
| Višina vratne plošče | Approximately 77 13/16" |
| Groba višina odprtine | Approximately 80 8/16" |
| Door Width Size | 36" |
| Velikost skladbe | 14/16" |
| Upper Pivot Size | 14/16" |
| Lower Jamb Pivot Size | 14/16" |
| Materiali | Engineered Wood, Tempered Frosted Glass |
Image: Detailed diagram showing the critical dimensions for the door and its rough opening, including pivot and track sizes.
The tempered glass is approximately 8 times stronger than regular glass, enhancing durability. The frosted finish adds brightness to the room while maintaining privacy.
Image: Visual representation of the frosted and tempered glass, highlighting its strength and privacy features.
Nastavitev in namestitev
This pivot door is designed for straightforward installation with pre-drilled holes and included hardware. Refer to the 'Door Size' and 'Pivot Door Hardware' images for component identification and measurements.
- Pripravite otvoritev: Ensure your rough opening dimensions match the specifications provided (approximately 80 8/16" height for a 36" x 80" door). The opening should be plumb, level, and square.
- Install Upper Pivot Connectors: Mount the upper pivot connectors to the top frame of your door opening according to the provided hardware instructions. Ensure they are securely fastened and correctly aligned.
- Install Lower Jamb Pivot: Secure the lower jamb pivot to the floor or bottom frame of the door opening. Precise placement is crucial for proper door operation.
- Attach Hardware to Door Panels: Install the corresponding pivot hardware onto the top and bottom edges of each door panel. The door panels come with pre-drilled holes for this purpose. Attach the pull set (handles) to the door panels.
- Montaža vratnih plošč: Carefully lift each door panel and engage the upper pivot into its connector. Then, align and secure the lower pivot into the lower jamb pivot. Adjust as necessary to ensure smooth rotation.
- Install Magnet Bracket: Attach the magnet bracket to the door frame to ensure the doors remain closed when not in use.
- Končne prilagoditve: Test the door's operation. Make any minor adjustments to the pivot hardware to ensure the door swings freely and closes properly.
Navodila za uporabo
To operate your pivot door, simply grasp the pull set (handles) and gently push or pull the door to rotate it open or closed. The pivot mechanism allows for a smooth, 360-degree rotation, maximizing accessibility and room flow. Ensure no obstructions are in the door's path during operation.
Vzdrževanje
- Čiščenje: For the manufactured wood surfaces, wipe with a soft, damp cloth. Avoid abrasive cleaners or harsh chemicals. For the tempered frosted glass, use a standard glass cleaner and a lint-free cloth.
- Pregled strojne opreme: Periodically check all pivot connectors, screws, and the magnet bracket for tightness. Tighten any loose fasteners to ensure continued smooth operation and safety.
- Mazanje: If the pivot mechanism begins to squeak or feel stiff, apply a small amount of silicone-based lubricant to the pivot points.
- Izogibajte se udarcem: While the tempered glass is durable, avoid strong impacts that could cause damage.
Odpravljanje težav
- Door not pivoting smoothly: Check for obstructions around the door's path. Inspect pivot hardware for debris or damage. Ensure pivot points are lubricated. Verify that the door frame is plumb and level.
- Vrata se ne zaprejo popolnoma: Check the alignment of the magnet bracket and ensure it is securely fastened. Adjust the pivot hardware if necessary to ensure proper door closure.
- Door appears misaligned: Re-check the installation of the upper and lower pivot hardware. Ensure they are installed at the correct distances and are level with each other.
Garancija in podpora
For warranty information, technical support, or to inquire about replacement parts, please contact ARK DESIGN customer service. Refer to your purchase documentation for specific warranty terms and contact details.
