1. Varnostna navodila
Pred namestitvijo in uporabo natančno preberite vsa navodila. Priročnik shranite za poznejšo uporabo.
- Električna varnost: Always disconnect power at the main circuit breaker before installing, cleaning, or servicing the fan. Ensure all electrical connections comply with local codes and ordinances.
- Profesionalna namestitev: Due to the nature of ceiling fan installation, professional assistance is recommended to ensure proper and safe setup.
- Montaža: The mounting structure must be capable of supporting the fan's weight (approximately 3 kg). Ensure the ceiling junction box is securely fastened and rated for fan support.
- Razdalja rezila: Maintain a minimum clearance of 7 feet (2.1 meters) from the floor to the fan blades and at least 18 inches (45 cm) from walls or other obstructions.
- Izogibajte se stiku: Med delovanjem ventilatorja ne vstavljajte predmetov v pot lopatic ventilatorja.
- Vir svetlobe: The LED light source is not user-replaceable. Contact qualified service personnel if the light fails.
2. Vsebina paketa
Pred začetkom namestitve preverite, ali so vse komponente prisotne in nepoškodovane.
- Sklop motorja ventilatorja
- Fan Blades (42-inch)
- Komplet LED luči
- Daljinski upravljalnik
- Montažni nosilec
- Downrod
- Nadstrešek
- Paket strojne opreme (vijaki, podložke, matice)
- Uporabniški priročnik
3. Nastavitev in namestitev
Professional installation is recommended. Refer to the included instruction manual and online video resources for detailed steps.
3.1 Preverjanja pred namestitvijo
- Prepričajte se, da je napajanje izklopljeno na odklopniku.
- Preverite, ali stropna konstrukcija lahko prenese težo ventilatorja.
- Zberite vsa potrebna orodja (izvijač, klešče za odstranjevanje izolacije, lestev itd.).
3.2 Komponenta večview

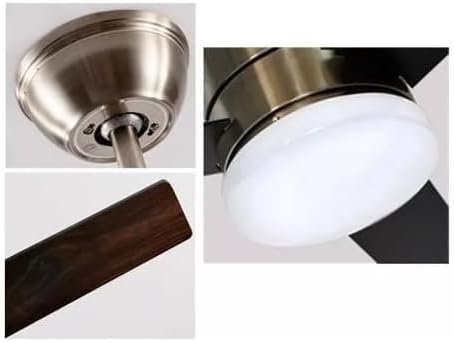

Slika: Bližnji posnetek view of the fan's canopy, light fixture, and a single wooden blade, illustrating key components for assembly.
3.3 Namestitev montažnega nosilca
- Secure the mounting bracket to the ceiling junction box using appropriate screws and washers. Ensure it is firmly attached.
3.4 Downrod and Motor Assembly
- Feed the electrical wires from the fan motor through the downrod.
- Attach the downrod to the fan motor assembly, securing it with the provided pin and screws.
3.5 Žične povezave
- Previdno dvignite sklop ventilatorja in ga obesite na nosilec.
- Connect the fan's electrical wires (Live, Neutral, Ground) to the corresponding household wires using wire nuts. Ensure the remote receiver is wired correctly between the household supply and the fan motor.
3.6 Pritrditev rezila
- Vsako lopatico ventilatorja pritrdite na ohišje motorja s priloženimi vijaki. Prepričajte se, da so vsi vijaki varno priviti.
3.7 Namestitev kompleta luči
- Connect the light kit wires to the fan motor's light wires.
- Attach the light kit to the bottom of the fan motor assembly, then secure the light cover.
3.8 Namestitev nadstreška
- Slide the canopy up to the ceiling and secure it to the mounting bracket with the designated screws, covering all wiring.
3.9 Installation Video Reference
Video: Detailed installation guide for a 42-inch ceiling fan with light. This video demonstrates the assembly and wiring process.
4. Navodila za uporabo
The Megaluz CF1101A-42 ceiling fan is operated using the included remote control.
4.1 Funkcije daljinskega upravljalnika
Image: The remote control for the Megaluz ceiling fan, showing buttons for fan speed, light control, and timer functions.
- Vklop/izklop ventilatorja: Pritisnite gumb za ventilator, da vklopite ali izklopite ventilator.
- Hitrost ventilatorja: Use the speed buttons (1, 2, 3) to adjust the airflow intensity. The fan offers 3 speeds: subtle, natural, and intense.
- Vklop/izklop luči: Pritisnite gumb za luč, da vklopite ali izklopite LED-luč.
- Barvna temperatura svetlobe: Cycle through cool white (6000 K), neutral (4000 K), and warm yellow (3000 K) light modes.
- Zatemnitev svetlobe: Adjust the light intensity from dim to bright.
- Funkcija časovnika: Set the fan to automatically turn off after a specified period (e.g., 1H, 2H, 4H).
4.2 Svetlobni načiniview
Image: Visual representation of the fan's adjustable light temperatures: warm (3000K), neutral (4000K), and cool (6000K).
4.3 General Operation Video
Video: Kratek pregledview of the 42-inch ceiling fan with light, potentially demonstrating its features and operation.
5. Vzdrževanje
Redno vzdrževanje zagotavlja optimalno delovanje in podaljšuje življenjsko dobo vašega stropnega ventilatorja.
- Čiščenje: To prevent dust buildup, periodically clean the fan blades and light cover with a soft, damp cloth. Do not use abrasive cleaners or solvents. Ensure the fan is off and power is disconnected before cleaning.
- Zategnite pritrdilne elemente: Periodically check all screws and fasteners on the fan and mounting hardware. Tighten any loose connections to prevent noise and ensure safe operation.
- Mazanje ni potrebno: Motor ventilatorja je trajno namazan in ne potrebuje dodatnega mazanja.
6. Odpravljanje težav
Če imate težave z ventilatorjem, si oglejte naslednje pogoste težave in rešitve:
| Težava | Možen vzrok | rešitev |
|---|---|---|
| Ventilator se ne zažene | Brez napajanja Ohlapno ožičenje Prazna baterija daljinskega upravljalnika | Preverite odklopnik in stensko stikalo Preverite, ali so vse žične povezave varne (najprej izklopite napajanje) Zamenjajte baterijo daljinskega upravljalnika |
| Svetloba ne deluje | Ohlapno ožičenje Light kit connection issue | Check light kit wiring connections (power off first) Ensure light kit is properly seated |
| Ventilator je hrupen | Loose fan blades or mounting screws Neuravnotežena rezila | Tighten all blade and mounting screws Ensure blades are balanced (a balancing kit may be needed) |
| Daljinski upravljalnik se ne odziva | Prazna baterija Daljinski upravljalnik ni seznanjen | Zamenjajte baterijo daljinskega upravljalnika Refer to remote control pairing instructions in the full manual |
7. Specifikacije
| Funkcija | Podrobnost |
|---|---|
| Znamka | Megaluz |
| Številka modela | CF1101A-42 |
| Velikost | 42 palcev |
| Vrsta svetlobe | Integrirana LED |
| Temperature barv svetlobe | Cool White (6000K), Neutral (4000K), Warm Yellow (3000K) |
| Intenzivnost svetlobe | Možnost zatemnitve |
| Hitrosti ventilatorja | 3 hitrosti |
| Vrsta motorja | Silent DC Motor |
| Nadzorna metoda | Daljinski upravljalnik |
| Material | Les, Kovina |
| Vir napajanja | AC |
| voltage | 127 V |
| Pogostost | 60Hz |
| Svetlobni tok | 3000 lumnov |
| Življenjska doba LED | 50,000 ur |
| Teža predmeta | 3 kilogramov |
| Vrsta namestitve | Stropni nosilec |
Image: Dimensions of the Megaluz CF1101A-42 ceiling fan, showing its compact design suitable for various room sizes.
8. Informacije o garanciji
This Megaluz product is covered by the manufacturer's standard warranty. Please refer to the warranty card included in your package for specific terms, conditions, and duration. Keep your purchase receipt as proof of purchase for any warranty claims.
9. Podpora strankam
For technical assistance, troubleshooting not covered in this manual, or warranty inquiries, please contact Megaluz customer support.
- Webspletno mesto: Visit the Megaluz Store on Amazon
- E-pošta: [Insert Manufacturer Support Email Here]
- telefon: [Insert Manufacturer Support Phone Number Here]
Please have your model number (CF1101A-42) and purchase date ready when contacting support.
