eXtremeRate RISE V3 Remap Kit for PS5 Controller (BDM-030, BDM-040, BDM-050) Instruction Manual

1. Uvod

This manual provides comprehensive instructions for the installation, operation, and maintenance of your eXtremeRate RISE V3 Remap Kit. This kit is designed to enhance your PlayStation 5 controller by adding two programmable back buttons, transforming it into a professional eSport elite controller. Please read these instructions carefully before proceeding with installation.

2. Združljivost

The RISE V3 Remap Kit is compatible only with PlayStation 5 controllers with board models BDM-030, BDM-040, and BDM-050. It is NE compatible with BDM-010 or BDM-020 models. Verifying your controller's BDM model is crucial before installation.

Image showing compatibility with PS5 controller models BDM-030, BDM-040, BDM-050.

Slika 2.1: Združljivost nadview for BDM-030, BDM-040, and BDM-050 PS5 controller models.

2.1 How to Check Your Controller's BDM Model

To determine your controller's BDM model, you can use the official eXtremeRate tool or visually inspect the controller. Refer to the video below for a detailed guide.

Video 2.1: Guide on how to check your PS5 controller's BDM model using the eXtremeRate tool.

3. Vsebina paketa

Before beginning installation, please ensure all components listed below are present in your package.

RISE V3 Remap Board
FPC kabel
Redesigned Back Shell
2 Back Buttons (Paddles)
Izvijač in vijaki
Prying Tool
Other necessary small components

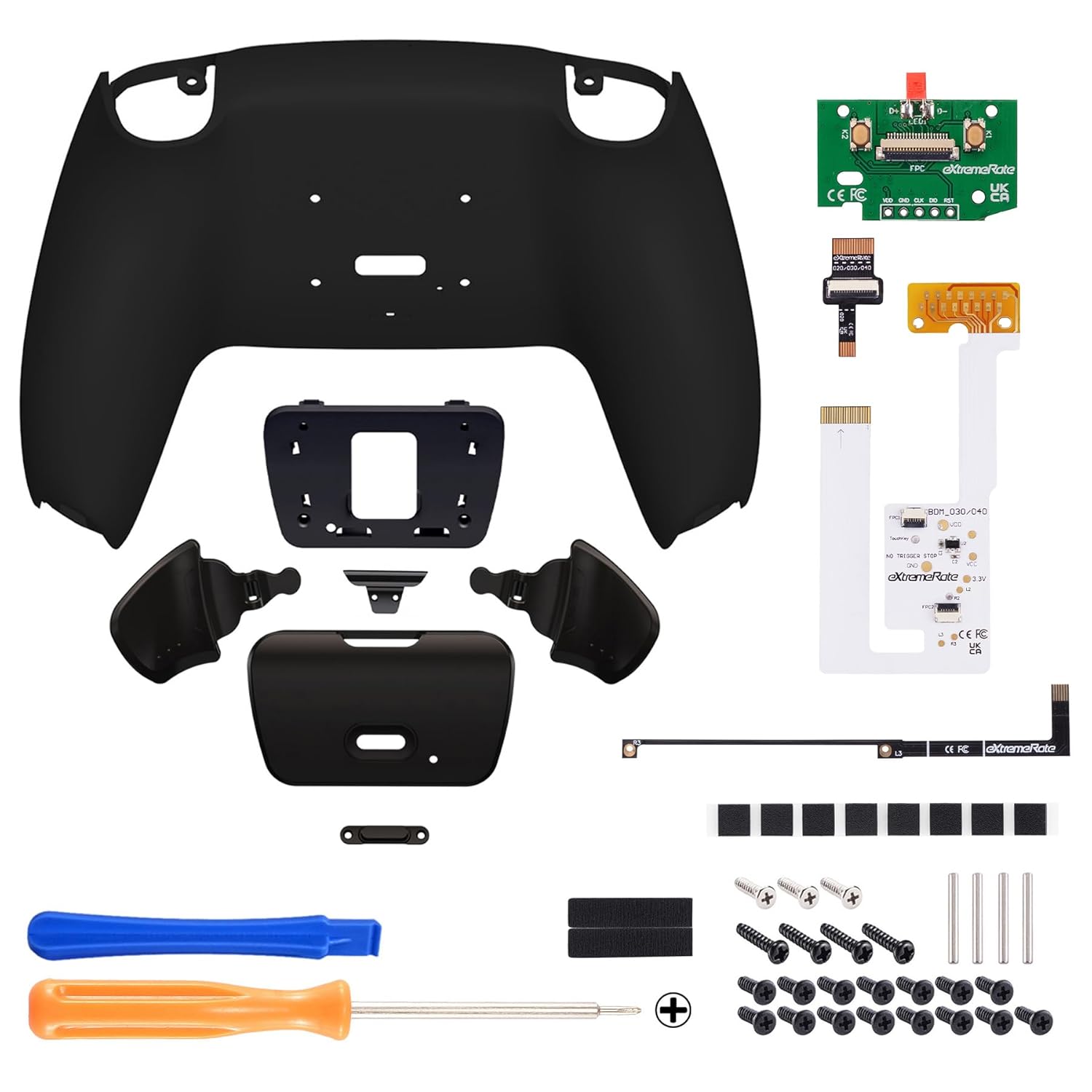

Image showing all components included in the eXtremeRate RISE V3 Remap Kit.

Figure 3.1: Contents of the RISE V3 Remap Kit.

4. Vodič za namestitev

Installation of the RISE V3 Remap Kit requires high hands-on skills. Soldering is optional depending on the desired functionality. Please follow the instructions carefully. It is recommended to watch the installation video before starting.

4.1 Splošna namestitevview

The process involves disassembling your PS5 controller, installing the remap board and FPC cable, attaching the new back shell with paddles, and reassembling the controller. Ensure all connections are secure.

Video 4.1: Konecview of the eXtremeRate RISE Remap Kit installation process.

4.2 Key Installation Steps (Visual Aid)

Disassemble the controller carefully using the provided tools.
Install the RISE V3 remap board and connect the FPC cable to the controller's mainboard.
Secure the back paddles into the redesigned bottom shell.
Reassemble the controller, ensuring all wires are properly routed and not pinched.

Notranji view of the PS5 controller with the eXtremeRate RISE V3 Remap Kit components installed.

Slika 4.1: Notranji view of the remap board installation.

Zadaj view of a PS5 controller with the eXtremeRate RISE V3 Remap Kit back paddles installed.

Slika 4.2: Zunanji view of the installed back paddles.

5. Operating Instructions: Programming Back Buttons

The RISE V3 Remap Kit allows you to assign up to 15 different controller buttons to the two ergonomic back paddles. These buttons include X, O, Triangle, Square, Up, Down, Left, Right, L1, L2, R1, R2, L3, R3, and the Touchpad Button.

5.1 Način programiranja

Pritisnite in držite Gumb za nastavitev (located on the back of the kit, usually a small button in the center) for 3 seconds to enter programming mode. The LED indicator will light up.
Press the back paddle (K1 or K2) you wish to program, then press the desired button on the front of the controller (e.g., X, O, Triangle).
Pritisnite Gumb za nastavitev again to save the assignment and exit programming mode. The LED indicator will turn off.
Repeat for the other back paddle if desired.

Zadaj view of the PS5 controller with the eXtremeRate RISE V3 Remap Kit, highlighting the LED indicator, setting button, and back buttons.

Figure 5.1: Location of LED indicator, setting button, and back buttons.

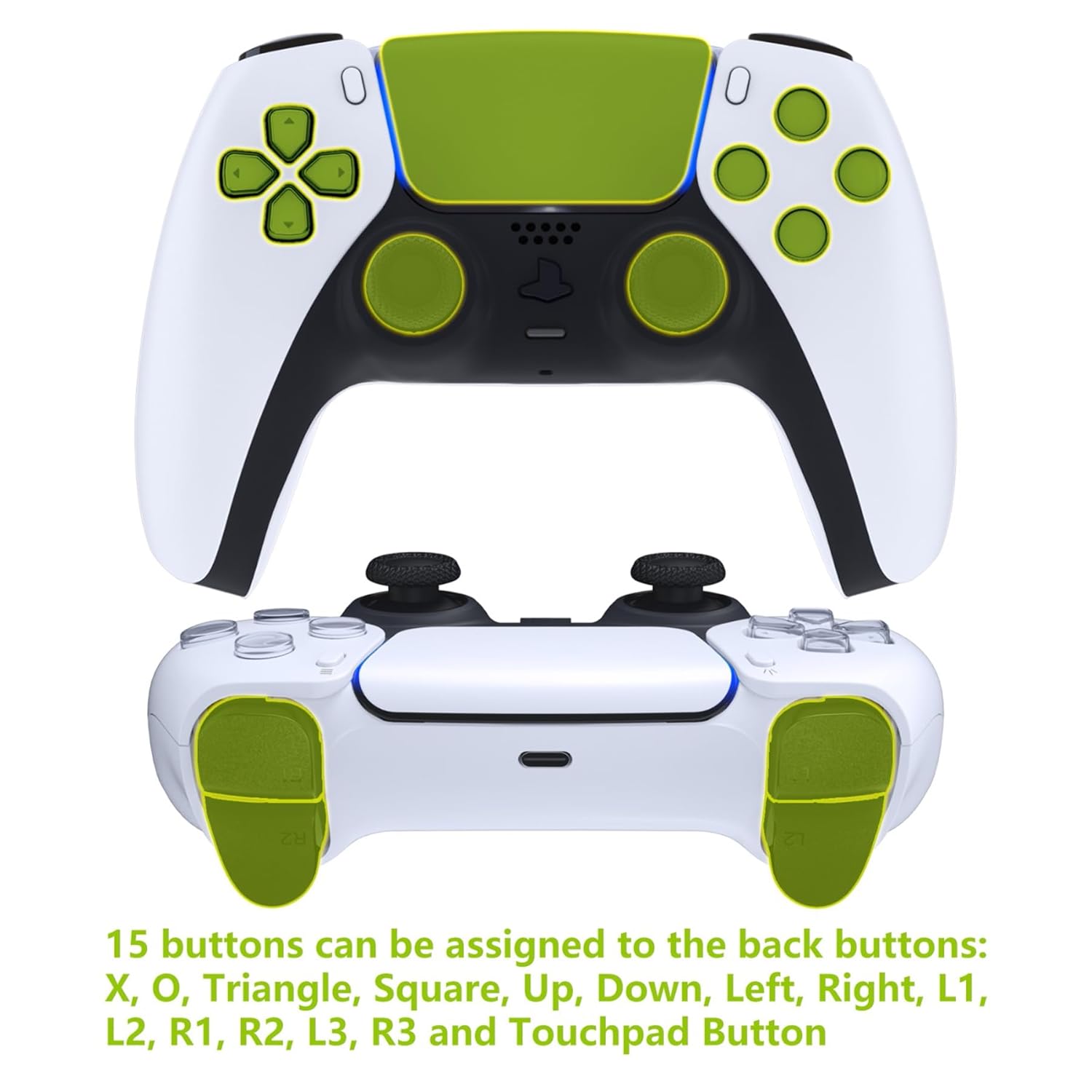

Spredaj in zadaj view of a PS5 controller, illustrating the 15 buttons that can be assigned to the back paddles.

Figure 5.2: Assignable buttons for the back paddles.

6. Vzdrževanje

Proper maintenance ensures the longevity and optimal performance of your remap kit.

6.1 Navodila za čiščenje

It is recommended to clean the plastic components with a wipe dampnamočeno z vodo.
If alcohol is used, ensure it is less than 70% concentration.
Place the cleaned components in a well-ventilated area to dry completely.
NE spray water or alcohol directly onto the product surface.
NE use any other organic solvents for cleaning.

Graphic illustrating cleaning instructions for plastic products: wipe with damp cloth, air dry, do not spray directly, do not use organic solvents.

Figure 6.1: Cleaning guidelines for plastic components.

7. Odpravljanje težav

If you encounter issues with your RISE V3 Remap Kit, refer to the following common problems and solutions.

Težava	Možen vzrok	rešitev
Back paddles not responding or working intermittently.	Loose FPC cable connection, incorrect button mapping, or faulty paddle.	Re-enter programming mode and re-map the buttons. Carefully re-open the controller and check all FPC cable connections for secure fit. Ensure no wires are pinched during reassembly.
Controller not closing properly or buttons sticking.	Incorrect component placement, wires pinched, or incompatible controller model.	Verify your controller's BDM model is BDM-030, BDM-040, or BDM-050. Ensure all internal components are seated correctly and wires are routed without obstruction. Check for any excess material or debris preventing proper closure.
Controller does not power on after installation.	Battery connection issue, short circuit, or damaged component.	Double-check the battery connection. Inspect the mainboard and FPC cable for any visible damage or incorrect connections. Če niste prepričani, poiščite strokovno pomoč.

8. Specifikacije

Znamka: eXtremeRate
Model: XPFP3009G4 (RISE V3 Remap Kit)
Združljivost: PS5 Controller BDM-030, BDM-040, BDM-050
Programabilni gumbi: 2 back paddles, assignable to 15 different controller buttons
Material: Metal (for certain components, kit includes plastic shell)
Teža artikla: 50 Grams (approximate for the kit)

9. Garancija in podpora

For warranty information or technical support, please contact the seller directly through your purchase platform. Ensure you retain your proof of purchase for any warranty claims.

Prodajalec: EXR Gaming Store

For additional resources and video guides, you may visit the official eXtremeRate website or their YouTube channel.

eXtremeRate XPFP3009G4
