Uvod
This manual provides essential information for the safe and efficient operation, installation, and maintenance of your Samsung WW12DG5B24AXTL 12kg Front Load Washing Machine. Please read this manual thoroughly before using the appliance and retain it for future reference.
Varnostne informacije
Always follow basic safety precautions when using this appliance to reduce the risk of fire, electric shock, or injury. Ensure the washing machine is properly grounded. Do not allow children to play on or in the appliance. Disconnect the power supply before performing any maintenance or cleaning. Do not wash items that have been contaminated with flammable substances.
Navodila za namestitev
1. Razpakiranje in namestitev
Carefully remove all packaging materials. Ensure the machine is placed on a firm, level surface. Avoid direct sunlight or extreme temperatures. Leave adequate space around the machine for ventilation and connections.

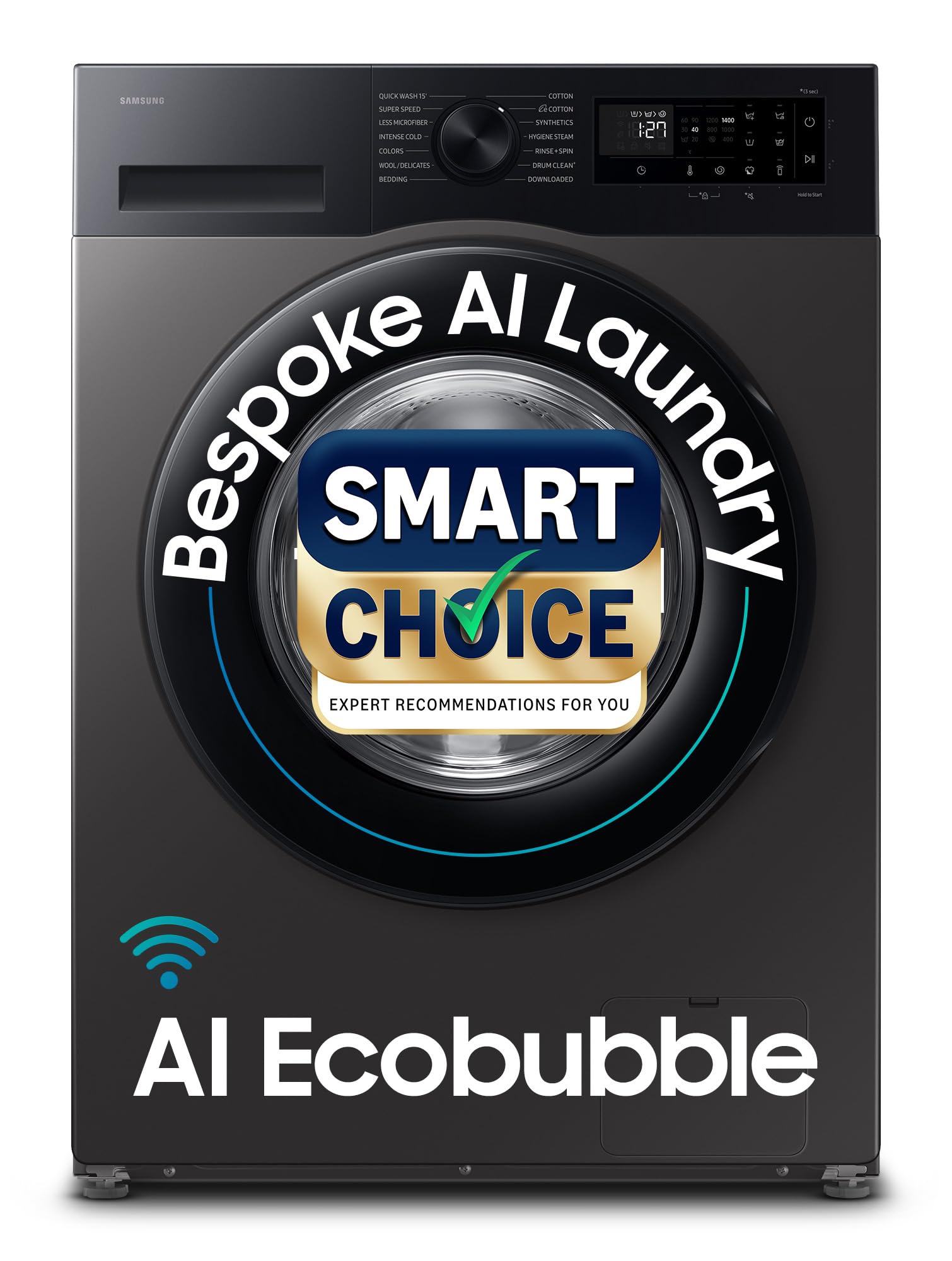

Slika: spredaj view of the Samsung WW12DG5B24AXTL washing machine, showcasing its modern design and front-load door.
2. Priključek za oskrbo z vodo
Connect the inlet hose to the water tap and the washing machine's inlet valve. Ensure connections are tight to prevent leaks. The water pressure should be between 50-800 KPa.
3. Namestitev odtočne cevi
Securely attach the drain hose to a standpipe or laundry tub, ensuring it is not kinked or blocked. The drain hose should be positioned at an appropriate height to prevent siphoning.
4. Leveling the Washing Machine
Z vodno tehtnico zagotovite, da je stroj popolnoma raven. Po potrebi prilagodite nivelirne nogice, da preprečite prekomerne vibracije in hrup med delovanjem.
5. Napajalni priključek
Priključite napajalni kabel v ozemljeno električno vtičnico. Prepričajte se, da je glasnosttage ustreza zahtevam stroja (230 voltov).
Vključene komponente:
- 1 pralni stroj
- Odtok cevi
- Dovod cevi
- Sponka Prstan
- Vijačna montaža
Navodila za uporabo
1. Nadzorna plošča je končanaview
The AI Control LED Touch Panel features an intuitive interface with an easy-to-use Jog Dial for program selection and a touch panel for additional settings. The display shows cycle time, temperature, spin speed, and other relevant information.
Slika: Podrobna view of the AI Control LED Touch Panel, showing the Jog Dial and various touch-sensitive buttons for cycle selection and settings.
2. Vstavljanje perila
Open the door and load laundry into the drum. Do not overload the machine; ensure there is enough space for clothes to tumble freely. The machine has a 12 kg capacity, suitable for large families.
Image: The washing machine with its door open, revealing the spacious stainless steel drum, designed for effective and gentle washing.
3. Dodajanje detergenta in mehčalca
Pull out the detergent drawer. Add the appropriate amount of detergent to the main wash compartment and fabric softener to the softener compartment. Refer to detergent packaging for recommended amounts.
Image: The detergent drawer, clearly showing compartments for detergent and fabric softener, designed for easy loading.
4. Izbira cikla pranja
Turn the Jog Dial to select one of the 14 available wash programs. Common programs include:
- Super hitrost: Washes in just 39 minutes.
- Hitro pranje 15 minut: Za rahlo umazano perilo.
- Bombaž: Standard wash for cotton fabrics.
- Sintetika: Za sintetične tkanine.
- Higienska para: Removes 99.9% germs and allergens using steam.
- Posteljnina: For washing heavy loads like blankets.
- Barve: Protects colored garments.
- Drum Clean+: Za čiščenje bobna pralnega stroja.
- Less Microfiber: Reduces microfiber release into drain water.
- Wool/Delicates: Nežno pranje za občutljive predmete.
Additional cycles can be downloaded via the SmartThings App.
5. Starting a Wash
Press the Start/Pause button to begin the selected cycle. The machine will automatically adjust water levels and wash times based on the load and program.
Ključne tehnologije:
- AI Ecobubble: Generates bubbles that penetrate fabric faster, offering up to 45% better fabric care and 70% energy savings.
- Način umetne inteligence za energijo: Optimizes energy consumption, providing up to 70% energy savings. Monitor and control via the SmartThings app.
- Higienska para: Releases steam from the bottom of the drum, removing ingrained dirt and 99.9% of bacteria and allergens.
- Super hitrost: Completes a full wash cycle in just 39 minutes without compromising cleaning performance.
- Wi-Fi Embedded & SmartThings: Connect your washing machine to your home Wi-Fi network and control it remotely using the SmartThings app. Features include cycle selection, monitoring, and self-diagnosis.
- SpaceMax: Provides a larger drum capacity (12kg) within a standard external dimension.
Image: A visual representation of AI Ecobubble technology, highlighting its benefits in energy saving, soil removal, and fabric care.
Image: Illustration of the AI Energy Saving mode, demonstrating how it connects to a smartphone via Wi-Fi for energy monitoring and optimization.
Vzdrževanje
1. Drum Clean+ Cycle
Regularly run the Drum Clean+ cycle to remove dirt and 99.9% of odor-causing bacteria from the drum. This helps maintain hygiene and extends the life of your machine.
2. Čiščenje predala za detergent
Predal za detergent redno odstranjevajte in čistite, da preprečite nabiranje ostankov. Preden ga ponovno vstavite, ga sperite pod tekočo vodo in temeljito posušite.
3. Cleaning the Debris Filter
Locate the debris filter at the bottom front of the machine. Open the cover, drain any residual water, and carefully remove and clean the filter. This prevents blockages and ensures efficient drainage.
4. Zunanje čiščenje
Zunanjost pralnega stroja obrišite z mehko,amp krpo. Izogibajte se abrazivnim čistilom ali topilom, ki bi lahko poškodovala površino.
Odpravljanje težav
Če imate težave s pralnim strojem, si oglejte naslednje pogoste težave in rešitve:
| Težava | Možen vzrok | rešitev |
|---|---|---|
| Stroj se ne zažene | Power cord unplugged, door not closed properly, cycle not selected. | Check power connection, ensure door is latched, select a wash cycle and press Start. |
| Brez polnjenja z vodo | Vodna pipa je zaprta, dovodna cev je prepognjena, tlak vode je prenizek. | Odprite pipo za vodo, poravnajte cev in preverite tlak vode v hiši. |
| Prekomerne vibracije/hrup | Stroj ni poravnan, transportni vijaki niso odstranjeni, neenakomerna obremenitev. | Prilagodite nivelacijske nogice, poskrbite, da so transportni vijaki odstranjeni (med namestitvijo), in prerazporedite perilo. |
| Voda ne odteka | Drain hose kinked/blocked, debris filter clogged. | Check and clear drain hose, clean the debris filter. |
| Prikazana je koda napake | Specific internal issue (e.g., 3C error for motor issues). | Refer to the full user manual on the Samsung webspletno mesto ali se obrnite na podporo strankam. |
Za podrobnejše odpravljanje težav ali trajne težave se obrnite na podporo strankam Samsung.
Specifikacije
- Model: WW12DG5B24AXTL
- Kapaciteta: 12 kilogramov
- Tip: Fully-Automatic Front Load
- barva: Inox
- Ocena Energy Star: 5 zvezdice
- Letna poraba energije: 0.05 kilovatnih ur na leto
- Največja vrtilna hitrost: 1400 RPM
- Število ciklov pranja: 14 (plus downloadable cycles)
- Material bobna: Stainless Steel (Swirl Drum)
- Motor: Digitalni pretvorniški motor
- Vrsta regulatorja: Jogdial, SmartThings, WiFi
- voltage: 230 volta
- Teža artikla: 71 kilogramov
- Dimenzije izdelka (GxŠxV): 60 G x 60 Š x 85 V centimetrov
- Posebne lastnosti: AI Ecobubble, AI Energy Mode, Hygiene Steam, Super Speed, Wi-Fi, SmartThings, Drum Clean+, Child Lock, Rat Mesh Protection, Rust Proof Body.
Image: The Power Savings Guide label, indicating the 5-star energy rating and energy consumption of 0.05 kWh/kg/cycle for the WW12DG5B24AXTL model.
Informacije o garanciji
Your Samsung WW12DG5B24AXTL washing machine comes with:
- 2-letna obsežna garancija na izdelku.
- 10 leta garancije on the Digital Inverter Motor.
Note: A 20 Year Warranty on the Digital Inverter Motor is applicable for purchases made between 1st December 2022 and 31st March 2026. Terms and Conditions apply. The brand warranty can be availed using the seller invoice.
Image: A graphic emphasizing the durability and warranty of the Digital Inverter Motor, a key component of the washing machine.
Podpora uporabnikom
For all product-related complaints or assistance, please contact Samsung India Customer Care:
- E-pošta: support.india@samsung.com
- Brezplačna telefonska številka: 1800 40 7267864 (1800 40 SAMSUNG)
You can also access the full user manual from the official Samsung webmesto.
