GOOZEEZOO End Fed Half Wave Antenna 1:64/1:49 Balun Antenna Instruction Manual

Uvod

This manual provides comprehensive instructions for the installation, operation, and maintenance of your GOOZEEZOO End Fed Half Wave Antenna (1:64/1:49 Balun Antenna). Please read this manual thoroughly before using the product to ensure optimal performance and longevity.

Image: The GOOZEEZOO End Fed Half Wave Antenna, featuring its compact black housing and SO239 connector.

Konec izdelkaview

The GOOZEEZOO End Fed Half Wave Antenna is designed for amateur radio enthusiasts, offering versatile compatibility and ease of installation for various communication activities. Its robust construction ensures reliable performance in diverse conditions.

• Vsestranska združljivost: Supports custom wire lengths for 4-band (20 meters) and 8-band (40.8 meters) configurations.
• Enostaven za namestitev: Compact and lightweight design facilitates both permanent outdoor installations and temporary field setups.
• Vzdržljiva konstrukcija: Features an ABS shell for enhanced durability and longevity.
• Širok frekvenčni razpon: Operates across 80m, 60m, 40m, 30m, 20m, 16m, 12m, 10m, and 6m bands (1-30MHz).
• Optimizirana zmogljivost: An optimized 1:64 matching ratio (also supports 1:49) ensures minimal signal loss and maximum reception efficiency.

Image: Comparison showing the antenna's upgraded power handling capabilities, now supporting up to 150W SSB.

Image: A close-up of the antenna's label, detailing its 1:64/1:49 ratio, frequency band (1-30MHz), power limits (SSB<150W, CW<120W, Digital Mode<80W), and SO239 connector type.

Image: A hand holding the compact antenna, illustrating its portable and lightweight design.

Navodila za namestitev

1. Prepare Antenna Wire:
   • For 4-band operation, prepare a 1.5-2.5 square millimeter wire approximately 20 meters (65.6 feet) in length.
   • For 8-band operation, prepare a 1.5-2.5 square millimeter wire approximately 40.8 meters (132.5 feet) in length.
2. Connect Antenna Wire:

   Attach the prepared antenna wire to the designated terminal on the balun. Ensure a secure connection. For optimal stress relief and to prevent wires from touching, consider using zip ties or similar insulators if connecting to the top loops, as the wing nuts may not provide sufficient strain relief for long wires.



   Slika: Bližnji posnetek view demonstrating how to connect the antenna wire to the balun's terminals for both 4-band and 8-band configurations.

3. Namestitev antene:

   The antenna requires suspension from a mast or a sturdy tree. Ensure the installation height is at least two meters (approximately 6.5 feet) above ground for effective operation. The compact and lightweight design allows for easy deployment in various outdoor settings.



   Slika: Bivši/aample of the antenna installed outdoors, suspended between a tree and a distant support, demonstrating a typical field deployment.

4. Priključite koaksialni kabel:

   Connect your 50 Ohm coaxial cable to the SO239 connector on the balun. Ensure the connection is tight and weatherproofed.



   Slika: Podrobna view of the SO239 connector on the antenna, ready for coaxial cable attachment.
5. Splošna navodila za namestitev:

   Refer to the table below for general installation requirements for various antenna types, including the End-Fed Antenna.



   Image: A table outlining installation requirements for different antenna models, including the End-Fed Antenna which specifies requiring a mast or tree and a minimum installation height of two meters.

Navodila za uporabo

The GOOZEEZOO End Fed Half Wave Antenna is designed for operation across a wide range of frequencies and modes.

• Frekvenčno območje: 1-30 MHz, covering 80m, 60m, 40m, 30m, 20m, 16m, 12m, 10m, and 6m amateur radio bands.
• Podprti načini: CW, FM, AM, FT4, FT8, SSB.
• Upravljanje moči:
  • SSB: Up to 150W
  • CW: Up to 120W
  • FM, AM, FT4, FT8 (Digital Modes): Up to 80W

  Note: For digital modes like FT8, it is recommended not to exceed 80W to prevent overheating, especially during extended transmissions.
• Impedanca: 50 ohmov
• Matching Ratio: 1:64 / 1:49.

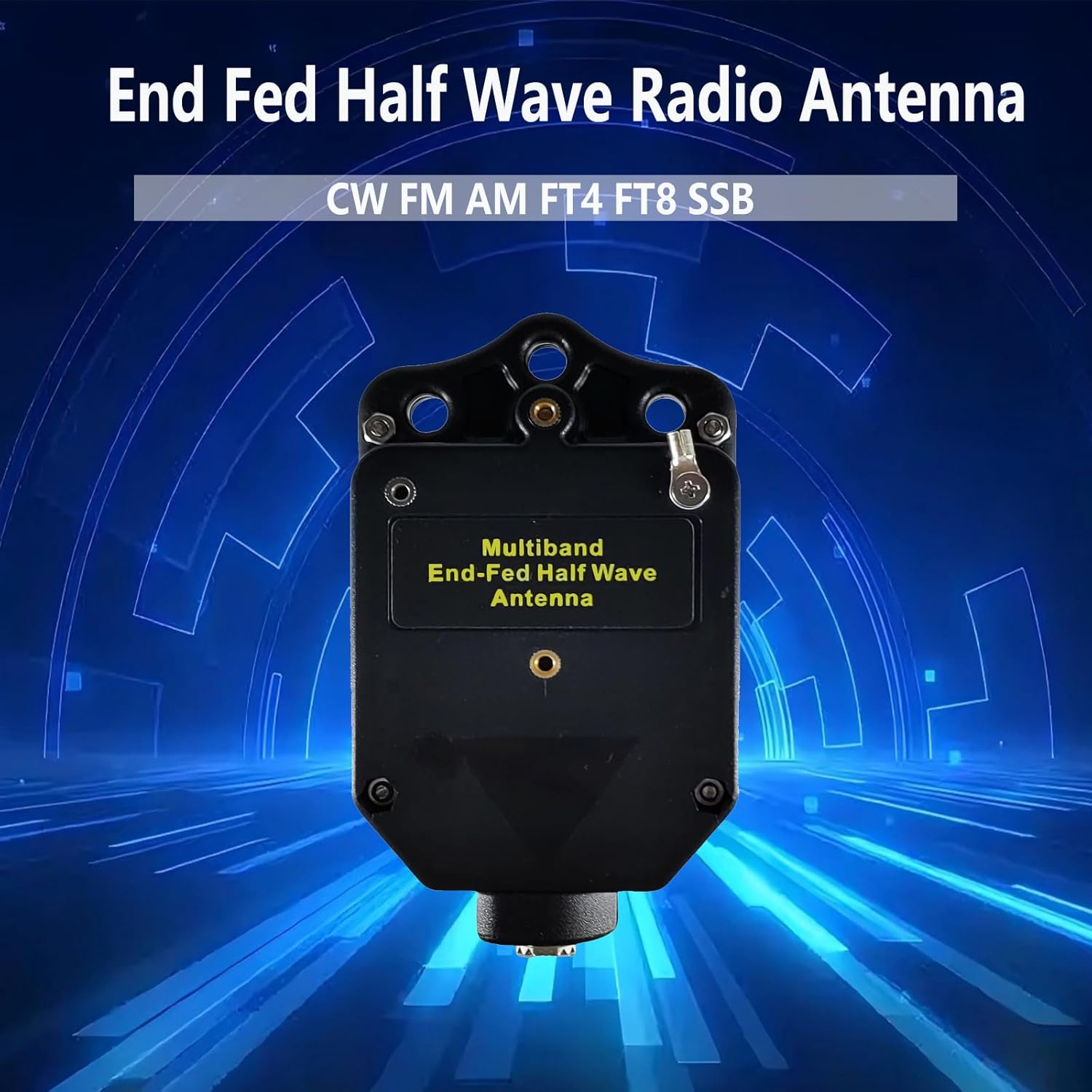

Image: The antenna shown with text indicating support for CW, FM, AM, FT4, FT8, and SSB modes.

Značilnosti delovanja

The antenna is designed to provide good SWR across its supported bands. Below are examples of SWR measurements at various frequencies:

Image: A compilation of four SWR charts. The charts display SWR readings of 1.11 at 28.8760 MHz, 1.17 at 21.2300 MHz, 1.01 at 14.1600 MHz, and 1.25 at 7.0700 MHz, demonstrating the antenna's performance across different bands.

Vzdrževanje

To ensure the longevity and optimal performance of your antenna, consider the following maintenance tips:

• Vodotesnost: While the housing has an integral rubber grommet, for enhanced weather resistance, it is recommended to apply a bead of RTV sealant along the edges of the housing when assembling or inspecting the unit. This can prevent moisture ingress over time.
• UV zaščita: The antenna housing is made of ABS plastic, which may degrade over time with prolonged exposure to ultraviolet (UV) radiation. If the antenna is permanently installed in direct sunlight, consider additional UV protective coatings or shielding to extend its lifespan.
• Preverjanje povezave: Periodically inspect all connections (antenna wire, coaxial cable) for corrosion or looseness. Clean and re-tighten as necessary.
• Fizični pregled: Regularly check the antenna wire and balun housing for any physical damage, fraying, or cracks. Address any issues promptly.

Odpravljanje težav

If you encounter issues with your GOOZEEZOO End Fed Half Wave Antenna, consider the following steps:

• Visok SWR:
  • Check all connections for tightness and proper contact.
  • Verify the length of your antenna wire matches the recommended specifications for the desired band.
  • Ensure the antenna is installed at an adequate height and clear of obstructions.
  • Inspect the coaxial cable for damage.
• No Signal or Weak Reception:
  • Confirm the antenna is properly connected to your radio.
  • Check for continuity in the antenna wire and coaxial cable.
  • Ensure your radio is tuned to the correct frequency and mode.
• Motnje:
  • Ensure proper grounding of your radio equipment.
  • Consider adding a common mode choke at the feed point if experiencing RF interference with other electronic devices.

Specifikacije

Image: The antenna with overlaid dimensions, showing a length of 6.7 inches, width of 3.9 inches, and height of 2.4 inches. Magnetic ring specifications are also listed.

Garancija in podpora

For warranty information, technical support, or any inquiries regarding your GOOZEEZOO End Fed Half Wave Antenna, please contact the manufacturer directly through their official channels or the retailer where the product was purchased.

Manufacturer: GOOZEEZOO
