Brezžični ročni in palični sesalnik CLEANmaxx

1. Uvod in predstavitev izdelkaview

Thank you for choosing the CLEANmaxx Cordless Handheld and Stick Vacuum Cleaner Model 12401. This versatile appliance is designed for efficient cleaning of various surfaces in your home and vehicle. Its cordless design and powerful suction make it a convenient tool for daily cleaning tasks.

Glavne lastnosti vključujejo:

• Vsestranska uporaba: Functions as both a handheld and stick vacuum, suitable for furniture, car seats, carpets, keyboards, and stairs.
• Močno sesanje: Two adjustable suction levels to adapt to different cleaning needs.
• Učinkovito filtriranje: Equipped with a stainless steel filter and an EPA 11 filter for effective dust and dirt absorption.
• Enostavno vzdrževanje: Features an 800 ml dust bin that is simple to empty and clean.
• Brezžična prilagodljivost: An adjustable aluminum telescopic tube (up to 80 cm) provides extended reach and freedom of movement.

2. Varnostna navodila

Pred uporabo naprave natančno preberite vsa varnostna navodila, da preprečite poškodbe ali škodo.

• Prepričajte se, da je napajalnik združljiv z vašim lokalnim napajanjem.
• Sesalnika ne uporabljajte za sesanje vode ali drugih tekočin, vročega pepela, gorečih cigaret ali ostrih predmetov.
• Lase, ohlapna oblačila, prste in vse dele telesa ne približujte odprtinam in premikajočim se delom.
• Sesalnika ne uporabljajte, če je poškodovan ali ne deluje pravilno. Za pomoč se obrnite na podporo strankam.
• Ta naprava je samo za uporabo v zaprtih prostorih.
• Hraniti izven dosega otrok.
• Uporabljajte samo priključke in dodatno opremo, ki jih priporoča proizvajalec.
• Unplug the power adapter before cleaning or performing maintenance.

3. Vsebina paketa

Previdno razpakirajte škatlo in se prepričajte, da so vsi predmeti prisotni in v dobrem stanju. Če kateri koli predmet manjka ali je poškodovan, se obrnite na prodajalca.

• 1x Cordless Cyclonic Vacuum Cleaner Unit
• 1x Aluminum Telescopic Tube
• 1x Power 3000 Floor Nozzle
• 1x Ščitnik za špranje
• 1x Combination Nozzle
• 1x Nozzle Adapter
• 1x napajalnik
• 1x Wall Mount with Fixing Material (screws and wall plugs)

Image: All included components of the CLEANmaxx Cordless Handheld and Stick Vacuum Cleaner, including the main unit, telescopic tube, various nozzles, power adapter, and wall mount.

4. Nastavitev in montaža

The CLEANmaxx vacuum cleaner can be assembled in two configurations: as a stick vacuum or as a handheld vacuum.

4.1. Assembling the Stick Vacuum

1. Attach the aluminum telescopic tube to the main vacuum cleaner unit until it clicks into place.
2. Connect the Power 3000 floor nozzle to the other end of the telescopic tube until it securely locks.
3. Pred uporabo se prepričajte, da so vse povezave trdne.

4.2. Assembling the Handheld Vacuum

1. For handheld use, detach the telescopic tube if it is connected.
2. Attach the desired accessory (crevice tool or combination nozzle) directly to the main vacuum cleaner unit or via the nozzle adapter.
3. Ensure the attachment is securely fitted.

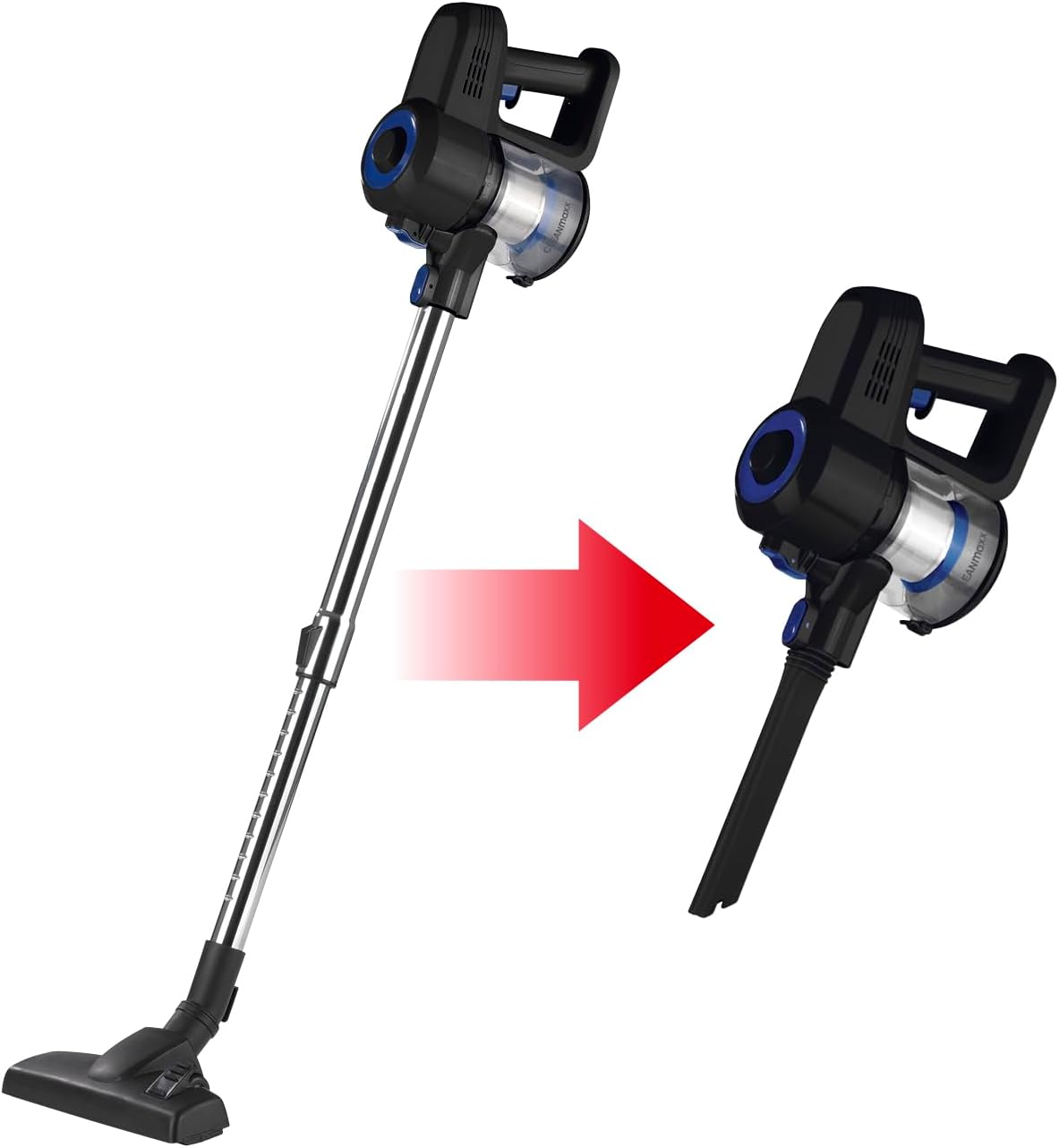

Image: Visual representation of how the CLEANmaxx vacuum cleaner converts from a full-size stick vacuum to a compact handheld unit by removing the telescopic tube and attaching a nozzle directly.

4.3. Polnjenje baterije

Pred prvo uporabo popolnoma napolnite baterijo sesalnika. Priključite napajalnik v polnilno vtičnico na glavni enoti in ga vključite v stensko vtičnico. Indikatorska lučka polnjenja bo prikazovala stanje polnjenja. Popolnoma napolnjena baterija zagotavlja do 35 minut delovanja.

4.4. Stenska montaža (neobvezno)

The included wall mount allows for convenient storage. Choose a suitable location near a power outlet. Use the provided screws and wall plugs to securely attach the mount to the wall. Ensure the mount is level and strong enough to hold the vacuum cleaner.

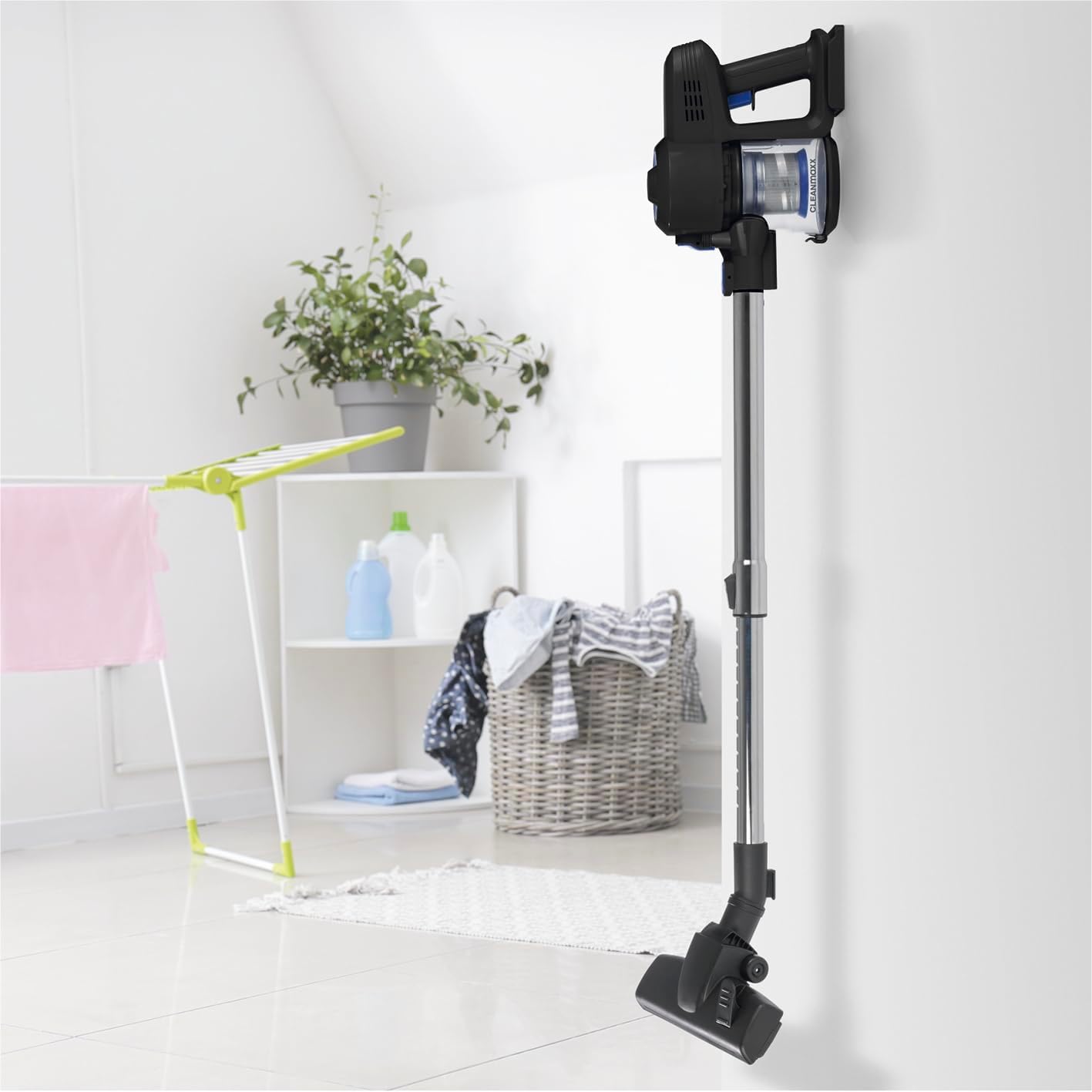

Image: The CLEANmaxx Cordless Vacuum Cleaner stored on its wall mount in a room, demonstrating space-saving storage.

5. Navodila za uporabo

5.1. Powering On/Off and Suction Levels

• Press the power button to turn the vacuum cleaner on. It will start in the standard suction mode.
• Press the power button again to switch to the higher suction mode.
• Za izklop sesalnika tretjič pritisnite gumb za vklop.

5.2. Using the Stick Vacuum

For general floor cleaning, attach the telescopic tube and the Power 3000 floor nozzle. This configuration is ideal for hard floors and carpets.

Image: A person operating the CLEANmaxx Cordless Stick Vacuum Cleaner on a light-colored carpet, demonstrating its use for floor cleaning.

5.3. Using the Handheld Vacuum and Attachments

For targeted cleaning of smaller areas, upholstery, or tight spaces, use the main unit as a handheld vacuum with the appropriate attachment.

• Orodje za reže: Excellent for reaching narrow gaps, corners, and edges.
• Kombinirana šoba: Features a brush for dusting and a wider opening for general surface cleaning.

Image: A hand using the CLEANmaxx Cordless Handheld Vacuum Cleaner with an attachment to clean dirt from the fabric of a grey armchair.

6. Vzdrževanje

Redno vzdrževanje zagotavlja optimalno delovanje in podaljšuje življenjsko dobo vašega sesalnika.

6.1. Praznjenje posode za prah

1. Prepričajte se, da je sesalnik izklopljen.
2. Locate the dust bin release button, usually near the handle.
3. Press the button to detach the dust bin from the main unit.
4. Hold the dust bin over a trash can and open the bottom flap to empty the contents.
5. Close the flap and reattach the dust bin to the main unit until it clicks securely.

6.2. Čiščenje filtrov

The CLEANmaxx 12401 uses a stainless steel pre-filter and an EPA 11 filter. Both should be cleaned regularly.

1. Odstranite posodo za prah, kot je opisano zgoraj.
2. Carefully remove the stainless steel filter and the EPA 11 filter from the dust bin.
3. Filtre nežno potrkajte po košu za smeti, da odstranite prah.
4. If necessary, rinse the filters under cold running water. Ensure they are completely dry before reinserting them. Do not use detergents or hot water.
5. Reassemble the filters and dust bin, then attach them back to the vacuum cleaner.

6.3. Generalno čiščenje

Zunanjost sesalnika obrišite z mehko,amp cloth. Do not use abrasive cleaners or solvents. Check the floor nozzle for any tangled hair or debris and remove them as needed.

7. Odpravljanje težav

If you encounter any issues with your CLEANmaxx vacuum cleaner, refer to the following troubleshooting guide:

If the problem persists after following these steps, please contact CLEANmaxx customer support.

8. Specifikacije

9. Garancija in podpora

Za informacije o garanciji in podporo strankam glejte dokumentacijo, ki ste jo prejeli ob nakupu, ali se obrnite na prodajalca. Shranite dokazilo o nakupu za morebitne garancijske zahtevke.

10. Uradni videoposnetki izdelkov

Za ta model ni bilo mogoče najti nobenih uradnih videoposnetkov izdelka prodajalca.
